Bosch PMF 220 CE / 3603A02070 / --- 230 Volt Spare Parts

Bosch PMF 220 CE / 3603A02070 / --- 230 Volt Spare Parts

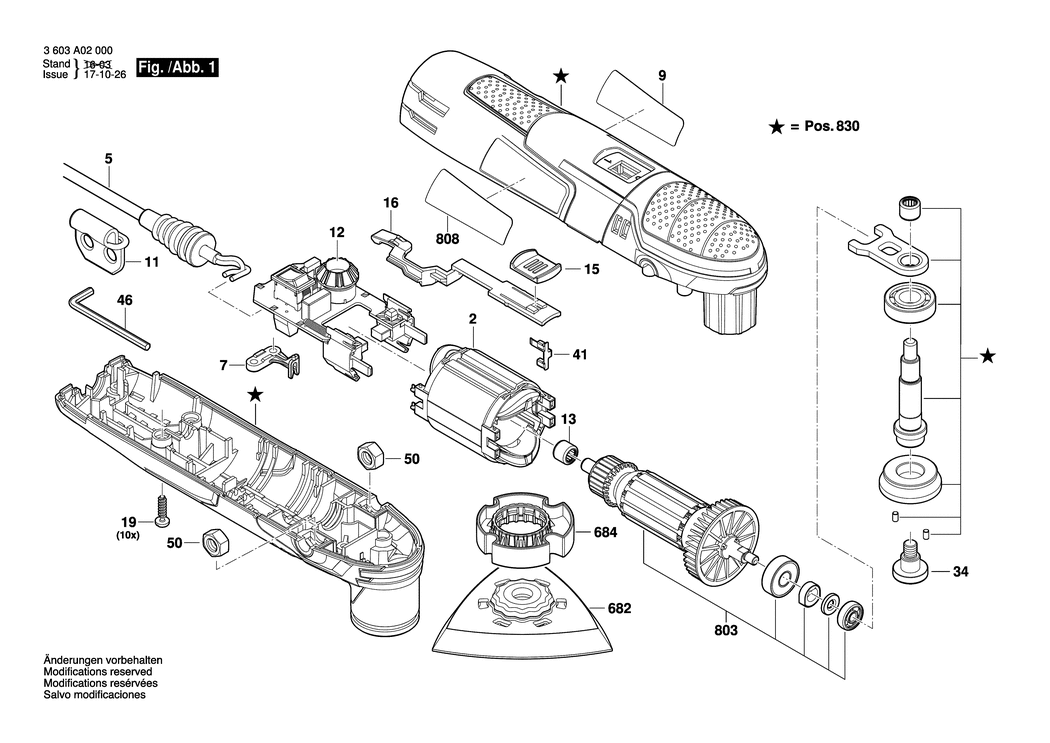

An exploded drawing and listing for the Bosch PMF 220 CE / 3603A02070 / --- 230 Volt
Ex VAT Inc VAT
2 - FIELD BSD-2609007814.A6 2609007814 £27.23 £32.68
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460243.A25 2604460243 £13.12 £15.75
7 - CABLE CLIP BSD-2609006171.A13 2609006171 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE PMF 220 CE BSD-160111C0KM.A0 160111C0KM £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE PMF 2000 CE BSD-160111C1J7.A1 160111C1J7 £2.61 £3.13
11 - KEY HOLDER BSD-2609006359.A5 2609006359 £2.80 £3.36
12 - ELECTRONICS MODULE BSD-2609005719.A0 2609005719 £46.37 £55.64
13 - NEEDLE BEARING BSD-2600917002.A18 2600917002 £3.72 £4.47
15 - SLIDE BUTTON BSD-2609005541.A1 2609005541 £2.80 £3.36
16 - SLIDER BSD-2609007716.A12 2609007716 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A748 2603490022 £1.75 £2.10
34 - HEX SCREW BSD-160343507R.A0 160343507R £3.26 £3.91
41 - CONTACT SPRING BSD-2601329037.A50 2601329037 £1.75 £2.10
46 - HEXAGON SOCKET SCREW KEY 5 MM BSD-2610364015.A31 2610364015 £3.72 £4.47
50 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A97 2915011009 £2.61 £3.13
682 - SANDER PLATE BSD-1600A008LS.A2 1600A008LS £14.91 £17.89
684 - DEPTH GAUGE BSD-1600A0087V.A6 1600A0087V £1.75 £2.10
803 - ARMATURE ASSEMBLY 220-240V BSD-1604010B5G.A2 1604010B5G £48.38 £58.06
808 - NAMEPLATE BSD-160111A35Z.A0 160111A35Z -
830 - DRIVE ASSEMBLY BSD-1600A00K1V.A0 1600A00K1V £45.67 £54.80
