Fein ASW 12-16 (12V) / 71130500020 Spare Parts

Fein ASW 12-16 ⠒V) / 71130500020 Spare Parts

Home Details Reviews Delivery

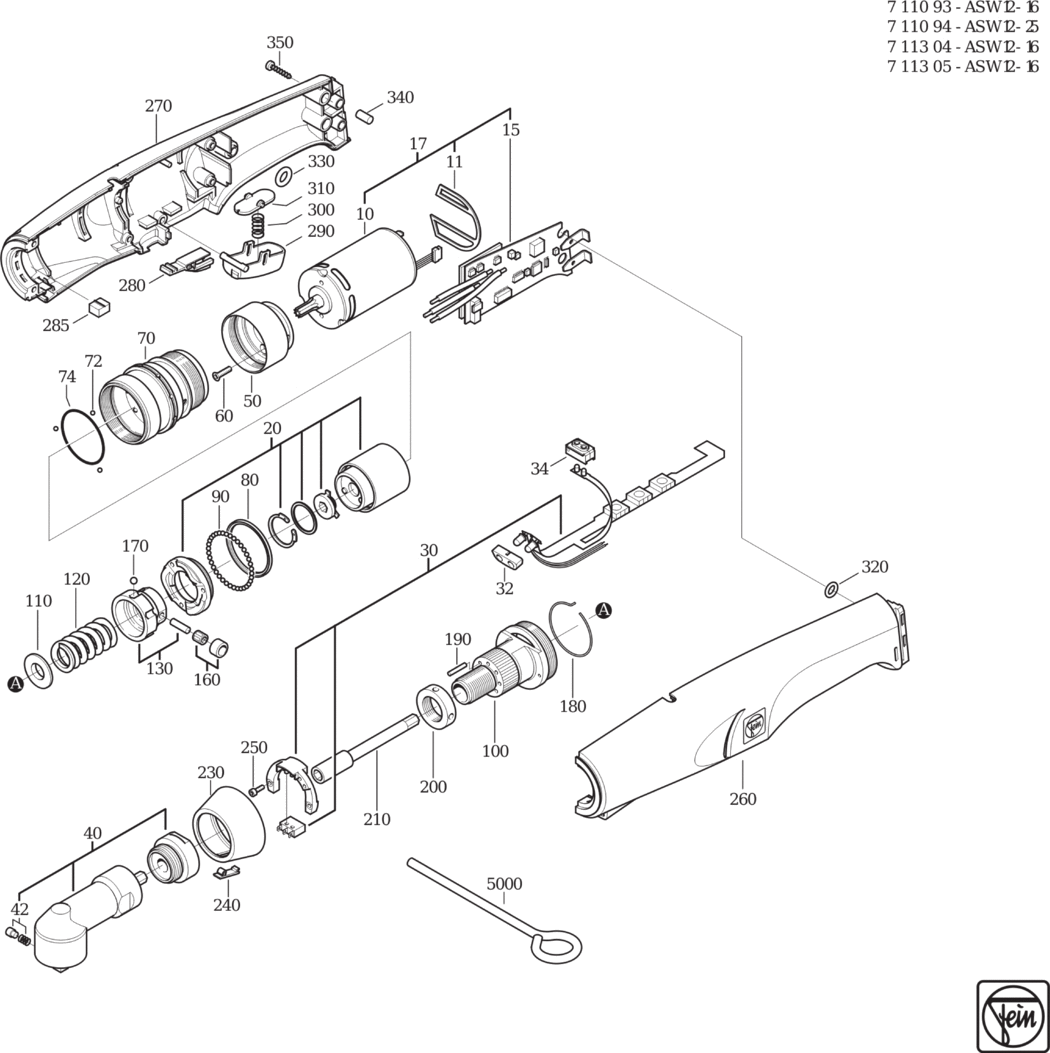

An exploded diagram and spare parts listing for the Fein ASW 12-16 (12V) / 71130500020

	Ex VAT	Inc VAT
10 - MOTOR FEI-54199011024.A1 54199011024	-
11 - PLATE FEI-32432077002.A0 32432077002	-
15 - ELECTRONICS FEI-30762350997.A2 30762350997	£314.38	£377.26
17 - MOTOR FEI-54199010025.A2 54199010025	-
20 - PLANETARY GEAR FEI-30109157017.A0 30109157017	-
30 - FOIL CONDUCTOR FEI-30762351996.A1 30762351996	£161.49	£193.79
32 - HOLDER FEI-30240250006.A0 30240250006	-
34 - HOLDER FEI-30240251005.A3 30240251005	-
40 - GEARBOX HOUSING FEI-31206126037.A0 31206126037	-
50 - FLANGE FEI-32436066003.A2 32436066003	-
60 - COUNTERSUNK SCREW FEI-43069006031.A1 43069006031	-
70 - HOUSING FEI-31207253005.A0 31207253005	-
72 - BALL FEI-41708013003.A12 41708013003	-
74 - SEALING RING FEI-40612088002.A12 40612088002	£2.82	£3.38
80 - RING FEI-31710033008.A1 31710033008	-
90 - BALL FEI-41708013003.A11 41708013003	-
100 - SLEEVE FEI-30109156004.A2 30109156004	-
110 - DISC FEI-32408392004.A1 32408392004	-
120 - SPIRAL SPRING FEI-30901355008.A0 30901355008	-
130 - CLUTCH RING FEI-30103047017.A3 30103047017	-
160 - BEARING FEI-30501343010.A0 30501343010	-
170 - BALL FEI-41708017002.A52 41708017002	£1.60	£1.92
180 - CIRCLIP FEI-42615144000.A2 42615144000	-
190 - NEEDLE ROLLER FEI-41709043001.A3 41709043001	-
200 - NUT FEI-32009072000.A2 32009072000	-
210 - SHAFT FEI-33406292006.A3 33406292006	-
230 - CAP FEI-30219052004.A2 30219052004	£5.60	£6.72
240 - COVER FEI-32424024000.A0 32424024000	-
250 - CYLINDER HEAD SCREW FEI-43035142975.A1 43035142975	-
260 - MOTOR HOUSING FEI-31912061018.A1 31912061018	-
270 - MOTOR HOUSING FEI-31912060019.A2 31912060019	-
280 - SWITCH PUSHBUTTON FEI-32805232000.A2 32805232000	-
285 - PRESSURE PIECE FEI-30220066000.A3 30220066000	-
290 - SWITCH PUSHBUTTON FEI-32805183000.A1 32805183000	-
300 - SPIRAL SPRING FEI-30901357005.A1 30901357005	£2.38	£2.86
310 - PLATE FEI-32805182006.A1 32805182006	-
320 - SEALING RING FEI-40612123000.A1 40612123000	-
330 - SEALING RING FEI-40612074004.A3 40612074004	-
340 - PRESSURE PIECE FEI-31415061003.A24 31415061003	£1.60	£1.92
350 - SCREW FEI-43072015000.A48 43072015000	£1.60	£1.92
5000 - RETAINING PIN FEI-62913004000.A5 62913004000	£7.50	£9.00

Attribute Name	Value
Brand	Fein
