Bosch 550 WATT-SERIE / 0607352116 / --- Spare Parts

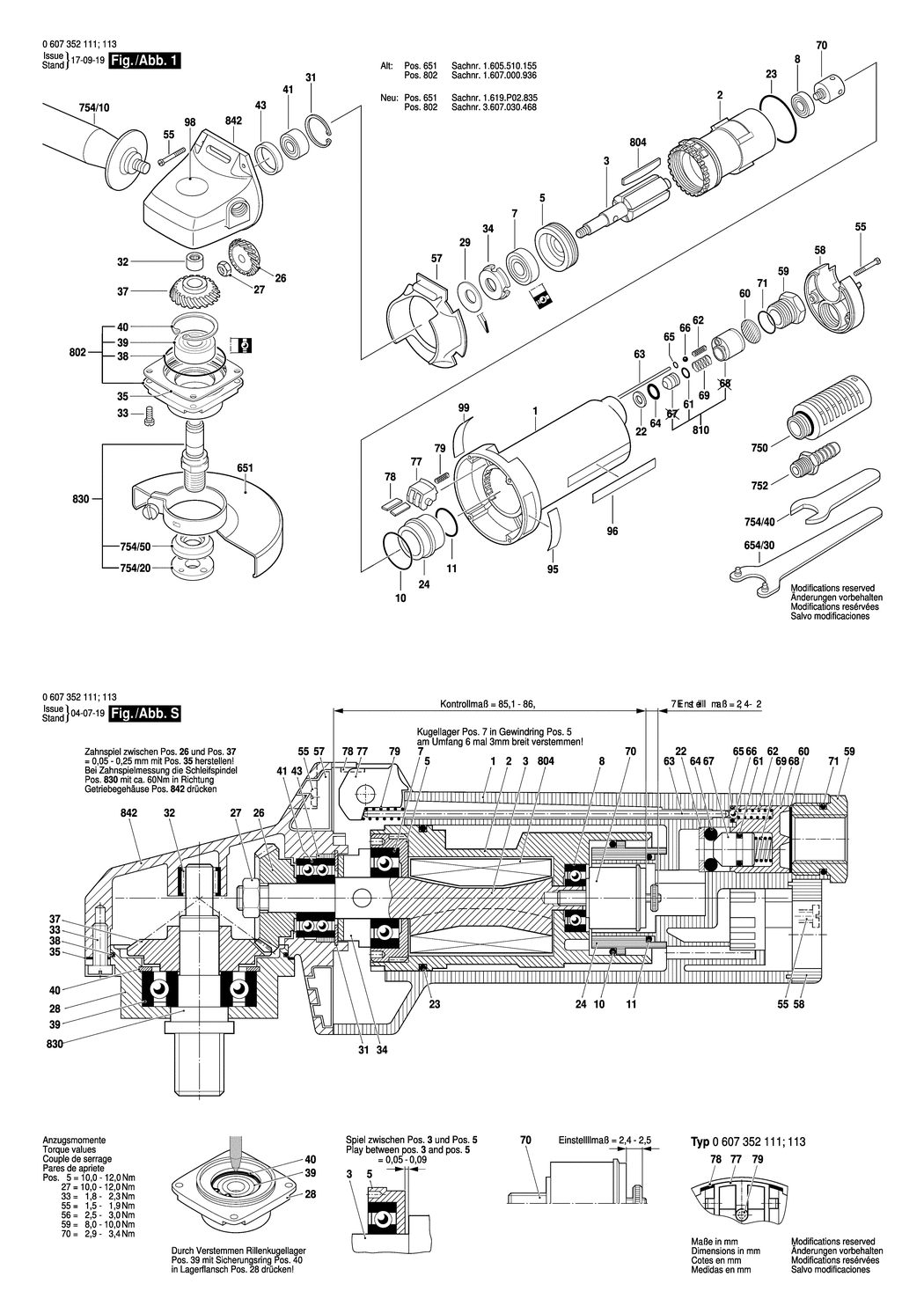

An exploded drawing and listing for the Bosch 550 WATT-SERIE / 0607352116 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108059.A14 3605108059	£27.23	£32.68
2 - STATOR 550W BSD-3604090049.A4 3604090049	£93.88	£112.65
3 - ROTOR BSD-3604220077.A11 3604220077	£102.57	£123.08
5 - BEARING FLANGE BSD-3605700074.A5 3605700074	£27.23	£32.68
7 - GROOVE BALL BEARING BSD-3600905038.A4 3600905038	£14.91	£17.89
8 - GROOVE BALL BEARING DIN 625-7x19x6 BSD-3600905148.A9 3600905148	£8.49	£10.19
10 - O-RING 28x2 MM BSD-1900210127.A14 1900210127	£5.30	£6.36
11 - O-RING 20x2 MM BSD-1900210118.A50 1900210118	£2.80	£3.36
22 - STOP DISC BSD-3600100022.A17 3600100022	£2.16	£2.59
23 - O-RING 39.0x2.0 MM BSD-3600210022.A45 3600210022	£3.72	£4.47
24 - GUIDE SLEEVE BSD-3600327000.A14 3600327000	£3.72	£4.47
26 - BEVEL GEAR Z=23 BSD-3606333045.A7 3606333045	£40.80	£48.96
27 - HEX NUT BSD-1603300017.A41 1603300017	-
29 - DISC SPRING DIN 2093-C25G21 BSD-2916160109.A9 2916160109	£2.16	£2.59
31 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A147 2916660009	£2.16	£2.59
32 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A826 1600910018	£5.30	£6.36
33 - THREAD-FORMING TAP. SCREW DIN 7500-TM4x12 BSD-2914471401.A55 2914471401	£1.75	£2.10
34 - THRUST RING BSD-3600203002.A7 3600203002	£33.74	£40.49
35 - SHIM 0.1 MM BSD-1600136012.A98 1600136012	£1.75	£2.10
35 - SHIM 0.2 MM BSD-1600136010.A98 1600136010	£2.61	£3.13
35 - SHIM 0.3 MM BSD-1600136011.A225 1600136011	£2.16	£2.59
37 - CROWN GEAR Z=31 BSD-3606334049.A10 3606334049	£48.38	£58.06
38 - O-RING 46.0x1.1 MM BSD-3600210124.A204 3600210124	£2.80	£3.36
39 - GROOVE BALL BEARING 12x32x10 BSD-1600905007.A73 1600905007	£11.30	£13.56
40 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A454 2916660013	£2.16	£2.59
41 - ANG. CONTACT BALL BEARING BSD-3600905037.A8 3600905037	£33.74	£40.49
43 - RUBBER RING BSD-1600206025.A717 1600206025	£2.16	£2.59
55 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A850 2910211021	£1.75	£2.10
57 - COVER PLATE BSD-3600591000.A14 3600591000	£11.30	£13.56
58 - CONNECTION COVER BSD-3605500032.A25 3605500032	£8.67	£10.41
59 - FITTING BSD-3603462011.A56 3603462011	£14.91	£17.89
60 - FILTER SCREEN BSD-3600002004.A35 3600002004	£2.80	£3.36
61 - O-RING 6.0x2.0 MM BSD-3600210023.A4 3600210023	£3.72	£4.47
62 - COMPRESSION SPRING BSD-2604611025.A23 2604611025	£2.80	£3.36
63 - STRAIGHT PIN BSD-3604710054.A17 3604710054	£3.72	£4.47
64 - O-RING 5.94x3.53 MM BSD-3600210024.A52 3600210024	£2.16	£2.59
65 - O-RING 2.7x1.5 MM BSD-3600210025.A4 3600210025	£2.16	£2.59
66 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A148 1903230004	£2.16	£2.59
69 - COMPRESSION SPRING BSD-3604610024.A34 3604610024	£1.75	£2.10
70 - CENTRIFUGAL GOVERNOR BSD-3607021012.A3 3607021012	£40.80	£48.96
71 - O-RING 15x2 MM BSD-1900210112.A61 1900210112	£2.61	£3.13
77 - TOGGLE SWITCH BSD-3602033001.A21 3602033001	£3.72	£4.47
78 - HOLDING PLATE BSD-3601100021.A4 3601100021	£5.30	£6.36
79 - COMPRESSION SPRING BSD-3604610008.A3 3604610008	£1.75	£2.10
95 - NAMEPLATE BSD-160111A3HF.A79 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A235 1601110481	£2.16	£2.59
98 - REFERENCE PLATE BSD-3601119238.A1 3601119238	£3.72	£4.47
99 - REFERENCE PLATE BSD-3601119236.A1447 3601119236	£3.72	£4.47
651 - PROTECTIVE COVER dia125 MM BSD-1600A00XU7.A11 1600A00XU7	£9.49	£11.39
654/30 - PIN-TYPE FACE-WRENCH BSD-1607950052.A246 1607950052	£3.72	£4.47
750 - SILENCER BSD-3607000073.A174 3607000073	£18.96	£22.75
752 - HOSE FITTING BSD-3603386068.A56 3603386068	£21.52	£25.83
754/10 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A836 160202509T	£3.72	£4.47
754/20 - ROUND NUT M14 BSD-1603345043.A505 1603345043	£8.67	£10.41
754/40 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A891 2607950511	£4.26	£5.11
754/50 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A816 2605703014	£7.36	£8.83
802 - BEARING FLANGE BSD-3607030468.A10 3607030468	£93.88	£112.65
804 - ASSEMBLY OF SERVICE PARTS BSD-3607030260.A31 3607030260	£21.68	£26.01
810 - PISTON ASSEMBLY GROUP BSD-3607030494.A16 3607030494	£18.96	£22.75
830 - ASSEMBLY OF SERVICE PARTS M14 BSD-1607000933.A19 1607000933	-
842 - GEAR HOUSING BSD-3605806050.A8 3605806050	£54.42	£65.30
