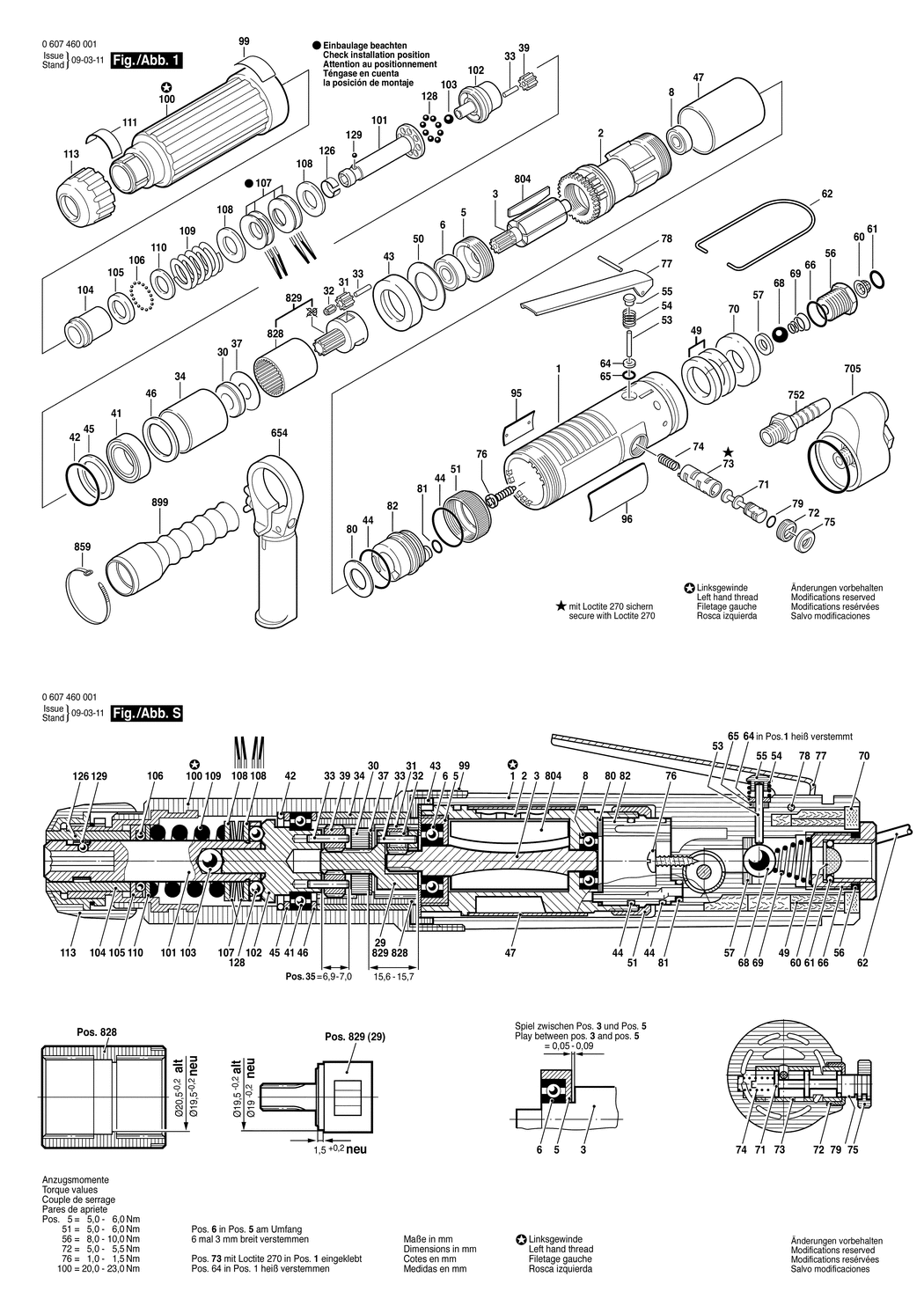

1 - MOTOR HOUSING
BSD-3605108072.A1
3605108072
|
£31.64
|
£37.97
|
|
2 - STATOR 320-400W
BSD-3604090044.A0
3604090044
|
£81.81
|
£98.17
|
|
3 - ROTOR
BSD-3604220085.A0
3604220085
|
£114.88
|
£137.86
|
|
5 - BEARING FLANGE
BSD-3605700076.A17
3605700076
|
£48.38
|
£58.06
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A65
3600905039
|
£12.04
|
£14.45
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A210
1900905028
|
£33.74
|
£40.49
|
|
30 - SPACER RING
BSD-3600209003.A0
3600209003
|
£5.58
|
£6.70
|
|
31 - CYLINDRICAL GEAR Z=14
BSD-3606316093.A72
3606316093
|
£2.61
|
£3.13
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A198
3600913000
|
£4.26
|
£5.11
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A406
3603201000
|
£1.75
|
£2.10
|
|
34 - RETAINING SNAP RING
BSD-3600400008.A12
3600400008
|
£18.96
|
£22.75
|
|
37 - SHIM 0.3 MM
BSD-1600101618.A117
1600101618
|
£2.61
|
£3.13
|
|
39 - CYLINDRICAL GEAR Z=14
BSD-3606316073.A12
3606316073
|
£2.61
|
£3.13
|
|
41 - GROOVE BALL BEARING
BSD-3600900011.A0
3600900011
|
£27.23
|
£32.68
|
|
42 - O-RING 28x2 MM
BSD-1900210327.A11
1900210327
|
£4.26
|
£5.11
|
|
43 - CLUTCH ELEMENT
BSD-3606334081.A0
3606334081
|
£3.72
|
£4.47
|
|
44 - O-RING 26.0x1.5 MM
BSD-2600210018.A95
2600210018
|
£3.72
|
£4.47
|
|
45 - SHIM
BSD-2600102036.A27
2600102036
|
£2.61
|
£3.13
|
|
46 - SHIM
BSD-2600102036.A28
2600102036
|
£2.61
|
£3.13
|
|
47 - SPIGOT
BSD-3600700032.A28
3600700032
|
£21.68
|
£26.01
|
|
49 - SILENCER
BSD-3601010006.A20
3601010006
|
£1.75
|
£2.10
|
|
50 - RETAINING WASHER
BSD-3600101036.A9
3600101036
|
£4.26
|
£5.11
|
|
51 - UNION NUT
BSD-3603313001.A17
3603313001
|
£14.91
|
£17.89
|
|
53 - NEEDLE ROLLER
BSD-3603201050.A7
3603201050
|
£1.75
|
£2.10
|
|
54 - COMPRESSION SPRING
BSD-3604611006.A173
3604611006
|
£2.16
|
£2.59
|
|
55 - VALVE CONE
BSD-3603132000.A3
3603132000
|
£2.80
|
£3.36
|
|
56 - FITTING
BSD-3603458010.A5
3603458010
|
£16.41
|
£19.69
|
|
57 - SEALING DISK
BSD-3600206006.A37
3600206006
|
-
|
|
|
60 - STRAINER
BSD-3600002000.A104
3600002000
|
£3.72
|
£4.47
|
|
61 - SHIM 0.5 MM
BSD-1600100617.A31
1600100617
|
£1.75
|
£2.10
|
|
62 - SUSPENSION LOOP
BSD-3604720004.A28
3604720004
|
£2.80
|
£3.36
|
|
64 - PLAIN WASHER DIN 125-A3.2-ST
BSD-2916011006.A183
2916011006
|
£1.75
|
£2.10
|
|
65 - O-RING 2.4x1.9 MM
BSD-2600210007.A1
2600210007
|
£2.16
|
£2.59
|
|
66 - O-RING 16x1.25 MM
BSD-3600210036.A7
3600210036
|
£2.16
|
£2.59
|
|
68 - BALL DIN 5401-9.5MM-III-ST
BSD-1903230528.A77
1903230528
|
£1.75
|
£2.10
|
|
69 - COMPRESSION SPRING
BSD-3604616008.A25
3604616008
|
-
|
|
|
70 - SILENCER
BSD-3600105002.A56
3600105002
|
£10.10
|
£12.12
|
|
71 - CONTROL PISTON
BSD-3608750023.A0
3608750023
|
£45.67
|
£54.80
|
|
72 - THREADED RING
BSD-3603344023.A7
3603344023
|
£31.64
|
£37.97
|
|
73 - VALVE BUSHING
BSD-3600340005.A3
3600340005
|
£54.42
|
£65.30
|
|
74 - COMPRESSION SPRING
BSD-3604611006.A174
3604611006
|
£2.16
|
£2.59
|
|
75 - RETAINING SNAP RING
BSD-3600202012.A0
3600202012
|
£10.10
|
£12.12
|
|
76 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A384
2910611006
|
£1.75
|
£2.10
|
|
77 - CONTROL LEVER
BSD-3601902001.A14
3601902001
|
£6.52
|
£7.83
|
|
78 - GROOVED PIN DIN 1475-2x18-ST
BSD-2917700040.A136
2917700040
|
£2.80
|
£3.36
|
|
79 - O-RING 9.0x1.2 MM
BSD-3600210038.A116
3600210038
|
£2.61
|
£3.13
|
|
80 - SEALING PLATE
BSD-3600054004.A0
3600054004
|
£6.52
|
£7.83
|
|
81 - O-RING 8.0x1.5 MM
BSD-1900210103.A27
1900210103
|
£2.80
|
£3.36
|
|
82 - INTERMEDIATE PIECE
BSD-3608750027.A29
3608750027
|
£14.91
|
£17.89
|
|
95 - NAMEPLATE
BSD-160111A3HF.A465
160111A3HF
|
£3.72
|
£4.47
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110039.A30
3601110039
|
£5.30
|
£6.36
|
|
97 - REFERENCE PLATE
BSD-3601110574.A23
3601110574
|
£2.61
|
£3.13
|
|
99 - REFERENCE PLATE
BSD-3601119236.A856
3601119236
|
£3.72
|
£4.47
|
|
100 - BEARING HOUSING
BSD-3605125051.A0
3605125051
|
£54.42
|
£65.30
|
|
101 - CLUTCH ELEMENT
BSD-3606490005.A0
3606490005
|
£81.81
|
£98.17
|
|
102 - DRIVE SHAFT
BSD-3606490004.A1
3606490004
|
£93.88
|
£112.65
|
|
103 - BALL DIN 5401-8 MM III-ST
BSD-1903230014.A8
1903230014
|
£1.75
|
£2.10
|
|
104 - BUSHING
BSD-3600300021.A0
3600300021
|
£33.74
|
£40.49
|
|
105 - RETAINING SNAP RING
BSD-2600501031.A1
2600501031
|
£14.91
|
£17.89
|
|
106 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A332
1903230004
|
£2.16
|
£2.59
|
|
107 - DISC SPRING
BSD-2600550018.A3
2600550018
|
£2.80
|
£3.36
|
|
108 - SUPPORTING DISC
BSD-2600103015.A0
2600103015
|
£7.36
|
£8.83
|
|
109 - COMPRESSION SPRING
BSD-2604619009.A18
2604619009
|
£2.80
|
£3.36
|
|
110 - SUPPORTING DISC
BSD-3600100031.A0
3600100031
|
£8.67
|
£10.41
|
|
111 - STICKER
BSD-3601110030.A1
3601110030
|
£2.16
|
£2.59
|
|
113 - ADJUSTING NUT
BSD-3600460004.A1
3600460004
|
£54.42
|
£65.30
|
|
126 - LEAF SPRING
BSD-2601250001.A109
2601250001
|
£3.72
|
£4.47
|
|
128 - BALL DIN 5401-5 G28
BSD-1903230009.A622
1903230009
|
£1.75
|
£2.10
|
|
129 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A168
1903230003
|
£2.61
|
£3.13
|
|
654 - AUXILIARY HANDLE dia48 MM
BSD-3602025007.A0
3602025007
|
£27.23
|
£32.68
|
|
705 - AIR HOSE SET
BSD-3607030024.A16
3607030024
|
£37.72
|
£45.27
|
|
752 - HOSE FITTING
BSD-3603386068.A14
3603386068
|
£21.52
|
£25.83
|
|
804 - ROTOR LAMELLA
BSD-3607030030.A52
3607030030
|
£31.64
|
£37.97
|
|
828 - RING GEAR Z=42/54
BSD-3606334021.A13
3606334021
|
£18.96
|
£22.75
|
|
829 - ASSEMBLY OF SERVICE PARTS
BSD-3607031322.A1
3607031322
|
£63.50
|
£76.20
|
|
859 - HOLDING BELT
BSD-3604710062.A80
3604710062
|
£1.75
|
£2.10
|
|
899 - AIR HOSE
BSD-3607000027.A23
3607000027
|
£33.74
|
£40.49
|
|
