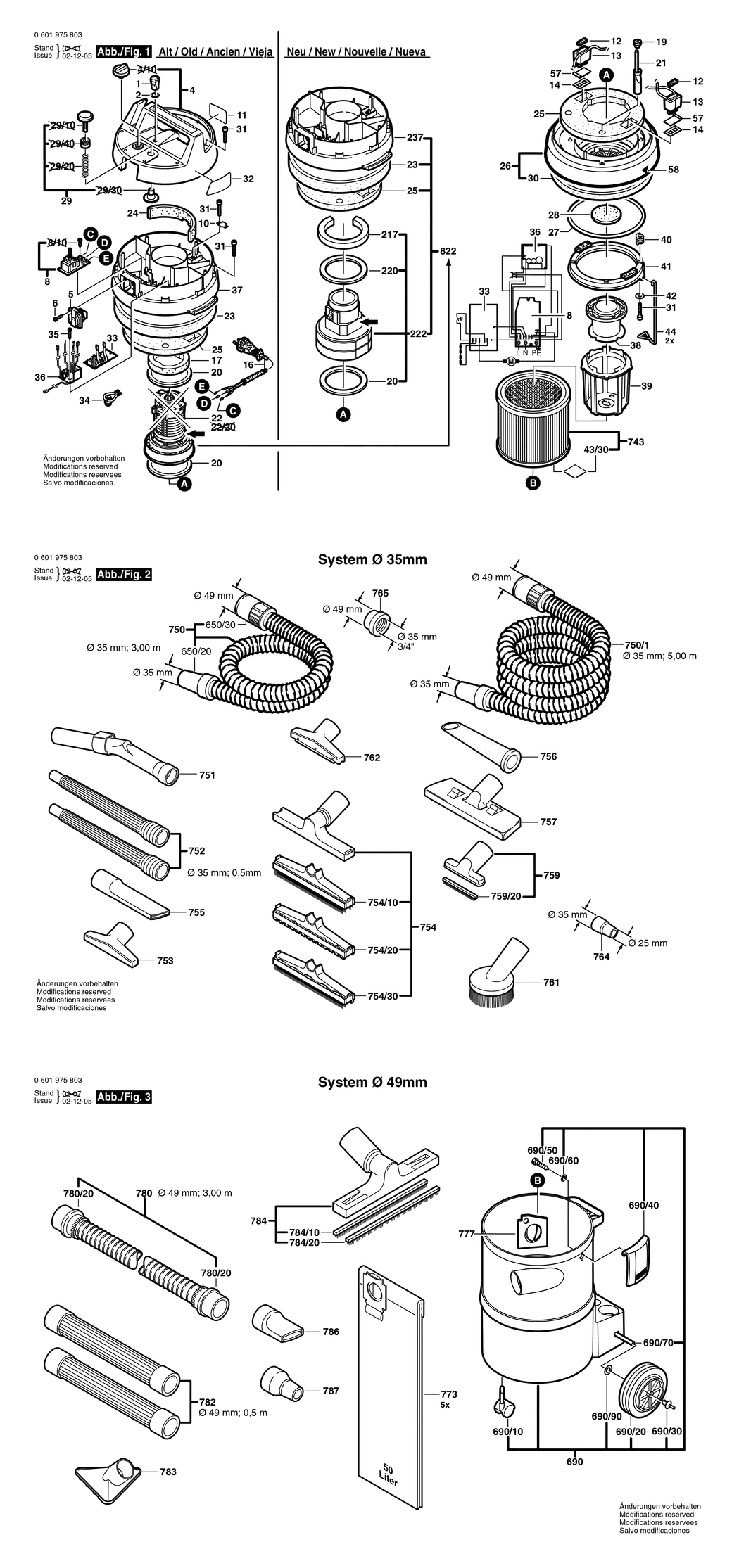

1 - INDICATOR LAMP
BSD-1609201654.A43
1609201654
|
£6.52
|
£7.83
|
|
|
2 - SEAL RING
BSD-1609201655.A13
1609201655
|
£1.75
|
£2.10
|
|
|
4 - COVERING HOOD
BSD-1609202713.A31
1609202713
|
-
|
|
|
|
5 - SOCKET
BSD-1609201707.A7
1609201707
|
-
|
|
|
|
6 - TAPPING SCREW DIN 7982-ST3.5x16-F-H
BSD-2910601412.A8
2910601412
|
£2.61
|
£3.13
|
|
|
8 - ON-OFF SWITCH
BSD-1609201706.A7
1609201706
|
£45.67
|
£54.80
|
|
|
10 - CABLE CLIP
BSD-1609202693.A38
1609202693
|
£1.32
|
£1.58
|
|
|
11 - NAMEPLATE
BSD-1601118554.A0
1601118554
|
-
|
|
|
|
12 - DAMPING PLATE
BSD-1609201660.A16
1609201660
|
£1.75
|
£2.10
|
|
|
13 - ATTACHMENT VIBRATOR 220-240V
BSD-1609201662.A10
1609201662
|
£93.88
|
£112.65
|
|
|
14 - SEALING DISK
BSD-1609201663.A57
1609201663
|
£2.16
|
£2.59
|
|
|
16 - POWER SUPPLY CORD
BSD-1609203191.A5
1609203191
|
-
|
|
|
|
17 - AIR-DEFLECTOR RING
BSD-1609201666.A13
1609201666
|
-
|
|
|
|
19 - SEAL RING
BSD-1609201668.A44
1609201668
|
£2.16
|
£2.59
|
|
|
20 - SEAL RING
BSD-1609201669.A11
1609201669
|
£5.58
|
£6.70
|
|
|
21 - GUIDE SLEEVE
BSD-1609202573.A7
1609202573
|
£3.72
|
£4.47
|
|
|
23 - DAMPING PLATE
BSD-1609203478.A24
1609203478
|
-
|
|
|
|
24 - DAMPING PLATE
BSD-1609202764.A21
1609202764
|
-
|
|
|
|
25 - DAMPING PLATE
BSD-1609203423.A15
1609203423
|
-
|
|
|
|
26 - INTERMEDIATE FLANGE
BSD-1609203474.A22
1609203474
|
-
|
|
|
|
27 - SEAL RING
BSD-1609201676.A44
1609201676
|
-
|
|
|
|
28 - AIR FILTER
BSD-1609201677.A10
1609201677
|
£1.95
|
£2.34
|
|
|
29 - ROTARY KNOB
BSD-1609202716.A4
1609202716
|
-
|
|
|
|
30 - SEAL
BSD-1609203499.A9
1609203499
|
-
|
|
|
|
31 - TAPPING SCREW DIN 7981-B3.5x25
BSD-2910611015.A0
2910611015
|
£1.75
|
£2.10
|
|
|
32 - MANUFACTURER'S NAMEPLATE
BSD-1601118194.A1
1601118194
|
-
|
|
|
|
33 - INTEGRATED CIRCUIT
BSD-1609202717.A7
1609202717
|
-
|
|
|
|
34 - PRESSURE SWITCH
BSD-1609203181.A7
1609203181
|
£21.52
|
£25.83
|
|
|
35 - TAPPING SCREW 3.5x32 MM
BSD-1609201681.A4
1609201681
|
-
|
|
|
|
35 - TAPPING SCREW DIN 7981-B3.5x25
BSD-2910611015.A1
2910611015
|
£1.75
|
£2.10
|
|
|
36 - AUTOMATIC SWITCHING UNIT
BSD-1609203C05.A11
1609203C05
|
-
|
|
|
|
37 - INTERMEDIATE HOUSING
BSD-1609202698.A14
1609202698
|
-
|
|
|
|
38 - FLOAT
BSD-1609200952.A51
1609200952
|
-
|
|
|
|
39 - SUCTION BASKET
BSD-1609201684.A99
1609201684
|
-
|
|
|
|
40 - COMPRESSION SPRING
BSD-1609201685.A4
1609201685
|
£2.16
|
£2.59
|
|
|
41 - RETAINING SNAP RING
BSD-1609203182.A3
1609203182
|
-
|
|
|
|
42 - PLAIN WASHER dia4.2xdia11x1.2MM
BSD-1609202726.A23
1609202726
|
£1.75
|
£2.10
|
|
|
43/30 - REFERENCE PLATE
BSD-1601110830.A31
1601110830
|
£2.61
|
£3.13
|
|
|
44 - RETAINING BRACKET
BSD-1609203528.A5
1609203528
|
-
|
|
|
|
57 - LEAF SPRING
BSD-1609202192.A16
1609202192
|
-
|
|
|
|
217 - AIR-DEFLECTOR RING
BSD-1609203B12.A32
1609203B12
|
-
|
|
|
|
220 - SEAL RING
BSD-1609203B13.A10
1609203B13
|
£6.52
|
£7.83
|
|
|
222 - SUCTION BLOWER
BSD-1609203Z37.A19
1609203Z37
|
£251.67
|
£302.00
|
|
|
237 - INTERMEDIATE HOUSING
BSD-1609203B15.A27
1609203B15
|
-
|
|
|
|
650/20 - FITTING
BSD-1609203V36.A52
1609203V36
|
£23.86
|
£28.63
|
|
|
650/30 - FITTING dia 49 MM
BSD-1609390580.A18
1609390580
|
£5.58
|
£6.70
|
|
|
690 - DUST CONTAINER
BSD-1609202711.A4
1609202711
|
-
|
|
|
|
690/10 - IMPELLER dia 50 MM
BSD-1609202703.A38
1609202703
|
£6.52
|
£7.83
|
|
|
690/20 - IMPELLER dia 200 MM
BSD-1609202712.A22
1609202712
|
£31.64
|
£37.97
|
|
|
690/30 - PLUG
BSD-1609202727.A37
1609202727
|
£3.72
|
£4.47
|
|
|
690/40 - BENT-LEVER CLOSURE
BSD-1609202708.A28
1609202708
|
-
|
|
|
|
690/50 - TAPPING SCREW DIN 7981-ST3.5x16-C-H
BSD-2910611012.A32
2910611012
|
-
|
|
|
|
690/60 - PLAIN WASHER dia4.2xdia11x1.2MM
BSD-1609202726.A22
1609202726
|
£1.75
|
£2.10
|
|
|
690/70 - ROLLER AXLE
BSD-1609202709.A8
1609202709
|
£14.91
|
£17.89
|
|
|
690/90 - PLAIN WASHER
BSD-1609202725.A22
1609202725
|
£1.75
|
£2.10
|
|
|
743 - AIR FILTER
BSD-2609390295.A0
2609390295
|
-
|
|
|
|
750 - AIR HOSE dia35MM.3M.1
BSD-2607000837.A21
2607000837
|
£59.49
|
£71.39
|
|
|
750/1 - AIR HOSE dia 35 MM. L=5 M
BSD-1609202230.A129
1609202230
|
£85.74
|
£102.89
|
|
|
751 - SETTING TUBE dia 35 MM
BSD-2607000164.A27
2607000164
|
£22.56
|
£27.07
|
|
|
752 - SUCTION PIPE dia 35 MM. 0.5 M
BSD-2607000162.A40
2607000162
|
£27.98
|
£33.57
|
|
|
753 - SUCTION NOZZLE dia 35 MM
BSD-2607000170.A27
2607000170
|
£13.12
|
£15.74
|
|
|
754 - SUCTION NOZZLE dia 35 MM
BSD-1609390478.A33
1609390478
|
£34.99
|
£41.99
|
|
|
754/10 - FLAT BRUSH
BSD-1609390493.A33
1609390493
|
£21.68
|
£26.01
|
|
|
754/20 - FLAT BRUSH
BSD-1609390494.A68
1609390494
|
-
|
|
|
|
754/30 - STRIP BRUSH
BSD-1609390495.A33
1609390495
|
£16.41
|
£19.69
|
|
|
755 - CREVICE NOZZLE dia 35 MM. L= 250 MM
BSD-2607000165.A101
2607000165
|
£5.24
|
£6.29
|
|
|
756 - SUCTION NOZZLE dia 35 MM
BSD-1609201229.A38
1609201229
|
£17.49
|
£20.99
|
|
|
757 - SUCTION NOZZLE dia 35 MM
BSD-1609201230.A100
1609201230
|
£41.99
|
£50.39
|
|
|
759 - SUCTION NOZZLE dia 35 MM
BSD-2607000166.A27
2607000166
|
£8.74
|
£10.49
|
|
|
759/20 - BRUSH INSERT
BSD-1609202534.A34
1609202534
|
£2.80
|
£3.36
|
|
|
761 - SUCTION BRUSH dia 35 MM
BSD-1609390481.A48
1609390481
|
£8.74
|
£10.49
|
|
|
762 - SUCTION NOZZLE dia 35 MM
BSD-2607000168.A27
2607000168
|
-
|
|
|
|
764 - FITTING dia 25x35 MM
BSD-1600499005.A14
1600499005
|
£3.49
|
£4.19
|
|
|
765 - REDUCTION SLEEVE dia 49/35 MM+3/4
BSD-1609200933.A93
1609200933
|
£7.21
|
£8.65
|
|
|
773 - DUST BAG
BSD-2605411062.A10
2605411062
|
£22.74
|
£27.29
|
|
|
777 - DEFLECTOR
BSD-2607001248.A29
2607001248
|
-
|
|
|
|
780 - AIR HOSE dia 49 MM. 3 M.1
BSD-2607000167.A76
2607000167
|
£64.74
|
£77.69
|
|
|
780/20 - FITTING dia 49 MM
BSD-1609390577.A12
1609390577
|
£5.58
|
£6.70
|
|
|
782 - SUCTION PIPE dia 49 MM. L=0.5 M
BSD-1609200968.A51
1609200968
|
£12.24
|
£14.69
|
|
|
783 - SUCTION NOZZLE dia 49 MM
BSD-2607000169.A33
2607000169
|
-
|
|
|
|
784 - SUCTION NOZZLE dia 49 MM. 350 MM
BSD-1609200970.A62
1609200970
|
£26.24
|
£31.49
|
|
|
784/10 - FLAT BRUSH
BSD-1609201109.A38
1609201109
|
-
|
|
|
|
784/20 - FLAT BRUSH
BSD-1609201110.A89
1609201110
|
-
|
|
|
|
786 - CREVICE NOZZLE dia 49 MM
BSD-1609200971.A60
1609200971
|
£7.87
|
£9.44
|
|
|
787 - SUCTION PIPE dia 49/35 MM
BSD-1609200976.A84
1609200976
|
£3.61
|
£4.33
|
|
|
822 - MODIFICATION SET 230V
BSD-1609203G98.A7
1609203G98
|
-
|
|
|
