Bosch PFZ 700 PE / 0603362732 / CH 230 Volt Spare Parts

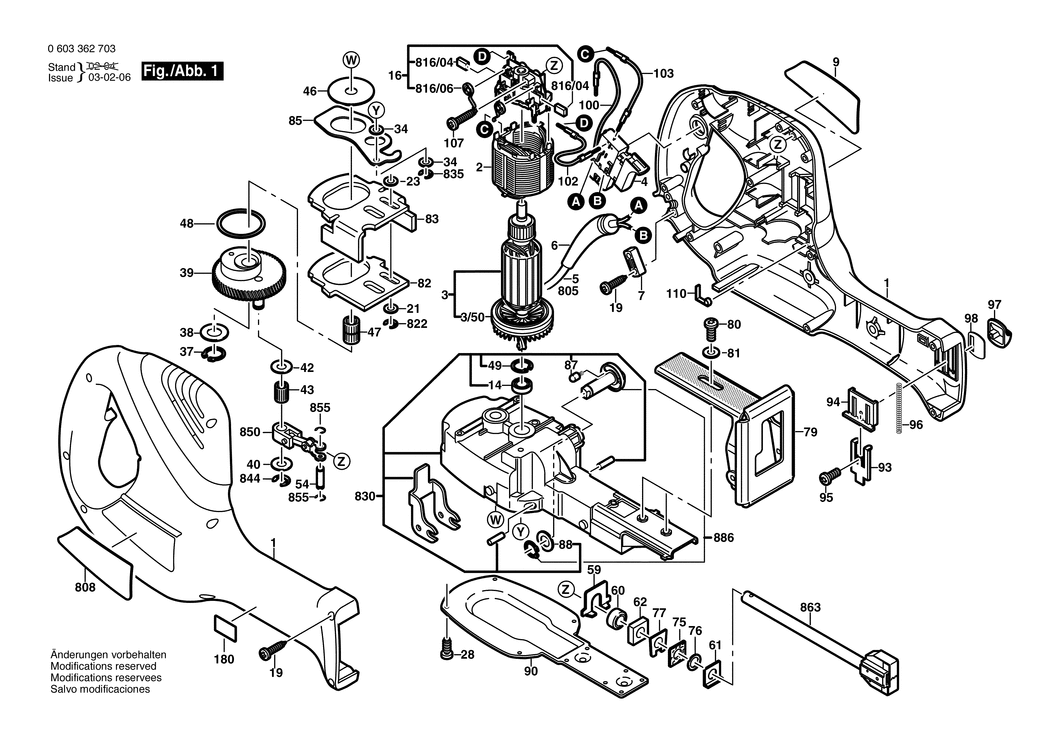

An exploded drawing and listing for the Bosch PFZ 700 PE / 0603362732 / CH 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104603.A0 2605104603	£14.75	£17.70
2 - FIELD 230-240V BSD-2604220620.A4 2604220620	£24.45	£29.34
3 - ARMATURE 220-240V BSD-2604011190.A1 2604011190	£54.42	£65.30
3/50 - FAN BSD-2606610093.A8 2606610093	£2.80	£3.36
4 - SWITCH BSD-2607200579.A6 2607200579	£37.27	£44.72
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460432.A47 1604460432	£11.30	£13.56
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A526 2600703017	£2.61	£3.13
7 - CABLE CLIP BSD-2601035001.A2687 2601035001	£1.75	£2.10
9 - STICKER BSD-2601119607.A0 2601119607	£1.95	£2.34
14 - BALL BEARING 9x24x7 BSD-2600905095.A141 2600905095	£12.04	£14.45
16 - BRUSH PLATE BSD-2605807082.A27 2605807082	£27.23	£32.68
19 - SCREW 4x16 BSD-2603490022.A2490 2603490022	£1.75	£2.10
21 - SHIM BSD-2600100525.A22 2600100525	£1.75	£2.10
23 - SHIM BSD-2600100103.A0 2600100103	£1.32	£1.58
28 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A298 2603410049	£1.75	£2.10
34 - SHIM BSD-2600100040.A16 2600100040	£1.75	£2.10
37 - SPRING RETAINING RING DIN 471-12x1-FSTM BSD-2916650903.A56 2916650903	£1.75	£2.10
38 - SHIM BSD-2600105001.A6 2600105001	£1.95	£2.34
39 - ECCENTRIC COG WHEEL BSD-2606320061.A8 2606320061	£37.72	£45.27
40 - SHIM 1.0 MM BSD-2600100647.A43 2600100647	£1.32	£1.58
42 - SHIM 0.5 MM BSD-2600101048.A163 2600101048	£1.75	£2.10
43 - NEEDLE-ROLLER ASSEMBLY BSD-2600913003.A10 2600913003	£3.34	£4.01
46 - SHIM BSD-2600105003.A2 2600105003	£1.75	£2.10
47 - NEEDLE-ROLLER ASSEMBLY BSD-2600913008.A13 2600913008	£8.49	£10.19
48 - SHIM BSD-2600105004.A6 2600105004	£1.95	£2.34
49 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A74 2916660008	£2.16	£2.59
54 - PIVOT PIN BSD-2603105065.A8 2603105065	£1.75	£2.10
59 - GUIDING PLATE BSD-2601334010.A0 2601334010	£1.95	£2.34
60 - SINTERED-METAL BUSHING BSD-2600302017.A1 2600302017	£3.80	£4.56
61 - SEALING DISK BSD-2601334011.A7 2601334011	£1.75	£2.10
62 - FELT DISC BSD-2600108078.A7 2600108078	£1.75	£2.10
75 - RUBBER GASKET 1 MM BSD-2601015082.A13 2601015082	£2.52	£3.02
76 - SCRAPER BSD-2600101038.A8 2600101038	£1.75	£2.10
77 - GUIDING PLATE BSD-2601334012.A6 2601334012	£1.75	£2.10
79 - BASE PLATE BSD-2608000239.A2 2608000239	£14.91	£17.89
80 - OVAL-HEAD SCREW M 5x10 BSD-2603414007.A4 2603414007	£1.75	£2.10
81 - PLAIN WASHER BSD-3600100002.A13 3600100002	£1.75	£2.10
82 - COUNTERWEIGHT BSD-2608012008.A8 2608012008	£8.49	£10.19
83 - COUNTERWEIGHT BSD-2608012009.A0 2608012009	£11.78	£14.13
85 - FORK LEVER BSD-2601923011.A7 2601923011	£6.61	£7.93
87 - RATCHET CAP BSD-2600590006.A525 2600590006	£1.75	£2.10
88 - SHIM 0.5 MM BSD-2600100577.A124 2600100577	£1.75	£2.10
88 - SHIM 0.2 MM BSD-2600100575.A120 2600100575	£2.16	£2.59
90 - GEAR COVER BSD-2605500142.A8 2605500142	£4.75	£5.70
93 - GUIDE PLATE BSD-2608005069.A1 2608005069	£1.75	£2.10
94 - CARRIER BSD-2608005061.A7 2608005061	£2.33	£2.80
95 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A153 2603490017	£2.16	£2.59
96 - SEALING DISK BSD-2604610064.A5 2604610064	£1.95	£2.34
97 - PUSH-BUTTON BSD-2602026077.A1 2602026077	£2.16	£2.59
98 - SLIDE PLATE BSD-2601098068.A2 2601098068	£1.75	£2.10
100 - EARTH CONDUCTOR BSD-2604448217.A4 2604448217	£3.34	£4.01
102 - CONNECTING CABLE L=220 MM BSD-2604448127.A14 2604448127	£1.32	£1.58
103 - CONNECTING CABLE BSD-2604448220.A5 2604448220	£2.33	£2.80
107 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A930 2603490024	£1.75	£2.10
110 - CONTACT SPRING BSD-2601329057.A196 2601329057	-
808 - NAMEPLATE BSD-2601119829.A0 2601119829	-
816/04 - CARBON-BRUSH SET BSD-2604320914.A41 2604320914	-
816/06 - SPIRAL SPRING BSD-1604652013.A278 1604652013	£1.75	£2.10
822 - LOCKING WASHER DIN 6799-6-FST BSD-2916080909.A155 2916080909	£1.75	£2.10
830 - GEAR HOUSING BSD-2605806899.A2 2605806899	£57.02	£68.42
835 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A38 2916080008	-
844 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A5 2916080910	£2.16	£2.59
850 - CONNECTING ROD BSD-2602130902.A2 2602130902	-
855 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A489 2916080007	£2.61	£3.13
863 - LIFTING ROD BSD-2600780907.A1 2600780907	£57.02	£68.42
886 - CHANGE-OVER SWITCH BSD-2602026903.A1 2602026903	£6.61	£7.93
