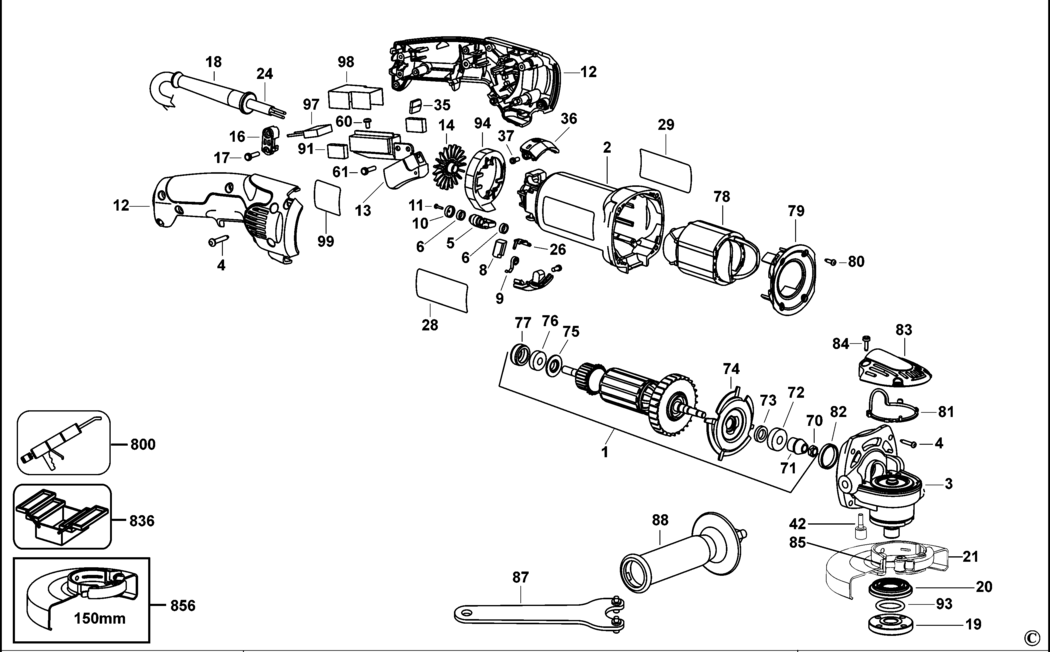

An exploded drawing and spare parts listing for the Dewalt D28065 Type 3 Small Angle Grinder
Ex VAT Inc VAT
1 - ARMATURE SA LX BDE-N397997.A1 N397997 £51.90 £62.28
1 - ARMATURE SA GB BDE-N398001.A1 N398001 £55.30 £66.36
2 - FIELDCASE BDE-632180-03.A0 632180-03 £7.85 £9.42
3 - GEAR CASE SA BDE-N086309.A2 N086309 £51.90 £62.28
4 - PLASTIC SCREW BDE-330065-31.A101 330065-31 £1.50 £1.80
5 - ARM BDE-648743-00.A31 648743-00 £1.50 £1.80
6 - FELT SEAL BDE-623592-00.A37 623592-00 £1.50 £1.80
8 - BRUSH PAIR 230V GB BDE-N088933.A1 N088933 £7.18 £8.62
8 - BRUSH 120V LX BDE-650918-01 650918-01 £5.88 £7.06
9 - BRUSH SPRING BDE-648613-00.A1 648613-00 £1.50 £1.80
10 - BRUSH CAP BDE-623591-00.A37 623591-00 £1.50 £1.80
11 - SCREW BDE-593685-00.A12 593685-00 £1.50 £1.80
12 - HANDLE SA GB BDE-647727-01.A1 647727-01 -
12 - HANDLE SA LX BDE-647727-01.A2 647727-01 -
13 - SWITCH LOCK-ON BDE-647715-00SV.A1 647715-00SV £17.48 £20.97
14 - SEPARATOR BDE-N055787.A40 N055787 £1.50 £1.80
16 - CORD CLAMP BDE-643889-00.A0 643889-00 £1.50 £1.80
17 - SCREW BDE-330019-03.A329 330019-03 £1.50 £1.80
18 - CORD PROTECTOR GB BDE-N542553.A260 N542553 £3.80 £4.56
18 - CORD PROTECTOR LX BDE-N185751.A5 N185751 -
19 - OUTER FLANGE BDE-622613-02.A63 622613-02 £4.69 £5.63
20 - INNER FLANGE SA BDE-633257-00SV.A44 633257-00SV £5.88 £7.06
21 - GUARD SA BDE-N039878.A6 N039878 £14.57 £17.48
24 - CORDSET GB BDE-562226-86.A2 562226-86 £25.70 £30.84
24 - CORDSET LX BDE-562226-87.A0 562226-87 £55.30 £66.36
26 - TERMINAL BDE-623593-00.A37 623593-00 £1.50 £1.80
28 - RATING PLATE LX BDE-N041569 N041569 £1.50 £1.80
28 - RATING PLATE GB BDE-N041567 N041567 £1.50 £1.80
29 - BRAND LABEL BDE-628885-00.A1 628885-00 £1.50 £1.80
35 - FELT SEAL BDE-646012-00.A0 646012-00 £1.50 £1.80
36 - BRUSH COVER BDE-646940-01.A1 646940-01 £1.50 £1.80
37 - SCREW BDE-648777-00.A5 648777-00 £1.50 £1.80
42 - SCREW BDE-N033051.A44 N033051 £1.50 £1.80
60 - SCREW BDE-387746-00.A0 387746-00 £1.50 £1.80
61 - SCREW BDE-330065-07.A2 330065-07 £1.50 £1.80
70 - NUT BDE-604484-00.A67 604484-00 £1.50 £1.80
71 - PINION BDE-629797-00.A6 629797-00 £14.57 £17.48
72 - BEARING GB BDE-605040-67.A1 605040-67 £1.50 £1.80
72 - BEARING BALL LX BDE-605040-11.A28 605040-11 £2.78 £3.34
73 - FELT SEAL BDE-623617-00.A51 623617-00 £1.50 £1.80
74 - RETAINER BDE-N422242.A37 N422242 £1.50 £1.80
75 - WASHER BDE-623613-00.A31 623613-00 £1.50 £1.80
76 - BEARING BDE-605040-02.A77 605040-02 £2.26 £2.71
77 - SLEEVE BDE-641823-00.A43 641823-00 £1.50 £1.80
78 - FIELD 120V LX BDE-627125-02.A0 627125-02 £29.32 £35.18
78 - FIELD 230V GB BDE-627125-05.A0 627125-05 £18.91 £22.69
79 - BAFFLE FAN BDE-623572-00.A47 623572-00 £1.50 £1.80
80 - SCREW BDE-330065-25.A3 330065-25 £1.50 £1.80
81 - GASKET BDE-632513-00.A21 632513-00 £1.50 £1.80
82 - SLEEVE BDE-611492-00.A73 611492-00 £1.50 £1.80
83 - GEARCASE COVER BDE-627313-00.A30 627313-00 £5.88 £7.06
84 - SCREW BDE-385676-01.A47 385676-01 £1.50 £1.80
85 - SCREW BDE-631609-03.A15 631609-03 £1.50 £1.80
87 - WRENCH PIN BDE-N079326.A6 N079326 £3.80 £4.56
88 - SIDE HANDLE BDE-614796-00.A11 614796-00 £14.57 £17.48
91 - PAD BDE-620051-00.A6 620051-00 £1.50 £1.80
93 - O RING BDE-633043-00.A37 633043-00 £1.50 £1.80
94 - BAFFLE BDE-640723-00.A2 640723-00 £1.50 £1.80
97 - CAPACITOR BDE-N435948.A2 N435948 £1.50 £1.80
98 - INSULATOR BDE-650937-00.A2 650937-00 £1.50 £1.80
800 - GREASE 50 GMS BDE-583534-00.A111 583534-00 £144.10 £172.92
836 - DRIVER BDE-233804-36.A59 233804-36 £30.08 £36.10
