Dewalt DCG414 Type 1 Small Angle Grinder Spare Parts

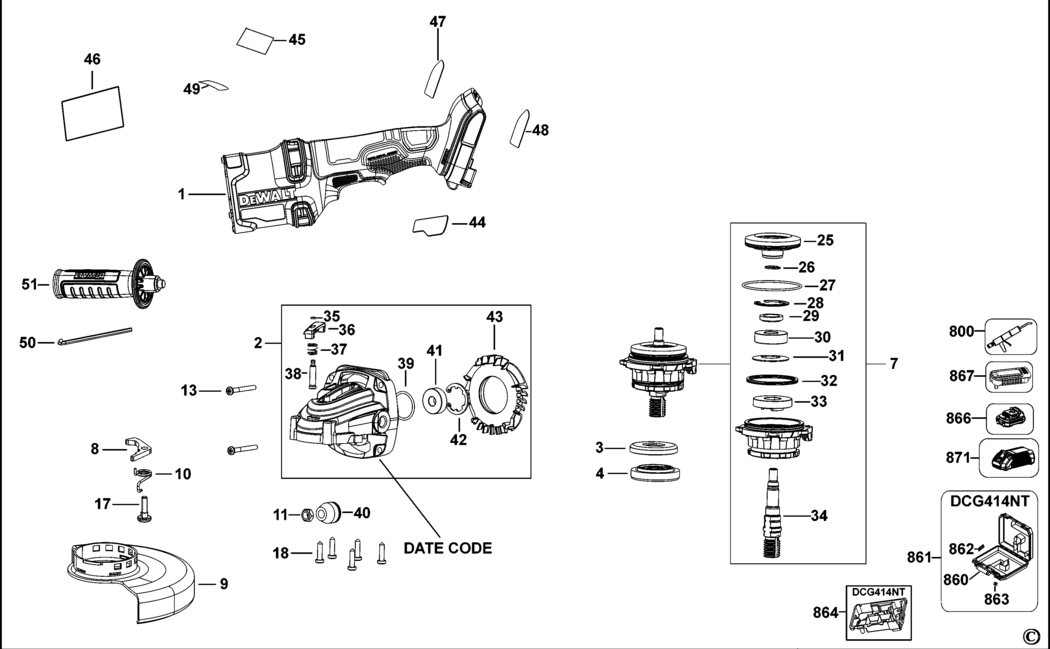

An exploded drawing and spare parts listing for the Dewalt DCG414 Type 1 Small Angle Grinder

	Ex VAT	Inc VAT
1 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE GB BDE-000000-05.A120 000000-05	-
2 - GEARCASE SA GB BDE-N480241 N480241	£25.05	£30.06
3 - INNER FLANGE BDE-391969-00.A105 391969-00	£1.82	£2.19
4 - OUTER FLANGE GB BDE-N484250.A1 N484250	£16.03	£19.24
6 - ARMATURE BDE-N455880.A0 N455880	£47.08	£56.49
7 - GEARCASE COVER SA BDE-N455879 N455879	£41.24	£49.49
8 - LEVER BDE-N637725.A5 N637725	£2.26	£2.71
8 - LEVER BDE-N637725.A6 N637725	£2.26	£2.71
9 - GUARD BDE-N458872.A0 N458872	£7.85	£9.42
10 - SPRING BDE-N465886.A11 N465886	£1.50	£1.80
10 - SPRING BDE-N465886.A12 N465886	£1.50	£1.80
11 - NUT BDE-N372039.A24 N372039	£1.50	£1.80
11 - NUT BDE-N372039.A25 N372039	£1.50	£1.80
12 - ROLL PIN BDE-N071836.A9 N071836	£1.50	£1.80
13 - SCREW BDE-N412210.A0 N412210	£1.50	£1.80
13 - SCREW BDE-N412210.A1 N412210	£1.50	£1.80
15 - SCREW BDE-330019-03.A205 330019-03	£1.50	£1.80
16 - VENT BDE-N436965.A0 N436965	£3.30	£3.96
17 - SCREW BDE-N297219.A16 N297219	£1.50	£1.80
17 - SCREW BDE-N297219.A17 N297219	£1.50	£1.80
18 - SCREW BDE-330045-06.A9 330045-06	£1.50	£1.80
18 - SCREW BDE-330045-06.A10 330045-06	£1.50	£1.80
19 - LOCK NUT BDE-330021-11.A7 330021-11	£1.50	£1.80
20 - BLOCK BDE-N122099.A6 N122099	£1.50	£1.80
21 - INSERT BDE-N438439.A10 N438439	£1.50	£1.80
22 - INSERT BDE-N438438.A6 N438438	£1.50	£1.80
23 - SCREW BDE-90611830.A206 90611830	£1.50	£1.80
24 - PLATE BDE-N467560.A2 N467560	£1.50	£1.80
25 - GEAR BDE-N449470.A0 N449470	£14.57	£17.48
25 - GEAR BDE-N449470.A1 N449470	£14.57	£17.48
26 - CIRCLIP BDE-444793-00.A4 444793-00	£1.50	£1.80
26 - CIRCLIP BDE-444793-00.A5 444793-00	£1.50	£1.80
27 - O RING BDE-N307625.A24 N307625	£1.50	£1.80
27 - O RING BDE-N307625.A25 N307625	£1.50	£1.80
28 - RING BDE-N389985.A18 N389985	£1.50	£1.80
29 - SPACER BDE-N390307.A2 N390307	£1.50	£1.80
29 - SPACER BDE-N390307.A3 N390307	£1.50	£1.80
30 - BEARING BDE-605040-24.A72 605040-24	£3.30	£3.96
30 - BEARING BDE-605040-24.A73 605040-24	£3.30	£3.96
31 - WASHER SPRING BDE-N390308.A0 N390308	£1.50	£1.80
31 - WASHER SPRING BDE-N390308.A1 N390308	£1.50	£1.80
32 - WASHER SPRING BDE-N135116.A6 N135116	£1.50	£1.80
32 - WASHER SPRING BDE-N135116.A7 N135116	£1.50	£1.80
33 - WASHER BDE-N448927.A1 N448927	£3.30	£3.96
33 - WASHER BDE-N448927.A2 N448927	£3.30	£3.96
34 - SPINDLE BDE-N449565.A1 N449565	£9.41	£11.29
35 - O RING BDE-N263699.A3 N263699	£1.50	£1.80
35 - O RING BDE-N263699.A4 N263699	£1.50	£1.80
36 - BUTTON BDE-N278899.A25 N278899	£1.50	£1.80
36 - BUTTON BDE-N278899.A26 N278899	£1.50	£1.80
37 - SPRING BDE-N263579.A26 N263579	£1.50	£1.80
37 - SPRING BDE-N263579.A27 N263579	£1.50	£1.80
38 - LOCK PIN BDE-N481683.A38 N481683	£1.50	£1.80
38 - LOCK PIN BDE-N481683.A39 N481683	£1.50	£1.80
39 - O RING BDE-N119639.A64 N119639	£1.50	£1.80
39 - O RING BDE-N119639.A65 N119639	£1.50	£1.80
40 - PINION BDE-N461411.A0 N461411	£7.18	£8.62
40 - PINION BDE-N461411.A1 N461411	£7.18	£8.62
41 - BEARING BDE-N175104.A49 N175104	£3.30	£3.96
41 - BEARING BDE-N175104.A50 N175104	£3.30	£3.96
42 - CIRCLIP BDE-N398877.A18 N398877	£1.50	£1.80
43 - DEFLECTOR BDE-N401958.A38 N401958	£1.50	£1.80
43 - DEFLECTOR BDE-N401958.A39 N401958	£1.50	£1.80
44 - BRAND LABEL BDE-N456830.A0 N456830	£1.50	£1.80
44 - BRAND LABEL BDE-N456830.A1 N456830	£1.50	£1.80
45 - LABEL BDE-N456232.A0 N456232	£1.50	£1.80
45 - LABEL BDE-N456232.A1 N456232	£1.50	£1.80
46 - RATING PLATE GB BDE-N453096 N453096	£1.50	£1.80
47 - BRAND LABEL BDE-N456831.A1 N456831	£1.50	£1.80
47 - BRAND LABEL BDE-N456831.A2 N456831	£1.50	£1.80
48 - BRAND LABEL BDE-N456832.A0 N456832	£1.50	£1.80
48 - BRAND LABEL BDE-N456832.A1 N456832	£1.50	£1.80
49 - LABEL BDE-N456231.A1 N456231	£1.50	£1.80
49 - LABEL BDE-N456231.A2 N456231	£1.50	£1.80
50 - HEX KEY 6 MM BDE-N107295.A29 N107295	£1.50	£1.80
51 - SIDE HANDLE BDE-N382311.A8 N382311	£12.17	£14.60
51 - SIDE HANDLE BDE-N382311.A9 N382311	£12.17	£14.60
52 - SPRING BDE-N461735.A12 N461735	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A77 583534-00	£144.10	£172.92
800 - GREASE 50 GMS BDE-583534-00.A78 583534-00	£144.10	£172.92
860 - HANDLE BDE-H1400198008.A51 H1400198008	£3.75	£4.50
861 - KITBOX DCG414NT BDE-N279261.A18 N279261	£44.14	£52.97
861 - KITBOX DCG414NT BDE-N279261.A19 N279261	£44.14	£52.97
862 - LATCH BDE-N409477.A64 N409477	£1.66	£1.99
863 - LATCH BDE-P910190.A104 P910190	£9.41	£11.29
864 - INSERT BDE-N450869.A1 N450869	£17.48	£20.97
864 - INSERT BDE-N450869.A2 N450869	£17.48	£20.97
866 - BATTERY 3 X18V-6.0AH-108WH DGG414T2 GB BDE-N473851.A14 N473851	£232.38	£278.85
867 - SAFETY CAP BDE-N462141.A4 N462141	£9.41	£11.29
867 - SAFETY CAP BDE-N462141.A5 N462141	£9.41	£11.29
871 - CHARGER GB DCG414T2 GB BDE-N473855.A8 N473855	£183.42	£220.10
