Dewalt DW818 Type 4 Small Angle Grinder Spare Parts

Dewalt DW818 Type 4 Small Angle Grinder Spare Parts

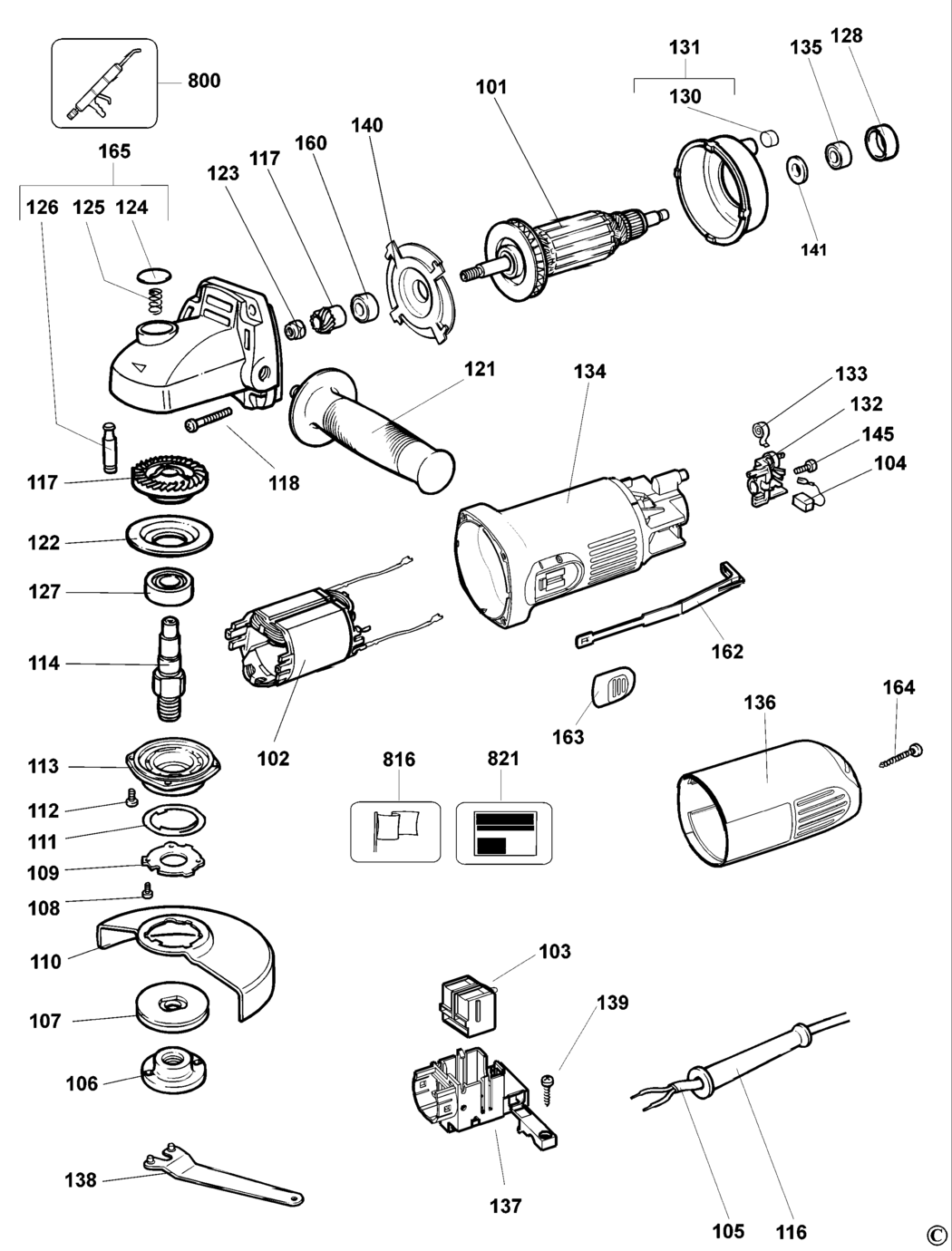

An exploded drawing and spare parts listing for the Dewalt DW818 Type 4 Small Angle Grinder
Ex VAT Inc VAT
101 - NO LONGER AVAILABLE LX BDE-000000-00.A59000 000000-00 -
101 - ARMATURE SA GB BDE-401703-26.A1 401703-26 -
101 - ARMATURE SA LX BDE-401703-26.A2 401703-26 -
102 - NO LONGER AVAILABLE LX BDE-000000-00.A59001 000000-00 -
102 - FIELD GB BDE-605527-00.A1 605527-00 £37.82 £45.38
103 - SWITCH BDE-945614-00.A53 945614-00 -
104 - BRUSH CUT OFF LX BDE-939539-00.A37 939539-00 £7.85 £9.42
104 - BRUSH CUT OFF GB BDE-939539-01.A102 939539-01 £2.78 £3.34
105 - CABLE GB 115V LX BDE-562226-07.A6 562226-07 £57.22 £68.66
105 - CABLE GB BDE-562226-09.A16 562226-09 -
106 - OUTER FLANGE BDE-622613-02.A96 622613-02 £4.69 £5.63
107 - INNER FLANGE BDE-391969-00.A9 391969-00 £1.82 £2.19
108 - SCREW BDE-562160-06.A37 562160-06 £1.50 £1.80
109 - RETAINING PLATE BDE-605415-00.A21 605415-00 -
110 - GUARD BDE-944685-00.A2 944685-00 -
111 - RING BDE-393576-00.A99 393576-00 £1.50 £1.80
112 - SCREW BDE-330045-46.A48 330045-46 £1.50 £1.80
113 - GEARCASE COVER BDE-945298-00.A68 945298-00 £5.88 £7.06
114 - SPINDLE BDE-391971-00.A36 391971-00 -
116 - CORD PROTECTOR GB 115V LX BDE-401088-03.A24 401088-03 £1.50 £1.80
116 - CORD PROTECTOR GB BDE-N542553.A10 N542553 £3.80 £4.56
117 - GEAR & PINION BDE-661243-00.A80 661243-00 £12.17 £14.60
118 - SCREW BDE-562097-01.A137 562097-01 £1.50 £1.80
121 - SIDE HANDLE BDE-573115-00.A53 573115-00 £2.78 £3.34
122 - FLANGE BDE-945299-00.A124 945299-00 £1.50 £1.80
123 - NUT BDE-945292-00.A111 945292-00 £1.50 £1.80
124 - BUTTON BDE-944574-00.A13 944574-00 £1.50 £1.80
125 - SPRING BDE-562210-00.A138 562210-00 £1.50 £1.80
126 - SPINDLE LOCK BDE-944571-00.A120 944571-00 -
127 - BEARING BDE-605040-22.A64 605040-22 £4.69 £5.63
128 - SLEEVE BDE-641823-00.A222 641823-00 £1.50 £1.80
130 - BUFFER BDE-949638-01.A18 949638-01 £1.50 £1.80
131 - BAFFLE SA BDE-401635-00.A3 401635-00 -
132 - BRUSH HOLDER BDE-606574-01.A2 606574-01 £7.18 £8.62
133 - SPRING BDE-562204-00.A97 562204-00 £1.50 £1.80
134 - NO LONGER AVAILABLE BDE-000000-00.A59002 000000-00 -
135 - BEARING BDE-605040-02.A20 605040-02 £2.26 £2.71
136 - END CAP BDE-394938-01.A0 394938-01 -
137 - SUPPORT BDE-611540-00.A27 611540-00 £1.50 £1.80
138 - WRENCH BDE-401680-00.A144 401680-00 £4.69 £5.63
139 - SCREW BDE-562097-05.A128 562097-05 £1.50 £1.80
140 - FLANGE BDE-401622-01.A170 401622-01 £1.50 £1.80
141 - SPACER INSULATING BDE-398906-00.A29 398906-00 £1.50 £1.80
145 - SCREW BDE-562097-00.A26 562097-00 £1.50 £1.80
160 - BEARING BDE-N110359.A115 N110359 £3.75 £4.50
162 - LINK BDE-611737-01.A1 611737-01 £2.26 £2.71
163 - BUTTON BDE-569624-01.A41 569624-01 £1.50 £1.80
164 - SCREW BDE-562097-13.A55 562097-13 £1.50 £1.80
165 - NO LONGER AVAILABLE BDE-000000-00.A59003 000000-00 -
800 - GREASE BDE-286436-00.A88 286436-00 £126.63 £151.96
816 - BRAND LABEL BDE-946194-00.A42 946194-00 £1.50 £1.80
821 - NO LONGER AVAILABLE BDE-000000-00.A59004 000000-00 -
