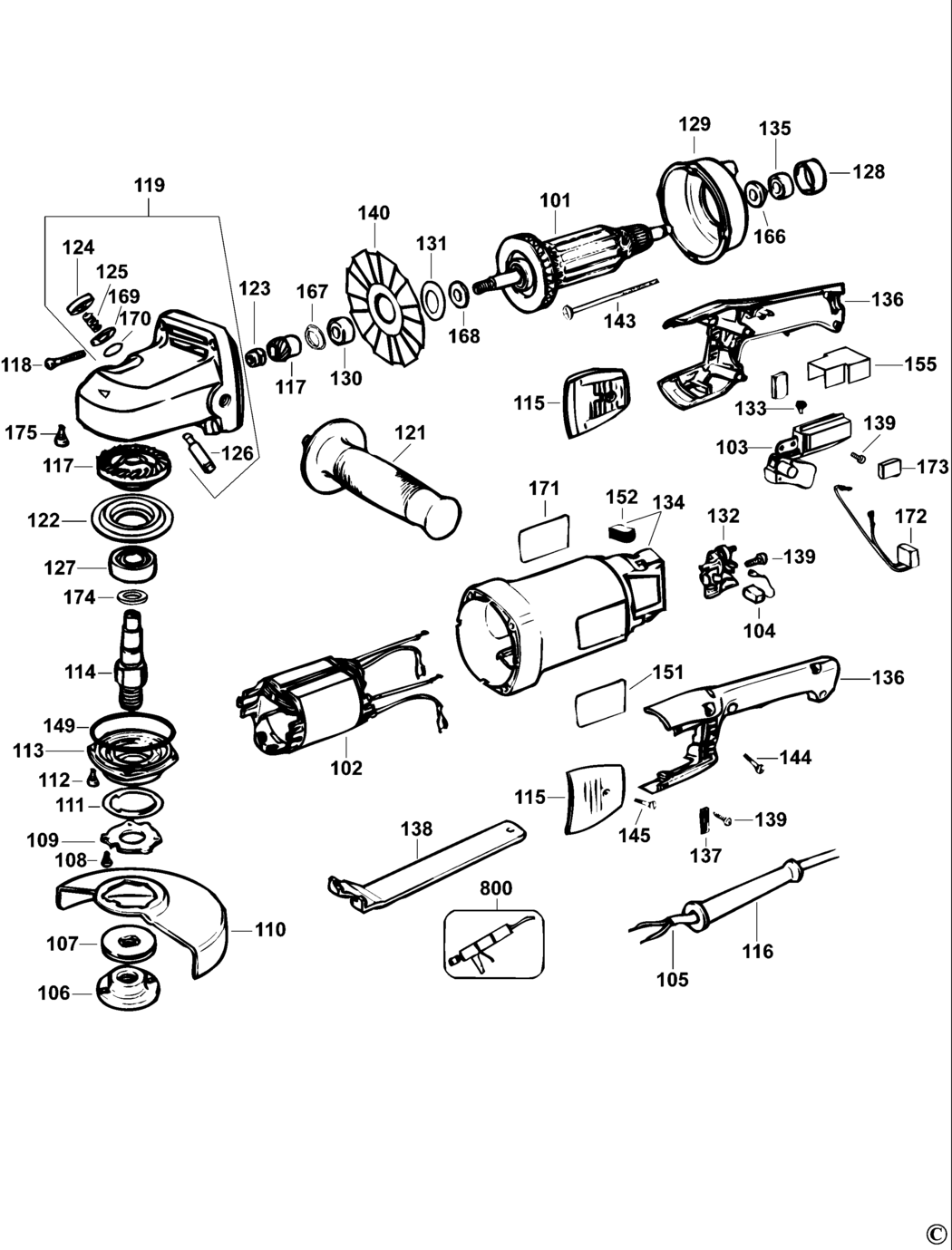

An exploded drawing and spare parts listing for the Dewalt DW831 Type 4 Small Angle Grinder
Ex VAT Inc VAT
101 - ARMATURE GB BDE-402875-08.A4 402875-08 £34.00 £40.80
101 - ARMATURE 115/120V XW BDE-402875-09.A0 402875-09 £38.80 £46.56
102 - FIELD 120V XW BDE-654390-02.A0 654390-02 £41.24 £49.49
102 - FIELD 230V GB BDE-654390-03.A2 654390-03 £44.14 £52.97
103 - SWITCH SA BDE-N015909.A1 N015909 £18.91 £22.69
104 - BRUSH PAIR 230V GB BDE-1003892-00 1003892-00 £17.48 £20.97
104 - BRUSH CUT OFF XW BDE-654631-03.A0 654631-03 £3.80 £4.56
105 - CORDSET (M/PLUG) GB GB BDE-330120-77.A1 330120-77 £24.39 £29.27
105 - CORDSET XW BDE-330061-35.A1 330061-35 £37.35 £44.82
106 - OUTER FLANGE BDE-401678-05.A91 401678-05 £4.69 £5.63
107 - INNER FLANGE BDE-391969-00.A73 391969-00 £1.82 £2.19
108 - SCREW BDE-562160-06.A12 562160-06 £1.50 £1.80
109 - RETAINING PLATE BDE-N043269.A0 N043269 £1.50 £1.80
110 - GUARD SA BDE-N042945 N042945 £5.88 £7.06
111 - RING BDE-393576-00.A16 393576-00 £1.50 £1.80
112 - SCREW BDE-330045-46.A19 330045-46 £1.50 £1.80
113 - GEARCASE COVER BDE-390521-01.A3 390521-01 £3.80 £4.56
114 - SPINDLE BDE-652000-00.A1 652000-00 £7.85 £9.42
115 - COVER BRUSH BDE-402849-00.A11 402849-00 £1.50 £1.80
116 - CORD PROTECTOR GB BDE-N542553.A417 N542553 £3.80 £4.56
116 - PROTECTOR XW BDE-401088-00.A14 401088-00 £1.50 £1.80
117 - GEAR & PINION SA BDE-429951-00.A0 429951-00 £38.80 £46.56
118 - SCREW BDE-562097-10.A22 562097-10 £1.50 £1.80
119 - GEARCASE BDE-569905-04.A4 569905-04 £16.03 £19.24
121 - SIDE HANDLE BDE-573115-00.A10 573115-00 £2.78 £3.34
122 - FLANGE BDE-398976-00.A3 398976-00 £1.50 £1.80
123 - NUT BDE-393568-00.A7 393568-00 £1.50 £1.80
124 - LOCK BUTTON BDE-390705-00.A5 390705-00 £1.50 £1.80
125 - SPRING BDE-562210-00.A18 562210-00 £1.50 £1.80
126 - PIN BDE-390704-00.A4 390704-00 £1.50 £1.80
127 - BEARING BDE-605040-22.A53 605040-22 £4.69 £5.63
128 - SLEEVE BDE-641823-00.A216 641823-00 £1.50 £1.80
129 - BAFFLE BDE-656706-00.A1 656706-00 £1.50 £1.80
130 - BEARING 6200 BDE-605040-60.A14 605040-60 £4.69 £5.63
131 - WASHER BDE-930753-00.A20 930753-00 £1.50 £1.80
132 - BRUSH & HOLDER SA XW BDE-402869-13SV.A0 402869-13SV £9.41 £11.29
132 - BRUSH & HOLDER SA GB BDE-402869-11.A2 402869-11 £14.57 £17.48
133 - SCREW BDE-387746-00.A10 387746-00 £1.50 £1.80
134 - FIELDCASE BDE-402871-25.A1 402871-25 £12.17 £14.60
135 - BEARING BALL BDE-605040-03.A60 605040-03 £2.78 £3.34
136 - HANDLE SA BDE-402844-11.A1 402844-11 £7.18 £8.62
137 - CORD CLAMP BDE-930103-00.A117 930103-00 £1.50 £1.80
138 - WRENCH BDE-401680-00.A133 401680-00 £4.69 £5.63
139 - SCREW BDE-562097-00.A55 562097-00 £1.50 £1.80
140 - FLANGE BDE-399032-01.A3 399032-01 £1.50 £1.80
143 - SCREW BDE-562097-11.A6 562097-11 £1.50 £1.80
144 - SCREW BDE-562097-03.A46 562097-03 £1.50 £1.80
145 - SCREW BDE-945280-00.A37 945280-00 £1.50 £1.80
149 - O RING BDE-403123-00.A9 403123-00 £1.50 £1.80
151 - IDENTITY LABEL BDE-398941-00.A1 398941-00 £1.50 £1.80
152 - SHOCK ABSORBER BDE-402847-00.A20 402847-00 £1.50 £1.80
155 - INSULATOR BDE-650937-00.A8 650937-00 £1.50 £1.80
166 - SPACER INSULATING BDE-398985-00.A7 398985-00 £1.50 £1.80
167 - RETAINER BDE-398909-00.A8 398909-00 £2.78 £3.34
168 - FELT SEAL BDE-399052-00.A2 399052-00 £1.50 £1.80
169 - WASHER BDE-403148-00.A7 403148-00 £1.50 £1.80
170 - RING BDE-050050-00.A26 050050-00 £1.50 £1.80
171 - RATING PLATE XW BDE-N046415 N046415 £1.42 £1.70
171 - RATING PLATE GB BDE-N046413 N046413 £1.50 £1.80
172 - CAPACITOR BDE-632218-00.A9 632218-00 £4.69 £5.63
173 - PAD BDE-620051-00.A2 620051-00 £1.50 £1.80
174 - FELT SEAL BDE-641893-00.A41 641893-00 £1.50 £1.80
800 - GREASE BDE-286436-00.A109 286436-00 £126.63 £151.96
