Dewalt DWE4000 Type 1 Small Angle Grinder Spare Parts

Dewalt DWE4000 Type 1 Small Angle Grinder Spare Parts
Home Details Reviews Delivery

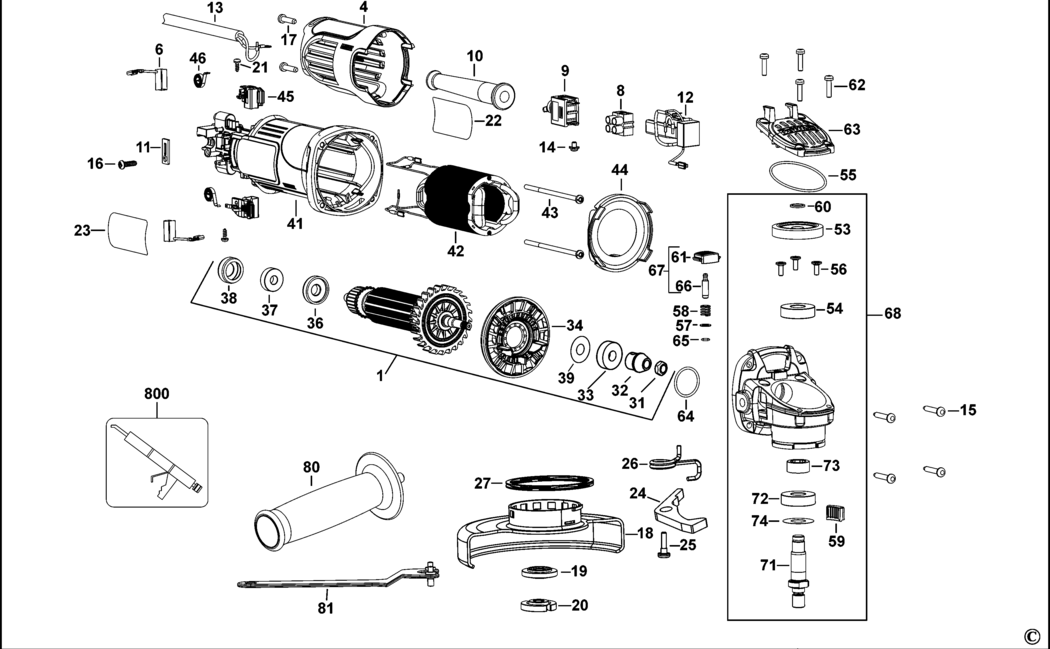

An exploded drawing and spare parts listing for the Dewalt DWE4000 Type 1 Small Angle Grinder
Ex VAT Inc VAT
8 - TERMINAL BLOCK BDE-320078-00.A55 320078-00 £2.26 £2.71
10 - CORD PROTECTOR BDE-N542553.A353 N542553 £3.80 £4.56
11 - CORD CLAMP BDE-619328-00.A33 619328-00 £1.50 £1.80
12 - CAPACITOR SA BDE-N136794.A1 N136794 -
14 - SCREW BDE-627647-00.A22 627647-00 -
15 - PLASTIC SCREW BDE-330065-31.A119 330065-31 £1.50 £1.80
16 - SCREW BDE-562097-00.A189 562097-00 £1.50 £1.80
17 - SCREW BDE-N017839.A18 N017839 £1.50 £1.80
21 - SCREW BDE-593478-00.A90 593478-00 £1.50 £1.80
22 - BRAND LABEL BDE-N149175.A37 N149175 £1.50 £1.80
24 - LEVER BDE-N136731.A18 N136731 £1.50 £1.80
25 - SCREW BDE-N137733.A2 N137733 £1.50 £1.80
26 - SPRING BDE-N105579.A16 N105579 £1.50 £1.80
27 - WASHER SPRING BDE-N135116.A12 N135116 £1.50 £1.80
31 - NUT BDE-604484-00.A86 604484-00 £1.50 £1.80
32 - PINION BDE-N095840.A0 N095840 £7.18 £8.62
33 - BEARING BDE-N214432.A7 N214432 £2.08 £2.50
34 - BAFFLE BDE-N132042.A10 N132042 £1.50 £1.80
36 - SPACER BDE-N118549.A7 N118549 £1.50 £1.80
37 - BEARING BDE-N130916.A8 N130916 £2.26 £2.71
38 - SLEEVE BDE-641823-00.A4 641823-00 £1.50 £1.80
39 - WASHER BDE-N213812.A17 N213812 £1.50 £1.80
43 - SCREW BDE-N098351.A6 N098351 £1.50 £1.80
44 - BAFFLE BDE-N129051.A2 N129051 £1.50 £1.80
45 - BRUSHBOX BDE-N097702.A33 N097702 £1.82 £2.19
46 - SPRING BDE-N097703.A12 N097703 £1.50 £1.80
53 - GEAR BDE-N097361.A5 N097361 £7.85 £9.42
54 - BEARING BDE-N150961.A29 N150961 £2.78 £3.34
55 - O RING BDE-N094024.A16 N094024 £1.50 £1.80
56 - SCREW BDE-N118088.A34 N118088 £1.50 £1.80
57 - WASHER BDE-N447838.A39 N447838 £1.50 £1.80
58 - SPRING BDE-N092954.A27 N092954 £1.50 £1.80
59 - INSERT BDE-N126708.A33 N126708 £1.50 £1.80
60 - CIRCLIP BDE-444793-00.A43 444793-00 £1.50 £1.80
61 - BUTTON BDE-N126105.A19 N126105 £1.50 £1.80
62 - SCREW BDE-N122904.A14 N122904 £1.50 £1.80
63 - GEARCASE COVER BDE-N116180.A27 N116180 £1.50 £1.80
64 - O RING BDE-N119639.A76 N119639 £1.50 £1.80
65 - O RING BDE-N094012.A26 N094012 £1.50 £1.80
66 - SPINDLE LOCK BDE-N114592.A18 N114592 £1.50 £1.80
67 - SPINDLE LOCK BDE-N181767.A17 N181767 £3.80 £4.56
72 - BEARING BDE-N150961.A31 N150961 £2.78 £3.34
73 - SLEEVE BDE-N095815.A6 N095815 £1.50 £1.80
74 - WASHER BDE-638229-00.A18 638229-00 £1.50 £1.80
80 - SIDE HANDLE BDE-N401305.A13 N401305 £3.80 £4.56
81 - WRENCH ROUND-PINS BDE-401253-00.A63 401253-00 £4.69 £5.63
800 - GREASE 50 GMS BDE-583534-00.A120 583534-00 £144.10 £172.92
