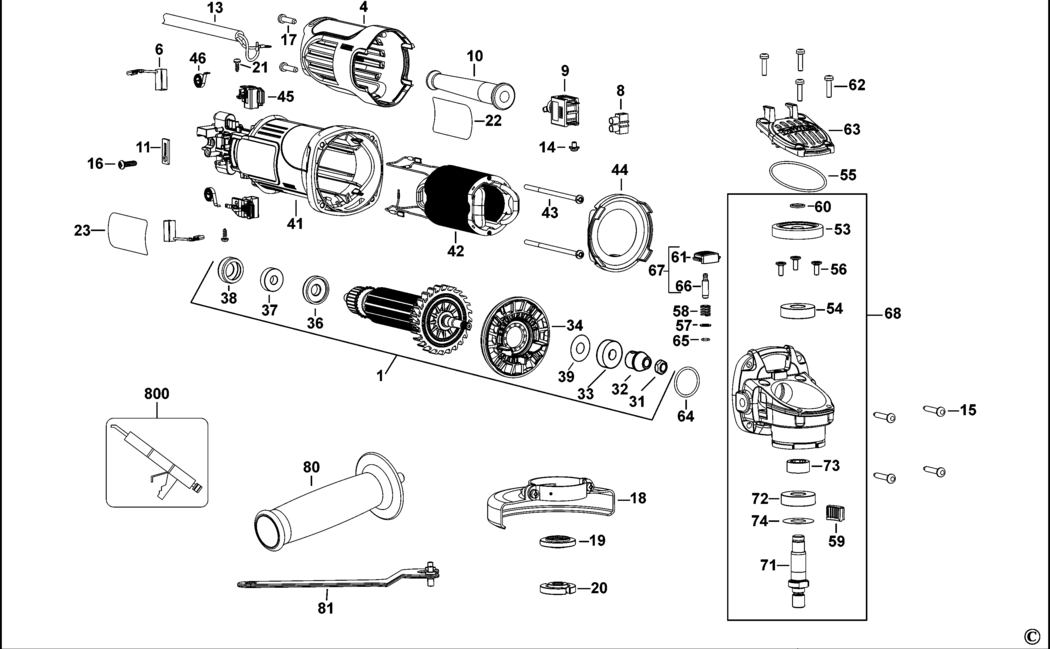

An exploded drawing and spare parts listing for the Dewalt DWE4001 Type 1 Small Angle Grinder
Ex VAT Inc VAT
4 - HOUSING BDE-N092819-01.A0 N092819-01 -
8 - TERMINAL BLOCK BDE-655417-00.A3 655417-00 -
10 - CORD PROTECTOR BDE-N542553.A207 N542553 £3.80 £4.56
11 - CORD CLAMP BDE-619328-00.A18 619328-00 £1.50 £1.80
14 - SCREW BDE-627647-00.A0 627647-00 -
15 - PLASTIC SCREW BDE-330065-31.A48 330065-31 £1.50 £1.80
16 - SCREW BDE-562097-00.A58 562097-00 £1.50 £1.80
17 - SCREW BDE-N017839.A45 N017839 £1.50 £1.80
18 - GUARD SA BDE-N115343.A9 N115343 -
19 - INNER FLANGE BDE-N039245.A17 N039245 -
20 - OUTER FLANGE BDE-659109-00.A14 659109-00 -
21 - SCREW BDE-593478-00.A41 593478-00 £1.50 £1.80
22 - BRAND LABEL BDE-N149175.A1 N149175 £1.50 £1.80
31 - NUT BDE-604484-00.A25 604484-00 £1.50 £1.80
32 - PINION BDE-N095840.A8 N095840 £7.18 £8.62
33 - BEARING BDE-N214432.A12 N214432 £2.08 £2.50
34 - BAFFLE BDE-N132042.A28 N132042 £1.50 £1.80
36 - SPACER BDE-N118549.A10 N118549 £1.50 £1.80
37 - BEARING BDE-N130916.A58 N130916 £2.26 £2.71
38 - SLEEVE BDE-641823-00.A165 641823-00 £1.50 £1.80
39 - WASHER BDE-N213812.A43 N213812 £1.50 £1.80
41 - FIELDCASE BDE-N092818-01.A1 N092818-01 -
43 - SCREW BDE-N098351.A16 N098351 £1.50 £1.80
44 - BAFFLE BDE-N129051.A10 N129051 £1.50 £1.80
45 - BRUSHBOX BDE-N097702.A16 N097702 £1.82 £2.19
46 - SPRING BDE-N097703.A29 N097703 £1.50 £1.80
53 - GEAR BDE-N097361.A10 N097361 £7.85 £9.42
54 - BEARING BDE-N150961.A0 N150961 £2.78 £3.34
55 - O RING BDE-N094024.A25 N094024 £1.50 £1.80
56 - SCREW BDE-N118088.A0 N118088 £1.50 £1.80
57 - WASHER BDE-N447838.A19 N447838 £1.50 £1.80
58 - SPRING BDE-N092954.A1 N092954 £1.50 £1.80
59 - INSERT BDE-N126708.A7 N126708 £1.50 £1.80
60 - CIRCLIP BDE-444793-00.A74 444793-00 £1.50 £1.80
61 - BUTTON BDE-N126105.A0 N126105 £1.50 £1.80
62 - SCREW BDE-N122904.A34 N122904 £1.50 £1.80
63 - GEARCASE COVER BDE-N116180.A17 N116180 £1.50 £1.80
64 - O RING BDE-N119639.A0 N119639 £1.50 £1.80
65 - O RING BDE-N094012.A17 N094012 £1.50 £1.80
66 - SPINDLE LOCK BDE-N114592.A1 N114592 £1.50 £1.80
67 - SPINDLE LOCK BDE-N181767.A41 N181767 £3.80 £4.56
68 - GEARCASE SA BDE-N185683 N185683 -
71 - SPINDLE BDE-N095421.A2 N095421 -
72 - BEARING BDE-N150961.A1 N150961 £2.78 £3.34
73 - SLEEVE BDE-N095815.A30 N095815 £1.50 £1.80
74 - WASHER BDE-638229-00.A25 638229-00 £1.50 £1.80
80 - HANDLE SIDE SA BDE-562211-00.A1 562211-00 £3.30 £3.96
81 - WRENCH ROUND-PINS BDE-401253-00.A115 401253-00 £4.69 £5.63
800 - GREASE 50 GMS BDE-583534-00.A226 583534-00 £144.10 £172.92
