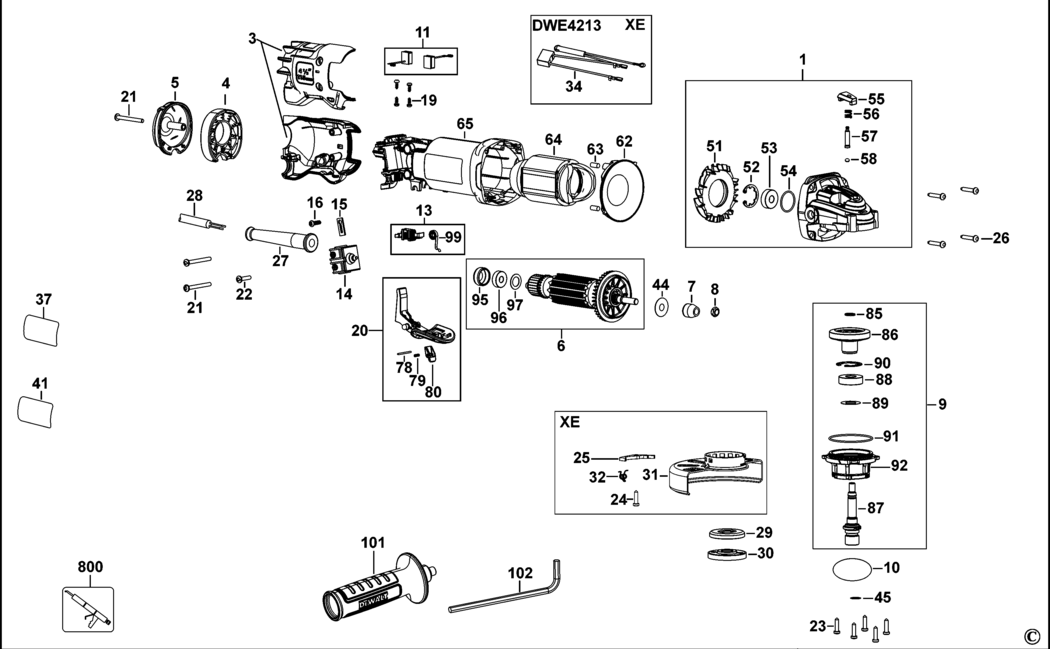

An exploded drawing and spare parts listing for the Dewalt DWE4213 Type 1 Small Angle Grinder
Ex VAT Inc VAT
1 - GEARCASE SA BDE-N413331.A3 N413331 £18.91 £22.69
5 - END CAP BDE-N400902.A19 N400902 £1.50 £1.80
7 - PINION BDE-N375339.A0 N375339 £5.88 £7.06
8 - NUT BDE-N372039.A6 N372039 £1.50 £1.80
9 - SPINDLE SA BDE-N421526.A1 N421526 £24.39 £29.27
10 - O RING BDE-N355619.A1 N355619 £1.50 £1.80
13 - BRUSHBOX SA BDE-N413349.A36 N413349 £4.69 £5.63
14 - SWITCH BDE-N396008.A12 N396008 £9.41 £11.29
16 - SCREW BDE-330065-06.A73 330065-06 £1.50 £1.80
19 - SCREW BDE-593478-00.A37 593478-00 £1.50 £1.80
20 - PADDLE BDE-N413352.A5 N413352 £3.30 £3.96
21 - SCREW BDE-N389438.A20 N389438 £1.50 £1.80
22 - SCREW BDE-330065-08.A87 330065-08 £1.50 £1.80
23 - SCREW BDE-330045-06.A104 330045-06 £1.50 £1.80
24 - SCREW BDE-N297219.A8 N297219 £1.50 £1.80
25 - LEVER BDE-N136731.A12 N136731 £1.50 £1.80
26 - SCREW BDE-N371839.A28 N371839 £1.50 £1.80
29 - INNER FLANGE BDE-391969-00.A55 391969-00 £1.82 £2.19
30 - OUTER FLANGE BDE-N419748.A23 N419748 £5.88 £7.06
32 - SPRING BDE-N291619.A0 N291619 £1.50 £1.80
34 - CAPACITOR BDE-N349959.A3 N349959 £3.30 £3.96
37 - BRAND LABEL BDE-N400392.A0 N400392 £1.50 £1.80
44 - WASHER BDE-N213812.A47 N213812 £1.50 £1.80
45 - O RING BDE-N420261.A21 N420261 £1.50 £1.80
51 - DEFLECTOR BDE-N401958.A21 N401958 £1.50 £1.80
52 - CIRCLIP BDE-N398877.A10 N398877 £1.50 £1.80
53 - BEARING BDE-N175104.A25 N175104 £3.30 £3.96
54 - O RING BDE-N119639.A9 N119639 £1.50 £1.80
55 - BUTTON BDE-N278899.A44 N278899 £1.50 £1.80
56 - SPRING BDE-N263579.A15 N263579 £1.50 £1.80
57 - LOCK PIN BDE-N481683.A19 N481683 £1.50 £1.80
58 - O RING BDE-N263699.A33 N263699 £1.50 £1.80
62 - BAFFLE BDE-N265479.A2 N265479 £1.50 £1.80
63 - DAMPER BDE-949638-02.A123 949638-02 £1.50 £1.80
65 - FIELDCASE BDE-N369341.A2 N369341 £7.85 £9.42
78 - ROLL PIN BDE-099204-14.A11 099204-14 £1.50 £1.80
79 - SPRING BDE-150264-01.A12 150264-01 £1.50 £1.80
80 - LEVER LOCK-OFF BDE-397657-00.A18 397657-00 £1.50 £1.80
85 - CIRCLIP BDE-444793-00.A77 444793-00 £1.50 £1.80
86 - GEAR BDE-N409481.A6 N409481 £12.17 £14.60
87 - SPINDLE BDE-N163702.A36 N163702 £5.88 £7.06
88 - BEARING BDE-605040-24.A14 605040-24 £3.30 £3.96
89 - WASHER BDE-N400478.A42 N400478 £1.50 £1.80
90 - RING BDE-N389985.A2 N389985 £1.50 £1.80
91 - O RING BDE-N307625.A12 N307625 £1.50 £1.80
92 - GEARCASE COVER BDE-N269901.A1 N269901 £7.18 £8.62
95 - SLEEVE BDE-641823-00.A155 641823-00 £1.50 £1.80
96 - BEARING BDE-N130916.A62 N130916 £2.26 £2.71
97 - WASHER BDE-N324400.A16 N324400 £1.50 £1.80
99 - SPRING BDE-N273780.A0 N273780 £1.50 £1.80
101 - SIDE HANDLE BDE-N382311.A29 N382311 £12.17 £14.60
102 - HEX KEY 6 MM BDE-N107295.A36 N107295 £1.50 £1.80
800 - GREASE 50 GMS BDE-583534-00.A244 583534-00 £144.10 £172.92
