Dewalt DWE4233 Type 3 Small Angle Grinder Spare Parts

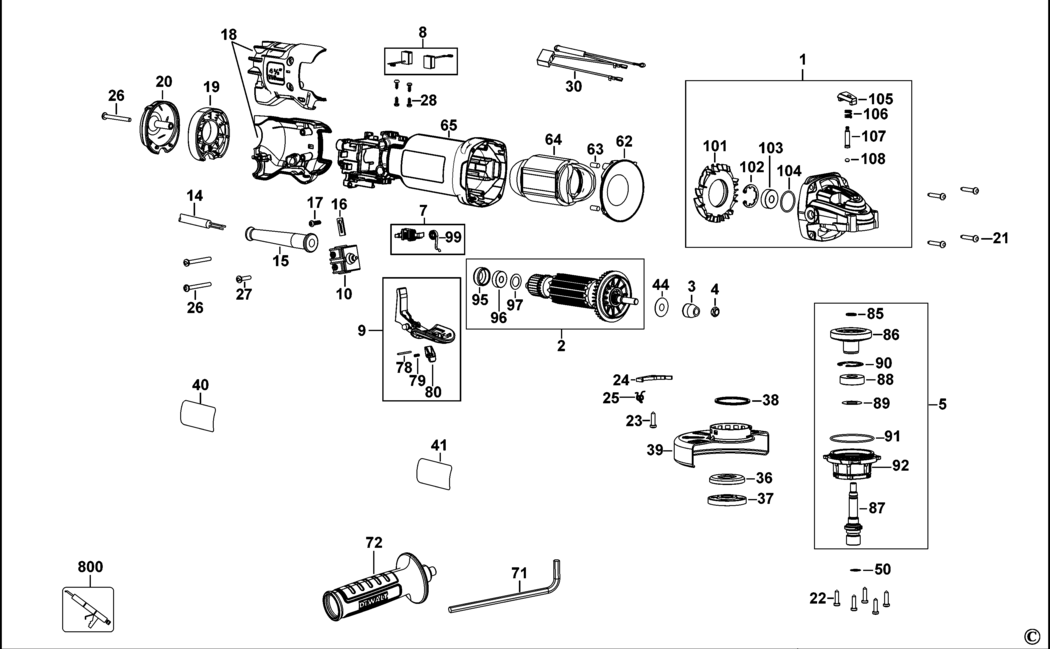

An exploded drawing and spare parts listing for the Dewalt DWE4233 Type 3 Small Angle Grinder

	Ex VAT	Inc VAT
1 - GEARCASE SA BDE-N493259.A7 N493259	£24.39	£29.27
3 - PINION BDE-N423537.A21 N423537	£5.88	£7.06
4 - NUT BDE-N372039.A48 N372039	£1.50	£1.80
5 - SPINDLE SA BDE-N493265.A0 N493265	£30.08	£36.10
7 - BRUSHBOX SA BDE-N413349.A16 N413349	£4.69	£5.63
9 - PADDLE BDE-N413352.A10 N413352	£3.30	£3.96
16 - CORD CLAMP BDE-619328-00.A43 619328-00	£1.50	£1.80
17 - SCREW BDE-330065-06.A299 330065-06	£1.50	£1.80
18 - HANDLE SA BDE-N419584.A1 N419584	-
19 - DUST PORT BDE-N401671.A0 N401671	£2.78	£3.34
20 - END CAP BDE-N400902.A7 N400902	£1.50	£1.80
21 - SCREW BDE-N371839.A0 N371839	£1.50	£1.80
22 - SCREW BDE-330045-06.A51 330045-06	£1.50	£1.80
23 - SCREW BDE-N297219.A23 N297219	£1.50	£1.80
26 - SCREW BDE-N389438.A41 N389438	£1.50	£1.80
27 - SCREW BDE-330065-08.A371 330065-08	£1.50	£1.80
28 - SCREW BDE-593478-00.A69 593478-00	£1.50	£1.80
30 - CAPACITOR BDE-N349959.A0 N349959	£3.30	£3.96
36 - INNER FLANGE BDE-391969-00.A151 391969-00	£1.82	£2.19
37 - OUTER FLANGE BDE-N419748.A6 N419748	£5.88	£7.06
40 - BRAND LABEL BDE-N403730.A17 N403730	£1.50	£1.80
44 - WASHER BDE-N213812.A11 N213812	£1.50	£1.80
50 - O RING BDE-N420261.A24 N420261	£1.50	£1.80
62 - BAFFLE BDE-N265479.A1 N265479	£1.50	£1.80
63 - DAMPER BDE-949638-02.A0 949638-02	£1.50	£1.80
65 - FIELDCASE BDE-N369341.A7 N369341	£7.85	£9.42
71 - HEX KEY 6 MM BDE-N107295.A32 N107295	£1.50	£1.80
72 - SIDE HANDLE BDE-N382311.A12 N382311	£12.17	£14.60
78 - ROLL PIN BDE-099204-14.A0 099204-14	£1.50	£1.80
79 - SPRING BDE-150264-01.A2 150264-01	£1.50	£1.80
80 - LEVER LOCK-OFF BDE-397657-00.A1 397657-00	£1.50	£1.80
85 - CIRCLIP BDE-444793-00.A6 444793-00	£1.50	£1.80
86 - GEAR BDE-N409481.A26 N409481	£12.17	£14.60
87 - SPINDLE BDE-N163702.A1 N163702	£5.88	£7.06
88 - BEARING BDE-605040-24.A70 605040-24	£3.30	£3.96
89 - WASHER BDE-N400478.A2 N400478	£1.50	£1.80
90 - RETAINER BDE-N481950.A12 N481950	£1.50	£1.80
91 - O RING BDE-N307625.A27 N307625	£1.50	£1.80
95 - SLEEVE BDE-641823-00.A127 641823-00	£1.50	£1.80
96 - BEARING BDE-N130916.A28 N130916	£2.26	£2.71
97 - WASHER BDE-N324400.A35 N324400	£1.50	£1.80
99 - SPRING BDE-N273780.A43 N273780	£1.50	£1.80
101 - DEFLECTOR BDE-N401958.A41 N401958	£1.50	£1.80
102 - RETAINER BDE-N453031.A26 N453031	£1.50	£1.80
103 - BEARING BDE-N175104.A52 N175104	£3.30	£3.96
104 - O RING BDE-N119639.A66 N119639	£1.50	£1.80
105 - BUTTON BDE-N278899.A24 N278899	£1.50	£1.80
106 - SPRING BDE-N263579.A24 N263579	£1.50	£1.80
107 - LOCK PIN BDE-N481683.A41 N481683	£1.50	£1.80
108 - O RING BDE-N263699.A1 N263699	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A73 583534-00	£144.10	£172.92

Attribute Name	Value
Brand	Dewalt
