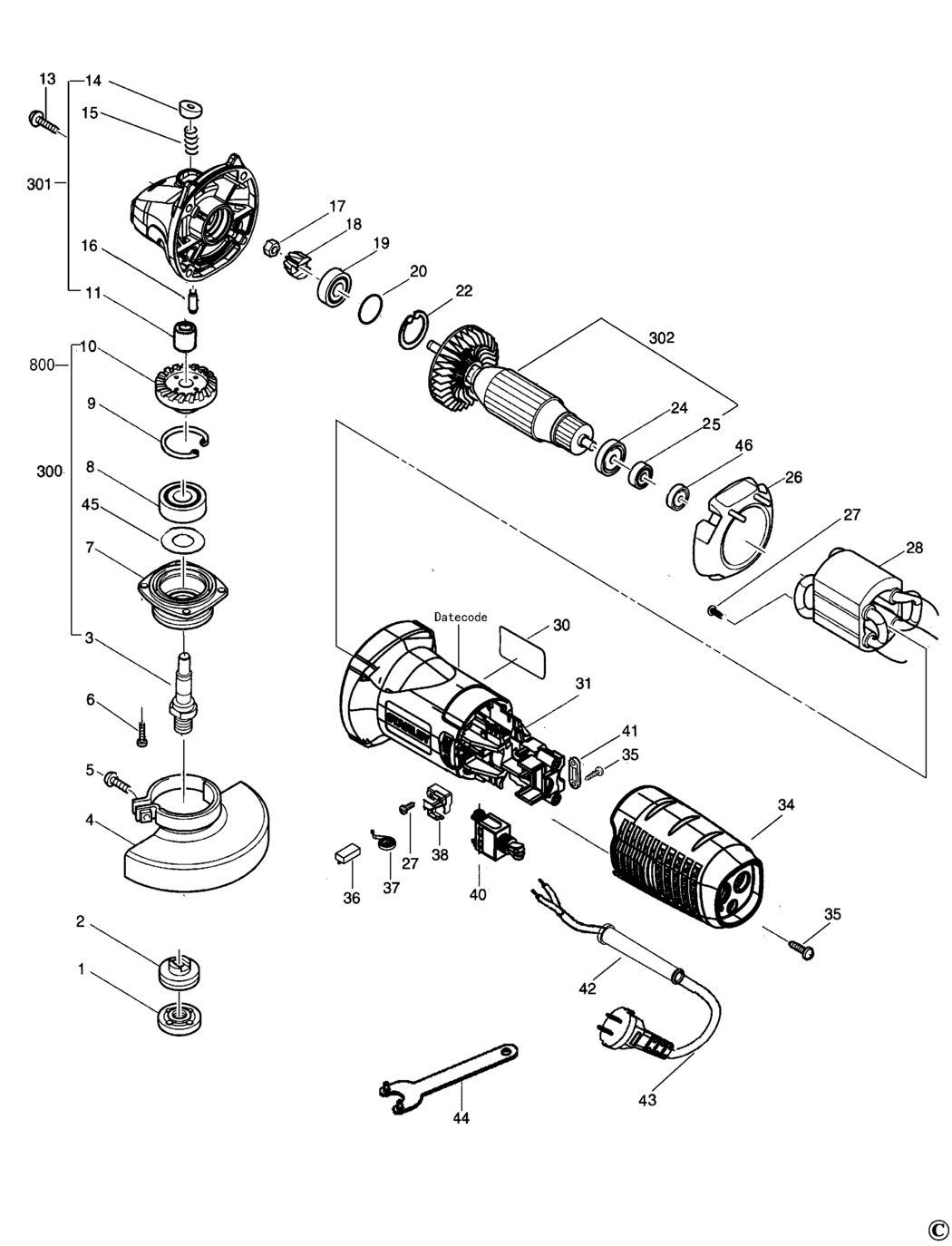

An exploded drawing and spare parts listing for the Stanley STGT6100 Type 1 Small Angle Grinder
Ex VAT Inc VAT
1 - OUTER FLANGE BDE-4140304011.A14 4140304011 £1.50 £1.80
2 - INNER FLANGE BDE-4140304006.A2 4140304006 £1.50 £1.80
3 - SPINDLE BDE-4149204002.A3 4149204002 £2.26 £2.71
4 - GUARD SA BDE-4140304008.A2 4140304008 £2.26 £2.71
4 - GUARD SA BDE-4140104004.A0 4140104004 -
5 - SCREW BDE-49203052.A10 49203052 £1.50 £1.80
5 - SCREW BDE-49203035.A6 49203035 -
6 - SCREW BDE-49209042.A13 49209042 £1.50 £1.80
7 - GEARCASE COVER BDE-4149202001.A3 4149202001 £1.82 £2.19
8 - BEARING BDE-49111017.A3 49111017 £2.78 £3.34
9 - CIRCLIP BDE-49207020.A15 49207020 £1.50 £1.80
10 - GEAR BDE-4149210001.A4 4149210001 £3.80 £4.56
11 - BEARING NEEDLE BDE-49101022.A5 49101022 £1.50 £1.80
13 - SCREW BDE-49206033.A3 49206033 £1.50 £1.80
14 - LOCK BUTTON BDE-4149201001.A5 4149201001 £1.50 £1.80
15 - SPRING BDE-4140308003.A18 4140308003 £1.50 £1.80
16 - LOCK PIN BDE-4140304010.A5 4140304010 £1.50 £1.80
17 - NUT BDE-49205005.A29 49205005 £1.50 £1.80
18 - PINION BDE-4149210002.A2 4149210002 £3.30 £3.96
19 - BEARING BDE-49111033.A2 49111033 £1.50 £1.80
20 - RUBBER SEAL BDE-4149203001.A4 4149203001 £1.50 £1.80
22 - CIRCLIP BDE-49207016.A1 49207016 £1.50 £1.80
24 - WASHER INSULATING BDE-4149201009.A3 4149201009 £1.50 £1.80
25 - BEARING BDE-49111035.A4 49111035 £1.50 £1.80
26 - BAFFLE BDE-4149201002.A1 4149201002 £1.50 £1.80
27 - SCREW BDE-49206609.A2 49206609 £3.80 £4.56
31 - FIELDCASE BDE-4149201007.A1 4149201007 £5.88 £7.06
34 - END CAP BDE-4149201008.A0 4149201008 £1.50 £1.80
35 - SCREW BDE-49206018.A4 49206018 £1.50 £1.80
36 - BRUSH PAIR BDE-4140306001.A9 4140306001 £1.50 £1.80
37 - BRUSH SPRING pair BDE-4149208001.A2 4149208001 £1.50 £1.80
37 - BRUSH SPRING BDE-4149208001.A3 4149208001 £1.50 £1.80
38 - BRUSH HOLDER BDE-4141707001.A3 4141707001 £1.50 £1.80
38 - BRUSH HOLDER PAIR BDE-4141707001.A4 4141707001 £1.50 £1.80
39 - CAPACITOR BDE-494006.A1 494006 £1.50 £1.80
40 - SWITCH SA BDE-4141705001.A4 4141705001 £1.50 £1.80
41 - CORD CLAMP BDE-4100301008.A8 4100301008 £1.50 £1.80
42 - CORD PROTECTOR BDE-49303007.A1 49303007 £1.50 £1.80
44 - WRENCH SET BDE-4140304007.A14 4140304007 £1.50 £1.80
45 - WASHER BDE-4140704002.A12 4140704002 £1.50 £1.80
46 - SLEEVE BEARING BDE-4149203002.A3 4149203002 £1.50 £1.80
300 - SPINDLE & GEAR SA BDE-4149250001.A4 4149250001 £12.17 £14.60
301 - GEARCASE SA BDE-4149250007.A0 4149250007 £7.18 £8.62
800 - GREASE BDE-901186.A20 901186 £44.14 £52.97
800 - GREASE 0.015kg BDE-901186.A21 901186 £44.14 £52.97
