Fein MSfa 680D (50Hz 240V) / 72204900246 Spare Parts

Fein MSfa 680D ⡐Hz 240V) / 72204900246 Spare Parts

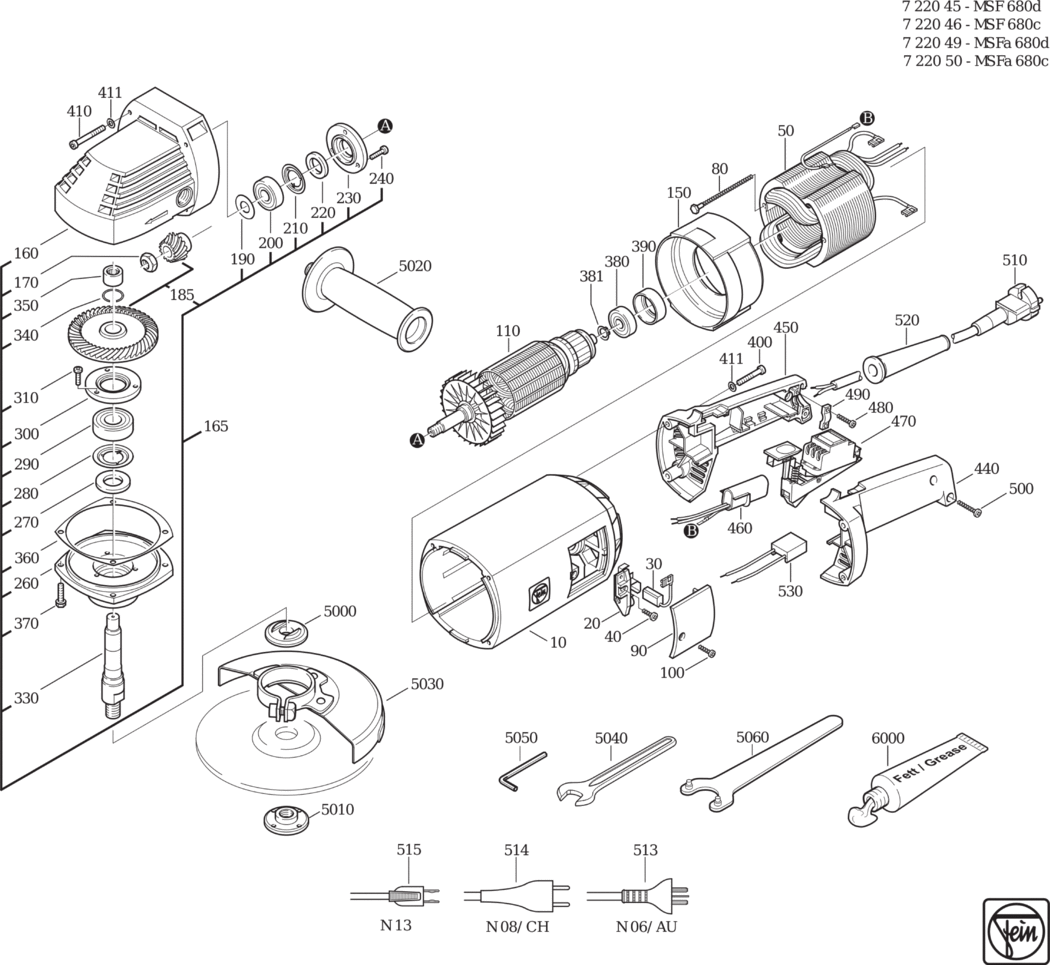

An exploded diagram and spare parts listing for the Fein MSfa 680D (50Hz 240V) / 72204900246

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903156012.A6 31903156012	-
20 - BRUSH HOLDER FEI-30712076012.A1 30712076012	-
30 - CARBON BRUSH (SOLD SINGLY) FEI-30711096007.A1 30711096007	£15.12	£18.14
40 - SHEET METAL SCREW FEI-43046001002.A11 43046001002	-
50 - STATOR FEI-51256001243.A1 51256001243	-
80 - SHEET METAL SCREW FEI-43046035008.A1 43046035008	-
90 - COVER FEI-32427066000.A18 32427066000	£5.27	£6.32
100 - SHEET METAL SCREW FEI-43046020001.A7 43046020001	-
110 - ARMATURE FEI-53256001245.A0 53256001245	-
150 - AIR GUIDE RING FEI-31428042004.A6 31428042004	£5.05	£6.06
160 - GEARBOX HOUSING FEI-31206087005.A2 31206087005	£97.43	£116.92
165 - GEARBOX HOUSING FEI-31206087014.A3 31206087014	-
170 - HEX NUT FEI-42004039001.A14 42004039001	-
185 - BEVEL GEAR Z=21/62 FEI-33809165013.A3 33809165013	-
190 - DISC FEI-32408293002.A7 32408293002	-
200 - GROOVED BALL BEARING FEI-41701213096.A58 41701213096	£20.90	£25.08
210 - DISC FEI-32411058001.A13 32411058001	£1.60	£1.92
220 - FELT RING FEI-30601050002.A49 30601050002	£1.60	£1.92
230 - PLATE FEI-32416082005.A2 32416082005	£13.94	£16.73
240 - FILLISTER HEAD SCREW FEI-43064003047.A13 43064003047	£1.75	£2.10
260 - BEARING PLATE FEI-32419089009.A0 32419089009	-
270 - FELT RING FEI-30601098001.A2 30601098001	-
280 - DISC FEI-32411074000.A8 32411074000	£5.74	£6.89
290 - GROOVED BALL BEARING FEI-41701224024.A43 41701224024	£12.19	£14.63
300 - PLATE FEI-32416078007.A0 32416078007	-
310 - FILLISTER HEAD SCREW FEI-43064003047.A12 43064003047	£1.75	£2.10
330 - SHAFT FEI-33406161000.A0 33406161000	-
340 - CIRCLIP FEI-42615108003.A6 42615108003	£1.75	£2.10
350 - NEEDLE BEARING FEI-41706030007.A18 41706030007	£29.44	£35.33
360 - DISC FEI-32624104030.A8 32624104030	£4.42	£5.31
360 - DISC FEI-32624104024.A0 32624104024	-
370 - HEXAGON SOCKET SCREW FEI-43064015054.A0 43064015054	£1.75	£2.10
380 - GROOVED BALL BEARING FEI-41701210021.A6 41701210021	£8.89	£10.67
381 - RING FEI-42628001006.A6 42628001006	£1.60	£1.92
390 - BUSH FEI-30507174003.A0 30507174003	£4.75	£5.70
400 - CYLINDER HEAD SCREW FEI-43033015052.A7 43033015052	£1.60	£1.92
410 - CYLINDER HEAD SCREW FEI-43033017059.A0 43033017059	-
411 - CIRCLIP M5 FEI-42443004057.A301 42443004057	£1.60	£1.92
440 - HANDLE HALF SHELL FEI-31204124003.A0 31204124003	£28.56	£34.27
450 - HANDLE HALF SHELL FEI-31204123005.A4 31204123005	£29.38	£35.26
460 - CAPACITOR FEI-30722134011.A16 30722134011	£16.88	£20.26
470 - SWITCH FEI-30701116005.A0 30701116005	-
480 - SHEET METAL SCREW FEI-43046016003.A6 43046016003	-
490 - CABLE CLAMPING PIECE FEI-32431021007.A223 32431021007	£1.60	£1.92
500 - SHEET METAL SCREW FEI-43046021000.A18 43046021000	-
510 - CABLE WITH PLUG FEI-30707200019.A14 30707200019	£19.62	£23.54
520 - CABLE GROMMET FEI-31413094007.A114 31413094007	£3.04	£3.65
530 - START-UP CURRENT LIMITE FEI-30762036018.A2 30762036018	£42.87	£51.44
912 - SEALING RING FEI-40612000007.A225 40612000007	£1.60	£1.92
5000 - INNER FLANGE FEI-63801182010.A34 63801182010	£14.88	£17.86
5010 - THREADED FLANGE FEI-63802052000.A35 63802052000	£14.88	£17.86
5020 - ANTI-VIBRATION HANDLE FEI-32119117015.A9 32119117015	£58.22	£69.87
5030 - WHEEL GUARD FEI-31810070016.A3 31810070016	£45.42	£54.51
5040 - JAW SPANNER SW17 FEI-62903011005.A8 62903011005	£7.22	£8.67
5050 - ALLEN KEY SW6 FEI-62907004005.A58 62907004005	£3.35	£4.02
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A245 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A56 32160003135	-
