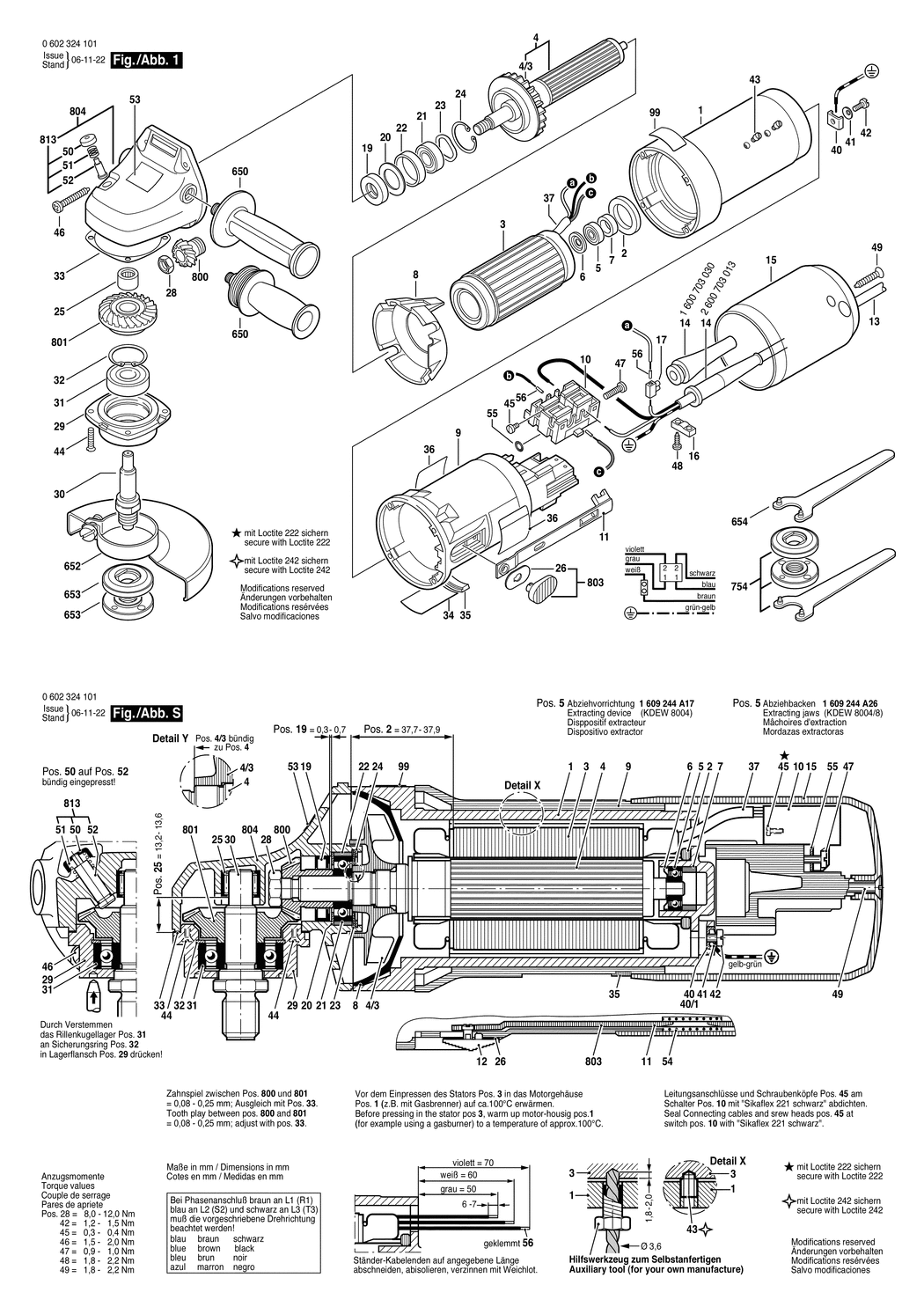

1 - MOTOR HOUSING
BSD-3605102019.A1
3605102019
|
-
|
|
|
|
2 - SEAL RING
BSD-1600209011.A216
1600209011
|
£2.80
|
£3.36
|
|
|
3 - STATOR 42V/200HZ
BSD-3604229009.A0
3604229009
|
-
|
|
|
|
4 - ROTOR WITHOUT WINDING
BSD-3604080002.A10
3604080002
|
-
|
|
|
|
4/3 - FAN
BSD-1606610112.A7
1606610112
|
-
|
|
|
|
5 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A131
1900905015
|
£30.42
|
£36.51
|
|
|
6 - INTERMEDIATE RING
BSD-3600202008.A50
3600202008
|
£2.61
|
£3.13
|
|
|
7 - RUBBER RING 6MM.dia12xdia16.4x3MM
BSD-3600206002.A175
3600206002
|
-
|
|
|
|
8 - COVER DISC
BSD-3601328000.A17
3601328000
|
-
|
|
|
|
9 - MOTOR HOUSING
BSD-3605108110.A2
3605108110
|
£98.11
|
£117.73
|
|
|
10 - SWITCH
BSD-2607200674.A149
2607200674
|
£16.41
|
£19.69
|
|
|
11 - ADJUSTING SLIDE
BSD-2602319005.A202
2602319005
|
£1.75
|
£2.10
|
|
|
13 - POWER SUPPLY CORD
BSD-3604421001.A1
3604421001
|
-
|
|
|
|
14 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A774
2600703012
|
£2.80
|
£3.36
|
|
|
15 - HOUSING COVER
BSD-3600508031.A10
3600508031
|
-
|
|
|
|
16 - CABLE CLIP
BSD-2601035001.A2956
2601035001
|
£1.75
|
£2.10
|
|
|
17 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A65
1901091012
|
£5.30
|
£6.36
|
|
|
19 - ROTARY SHAFT LIP SEAL
BSD-1600290012.A61
1600290012
|
-
|
|
|
|
20 - SHIM WASHER 0.8 MM
BSD-1600101022.A36
1600101022
|
-
|
|
|
|
21 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A196
1900905017
|
£23.86
|
£28.63
|
|
|
22 - INTERMEDIATE RING
BSD-3600224009.A2
3600224009
|
-
|
|
|
|
23 - SPRING WASHER dia18xdia26.4xdia0.4xdia2.7 MM
BSD-1600150010.A36
1600150010
|
-
|
|
|
|
24 - SPRING RETAINING RING
BSD-1600119007.A13
1600119007
|
-
|
|
|
|
25 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A138
2600910001
|
£4.26
|
£5.11
|
|
|
26 - ADAPTOR PLATE
BSD-1600140009.A20
1600140009
|
-
|
|
|
|
28 - HEX NUT
BSD-1603300017.A8
1603300017
|
-
|
|
|
|
29 - BEARING FLANGE
BSD-1605805054.A40
1605805054
|
-
|
|
|
|
30 - GRINDING SPINDLE M14
BSD-1603523086.A26
1603523086
|
-
|
|
|
|
31 - GROOVE BALL BEARING
BSD-3600905018.A2
3600905018
|
-
|
|
|
|
32 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A727
2916660013
|
£2.16
|
£2.59
|
|
|
33 - SHIM 0.1 MM
BSD-2600136002.A44
2600136002
|
-
|
|
|
|
33 - SHIM 0.2 MM
BSD-2600136003.A21
2600136003
|
-
|
|
|
|
34 - NAMEPLATE
BSD-3601100003.A14
3601100003
|
-
|
|
|
|
35 - INTERMEDIATE PIECE
BSD-1600026000.A9
1600026000
|
£1.75
|
£2.10
|
|
|
36 - STICKER
BSD-3601103000.A5
3601103000
|
£2.61
|
£3.13
|
|
|
37 - SHRINKABLE TUBE
BSD-1610712034.A14
1610712034
|
£1.66
|
£1.99
|
|
|
40 - CLAMPING SADDLE
BSD-3601321001.A244
3601321001
|
£3.72
|
£4.47
|
|
|
41 - SPRING WASHER dia4.2 MM
BSD-3600150006.A350
3600150006
|
£2.61
|
£3.13
|
|
|
42 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A333
2910110120
|
£1.75
|
£2.10
|
|
|
43 - SET SCREW
BSD-3603402000.A402
3603402000
|
£1.75
|
£2.10
|
|
|
44 - COUNTERSUNK-HEAD SCREW M 4x16 DIN 963-5.8
BSD-2910771126.A8
2910771126
|
-
|
|
|
|
45 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2335
2603410001
|
£1.75
|
£2.10
|
|
|
46 - TAPPING SCREW DIN 7971-B3.9x45
BSD-2910211283.A56
2910211283
|
£2.61
|
£3.13
|
|
|
47 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A207
2910211007
|
£1.75
|
£2.10
|
|
|
48 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A345
2910211019
|
£1.75
|
£2.10
|
|
|
49 - TAPPING SCREW BZ 3.9x25 DIN 7972
BSD-2910601022.A41
2910601022
|
-
|
|
|
|
50 - PUSH-BUTTON
BSD-1603231013.A14
1603231013
|
£1.75
|
£2.10
|
|
|
51 - COMPRESSION SPRING
BSD-1604611025.A3
1604611025
|
£1.75
|
£2.10
|
|
|
52 - DETENT PIN
BSD-1607000891.A2
1607000891
|
£1.95
|
£2.34
|
|
|
53 - STICKER
BSD-1601110240.A16
1601110240
|
-
|
|
|
|
55 - SERRATED LOCK-WASHER A 4.3 DIN 6798-ST
BSD-2916070006.A13
2916070006
|
£1.75
|
£2.10
|
|
|
56 - END SPLICE
BSD-3604477008.A400
3604477008
|
£1.75
|
£2.10
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A601
3601119236
|
£3.72
|
£4.47
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A1412
1602025022
|
£13.41
|
£16.09
|
|
|
650 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A1369
1602025030
|
£18.96
|
£22.75
|
|
|
652 - PROTECTIVE COVER dia 115 MM(4 1/2)
BSD-2605510125.A30
2605510125
|
£27.23
|
£32.68
|
|
|
653 - ROUND NUT
BSD-2603340013.A16
2603340013
|
-
|
|
|
|
653 - FASTENING FLANGE
BSD-2605703023.A19
2605703023
|
-
|
|
|
|
654 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A652
1607950052
|
£3.72
|
£4.47
|
|
|
800 - BEVEL GEAR Z=17
BSD-3606333025.A11
3606333025
|
-
|
|
|
|
801 - BEVEL GEAR Z=35
BSD-3606333026.A2
3606333026
|
-
|
|
|
|
803 - SWITCH HANDLE
BSD-1607000912.A38
1607000912
|
-
|
|
|
|
804 - GEAR HOUSING
BSD-1605806402.A17
1605806402
|
-
|
|
|
|
813 - PUSH-BUTTON
BSD-1607000253.A434
1607000253
|
£2.49
|
£2.99
|
|
