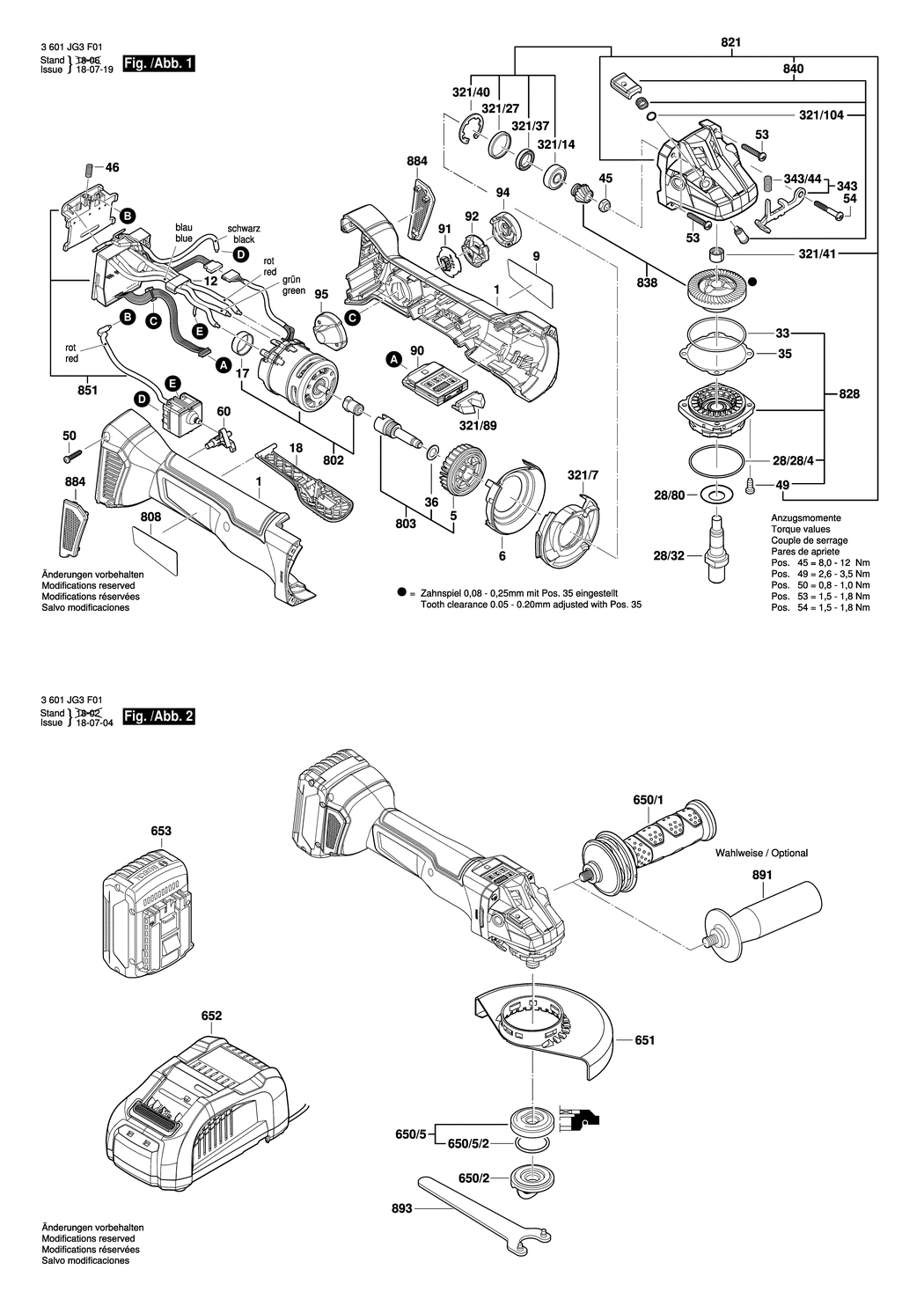

An exploded drawing and listing for the Bosch GWS 18V-10 PSC / 3601JG3F01 / EU 18 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-16051082EL.A2 16051082EL £21.68 £26.01
5 - FAN BSD-160661016E.A7 160661016E £2.80 £3.36
6 - AIR-DEFLECTOR RING BSD-1600591065.A13 1600591065 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE BSD-160111C2MV.A0 160111C2MV £2.61 £3.13
12 - FERRITE BSD-1600A00RK2.A4 1600A00RK2 £2.16 £2.59
17 - COVER BSD-1600100P12.A14 1600100P12 £1.75 £2.10
18 - SWITCH-PAWL BSD-1600A00R9F.A3 1600A00R9F £4.26 £5.11
28/28/4 - O-RING 47.0x1.5 MM BSD-3600210109.A212 3600210109 £2.16 £2.59
28/32 - GRINDING SPINDLE BSD-1607000D6A.A137 1607000D6A £7.36 £8.83
28/80 - SEALING DISK BSD-3600150021.A231 3600150021 £3.80 £4.56
33 - O-RING 46.0x1.1 MM BSD-1600210035.A275 1600210035 £1.75 £2.10
35 - SHIM 0.1 MM BSD-1600136013.A516 1600136013 £2.61 £3.13
35 - SHIM 0.2 MM BSD-1600136014.A4 1600136014 £2.61 £3.13
35 - SHIM 0.3 MM BSD-1600136015.A516 1600136015 £2.61 £3.13
35 - SHIM 0.15 MM BSD-1600136020.A6 1600136020 £3.72 £4.47
36 - WASHER BSD-1610100023.A6 1610100023 £1.75 £2.10
45 - HEX NUT M7. SW10 BSD-1603300016.A319 1603300016 £1.75 £2.10
46 - COMPRESSION SPRING BSD-1609280477.A177 1609280477 £1.75 £2.10
49 - THREAD-FORMING TAP. SCREW M4x16 BSD-2914491410.A205 2914491410 £1.75 £2.10
50 - THREAD-FORMING TAP. SCREW BSD-1603435071.A15 1603435071 £1.75 £2.10
53 - TORX OVAL-HEAD SCREW BSD-1603435078.A29 1603435078 £1.75 £2.10
54 - TORX OVAL-HEAD SCREW 4x30 BSD-1603414026.A10 1603414026 £1.75 £2.10
60 - REVERSE-TRANSFER LEVER BSD-1600A00R9L.A4 1600A00R9L £1.75 £2.10
90 - SPEED GOVERNOR BSD-16072335D2.A4 16072335D2 £72.18 £86.62
91 - ELECTRONICS MODULE BSD-1607503438.A10 1607503438 £14.91 £17.89
92 - COVER PANEL BSD-1600A00M53.A21 1600A00M53 £1.75 £2.10
94 - COVER BSD-16055002BV.A7 16055002BV £2.16 £2.59
95 - COVER BSD-1600A00P1B.A20 1600A00P1B £1.75 £2.10
321/7 - AIR DISTRIBUTOR BSD-1600591066.A5 1600591066 £2.80 £3.36
321/14 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A206 1600905032 £5.58 £6.70
321/27 - RUBBER RING BSD-1600206025.A835 1600206025 £2.16 £2.59
321/37 - HOLDER BSD-1600A00P17.A18 1600A00P17 £1.75 £2.10
321/40 - RETAINING CLIP BSD-1600119011.A439 1600119011 £2.16 £2.59
321/41 - PLAIN BEARING BSD-1600200029.A127 1600200029 £4.26 £5.11
321/89 - LIGHT CONDUCTOR BSD-1600A00P2M.A0 1600A00P2M £2.16 £2.59
321/104 - O-RING 4.5x1.0 MM BSD-1600210044.A41 1600210044 £1.75 £2.10
343 - CATCH LEVER BSD-1607000742.A217 1607000742 £7.36 £8.83
343/44 - COMPRESSION SPRING BSD-1604611042.A5 1604611042 £1.75 £2.10
650/1 - AUXILIARY HANDLE M10 ANTI-VIBRATION BSD-16020250A0.A4 16020250A0 £21.42 £25.71
650/2 - QUICK ACTING FLANGE BSD-1600A016DN.A0 1600A016DN £14.91 £17.89
650/5 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A1342 2605703014 £7.36 £8.83
650/5/2 - O-RING 20.35x1.78 MM BSD-1600210055.A4 1600210055 -
651 - PROTECTIVE COVER BSD-1600A00XK9.A153 1600A00XK9 £14.72 £17.67
652 - FAST CHARGER EU GAL 18V-160 C BSD-2607226317.A2 2607226317 -
653 - BATTERY PACK BBS MR. 18V. 5.0 Ah 48 S BSD-2607337069.A23 2607337069 £116.15 £139.38
653 - BATTERY PACK GBA 18V 8.0 Ah XL ProCore BSD-1607A350AT.A2 1607A350AT -
653 - BATTERY PACK GBA 18V 6.3 AH 114Wh BSD-1607A3501A.A0 1607A3501A £243.45 £292.14
802 - MOTOR BSD-1607000CA4.A3 1607000CA4 £93.88 £112.65
803 - BEVEL GEAR SHAFT BSD-1607000CA5.A18 1607000CA5 £12.04 £14.45
808 - NAMEPLATE BSD-160111A633.A0 160111A633 £2.61 £3.13
821 - GEAR HOUSING BSD-16058065S3.A0 16058065S3 £45.67 £54.80
828 - BEARING FLANGE BSD-1607000D6D.A17 1607000D6D £14.91 £17.89
838 - GEAR UNIT BSD-1607000CA8.A7 1607000CA8 £19.45 £23.34
840 - PUSH-BUTTON BSD-1607000V41.A97 1607000V41 £4.26 £5.11
851 - ELECTRONICS MODULE BSD-1607000D5W.A0 1607000D5W £102.57 £123.08
884 - FILTER UNIT BSD-1607000CA9.A5 1607000CA9 £11.30 £13.56
891 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A1037 160202509T £3.72 £4.47
893 - PIN-TYPE FACE-WRENCH BSD-1607950052.A271 1607950052 £3.72 £4.47
