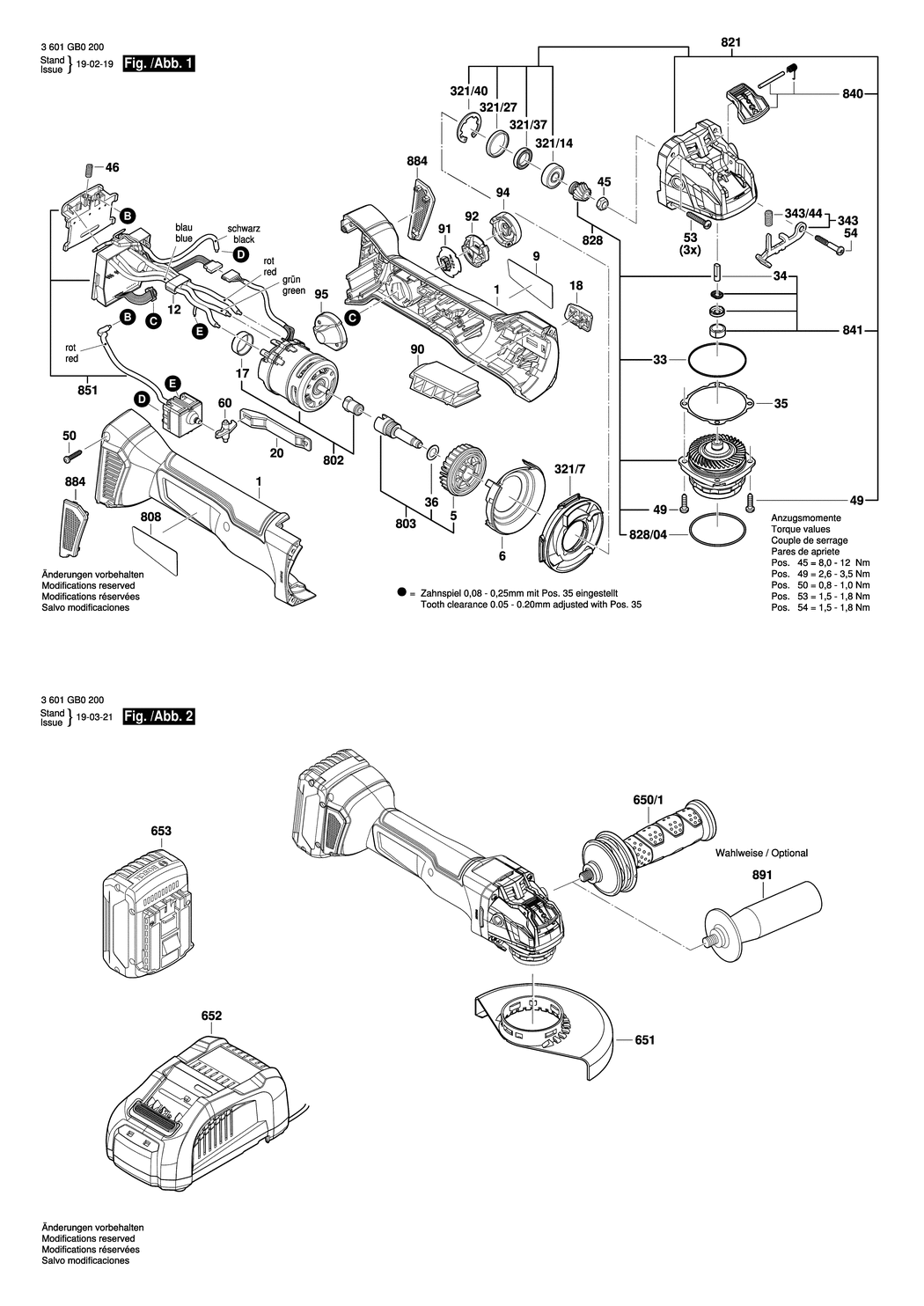

1 - MOTOR HOUSING
BSD-16051082DU.A1
16051082DU
|
£21.68
|
£26.01
|
|
|
5 - FAN
BSD-160661016E.A17
160661016E
|
£2.80
|
£3.36
|
|
|
6 - AIR-DEFLECTOR RING
BSD-1600591065.A4
1600591065
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-160111C2V9.A0
160111C2V9
|
-
|
|
|
|
12 - FERRITE
BSD-1600A00RK2.A19
1600A00RK2
|
£2.16
|
£2.59
|
|
|
17 - COVER
BSD-1600100P12.A15
1600100P12
|
£1.75
|
£2.10
|
|
|
18 - SWITCH HANDLE
BSD-1600A00P2P.A1
1600A00P2P
|
£2.16
|
£2.59
|
|
|
20 - ADJUSTING SLIDE
BSD-1600A00P14.A11
1600A00P14
|
£1.75
|
£2.10
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-1600210035.A71
1600210035
|
£1.75
|
£2.10
|
|
|
34 - BRAKING ELEMENT
BSD-1600A012X9.A1
1600A012X9
|
-
|
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A441
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A79
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A441
1600136015
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A77
1600136020
|
£3.72
|
£4.47
|
|
|
36 - WASHER
BSD-1610100023.A18
1610100023
|
£1.75
|
£2.10
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A74
1603300016
|
£1.75
|
£2.10
|
|
|
46 - COMPRESSION SPRING
BSD-1609280477.A36
1609280477
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW M4x16-St w/ Precote 85-3
BSD-160343508X.A17
160343508X
|
£1.75
|
£2.10
|
|
|
50 - THREAD-FORMING TAP. SCREW
BSD-1603435071.A24
1603435071
|
£1.75
|
£2.10
|
|
|
53 - TORX OVAL-HEAD SCREW
BSD-1603435078.A43
1603435078
|
£1.75
|
£2.10
|
|
|
54 - TORX OVAL-HEAD SCREW 4x30
BSD-1603414026.A162
1603414026
|
£1.75
|
£2.10
|
|
|
60 - REVERSE-TRANSFER LEVER
BSD-1600A00P18.A12
1600A00P18
|
£1.75
|
£2.10
|
|
|
90 - COVER
BSD-1600A00P2N.A8
1600A00P2N
|
£2.16
|
£2.59
|
|
|
91 - ELECTRONICS MODULE
BSD-1607503438.A15
1607503438
|
£14.91
|
£17.89
|
|
|
92 - COVER PANEL
BSD-1600A00M53.A28
1600A00M53
|
£1.75
|
£2.10
|
|
|
94 - COVER
BSD-16055002BV.A17
16055002BV
|
£2.16
|
£2.59
|
|
|
95 - COVER
BSD-1600A00P1B.A2
1600A00P1B
|
£1.75
|
£2.10
|
|
|
321/7 - AIR DISTRIBUTOR
BSD-160059105N.A9
160059105N
|
£2.16
|
£2.59
|
|
|
321/14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A371
1600905032
|
£5.58
|
£6.70
|
|
|
321/27 - RUBBER RING
BSD-1600206025.A522
1600206025
|
£2.16
|
£2.59
|
|
|
321/37 - HOLDER
BSD-1600A00P17.A0
1600A00P17
|
£1.75
|
£2.10
|
|
|
321/40 - RETAINING CLIP
BSD-1600119011.A275
1600119011
|
£2.16
|
£2.59
|
|
|
343 - CATCH LEVER
BSD-1607000742.A178
1607000742
|
£7.36
|
£8.83
|
|
|
343/44 - COMPRESSION SPRING
BSD-1604611042.A19
1604611042
|
£1.75
|
£2.10
|
|
|
650/1 - AUXILIARY HANDLE M10 ANTI-VIBRATION
BSD-16020250A0.A87
16020250A0
|
£21.42
|
£25.71
|
|
|
651 - PROTECTIVE COVER
BSD-1600A00XK9.A89
1600A00XK9
|
£14.72
|
£17.67
|
|
|
802 - MOTOR
BSD-1607000CA4.A20
1607000CA4
|
£93.88
|
£112.65
|
|
|
803 - BEVEL GEAR SHAFT
BSD-1607000CA5.A1
1607000CA5
|
£12.04
|
£14.45
|
|
|
808 - NAMEPLATE
BSD-160111A6JK.A0
160111A6JK
|
-
|
|
|
|
821 - GEAR HOUSING
BSD-1607000D5D.A0
1607000D5D
|
-
|
|
|
|
828 - PARTS SET
BSD-1607000D5J.A4
1607000D5J
|
-
|
|
|
|
828/04 - O-RING 47.0x1.5 MM
BSD-3600210109.A72
3600210109
|
£2.16
|
£2.59
|
|
|
840 - PARTS SET
BSD-1607000D5X.A0
1607000D5X
|
-
|
|
|
|
841 - PARTS SET
BSD-1607000D5Z.A17
1607000D5Z
|
-
|
|
|
|
851 - ELECTRONICS MODULE
BSD-1607000D90.A2
1607000D90
|
-
|
|
|
|
884 - FILTER UNIT
BSD-1607000CA9.A18
1607000CA9
|
£11.30
|
£13.56
|
|
|
891 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A863
160202509T
|
£3.72
|
£4.47
|
|
