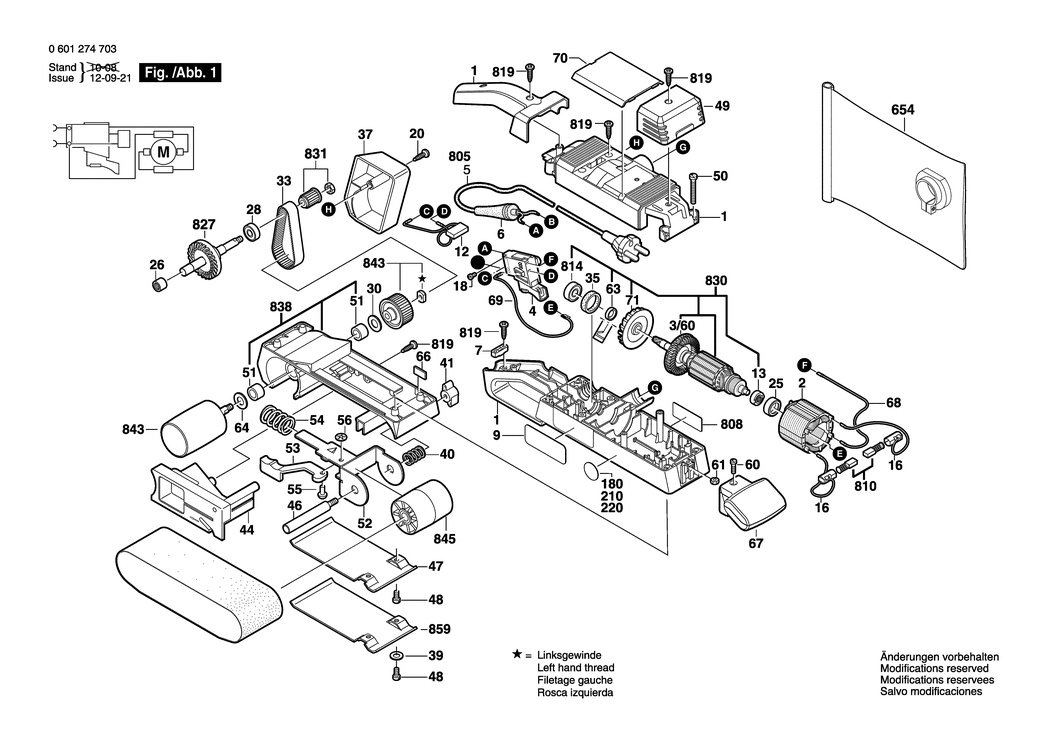

An exploded drawing and listing for the Bosch BBS 75 / 0601274761 / --- 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2605105115.A0 2605105115 £45.67 £54.80
2 - FIELD 230-240V BSD-2604220480.A57 2604220480 £21.68 £26.01
3/60 - FAN BSD-2606610049.A187 2606610049 £2.16 £2.59
4 - SWITCH BSD-2607200384.A15 2607200384 £37.27 £44.72
5 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A518 1607000386 £21.52 £25.83
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A388 2600703017 £2.61 £3.13
7 - CABLE CLIP BSD-2601035001.A2438 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601115237.A0 2601115237 £3.72 £4.47
12 - SUPPRESSION FILTER BSD-1607328028.A22 1607328028 £5.30 £6.36
13 - FLANGED BEARING BSD-2605805008.A79 2605805008 £5.30 £6.36
16 - BRUSH HOLDER BSD-2604449026.A11 2604449026 £1.75 £2.10
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2426 2603410001 £1.75 £2.10
20 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A456 2603490023 £1.75 £2.10
25 - INTERMEDIATE RING BSD-1600502011.A489 1600502011 £2.61 £3.13
26 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A145 2600910001 £4.26 £5.11
28 - GROOVE BALL BEARING 8x22x7 BSD-1900905041.A109 1900905041 £13.12 £15.75
30 - SHIM BSD-2600100099.A33 2600100099 £2.16 £2.59
33 - TOOTHED BELT Z=75 BSD-2604736010.A34 2604736010 £11.30 £13.56
35 - INTERMEDIATE RING BSD-1600206024.A40 1600206024 £1.75 £2.10
37 - COVERING HOOD BSD-1605510150.A36 1605510150 £4.26 £5.11
39 - PLAIN WASHER DIN 125-A5.3-A2 BSD-2918650007.A16 2918650007 £1.75 £2.10
40 - COMPRESSION SPRING BSD-2604630002.A40 2604630002 £1.75 £2.10
41 - WING NUT BSD-2603339005.A31 2603339005 £2.80 £3.36
44 - BASE BSD-2605105117.A0 2605105117 £21.52 £25.83
46 - AXLE BSD-1603521027.A1 1603521027 £10.10 £12.12
47 - BASE PLATE BSD-2601098040.A10 2601098040 £7.36 £8.83
48 - SOCKET HEAD CAP SCREW DIN 84-M5x10-4.8 BSD-2603410045.A31 2603410045 £2.16 £2.59
49 - BRUSH-COVER BSD-1605500122.A8 1605500122 £5.58 £6.70
50 - SOCKET HEAD CAP SCREW DIN 84-BM5x40-5.8 BSD-2910011170.A6 2910011170 £1.75 £2.10
51 - SINTERED-METAL BUSHING DIN 1850-J12x18x12 BSD-1900301018.A13 1900301018 -
52 - BEARING BRACKET BSD-1605807013.A31 1605807013 £8.67 £10.41
53 - TENSIONING LEVER BSD-1602098006.A35 1602098006 £2.71 £3.25
54 - COMPRESSION SPRING BSD-1604619017.A42 1604619017 £2.16 £2.59
55 - BUTTON-HEAD RIVET BSD-2917030110.A36 2917030110 £2.61 £3.13
56 - LOCKING WASHER BSD-1600146001.A37 1600146001 £1.75 £2.10
59 - SLIDING PLATE BSD-2601098037.A6 2601098037 £5.30 £6.36
60 - SOCKET HEAD CAP SCREW DIN 84-AM4x16-8.8 BSD-2910021126.A7 2910021126 £1.75 £2.10
61 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A10 2915011005 £1.75 £2.10
63 - SEAL RING BSD-2600290033.A32 2600290033 £3.72 £4.47
64 - SHIM 0.3 MM BSD-1600101618.A115 1600101618 £2.61 £3.13
66 - CERAMIC PLATE BSD-1601010007.A37 1601010007 £2.61 £3.13
67 - HANDLE BSD-1605133036.A19 1605133036 £7.36 £8.83
68 - CONNECTING CABLE L=410 MM BSD-1604438018.A7 1604438018 £1.75 £2.10
69 - CONNECTING CABLE L=373 MM BSD-1604448000.A31 1604448000 £2.16 £2.59
70 - HOUSING COVER BSD-1605500120.A30 1605500120 £2.61 £3.13
71 - FAN BSD-1606610120.A37 1606610120 £2.61 £3.13
654 - DUST BAG BSD-2605411023.A1 2605411023 £21.52 £25.83
808 - NAMEPLATE BSD-160111A3HC.A170 160111A3HC £2.61 £3.13
810 - CARBON-BRUSH SET BSD-2604321905.A269 2604321905 £11.30 £13.56
814 - GROOVE BALL BEARING 9x24x7 BSD-1610905011.A45 1610905011 £14.91 £17.89
819 - TAPPING SCREW DIN 7981-ST3.9x19-C-H BSD-2910611020.A38 2910611020 £1.75 £2.10
827 - CROWN GEAR Z=45 BSD-2606333900.A51 2606333900 £21.52 £25.83
830 - ARMATURE 230-240V BSD-2604010935.A5 2604010935 £81.81 £98.17
831 - TOOTHED BELT WHEEL BSD-2606625907.A29 2606625907 £2.80 £3.36
838 - HOUSING BSD-2605190900.A7 2605190900 £48.38 £58.06
843 - ROLLER BSD-2606625904.A0 2606625904 £37.27 £44.72
845 - ROLLER BSD-2606625908.A7 2606625908 £37.27 £44.72
