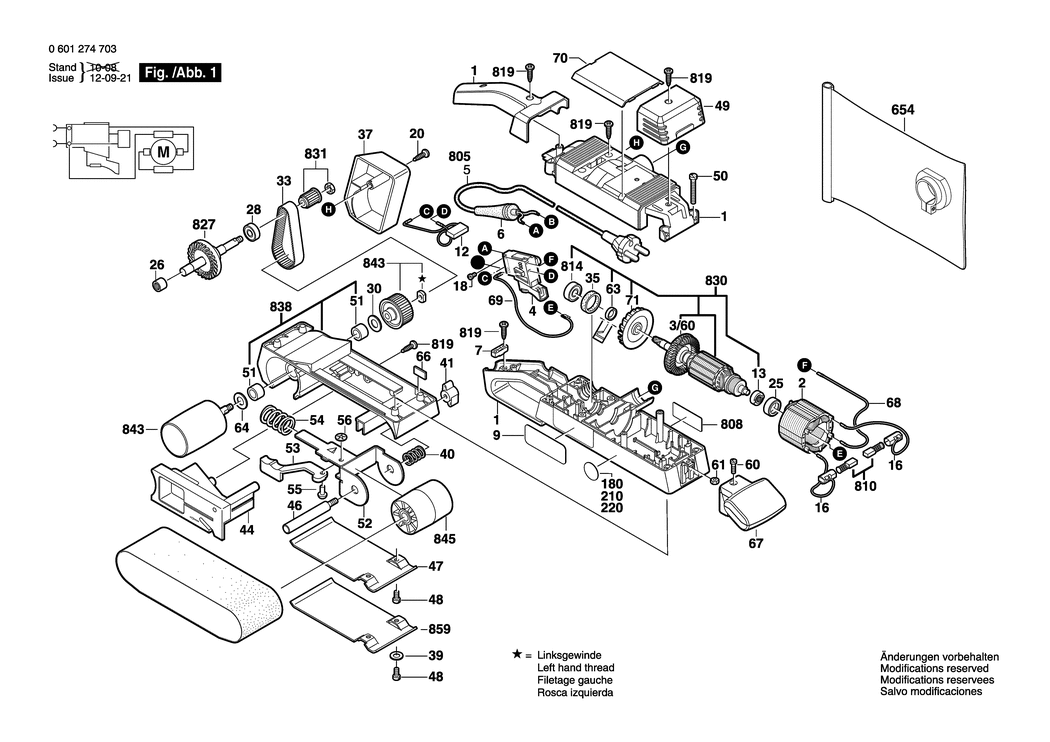

An exploded drawing and listing for the Bosch GBS 75 AE / 0601274732 / CH 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2605104549.A5 2605104549 £33.74 £40.49
2 - FIELD 230-240V BSD-2604220480.A53 2604220480 £21.68 £26.01
3/60 - FAN BSD-2606610049.A181 2606610049 £2.16 £2.59
4 - SWITCH BSD-2607200384.A10 2607200384 £37.27 £44.72
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460403.A133 1604460403 £16.41 £19.69
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A386 2600703017 £2.61 £3.13
7 - CABLE CLIP BSD-2601035001.A2437 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE GBS 75 AE BSD-2601112057.A7 2601112057 £2.61 £3.13
12 - SUPPRESSION FILTER BSD-1607328028.A23 1607328028 £5.30 £6.36
13 - FLANGED BEARING BSD-2605805008.A73 2605805008 £5.30 £6.36
16 - BRUSH HOLDER BSD-2604449026.A12 2604449026 £1.75 £2.10
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2421 2603410001 £1.75 £2.10
20 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A451 2603490023 £1.75 £2.10
25 - INTERMEDIATE RING BSD-1600502011.A494 1600502011 £2.61 £3.13
26 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A141 2600910001 £4.26 £5.11
28 - GROOVE BALL BEARING 8x22x7 BSD-1900905041.A106 1900905041 £13.12 £15.75
30 - SHIM BSD-2600100099.A36 2600100099 £2.16 £2.59
33 - TOOTHED BELT Z=75 BSD-2604736010.A30 2604736010 £11.30 £13.56
35 - INTERMEDIATE RING BSD-1600206024.A35 1600206024 £1.75 £2.10
37 - COVERING HOOD BSD-1605510150.A33 1605510150 £4.26 £5.11
39 - PLAIN WASHER DIN 125-A5.3-A2 BSD-2918650007.A20 2918650007 £1.75 £2.10
40 - COMPRESSION SPRING BSD-2604630002.A44 2604630002 £1.75 £2.10
41 - WING NUT BSD-2603339005.A36 2603339005 £2.80 £3.36
44 - BASE BSD-1608005004.A5 1608005004 £13.12 £15.75
46 - AXLE BSD-1603521027.A6 1603521027 £10.10 £12.12
47 - BASE PLATE BSD-2601098040.A14 2601098040 £7.36 £8.83
48 - SOCKET HEAD CAP SCREW DIN 84-M5x10-4.8 BSD-2603410045.A36 2603410045 £2.16 £2.59
49 - BRUSH-COVER BSD-1605500122.A11 1605500122 £5.58 £6.70
50 - SOCKET HEAD CAP SCREW DIN 84-BM5x40-5.8 BSD-2910011170.A3 2910011170 £1.75 £2.10
51 - SINTERED-METAL BUSHING DIN 1850-J12x18x12 BSD-1900301018.A16 1900301018 -
52 - BEARING BRACKET BSD-1605807013.A35 1605807013 £8.67 £10.41
53 - TENSIONING LEVER BSD-1602098006.A30 1602098006 £2.71 £3.25
54 - COMPRESSION SPRING BSD-1604619017.A37 1604619017 £2.16 £2.59
55 - BUTTON-HEAD RIVET BSD-2917030110.A32 2917030110 £2.61 £3.13
56 - LOCKING WASHER BSD-1600146001.A34 1600146001 £1.75 £2.10
60 - SOCKET HEAD CAP SCREW DIN 84-AM4x16-8.8 BSD-2910021126.A4 2910021126 £1.75 £2.10
61 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A16 2915011005 £1.75 £2.10
63 - SEAL RING BSD-2600290033.A25 2600290033 £3.72 £4.47
64 - SHIM 0.3 MM BSD-1600101618.A110 1600101618 £2.61 £3.13
66 - CERAMIC PLATE BSD-1601010007.A31 1601010007 £2.61 £3.13
67 - HANDLE BSD-1605133036.A16 1605133036 £7.36 £8.83
68 - CONNECTING CABLE L=410 MM BSD-1604438018.A0 1604438018 £1.75 £2.10
69 - CONNECTING CABLE L=373 MM BSD-1604448000.A38 1604448000 £2.16 £2.59
70 - HOUSING COVER BSD-1605500120.A33 1605500120 £2.61 £3.13
71 - FAN BSD-1606610120.A31 1606610120 £2.61 £3.13
654 - DUST BAG BSD-2605411170.A11 2605411170 £23.86 £28.63
808 - NAMEPLATE BSD-160111A3H3.A4066 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-2604321905.A265 2604321905 £11.30 £13.56
810 - CARBON-BRUSH SET 10 x 2 604 321 905 BSD-1607000484.A7 1607000484 £72.18 £86.62
814 - GROOVE BALL BEARING 9x24x7 BSD-1610905011.A47 1610905011 £14.91 £17.89
819 - TAPPING SCREW DIN 7981-ST3.9x19-C-H BSD-2910611020.A41 2910611020 £1.75 £2.10
827 - CROWN GEAR Z=45 BSD-2606333900.A57 2606333900 £21.52 £25.83
830 - ARMATURE 230-240V BSD-2604010935.A1 2604010935 £81.81 £98.17
831 - TOOTHED BELT WHEEL BSD-2606625907.A23 2606625907 £2.80 £3.36
838 - HOUSING BSD-2605190900.A12 2605190900 £48.38 £58.06
843 - ROLLER BSD-2606625904.A6 2606625904 £37.27 £44.72
845 - ROLLER BSD-2606625908.A13 2606625908 £37.27 £44.72
859 - SLIDING PLATE BSD-2601098037.A0 2601098037 £5.30 £6.36
