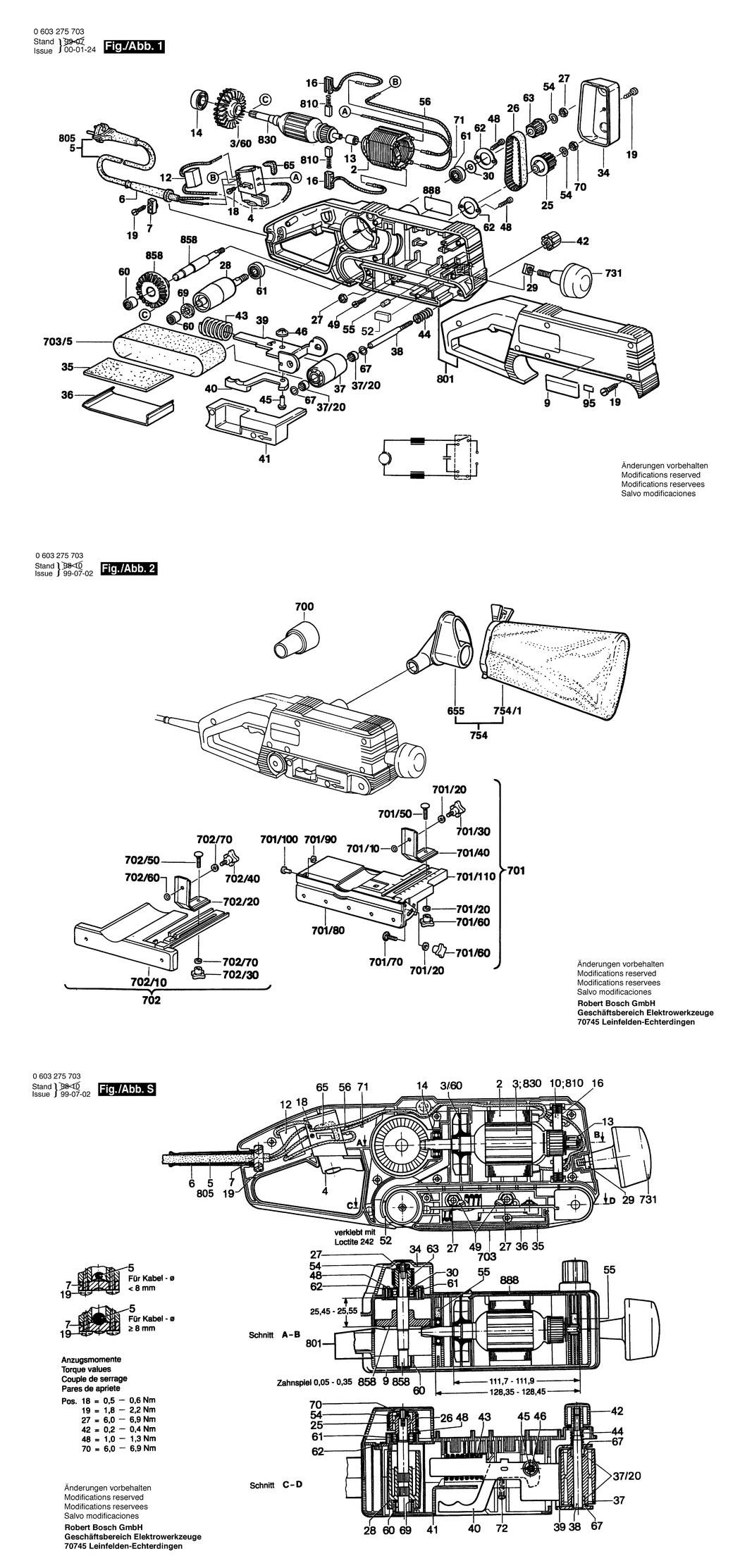

An exploded drawing and listing for the Bosch PBS 60 E / 0603275750 / I 220 Volt
Ex VAT Inc VAT
2 - FIELD 220-240V BSD-2604220456.A54 2604220456 £18.96 £22.75
3/60 - FAN BSD-2606610024.A20 2606610024 -
4 - ON-OFF SWITCH BSD-2607200358.A15 2607200358 -
5 - POWER SUPPLY CORD I/BR 2.65m 2 x 1.0mm H05 VV-F BSD-2604460277.A39 2604460277 £12.04 £14.45
6 - GROMMET dia7 MM BSD-2600703007.A0 2600703007 -
7 - CABLE CLIP BSD-2601035001.A1551 2601035001 £1.75 £2.10
9 - STICKER BSD-2601119325.A8 2601119325 -
12 - SUPPRESSION FILTER BSD-1607328028.A461 1607328028 £5.30 £6.36
13 - NEEDLE BEARING BSD-2600910005.A60 2600910005 -
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905011.A9 1610905011 £14.91 £17.89
16 - CARB BRUSH HOLD W-SUPR BSD-2604465085.A29 2604465085 -
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1106 2603410001 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A153 2603490022 £1.75 £2.10
25 - TOOTHED BELT WHEEL Z=27 BSD-1606625030.A20 1606625030 -
26 - TOOTHED BELT Z=59 BSD-1604736006.A20 1604736006 £10.10 £12.12
27 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A831 2915011007 -
28 - ROLLER BSD-1606625032.A20 1606625032 -
29 - SQUARE NUT M6 BSD-2603320004.A81 2603320004 £1.75 £2.10
30 - PLAIN WASHER DIN 433-6.4-ST 50 BSD-2916011013.A125 2916011013 £1.75 £2.10
34 - COVERING HOOD BSD-1605510159.A0 1605510159 -
35 - FELT STRIP BSD-1601005005.A0 1601005005 -
36 - SLIDE PLATE BSD-1601098007.A20 1601098007 -
37 - ROLLER BSD-1606625031.A0 1606625031 -
37/20 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A406 2600917003 £2.80 £3.36
38 - AXLE BSD-1603521028.A20 1603521028 -
39 - BEARING BRACKET BSD-1605807014.A20 1605807014 -
40 - TENSIONING LEVER BSD-1602098007.A20 1602098007 -
41 - BASE BSD-1608005005.A17 1608005005 -
42 - WING NUT BSD-2603339005.A45 2603339005 £2.80 £3.36
43 - COMPRESSION SPRING BSD-1604619018.A0 1604619018 -
44 - COMPRESSION SPRING BSD-1604612006.A0 1604612006 -
45 - BUTTON-HEAD RIVET DIN 660-5x10-Ms BSD-2917030709.A20 2917030709 -
46 - LOCKING WASHER BSD-1600146001.A75 1600146001 £1.75 £2.10
48 - TORX OVAL-HEAD SCREW 3x8 BSD-2603490016.A0 2603490016 £1.75 £2.10
49 - TAPPING SCREW DIN 7971-BZ3.9x9.5 BSD-2910211017.A320 2910211017 -
52 - CERAMIC PLATE BSD-2601010059.A35 2601010059 £5.58 £6.70
54 - SPRING WASHER DIN 137-A6-FST BSD-2916061007.A0 2916061007 -
55 - RUBBER BUFFER BSD-1603100036.A73 1603100036 £1.75 £2.10
56 - CONNECTING CABLE L = 298 MM BSD-2604448032.A15 2604448032 -
60 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A681 2600910001 £4.26 £5.11
61 - GROOVE BALL BEARING 8x22x7 BSD-1900905041.A8 1900905041 £13.12 £15.75
62 - TAB WASHER BSD-1600190016.A0 1600190016 -
63 - TOOTHED BELT WHEEL Z=19 BSD-1606625026.A49 1606625026 -
65 - DAMPING PLATE BSD-2601022000.A722 2601022000 £1.75 £2.10
67 - SHIM 0.2 MM BSD-2600100621.A27 2600100621 £1.75 £2.10
69 - FELT DISC BSD-2600108008.A0 2600108008 -
70 - HEX NUT M 6 BSD-2603300003.A28 2603300003 -
71 - CONNECTING CABLE BSD-2604448150.A20 2604448150 -
655 - FITTING BSD-2605702012.A32 2605702012 -
700 - FITTING dia 25x35 MM BSD-1600499005.A106 1600499005 £3.49 £4.19
701 - WIDTH STOP 45° BSD-2607001079.A22 2607001079 £21.87 £26.24
701/10 - O-RING 4.0x1.5 MM BSD-1610210043.A86 1610210043 £1.75 £2.10
701/20 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A1 2916011014 £1.75 £2.10
701/30 - WING SCREW M 6x16 MM BSD-2603480003.A178 2603480003 £2.61 £3.13
701/40 - STOP BRACKET BSD-1601332018.A34 1601332018 £3.72 £4.47
701/50 - ROUND-HEAD BOLT DIN 603-M6x25 BSD-2910281203.A9 2910281203 £2.61 £3.13
701/60 - WING NUT M6 BSD-1603339006.A165 1603339006 £2.52 £3.02
701/70 - ROUND-HEAD BOLT M6x15 DIN 603 BSD-2910281196.A292 2910281196 -
701/80 - STOP PLATE BSD-1608000092.A20 1608000092 -
701/90 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A25 2916011010 £1.75 £2.10
701/100 - TUBULAR RIVET B 4x0.5x15 DIN 734 BSD-2917190492.A0 2917190492 -
701/110 - STOP BRACKET BSD-1608000093.A29 1608000093 -
702 - PARALLEL-GUIDE BSD-2607000102.A5 2607000102 £20.99 £25.19
702/10 - STOP BRACKET BSD-2608005015.A69 2608005015 £11.30 £13.56
702/20 - STOP BRACKET BSD-1601332018.A35 1601332018 £3.72 £4.47
702/30 - WING NUT M6 BSD-1603339006.A164 1603339006 £2.52 £3.02
702/40 - WING SCREW M 6x16 MM BSD-2603480003.A179 2603480003 £2.61 £3.13
702/50 - ROUND-HEAD BOLT M6x15 DIN 603 BSD-2910281196.A291 2910281196 -
702/60 - O-RING 4.0x1.5 MM BSD-1610210043.A85 1610210043 £1.75 £2.10
702/70 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A0 2916011014 £1.75 £2.10
703 - SANDING BELT SET KORN 40 BSD-1608604198.A0 1608604198 -
709 - ADJUSTABLE SCREW CLAMP BSD-1607960006.A0 1607960006 -
731 - HANDLE M6x15 MM BSD-2602026046.A0 2602026046 -
754 - DUST BAG BSD-1605411026.A11 1605411026 £15.74 £18.89
754/1 - DUST BAG BSD-2605411009.A0 2605411009 £8.74 £10.49
801 - MOTOR HOUSING BSD-2605104804.A17 2605104804 -
810 - CARBON BRUSH BSD-1607014117.A1 1607014117 £10.10 £12.12
830 - ARMATURE 220-230V BSD-1604010306.A0 1604010306 -
858 - CROWN GEAR Z=45 BSD-2606333900.A1 2606333900 £21.52 £25.83
888 - NAMEPLATE BSD-160111A3H3.A2559 160111A3H3 £2.61 £3.13
