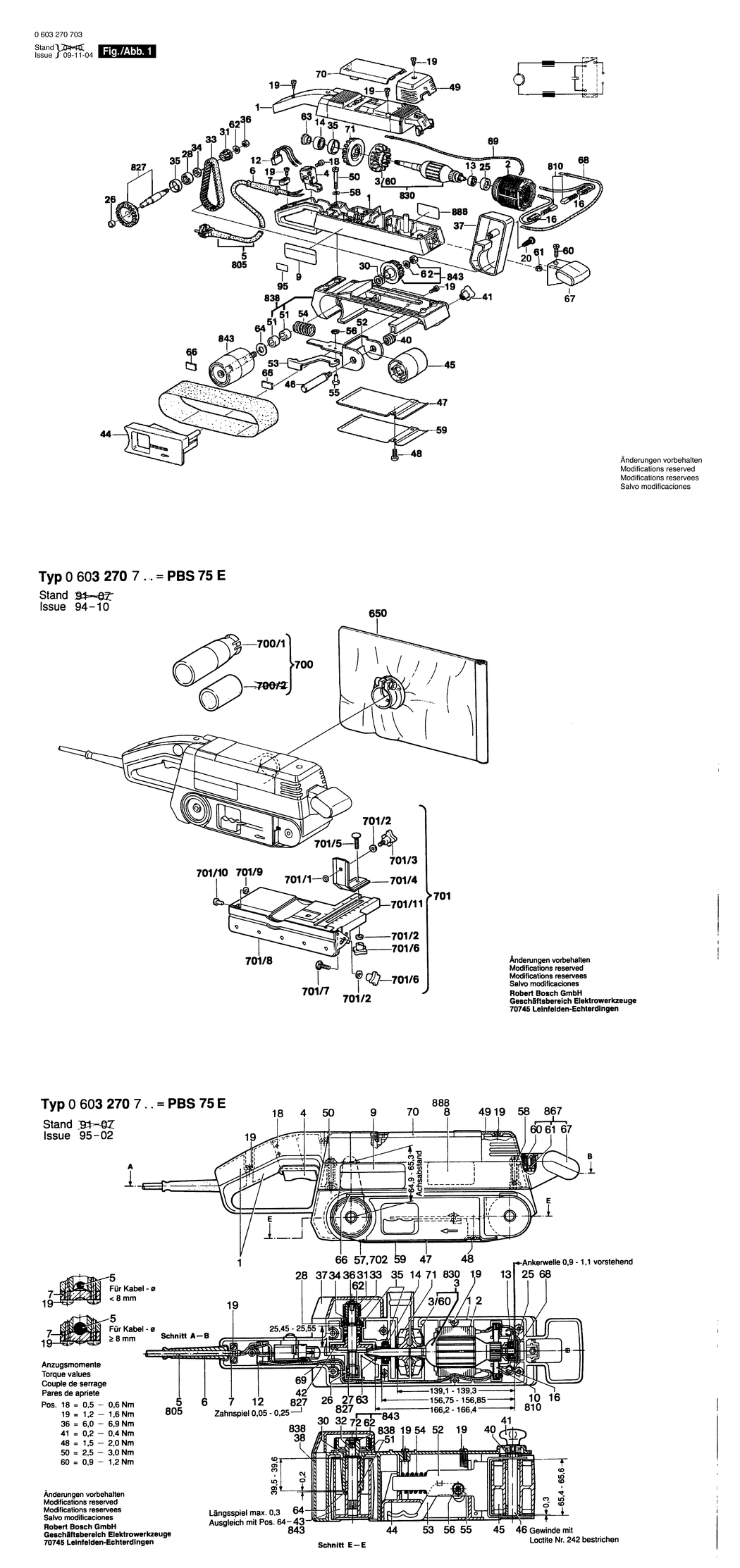

An exploded drawing and listing for the Bosch PBS 75 E / 0603270732 / CH 220 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2605104548.A6 2605104548 £30.28 £36.33
2 - FIELD 230-240V BSD-2604220447.A30 2604220447 £23.86 £28.63
3/60 - FAN BSD-2606610049.A172 2606610049 £2.16 £2.59
4 - ON-OFF SWITCH BSD-2607200358.A10 2607200358 -
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460403.A121 1604460403 £16.41 £19.69
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A546 2600703017 £2.61 £3.13
7 - CABLE CLIP BSD-2601035001.A2821 2601035001 £1.75 £2.10
9 - STICKER BSD-2601110608.A1 2601110608 -
12 - SUPPRESSION FILTER BSD-1607328028.A92 1607328028 £5.30 £6.36
13 - BALL BEARING 7x19x6 BSD-2600905032.A1527 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905011.A68 1610905011 £14.91 £17.89
16 - BRUSH HOLDER BSD-2604449026.A37 2604449026 £1.75 £2.10
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2098 2603410001 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A2650 2603490022 £1.75 £2.10
20 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A245 2603490023 £1.75 £2.10
25 - INTERMEDIATE RING BSD-1600502011.A447 1600502011 £2.61 £3.13
26 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A57 2600910001 £4.26 £5.11
28 - GROOVE BALL BEARING 8x22x7 BSD-1900905041.A79 1900905041 £13.12 £15.75
30 - SHIM BSD-2600100099.A6 2600100099 £2.16 £2.59
31 - TOOTHED BELT WHEEL Z=19 BSD-1606625026.A21 1606625026 -
33 - TOOTHED BELT Z=75 BSD-1604736005.A5 1604736005 £8.49 £10.19
34 - PLAIN WASHER 8-ST BSD-2916021013.A46 2916021013 £1.75 £2.10
35 - INTERMEDIATE RING BSD-1600206024.A32 1600206024 £1.75 £2.10
36 - NUT M 8 BSD-2603342010.A21 2603342010 £2.61 £3.13
36 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A172 2915011007 -
37 - COVERING HOOD BSD-1605510150.A13 1605510150 £4.26 £5.11
40 - COMPRESSION SPRING BSD-2604630002.A21 2604630002 £1.75 £2.10
41 - WING NUT BSD-2603339005.A17 2603339005 £2.80 £3.36
44 - BASE BSD-1608005003.A8 1608005003 -
45 - ROLLER BSD-2606625900.A19 2606625900 £18.96 £22.75
46 - AXLE BSD-1603521027.A8 1603521027 £10.10 £12.12
47 - BASE PLATE BSD-1601098005.A1 1601098005 -
48 - SOCKET HEAD CAP SCREW DIN 84-M5x10-4.8 BSD-2603410045.A23 2603410045 £2.16 £2.59
49 - BRUSH-COVER BSD-1605500122.A37 1605500122 £5.58 £6.70
50 - SOCKET HEAD CAP SCREW DIN 84-BM5x40-5.8 BSD-2910011170.A20 2910011170 £1.75 £2.10
51 - SINTERED-METAL BUSHING DIN 1850-J12x18x12 BSD-1900301018.A20 1900301018 -
52 - BEARING BRACKET BSD-1605807013.A22 1605807013 £8.67 £10.41
53 - TENSIONING LEVER BSD-1602098006.A0 1602098006 £2.71 £3.25
54 - COMPRESSION SPRING BSD-1604619017.A78 1604619017 £2.16 £2.59
55 - BUTTON-HEAD RIVET BSD-2917030110.A13 2917030110 £2.61 £3.13
56 - LOCKING WASHER BSD-1600146001.A7 1600146001 £1.75 £2.10
58 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A209 2916060006 £1.32 £1.58
59 - SLIDE PLATE BSD-1601098006.A10 1601098006 -
60 - SOCKET HEAD CAP SCREW DIN 84-AM4x16-8.8 BSD-2910021126.A49 2910021126 £1.75 £2.10
61 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A151 2915011005 £1.75 £2.10
62 - SPRING WASHER DIN 137-A 6-ST BSD-2916060007.A38 2916060007 £1.75 £2.10
63 - SEAL RING BSD-1600322034.A10 1600322034 -
64 - SHIM 0.3 MM BSD-1600101618.A102 1600101618 £2.61 £3.13
66 - CERAMIC PLATE BSD-1601010007.A26 1601010007 £2.61 £3.13
67 - HANDLE BSD-1605133036.A29 1605133036 £7.36 £8.83
68 - CONNECTING CABLE L=410 MM BSD-1604438018.A19 1604438018 £1.75 £2.10
69 - CONNECTING CABLE L=373 MM BSD-1604448000.A57 1604448000 £2.16 £2.59
70 - HOUSING COVER BSD-1605500120.A7 1605500120 £2.61 £3.13
71 - FAN BSD-1606610120.A7 1606610120 £2.61 £3.13
650 - DUST BAG BSD-1605411025.A5 1605411025 -
701/1 - O-RING 4.0x1.5 MM BSD-1610210043.A67 1610210043 £1.75 £2.10
701/2 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A398 2916011014 £1.75 £2.10
701/3 - WING SCREW M 6x16 MM BSD-2603480003.A82 2603480003 £2.61 £3.13
701/4 - STOP BRACKET BSD-1601332018.A22 1601332018 £3.72 £4.47
701/5 - ROUND-HEAD BOLT DIN 603-M6x25 BSD-2910281203.A189 2910281203 £2.61 £3.13
701/6 - WING NUT M6 BSD-1603339006.A333 1603339006 £2.52 £3.02
701/7 - ROUND-HEAD BOLT M6x15 DIN 603 BSD-2910281196.A20 2910281196 -
701/8 - STOP PLATE BSD-1608000092.A23 1608000092 -
701/9 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A172 2916011010 £1.75 £2.10
701/10 - TUBULAR RIVET B 4x0.5x15 DIN 734 BSD-2917190492.A32 2917190492 -
701/11 - STOP BRACKET BSD-1608000093.A26 1608000093 -
810 - CARBON-BRUSH SET BSD-1617014117.A11 1617014117 -
827 - CROWN GEAR Z=45 BSD-2606333900.A29 2606333900 £21.52 £25.83
830 - ARMATURE 220V BSD-1604010252.A9 1604010252 -
838 - HOUSING BSD-2605190900.A27 2605190900 £48.38 £58.06
843 - ROLLER BSD-2606625906.A1 2606625906 -
888 - NAMEPLATE BSD-160111A3H3.A3510 160111A3H3 £2.61 £3.13
