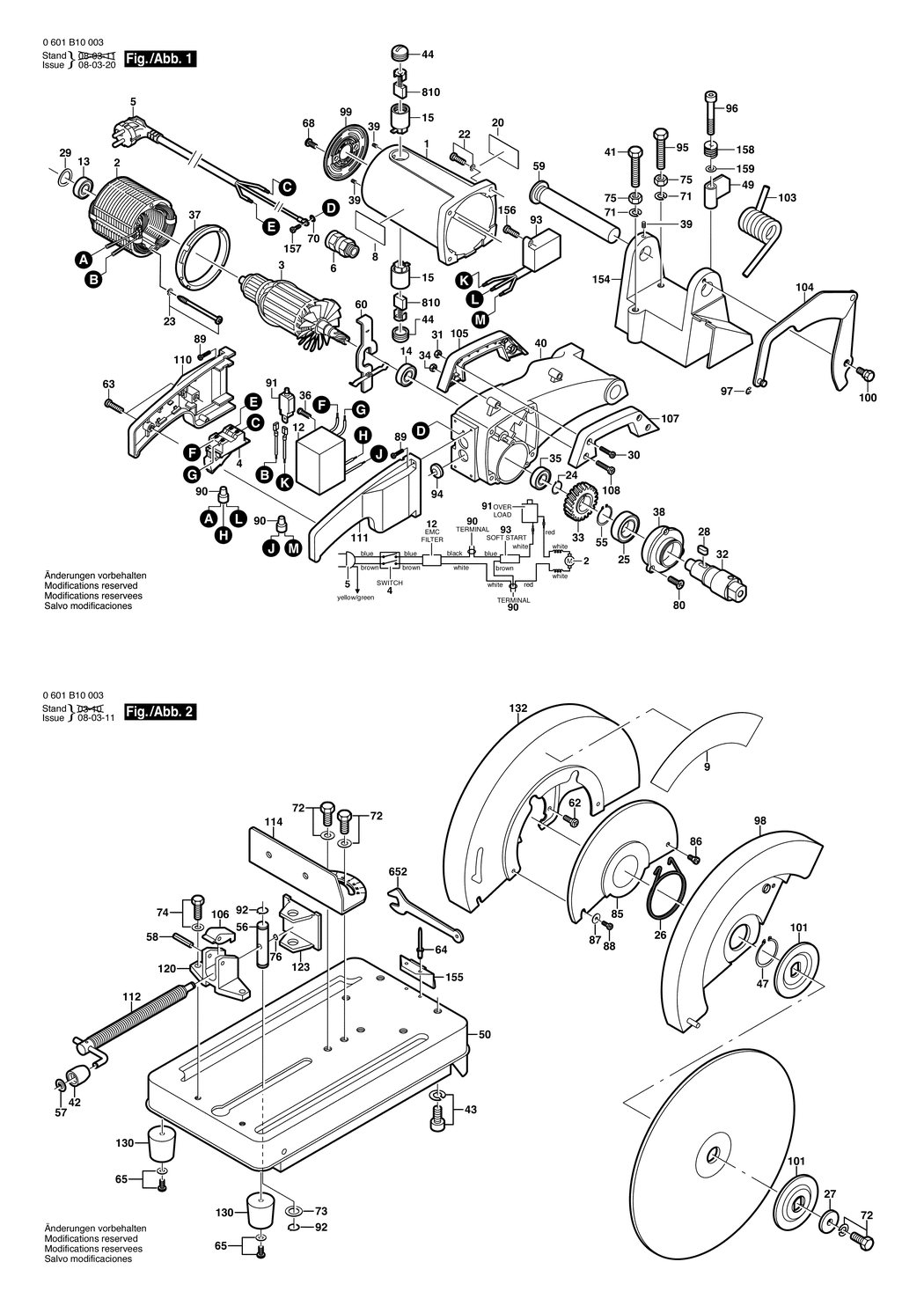

An exploded drawing and listing for the Bosch GCO 14-1 / 0601B10003 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2610913038.A1 2610913038 -
2 - STATOR BSD-2610911649.A1 2610911649 £70.24 £84.29
3 - ROTOR BSD-2610911655.A1 2610911655 £154.03 £184.84
4 - ON-OFF SWITCH BSD-2610913060.A2 2610913060 £51.22 £61.47
5 - POWER SUPPLY CORD BSD-1609203F91.A0 1609203F91 £16.74 £20.09
6 - FASTENING CLAMP BSD-2610913043.A0 2610913043 -
8 - NAMEPLATE BSD-1609902659.A0 1609902659 £3.34 £4.01
9 - MANUFACTURER'S NAMEPLATE BSD-2610994083.A2 2610994083 £3.72 £4.47
12 - INDUCTOR BSD-1619P04445.A3 1619P04445 £57.02 £68.42
13 - BALL BEARING BSD-2610913087.A3 2610913087 £10.82 £12.99
14 - BALL BEARING BSD-2610968044.A9 2610968044 £11.30 £13.56
15 - CARBON BRUSH BSD-2610913039.A3 2610913039 £14.91 £17.89
20 - NAMEPLATE BSD-1609902653.A3 1609902653 £3.34 £4.01
22 - SCREW BSD-2610913086.A1 2610913086 £1.32 £1.58
23 - SCREW BSD-2610913088.A0 2610913088 £1.75 £2.10
24 - SPRING RETAINING RING BSD-2610913091.A2 2610913091 £1.32 £1.58
25 - BALL BEARING BSD-2610913093.A3 2610913093 £24.45 £29.34
26 - SPRING BSD-2610913049.A0 2610913049 -
27 - PLAIN WASHER BSD-2610913096.A0 2610913096 £1.75 £2.10
28 - KEY BSD-2610355343.A0 2610355343 £5.01 £6.01
29 - PLAIN WASHER BSD-2615302981.A3 2615302981 £1.75 £2.10
30 - SCREW BSD-2610913089.A3 2610913089 £1.32 £1.58
31 - HEX NUT BSD-2610913090.A0 2610913090 -
32 - GRINDING SPINDLE BSD-2610913048.A3 2610913048 £30.28 £36.33
33 - TOOTHED GEAR BSD-2610913046.A3 2610913046 £27.31 £32.77
34 - NUT BSD-2610355339.A3 2610355339 -
35 - BALL BEARING BSD-2610327848.A3 2610327848 £9.49 £11.39
36 - SCREW BSD-1609902698.A4 1609902698 £1.66 £1.99
37 - AIR-DEFLECTOR RING BSD-2610913042.A3 2610913042 £3.80 £4.56
38 - BEARING COVER BSD-2610913047.A0 2610913047 £27.31 £32.77
39 - SCREW BSD-2610911456.A10 2610911456 -
40 - SWIVEL ARM BSD-2610913045.A0 2610913045 £70.24 £84.29
41 - SCREW BSD-2610913108.A3 2610913108 -
42 - HANDLE BSD-2610913063.A3 2610913063 £2.52 £3.02
43 - SCREW BSD-2610913114.A3 2610913114 £1.32 £1.58
44 - BRUSH-COVER BSD-2610913041.A0 2610913041 £2.16 £2.59
47 - SPRING RETAINING RING BSD-2610913095.A3 2610913095 £1.75 £2.10
49 - BUMPER BSD-2610913069.A0 2610913069 -
50 - BASE PLATE BSD-2610913073.A0 2610913073 £80.61 £96.73
55 - SPRING RETAINING RING BSD-2610913092.A0 2610913092 -
56 - BOLT BSD-1619P03791.A0 1619P03791 £5.01 £6.01
57 - SPRING RETAINING RING BSD-2610913104.A3 2610913104 £1.32 £1.58
58 - SLOTTED SPRING PIN BSD-2610913061.A0 2610913061 £1.32 £1.58
59 - BOLT BSD-2610913068.A3 2610913068 £13.12 £15.75
60 - REJECTION SLIDE BSD-2610913044.A3 2610913044 -
62 - SCREW 22 MM BSD-1619P03288.A0 1619P03288 £1.32 £1.58
63 - SCREW BSD-2610913101.A0 2610913101 £1.75 £2.10
64 - SCREW BSD-2610355293.A0 2610355293 £2.33 £2.80
65 - SCREW BSD-2610913115.A0 2610913115 £1.75 £2.10
68 - SCREW BSD-2615296774.A4 2615296774 £1.32 £1.58
70 - LOCKING WASHER BSD-1609203F78.A3 1609203F78 £1.75 £2.10
71 - PLAIN WASHER BSD-2610355264.A11 2610355264 £3.34 £4.01
72 - HEX SCREW BSD-2610913097.A3 2610913097 £1.75 £2.10
73 - PLAIN WASHER BSD-2610913106.A3 2610913106 £1.75 £2.10
74 - HEX SCREW BSD-2610913102.A3 2610913102 £1.75 £2.10
75 - HEX NUT BSD-2610905937.A0 2610905937 -
76 - PLAIN WASHER BSD-2610913107.A0 2610913107 £1.32 £1.58
80 - SCREW BSD-2610913094.A0 2610913094 £1.75 £2.10
85 - PROTECTIVE COVER BSD-2610913055.A0 2610913055 £7.78 £9.33
86 - SCREW BSD-2610913098.A0 2610913098 £1.75 £2.10
87 - PLAIN WASHER BSD-2610913099.A3 2610913099 -
88 - SCREW BSD-2610910784.A16 2610910784 -
89 - SCREW BSD-2610327867.A10 2610327867 £1.75 £2.10
90 - CONNECTING TERMINAL BSD-1609203G03.A3 1609203G03 £1.75 £2.10
91 - ON-OFF SWITCH BSD-1619P04446.A0 1619P04446 £10.82 £12.99
92 - RETAINING SNAP RING BSD-2610355290.A3 2610355290 £3.34 £4.01
93 - WIREWOUND RESISTOR BSD-1609203G01.A0 1609203G01 £51.22 £61.47
94 - GROMMET BSD-1609203G04.A0 1609203G04 £3.34 £4.01
95 - HEX SCREW BSD-2610913109.A0 2610913109 -
96 - HEX SCREW BSD-2610913110.A3 2610913110 £1.32 £1.58
97 - SPRING RETAINING RING BSD-2610913112.A3 2610913112 £1.32 £1.58
98 - PROTECTIVE COVER BSD-2610913050.A3 2610913050 £37.72 £45.27
99 - COVER PLATE BSD-2610913037.A3 2610913037 £3.34 £4.01
100 - HEX SCREW BSD-2610913113.A0 2610913113 £1.75 £2.10
101 - FLANGE BSD-2610913051.A0 2610913051 -
103 - SPRING BSD-2610913111.A0 2610913111 £7.78 £9.33
104 - LEVER BSD-2610913071.A0 2610913071 £13.12 £15.75
105 - HANDLE COVER BSD-2610913074.A3 2610913074 £7.78 £9.33
106 - THREADED FITTING BSD-2610913103.A0 2610913103 £7.78 £9.33
107 - HANDLE COVER BSD-2610913075.A0 2610913075 £7.78 £9.33
108 - SCREW BSD-2610358928.A9 2610358928 £1.66 £1.99
110 - HANDLE COVER BSD-1619P04447.A3 1619P04447 £13.41 £16.09
111 - HANDLE COVER BSD-1619P04448.A0 1619P04448 £13.41 £16.09
112 - THREADED SPINDLE BSD-2610913105.A0 2610913105 £11.78 £14.13
114 - CLAMPING JAW BSD-2610913067.A0 2610913067 £14.72 £17.67
120 - SPINDLE BEARING BSD-1619P03792.A3 1619P03792 £13.41 £16.09
123 - CLAMPING JAW BSD-1619P03790.A3 1619P03790 £8.49 £10.19
130 - SUPPORTING FOOT BSD-2610913072.A3 2610913072 £4.75 £5.70
132 - PROTECTIVE COVER BSD-2610913054.A3 2610913054 £41.62 £49.95
154 - BEARING BLOCK BSD-2610913070.A3 2610913070 £48.38 £58.06
155 - SUPPORT CLAMP BSD-1609203H36.A3 1609203H36 £2.33 £2.80
156 - SCREW BSD-1609203G05.A2 1609203G05 -
157 - SCREW BSD-1609203H37.A0 1609203H37 £1.75 £2.10
158 - SPRING BSD-1609902168.A3 1609902168 £1.75 £2.10
159 - PLAIN WASHER BSD-1609902169.A0 1609902169 £1.32 £1.58
652 - KEY BSD-2610913079.A3 2610913079 £6.61 £7.93
810 - CARBON-BRUSH SET BSD-1619P04451.A5 1619P04451 -
891 - SWITCH HANDLE BSD-1619P05635.A0 1619P05635 £102.57 £123.08
