Black & Decker BPHR323K Type 1 Rotary Hammer Spare Parts

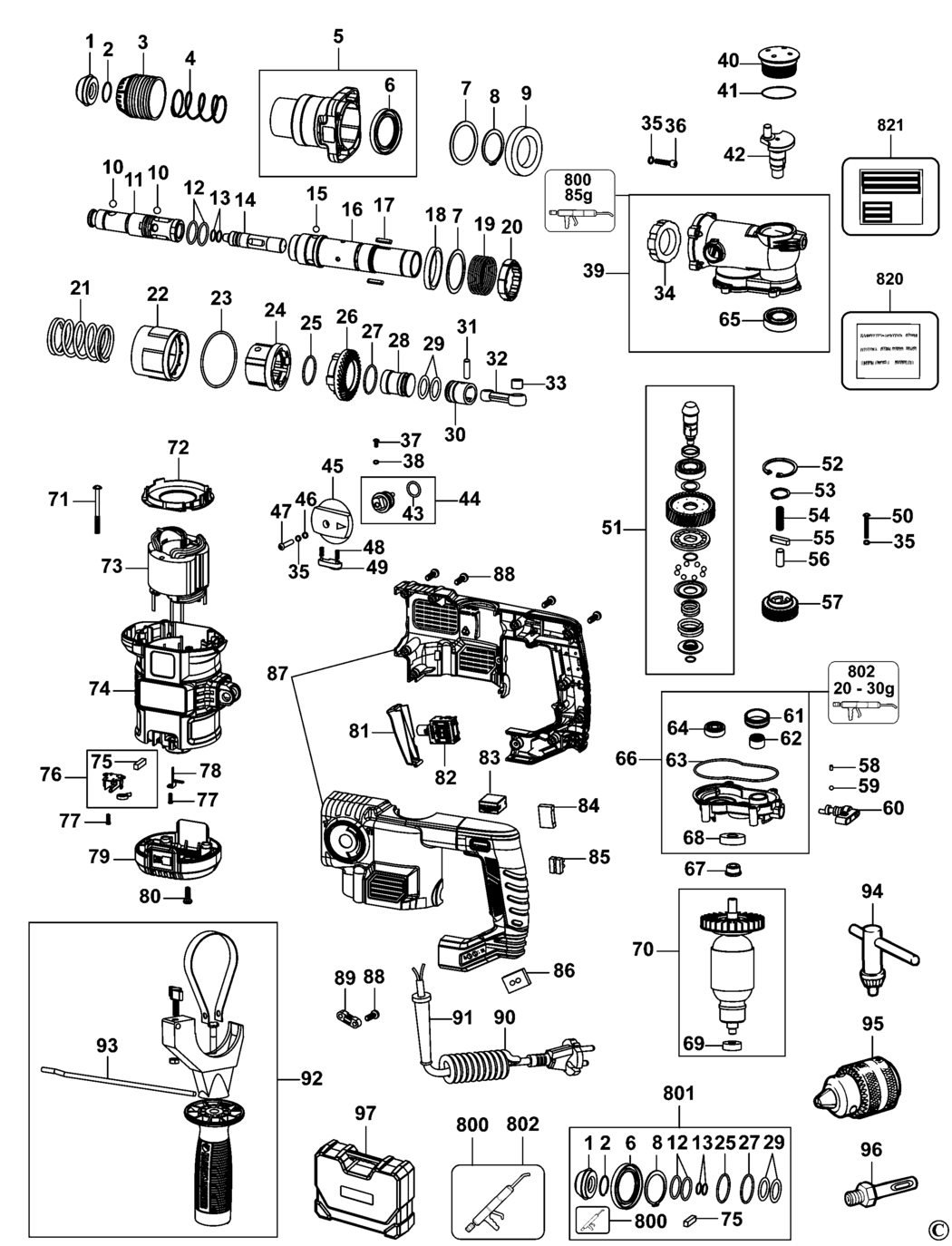

An exploded drawing and spare parts listing for the Black & Decker BPHR323K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - CAP BDE-1004691-27.A1 1004691-27	£1.50	£1.80
1 - COVER BDE-5140144-58.A0 5140144-58	£1.50	£1.80
2 - RING BDE-1004691-28.A1 1004691-28	£1.50	£1.80
2 - CIRCLIP BDE-5140144-59.A1 5140144-59	£1.50	£1.80
3 - COLLAR BDE-1004691-29.A1 1004691-29	£5.88	£7.06
3 - HOLDER BIT BDE-5140144-60.A0 5140144-60	£4.69	£5.63
4 - SPRING BDE-1004691-30.A0 1004691-30	£1.50	£1.80
4 - SPRING BDE-5140144-61.A1 5140144-61	£1.50	£1.80
5 - HOUSING SA BDE-1004691-31.A1 1004691-31	£16.03	£19.24
5 - SLEEVE BDE-5140144-62.A0 5140144-62	£9.41	£11.29
6 - SEAL BDE-1004691-32.A0 1004691-32	£7.18	£8.62
6 - SEAL BDE-5140144-63.A1 5140144-63	£5.88	£7.06
7 - WASHER BDE-1004691-33.A2 1004691-33	£1.50	£1.80
7 - WASHER BDE-5140144-64.A0 5140144-64	£1.50	£1.80
8 - CIRCLIP BDE-5140144-65.A1 5140144-65	£1.50	£1.80
8 - CIRCLIP BDE-1004691-34.A0 1004691-34	£1.50	£1.80
9 - BEARING BDE-5140144-66.A0 5140144-66	£9.41	£11.29
9 - BEARING BDE-1004691-35.A2 1004691-35	£10.85	£13.02
10 - BALL STEEL BDE-1004691-36.A0 1004691-36	£1.50	£1.80
10 - BALL STEEL BDE-5140144-67.A1 5140144-67	£1.50	£1.80
11 - SPINDLE BDE-1004691-37.A2 1004691-37	£14.57	£17.48
11 - SPINDLE BDE-5140144-68.A0 5140144-68	£12.17	£14.60
12 - O RING BDE-5140144-69.A1 5140144-69	£1.50	£1.80
12 - O RING BDE-1004691-38.A0 1004691-38	£1.50	£1.80
13 - O RING BDE-1004691-39.A2 1004691-39	£1.50	£1.80
13 - O RING BDE-5140144-70.A0 5140144-70	£1.50	£1.80
14 - BEAT PIECE BDE-1004691-40.A0 1004691-40	£7.18	£8.62
14 - HAMMER BDE-5140144-71.A1 5140144-71	£5.88	£7.06
15 - BALL STEEL BDE-5140144-72.A0 5140144-72	£1.50	£1.80
15 - BALL STEEL BDE-1004691-41.A2 1004691-41	£1.50	£1.80
16 - CYLINDER BDE-5140144-73.A1 5140144-73	£25.70	£30.84
16 - CYLINDER BDE-1004691-42.A0 1004691-42	£30.08	£36.10
17 - KEY BDE-5140144-74.A0 5140144-74	£1.50	£1.80
17 - KEY BDE-1004691-43.A2 1004691-43	£1.50	£1.80
18 - BUSH BDE-1004691-44.A0 1004691-44	£1.50	£1.80
18 - COVER BDE-5140144-75.A1 5140144-75	£1.50	£1.80
19 - CLUTCH BDE-5140144-76.A0 5140144-76	£12.17	£14.60
19 - SPRING BDE-1004691-45.A2 1004691-45	£14.57	£17.48
20 - RING BDE-5140144-77.A1 5140144-77	£2.78	£3.34
20 - BUSH BDE-1004691-46.A0 1004691-46	£3.30	£3.96
21 - SPRING BDE-1004691-47.A2 1004691-47	£1.50	£1.80
21 - SPRING BDE-5140144-78.A0 5140144-78	£1.50	£1.80
22 - COVER BDE-5140144-79.A1 5140144-79	£1.50	£1.80
22 - BUSH BDE-1004691-48.A0 1004691-48	£1.50	£1.80
23 - O RING BDE-1004691-49.A2 1004691-49	£1.50	£1.80
23 - O RING BDE-5140144-80.A0 5140144-80	£1.50	£1.80
24 - CLUTCH BDE-1004691-50.A0 1004691-50	£1.50	£1.80
24 - CLUTCH BDE-5140144-81.A1 5140144-81	£1.50	£1.80
25 - RING BDE-1004691-51.A2 1004691-51	£1.50	£1.80
25 - CLIP BDE-5140144-82.A0 5140144-82	£1.50	£1.80
26 - GEAR BDE-1004691-52.A0 1004691-52	£19.90	£23.88
26 - GEAR BDE-5140144-83.A1 5140144-83	£18.91	£22.69
27 - RING BDE-1004691-53.A2 1004691-53	£1.50	£1.80
27 - CLIP BDE-5140144-84.A0 5140144-84	£1.50	£1.80
28 - RAM BDE-1004691-54.A0 1004691-54	£4.69	£5.63
28 - HAMMER BDE-5140144-85.A1 5140144-85	£3.80	£4.56
29 - O RING BDE-1004691-55.A2 1004691-55	£1.50	£1.80
29 - O RING BDE-5140147-39.A1 5140147-39	£1.50	£1.80
30 - PISTON BDE-5140147-40.A0 5140147-40	£2.78	£3.34
30 - PISTON BDE-1004691-56.A0 1004691-56	£3.30	£3.96
31 - PIN BDE-5140147-41.A1 5140147-41	£1.50	£1.80
31 - PIN BDE-1004691-57.A2 1004691-57	£1.50	£1.80
32 - SHAFT BDE-5140147-42.A0 5140147-42	£5.88	£7.06
32 - CON ROD BDE-1004691-58.A0 1004691-58	£5.88	£7.06
33 - BEARING BDE-5140147-43.A1 5140147-43	£1.50	£1.80
33 - BEARING BDE-1004691-59.A2 1004691-59	£1.50	£1.80
34 - BEARING BDE-5140144-86.A0 5140144-86	£1.50	£1.80
34 - BUSH BDE-1004691-60.A0 1004691-60	£1.50	£1.80
35 - WASHER SPRING BDE-1004691-61.A2 1004691-61	£1.50	£1.80
35 - WASHER SPRING BDE-5140144-87.A1 5140144-87	£1.50	£1.80
36 - SCREW BDE-5140144-88.A0 5140144-88	£1.50	£1.80
36 - SCREW BDE-1004691-62.A0 1004691-62	£1.50	£1.80
37 - SCREW BDE-5140144-89.A1 5140144-89	£1.50	£1.80
37 - SCREW BDE-1004691-63.A2 1004691-63	£1.50	£1.80
38 - WASHER SPRING BDE-5140144-90.A0 5140144-90	£1.50	£1.80
38 - WASHER SPRING BDE-1004691-64.A0 1004691-64	£1.50	£1.80
39 - CRANKCASE BDE-1004691-65.A2 1004691-65	£19.90	£23.88
39 - GEARBOX BDE-5140144-91.A1 5140144-91	£14.57	£17.48
40 - COVER BDE-1004691-66.A0 1004691-66	£1.50	£1.80
40 - COVER BDE-5140144-92.A0 5140144-92	£1.50	£1.80
41 - O RING BDE-5140144-93.A1 5140144-93	£1.50	£1.80
41 - O RING BDE-1004691-67.A2 1004691-67	£1.50	£1.80
42 - CRANKSHAFT BDE-1004691-68.A0 1004691-68	£7.85	£9.42
42 - CRANKSHAFT BDE-5140144-94.A0 5140144-94	£7.18	£8.62
43 - O RING BDE-5140147-44.A0 5140147-44	£1.50	£1.80
43 - O RING BDE-1004691-69.A2 1004691-69	£1.50	£1.80
44 - SHAFT BDE-5140147-45.A1 5140147-45	£2.26	£2.71
44 - LEVER SA BDE-1004691-70.A0 1004691-70	£3.30	£3.96
45 - KNOB BDE-5140147-46.A0 5140147-46	£1.50	£1.80
45 - KNOB BDE-1004691-71.A2 1004691-71	£1.50	£1.80
46 - WASHER 5 MM BDE-1004691-72.A0 1004691-72	£1.50	£1.80
46 - WASHER BDE-5140147-47.A1 5140147-47	£1.50	£1.80
47 - SCREW BDE-5140147-48.A0 5140147-48	£1.50	£1.80
47 - SCREW BDE-1004691-73.A2 1004691-73	£1.50	£1.80
48 - SPRING BDE-1004691-74.A0 1004691-74	£1.50	£1.80
48 - SPRING BDE-5140147-49.A1 5140147-49	£1.50	£1.80
49 - BUTTON BDE-1004691-75.A2 1004691-75	£1.50	£1.80
49 - BUTTON BDE-5140147-50.A0 5140147-50	£1.50	£1.80
50 - SCREW BDE-1004691-76.A0 1004691-76	£1.50	£1.80
50 - SCREW BDE-5140144-95.A1 5140144-95	£1.50	£1.80
51 - GEAR & PINION SA BDE-1004691-77.A2 1004691-77	£12.17	£14.60
52 - CIRCLIP BDE-1004691-80.A0 1004691-80	£1.50	£1.80
53 - CIRCLIP BDE-1004691-81.A2 1004691-81	£1.50	£1.80
54 - SPRING BDE-1004691-82.A0 1004691-82	£1.50	£1.80
55 - KEY BDE-1004691-83.A2 1004691-83	£1.50	£1.80
56 - PIN BDE-1004691-86.A0 1004691-86	£1.50	£1.80
57 - GEAR BDE-1004691-84.A0 1004691-84	£7.18	£8.62
58 - STOP RUBBER BDE-1004691-90.A0 1004691-90	£1.50	£1.80
59 - BALL STEEL 4MM BDE-1004691-91.A2 1004691-91	£1.50	£1.80
60 - LEVER BDE-1004691-93.A1 1004691-93	£3.80	£4.56
61 - BUSH BDE-1004691-85.A2 1004691-85	£1.50	£1.80
62 - BEARING NEEDLE BDE-1004691-87.A2 1004691-87	£1.50	£1.80
63 - SEAL BDE-1004691-89.A2 1004691-89	£1.50	£1.80
63 - BEARING BDE-5140144-97.A1 5140144-97	£1.82	£2.19
64 - BEARING BDE-1004691-78.A0 1004691-78	£2.26	£2.71
64 - BEARING BDE-5140144-98.A0 5140144-98	£3.80	£4.56
65 - BEARING BDE-1004691-79.A2 1004691-79	£4.69	£5.63
65 - CIRCLIP BDE-5140144-99.A1 5140144-99	£1.50	£1.80
66 - CIRCLIP BDE-5140145-00.A0 5140145-00	£1.50	£1.80
66 - GEARCASE COVER SA BDE-1004691-92.A0 1004691-92	£12.17	£14.60
67 - CAP BDE-1004691-88.A0 1004691-88	£1.50	£1.80
67 - SPRING BDE-5140145-01.A1 5140145-01	£1.50	£1.80
68 - BEARING BDE-1004691-94.A0 1004691-94	£9.41	£11.29
68 - KEY BDE-5140145-02.A0 5140145-02	£1.50	£1.80
69 - BEARING BDE-1004691-96.A0 1004691-96	£5.88	£7.06
69 - GEAR BDE-5140145-03.A1 5140145-03	£7.18	£8.62
70 - SHEATH BDE-5140145-04.A0 5140145-04	£1.50	£1.80
70 - ARMATURE SA BDE-1004691-95.A2 1004691-95	£74.15	£88.98
71 - SCREW BDE-1004691-97.A2 1004691-97	£1.50	£1.80
71 - HAMMER BDE-5140145-05.A1 5140145-05	£1.50	£1.80
72 - FAN COVER BDE-1004691-98.A0 1004691-98	£1.50	£1.80
72 - BEARING NEEDLE BDE-5140145-06.A0 5140145-06	£1.50	£1.80
73 - RETAINING PLATE BDE-5140145-07.A1 5140145-07	£1.50	£1.80
73 - FIELD BDE-1004692-00.A1 1004692-00	£34.00	£40.80
74 - HOUSING MOTOR BDE-1004692-01.A0 1004692-01	£24.39	£29.27
74 - SEAL BDE-5140145-08.A0 5140145-08	£1.50	£1.80
75 - RUBBER BDE-5140145-09.A1 5140145-09	£1.50	£1.80
75 - BRUSH & LEAD BDE-1004692-02.A1 1004692-02	£3.80	£4.56
76 - BALL STEEL BDE-5140145-10.A0 5140145-10	£1.50	£1.80
76 - BRUSH & HOLDER SA BDE-1004692-03.A1 1004692-03	£7.18	£8.62
77 - COVER BDE-5140145-11.A1 5140145-11	£5.88	£7.06
77 - SCREW BDE-1004692-04.A1 1004692-04	£1.50	£1.80
78 - CONTACT BDE-1004692-05.A1 1004692-05	£1.50	£1.80
78 - BUTTON BDE-5140145-12.A0 5140145-12	£3.30	£3.96
79 - MOTOR COVER BDE-1004692-06.A1 1004692-06	£7.85	£9.42
79 - BEARING BDE-5140145-13.A1 5140145-13	£7.85	£9.42
80 - ARMATURE SA BDE-5140145-40.A0 5140145-40	£47.08	£56.49
80 - SCREW BDE-1004692-07.A0 1004692-07	£1.50	£1.80
81 - TRIGGER BDE-1004692-09.A0 1004692-09	£1.50	£1.80
81 - BEARING BDE-5140145-15.A0 5140145-15	£4.69	£5.63
82 - SWITCH BDE-1004692-10.A2 1004692-10	£24.39	£29.27
82 - SCREW BDE-5140145-16.A1 5140145-16	£1.50	£1.80
83 - COVER BDE-5140145-17.A0 5140145-17	£1.50	£1.80
83 - POTENTIOMETER SA BDE-1004692-11.A0 1004692-11	£18.91	£22.69
84 - FIELD SA BDE-5140145-39.A1 5140145-39	£25.70	£30.84
84 - CAPACITOR BDE-1004692-13.A0 1004692-13	£1.50	£1.80
85 - TERMINAL BLOCK BDE-1004692-12.A2 1004692-12	£1.50	£1.80
85 - HOUSING BDE-5140145-19 5140145-19	-
86 - BRUSH PAIR BDE-5140145-21.A1 5140145-21	£2.26	£2.71
86 - LED BDE-1004692-19.A1 1004692-19	£3.80	£4.56
87 - CLAMSHELL SA BDE-1004692-08.A1 1004692-08	£37.35	£44.82
87 - BRUSH HOLDER PAIR BDE-5140145-20.A0 5140145-20	£3.30	£3.96
88 - SCREW BDE-1004692-15.A0 1004692-15	£1.50	£1.80
88 - SCREW BDE-5140145-22.A0 5140145-22	£1.50	£1.80
89 - SPRING BDE-5140145-23.A1 5140145-23	£1.50	£1.80
89 - CORD CLAMP BDE-1004692-14.A2 1004692-14	£1.50	£1.80
90 - CONTACT BDE-5140145-24.A0 5140145-24	£1.50	£1.80
91 - CORD PROTECTOR BDE-1004692-16.A2 1004692-16	£1.50	£1.80
91 - COVER BDE-5140145-25.A1 5140145-25	£7.18	£8.62
92 - SIDE HANDLE BDE-1004692-20.A1 1004692-20	£14.57	£17.48
92 - SCREW BDE-5140145-26.A0 5140145-26	£1.50	£1.80
93 - HANDLE SA BDE-5140145-27 5140145-27	-
93 - DEPTH ROD BDE-1004692-21.A0 1004692-21	£1.50	£1.80
94 - TRIGGER BDE-5140145-28.A0 5140145-28	£1.50	£1.80
94 - CHUCK KEY BDE-1004692-32.A1 1004692-32	£1.50	£1.80
95 - SWITCH BDE-5140145-29.A1 5140145-29	£18.91	£22.69
95 - CHUCK BDE-1004692-33.A1 1004692-33	£14.57	£17.48
96 - ADAPTOR BDE-1004692-34.A1 1004692-34	£2.78	£3.34
96 - SPEED REGULATOR BDE-5140145-30.A0 5140145-30	£17.48	£20.97
97 - KITBOX BDE-1004692-22.A1 1004692-22	£37.35	£44.82
97 - POST BDE-5140145-31.A1 5140145-31	£1.50	£1.80
99 - CORD CLAMP BDE-5140145-32.A0 5140145-32	£1.50	£1.80
100 - SCREW BDE-5140145-33.A1 5140145-33	£1.50	£1.80
101 - CORD PROTECTOR BDE-5140145-34.A0 5140145-34	£1.50	£1.80
102 - CORDSET (EURO) BDE-1004692-18.A0 1004692-18	£19.90	£23.88
103 - INDICATOR BDE-5140145-36.A1 5140145-36	£3.80	£4.56
104 - HANDLE RH BDE-5140147-51 5140147-51	-
206 - KITBOX BDE-5170010-46 5170010-46	-
501 - CLUTCH SA BDE-5140144-96.A0 5140144-96	£17.48	£20.97
502 - SIDE HANDLE BDE-5140145-37.A0 5140145-37	£25.70	£30.84
800 - GREASE BDE-1004692-23.A0 1004692-23	£3.80	£4.56
801 - SERVICE KIT BDE-1004692-25.A0 1004692-25	£14.57	£17.48
802 - GREASE BDE-1004692-24.A3 1004692-24	£1.50	£1.80
820 - IDENTITY LABEL BDE-5170010-44 5170010-44	-
