Black & Decker KD860 Type 1 Rotary Hammer Spare Parts

Home Details Reviews Delivery

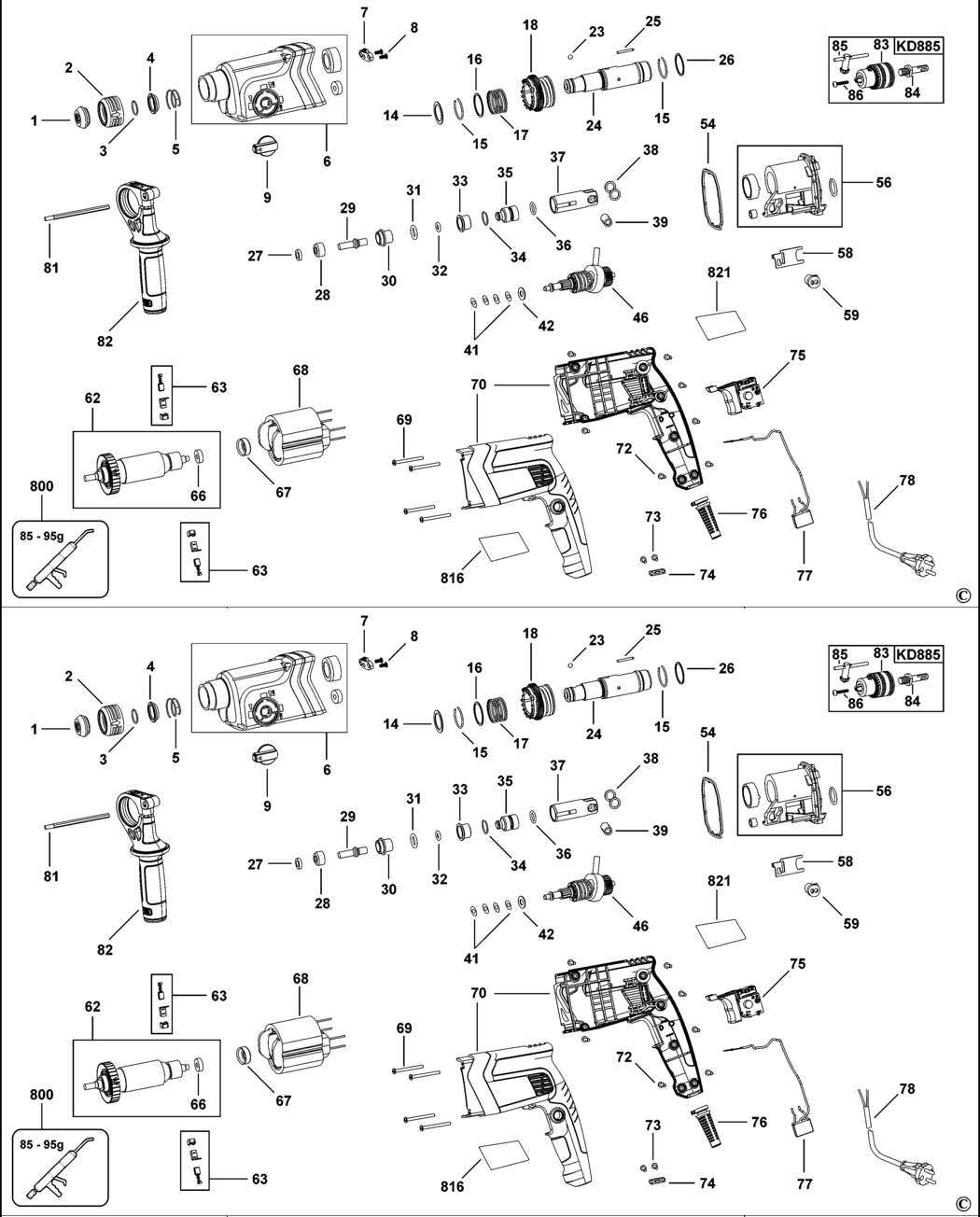

An exploded drawing and spare parts listing for the Black & Decker KD860 Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - TIP BDE-90524563.A18 90524563	£1.50	£1.80
1 - TIP BDE-90524563.A19 90524563	£1.50	£1.80
2 - COLLAR BDE-90524565.A7 90524565	£1.50	£1.80
2 - COLLAR BDE-90524565.A8 90524565	£1.50	£1.80
3 - CIRCLIP BDE-90558298.A9 90558298	£1.50	£1.80
3 - CIRCLIP BDE-90558298.A10 90558298	£1.50	£1.80
4 - HOLDER BDE-90549795.A3 90549795	£1.50	£1.80
4 - HOLDER BDE-90549795.A4 90549795	£1.50	£1.80
5 - SPRING BDE-90549908.A7 90549908	£1.50	£1.80
5 - SPRING BDE-90549908.A8 90549908	£1.50	£1.80
6 - GEARCASE SA BDE-90567043.A3 90567043	£19.90	£23.88
6 - GEARCASE SA BDE-90567043.A4 90567043	£19.90	£23.88
7 - BRAKE BDE-90549588.A6 90549588	£1.50	£1.80
7 - BRAKE BDE-90549588.A7 90549588	£1.50	£1.80
8 - SCREW BDE-90550523.A5 90550523	£1.50	£1.80
8 - SCREW BDE-90550523.A6 90550523	£1.50	£1.80
9 - SELECTOR SA BDE-90550357N.A1 90550357N	£3.80	£4.56
9 - SELECTOR SA BDE-90550357N.A2 90550357N	£3.80	£4.56
14 - GASKET BDE-90558481.A7 90558481	£1.50	£1.80
14 - GASKET BDE-90558481.A8 90558481	£1.50	£1.80
15 - CIRCLIP BDE-90558296.A7 90558296	£1.50	£1.80
15 - CIRCLIP BDE-90558296.A8 90558296	£1.50	£1.80
16 - WASHER BDE-90549885.A7 90549885	£1.50	£1.80
16 - WASHER BDE-90549885.A8 90549885	£1.50	£1.80
17 - SPRING BDE-90550375.A11 90550375	£1.50	£1.80
17 - SPRING BDE-90550375.A12 90550375	£1.50	£1.80
18 - CLUTCH SA BDE-90567045.A7 90567045	£16.03	£19.24
18 - CLUTCH SA BDE-90567045.A8 90567045	£16.03	£19.24
23 - BALL STEEL BDE-90550363.A14 90550363	£1.50	£1.80
23 - BALL STEEL BDE-90550363.A15 90550363	£1.50	£1.80
24 - SHAFT BDE-90549105.A4 90549105	£34.00	£40.80
24 - SHAFT BDE-90549105.A5 90549105	£34.00	£40.80
25 - PIN BDE-90550377.A5 90550377	£1.50	£1.80
25 - PIN BDE-90550377.A6 90550377	£1.50	£1.80
26 - WASHER BDE-90549888.A9 90549888	£1.50	£1.80
26 - WASHER BDE-90549888.A10 90549888	£1.50	£1.80
27 - SEAL BDE-90553674.A13 90553674	£1.50	£1.80
27 - SEAL BDE-90553674.A14 90553674	£1.50	£1.80
28 - BLOCK BDE-90549947.A1 90549947	£1.50	£1.80
28 - BLOCK BDE-90549947.A2 90549947	£1.50	£1.80
29 - IMPACTOR BDE-90549569.A3 90549569	£2.78	£3.34
29 - IMPACTOR BDE-90549569.A4 90549569	£2.78	£3.34
30 - SLEEVE BDE-90549948.A4 90549948	£1.50	£1.80
30 - SLEEVE BDE-90549948.A5 90549948	£1.50	£1.80
31 - O RING BDE-90558560.A2 90558560	£1.50	£1.80
31 - O RING BDE-90558560.A3 90558560	£1.50	£1.80
32 - O RING BDE-90558559.A3 90558559	£1.50	£1.80
32 - O RING BDE-90558559.A4 90558559	£1.50	£1.80
33 - SLEEVE BDE-90549654.A2 90549654	£2.78	£3.34
33 - SLEEVE BDE-90549654.A3 90549654	£2.78	£3.34
34 - CIRCLIP BDE-90558294.A3 90558294	£1.50	£1.80
34 - CIRCLIP BDE-90558294.A4 90558294	£1.50	£1.80
35 - RAM BDE-90549635.A9 90549635	£2.78	£3.34
35 - RAM BDE-90549635.A10 90549635	£2.78	£3.34
36 - O RING BDE-90558558.A11 90558558	£1.50	£1.80
36 - O RING BDE-90558558.A12 90558558	£1.50	£1.80
37 - CYLINDER BDE-90549489.A7 90549489	£7.85	£9.42
37 - CYLINDER BDE-90549489.A8 90549489	£7.85	£9.42
38 - WASHER BDE-90549884.A20 90549884	£1.50	£1.80
38 - WASHER BDE-90549884.A21 90549884	£1.50	£1.80
39 - PIN BDE-90549488.A9 90549488	£1.50	£1.80
39 - PIN BDE-90549488.A10 90549488	£1.50	£1.80
41 - SPRING BDE-90549946.A11 90549946	£1.50	£1.80
41 - SPRING BDE-90549946.A12 90549946	£1.50	£1.80
42 - GASKET BDE-90558300.A7 90558300	£1.50	£1.80
42 - GASKET BDE-90558300.A8 90558300	£1.50	£1.80
46 - INTERSHAFT SA BDE-90567049.A1 90567049	£41.24	£49.49
46 - INTERSHAFT SA BDE-90567049.A2 90567049	£41.24	£49.49
54 - GASKET BDE-90550379.A11 90550379	£1.50	£1.80
54 - GASKET BDE-90550379.A12 90550379	£1.50	£1.80
56 - SUPPORT PLATE BDE-90567050.A11 90567050	£16.03	£19.24
56 - SUPPORT PLATE BDE-90567050.A12 90567050	£16.03	£19.24
58 - SELECTOR BDE-90549820.A5 90549820	£1.50	£1.80
58 - SELECTOR BDE-90549820.A6 90549820	£1.50	£1.80
59 - KNOB BDE-90549812.A5 90549812	£1.50	£1.80
59 - KNOB BDE-90549812.A6 90549812	£1.50	£1.80
62 - NO LONGER AVAILABLE BDE-000000-00.A129326 000000-00	-
62 - ARMATURE SA BDE-90563247 90563247	-
63 - BRUSH HOLDER PAIR BDE-90567052.A1 90567052	£7.85	£9.42
63 - BRUSH HOLDER PAIR BDE-90567052.A2 90567052	£7.85	£9.42
66 - BEARING BDE-90530454.A7 90530454	£1.50	£1.80
66 - BEARING BDE-90530454.A8 90530454	£1.50	£1.80
67 - SLEEVE BEARING BDE-90549817.A9 90549817	£1.50	£1.80
67 - SLEEVE BEARING BDE-90549817.A10 90549817	£1.50	£1.80
68 - FIELD SA BDE-90563246.A1 90563246	-
68 - FIELD SA BDE-90563246.A2 90563246	-
69 - SCREW BDE-330065-16.A6 330065-16	£1.50	£1.80
69 - SCREW BDE-330065-16.A7 330065-16	£1.50	£1.80
70 - NO LONGER AVAILABLE BDE-000000-00.A129327 000000-00	-
70 - CLAMSHELL PAIR BDE-90563192N 90563192N	£16.03	£19.24
72 - SCREW BDE-330065-07.A26 330065-07	£1.50	£1.80
72 - SCREW BDE-330065-07.A27 330065-07	£1.50	£1.80
73 - SCREW BDE-330065-05.A22 330065-05	£1.50	£1.80
73 - SCREW BDE-330065-05.A23 330065-05	£1.50	£1.80
74 - CORD CLAMP BDE-329301-00.A45 329301-00	£1.50	£1.80
74 - CORD CLAMP BDE-329301-00.A46 329301-00	£1.50	£1.80
75 - SWITCH BDE-90550361.A1 90550361	£16.03	£19.24
75 - SWITCH BDE-90550361.A2 90550361	£16.03	£19.24
76 - CORD PROTECTOR BDE-629648-00.A11 629648-00	£1.50	£1.80
76 - CORD PROTECTOR BDE-629648-00.A12 629648-00	£1.50	£1.80
77 - CAPACITOR BDE-90550485.A1 90550485	£3.80	£4.56
77 - CAPACITOR BDE-90550485.A2 90550485	£3.80	£4.56
78 - CORDSET GB BDE-90553311.A1 90553311	£19.90	£23.88
81 - DEPTH STOP BDE-90632897.A0 90632897	£1.50	£1.80
81 - DEPTH STOP BDE-372814-00.A47 372814-00	£1.50	£1.80
82 - HANDLE SA BDE-90547752.A12 90547752	£38.80	£46.56
82 - HANDLE SA BDE-90547752.A13 90547752	£38.80	£46.56
800 - GREASE 50 GMS BDE-583534-00.A128 583534-00	£144.10	£172.92
800 - GREASE 90 GMS BDE-870889-02.A740 870889-02	£7.85	£9.42
816 - BRAND LABEL BDE-90550401.A3 90550401	£1.50	£1.80
816 - BRAND LABEL BDE-90550401.A4 90550401	£1.50	£1.80
821 - NO LONGER AVAILABLE GB BDE-000000-00.A129328 000000-00	-
