Black & Decker KTD322 Type 1 Rotary Hammer Drill Spare Parts

Home Details Reviews Delivery

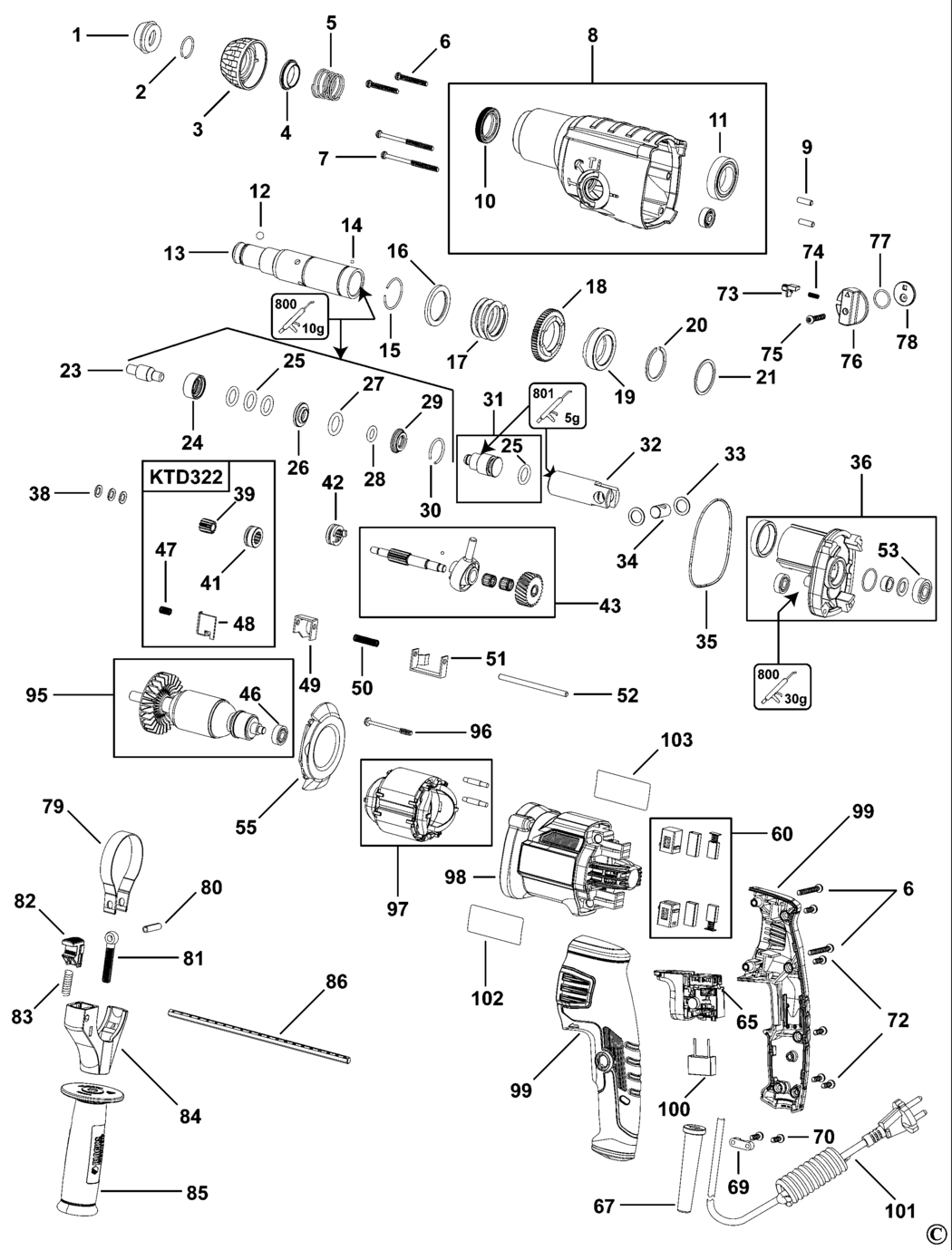

An exploded drawing and spare parts listing for the Black & Decker KTD322 Type 1 Rotary Hammer Drill

	Ex VAT	Inc VAT
1 - COVER BDE-1004518-00.A2 1004518-00	£1.50	£1.80
2 - CIRCLIP BDE-1004518-01.A8 1004518-01	£1.50	£1.80
3 - HOLDER BIT BDE-1004518-02.A2 1004518-02	£1.50	£1.80
4 - BLOCK BDE-1004518-03.A8 1004518-03	£1.82	£2.19
5 - LEAF SPRING BDE-1004518-04.A2 1004518-04	£1.50	£1.80
6 - SCREW BDE-1004518-05.A8 1004518-05	£1.50	£1.80
7 - SCREW BDE-1004518-06.A2 1004518-06	£1.50	£1.80
8 - GEARBOX SA BDE-1004518-07.A5 1004518-07	£5.88	£7.06
9 - KEY BDE-1004518-09.A7 1004518-09	£1.50	£1.80
10 - SEAL BDE-1004518-10.A3 1004518-10	£1.50	£1.80
11 - BEARING BDE-1004518-11.A7 1004518-11	£19.90	£23.88
12 - BALL BDE-1004518-12.A3 1004518-12	£1.50	£1.80
13 - SPINDLE BDE-1004518-13.A7 1004518-13	£34.00	£40.80
14 - BALL BDE-1004518-14.A3 1004518-14	£1.50	£1.80
15 - CIRCLIP BDE-1004518-15.A7 1004518-15	£1.50	£1.80
16 - WASHER SPRING BDE-1004518-16.A3 1004518-16	£16.03	£19.24
17 - SPRING BDE-1004518-17.A7 1004518-17	£2.78	£3.34
18 - GEAR BDE-1004518-18.A3 1004518-18	£9.41	£11.29
19 - CLUTCH BDE-1004518-19.A7 1004518-19	£7.18	£8.62
20 - CIRCLIP BDE-1004518-20.A3 1004518-20	£1.50	£1.80
21 - WASHER BDE-1004518-21.A7 1004518-21	£1.50	£1.80
23 - BEAT PIECE BDE-1004518-22.A3 1004518-22	£4.69	£5.63
24 - BUSHING BDE-1004518-23.A7 1004518-23	£7.18	£8.62
25 - O RING BDE-1004518-24.A3 1004518-24	£7.85	£9.42
26 - BRACKET BDE-1004518-25.A7 1004518-25	£3.30	£3.96
27 - O RING BDE-1004518-26.A3 1004518-26	£1.50	£1.80
28 - O RING BDE-1004518-27.A7 1004518-27	£1.50	£1.80
29 - COVER BDE-1004518-28.A3 1004518-28	£3.30	£3.96
30 - CIRCLIP BDE-1004518-29.A7 1004518-29	£1.50	£1.80
31 - RAM SA BDE-1004518-30.A3 1004518-30	£7.18	£8.62
32 - CYLINDER BDE-1004518-31.A7 1004518-31	£10.85	£13.02
33 - WASHER BDE-1004518-32.A3 1004518-32	£1.50	£1.80
34 - PIN BDE-1004518-33.A7 1004518-33	£2.78	£3.34
35 - SEAL BDE-1004518-34.A3 1004518-34	£1.50	£1.80
36 - PLATE SA BDE-1004518-35.A7 1004518-35	£24.39	£29.27
38 - WASHER BDE-1004518-36.A3 1004518-36	£1.50	£1.80
39 - GEAR BDE-1004518-37.A4 1004518-37	£5.88	£7.06
41 - CLUTCH BDE-1004518-38.A3 1004518-38	£2.78	£3.34
42 - SELECTOR BDE-1004518-39.A5 1004518-39	£3.30	£3.96
43 - INTERSHAFT SA BDE-5170000-31.A0 5170000-31	£38.80	£46.56
46 - BEARING BDE-1004518-41.A6 1004518-41	£9.41	£11.29
47 - SPRING BDE-1004518-42.A3 1004518-42	£1.50	£1.80
48 - PLATE BDE-1004518-43.A4 1004518-43	£1.50	£1.80
49 - SELECTOR BDE-1004518-44.A3 1004518-44	£1.50	£1.80
50 - SPRING BDE-1004518-45.A7 1004518-45	£1.50	£1.80
51 - SELECTOR BDE-1004518-46.A3 1004518-46	£1.50	£1.80
52 - ROD BDE-1004518-47.A7 1004518-47	£1.50	£1.80
53 - BEARING BDE-1004518-48.A3 1004518-48	£5.88	£7.06
55 - FAN COVER BDE-1004518-49.A7 1004518-49	£1.50	£1.80
60 - BRUSH & HOLDER SA BDE-1004518-50.A3 1004518-50	£10.85	£13.02
65 - SWITCH BDE-1004518-88 1004518-88	-
67 - CORD PROTECTOR BDE-1004518-52.A7 1004518-52	£1.50	£1.80
69 - CORD CLAMP BDE-1004518-53.A0 1004518-53	£1.50	£1.80
70 - SCREW BDE-1004518-54.A9 1004518-54	£1.50	£1.80
72 - SCREW BDE-1004518-55.A0 1004518-55	£1.50	£1.80
73 - KNOB BDE-1004518-56.A2 1004518-56	£1.50	£1.80
74 - SPRING BDE-1004518-57.A0 1004518-57	£1.50	£1.80
75 - SCREW BDE-1004518-58.A10 1004518-58	£1.50	£1.80
76 - KNOB BDE-1004518-59.A0 1004518-59	£1.50	£1.80
77 - O RING BDE-1004518-60.A10 1004518-60	£1.50	£1.80
78 - KNOB BDE-1004518-61.A0 1004518-61	£1.50	£1.80
79 - CLAMP BDE-1004518-62.A10 1004518-62	£1.50	£1.80
80 - PIN BDE-1004518-63.A0 1004518-63	£1.50	£1.80
81 - BOLT BDE-1004518-64.A10 1004518-64	£1.50	£1.80
82 - BUTTON BDE-1004518-65.A0 1004518-65	£1.50	£1.80
83 - SPRING BDE-1004518-66.A10 1004518-66	£1.50	£1.80
84 - BASE BDE-1004518-67.A0 1004518-67	£4.69	£5.63
85 - SIDE HANDLE BDE-1004518-68.A2 1004518-68	£10.85	£13.02
86 - DEPTH ROD BDE-1004518-69.A0 1004518-69	£1.50	£1.80
95 - ROTOR BDE-1004518-70.A3 1004518-70	£51.90	£62.28
96 - SCREW BDE-1004518-72.A6 1004518-72	£1.50	£1.80
97 - STATOR BDE-1004518-74.A3 1004518-74	£30.08	£36.10
98 - HOUSING BDE-1004518-76.A0 1004518-76	£15.63	£18.76
99 - HANDLE SA BDE-1004518-78.A1 1004518-78	£9.17	£11.00
100 - CAPACITOR BDE-1004518-82.A2 1004518-82	£3.80	£4.56
102 - BRAND LABEL BDE-1004518-89.A0 1004518-89	£1.42	£1.70
800 - GREASE 50 GMS BDE-1004517-01.A6 1004517-01	£24.39	£29.27
801 - GREASE 10 GMS BDE-1004517-00.A3 1004517-00	£1.50	£1.80

Attribute Name	Value
Brand	Black & Decker
