Black & Decker P8021 Type 1 Rotary Hammer Spare Parts

Home Details Reviews Delivery

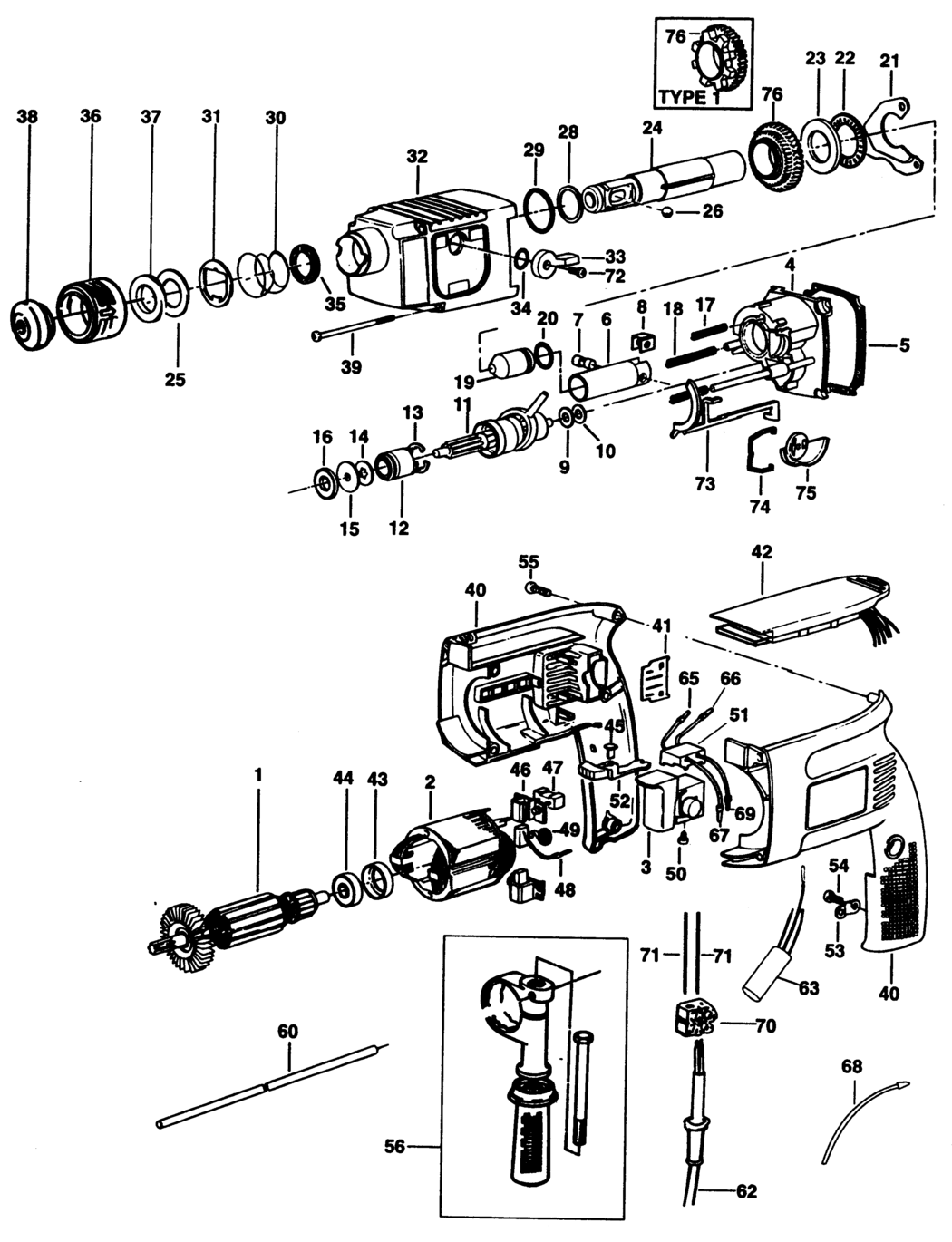

An exploded drawing and spare parts listing for the Black & Decker P8021 Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE 120V BDE-000000-00.A73614 000000-00	-
1 - NO LONGER AVAILABLE 230V BDE-000000-00.A73615 000000-00	-
2 - NO LONGER AVAILABLE 120V BDE-000000-00.A73616 000000-00	-
2 - NO LONGER AVAILABLE 230V BDE-000000-00.A73617 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A73618 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A73619 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A73620 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A73621 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A73622 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A73623 000000-00	-
9 - BEARING AXIAL BDE-324430-03.A52 324430-03	-
10 - WASHER 7 BDE-324431-03.A70 324431-03	-
11 - GEAR BDE-324155-00.A11 324155-00	-
12 - SLEEVE BDE-325232-01.A18 325232-01	£18.42	£22.10
13 - NO LONGER AVAILABLE BDE-000000-00.A73629 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A73630 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A73631 000000-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A73632 000000-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A73633 000000-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A73634 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A73635 000000-00	-
20 - O RING BDE-323711-25.A20 323711-25	£1.82	£2.19
21 - NO LONGER AVAILABLE BDE-000000-00.A73636 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A73637 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A73638 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A73639 000000-00	-
25 - WASHER BDE-323492-00.A38 323492-00	-
26 - BALL 7MM BDE-583890-00.A50 583890-00	£1.66	£1.99
28 - NO LONGER AVAILABLE BDE-000000-00.A41576 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A41577 000000-00	-
30 - SPRING BDE-871690.A57 871690	£1.66	£1.99
31 - WASHER BDE-578387-00.A48 578387-00	£1.66	£1.99
32 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A41578 000000-00	-
32 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A41579 000000-00	-
33 - NO LONGER AVAILABLE BDE-000000-00.A41580 000000-00	-
34 - O RING BDE-323711-07.A25 323711-07	£1.82	£2.19
35 - SEAL SA BDE-324432-00.A58 324432-00	£5.88	£7.06
36 - COLLAR BDE-576756-00.A19 576756-00	-
37 - SPACER BDE-323480-00.A4 323480-00	£1.82	£2.19
38 - CAP BDE-323489-00.A24 323489-00	£1.66	£1.99
39 - SCREW BDE-324044-02.A71 324044-02	£1.42	£1.70
40 - NO LONGER AVAILABLE BDE-000000-00.A41581 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A41582 000000-00	-
42 - NO LONGER AVAILABLE 120V BDE-000000-00.A41583 000000-00	-
42 - NO LONGER AVAILABLE 4 LD ELECTRONIC 230V BDE-000000-00.A41584 000000-00	-
43 - CAP BDE-323481-00.A63 323481-00	£1.50	£1.80
44 - BEARING BDE-605040-63.A33 605040-63	£3.30	£3.96
45 - NO LONGER AVAILABLE 230V BDE-000000-00.A41587 000000-00	-
46 - BRUSH HOLDER BDE-323496-01.A60 323496-01	-
47 - NO LONGER AVAILABLE 120V BDE-000000-00.A41585 000000-00	-
47 - NO LONGER AVAILABLE 230V BDE-000000-00.A41586 000000-00	-
48 - BRUSH 120V 120V BDE-323660-00.A12 323660-00	£7.18	£8.62
48 - BRUSH 230V 230V BDE-323660-01.A7 323660-01	£7.18	£8.62
49 - NO LONGER AVAILABLE BDE-000000-00.A41588 000000-00	-
50 - SCREW BDE-911026.A45 911026	£1.50	£1.80
51 - SWITCH REVERSE BDE-324400-00.A63 324400-00	-
52 - LEVER BDE-323490-08.A71 323490-08	-
53 - CORD CLAMP BDE-821070.A771 821070	£1.50	£1.80
54 - SCREW BDE-323924-08.A92 323924-08	£1.50	£1.80
55 - NO LONGER AVAILABLE BDE-000000-00.A41596 000000-00	-
56 - HANDLE SIDE SA BDE-939794-02.A253 939794-02	£14.57	£17.48
60 - DEPTH STOP BDE-580787-00.A41 580787-00	£1.50	£1.80
65 - NO LONGER AVAILABLE 120V BDE-000000-00.A41589 000000-00	-
65 - NO LONGER AVAILABLE 230V BDE-000000-00.A41590 000000-00	-
66 - NO LONGER AVAILABLE 120V BDE-000000-00.A41591 000000-00	-
66 - NO LONGER AVAILABLE 230V BDE-000000-00.A41592 000000-00	-
67 - NO LONGER AVAILABLE 3 LD ELECTRONIC 230V BDE-000000-00.A41593 000000-00	-
67 - NO LONGER AVAILABLE 4 LD ELECTRONIC 230V BDE-000000-00.A41594 000000-00	-
67 - NO LONGER AVAILABLE 120V BDE-000000-00.A41595 000000-00	-
68 - LEAD 200MM BLACK 230V BDE-878756.A23 878756	-
68 - LEAD 200MM BLACK 120V BDE-878756.A24 878756	-
69 - NO LONGER AVAILABLE 120V BDE-000000-00.A41597 000000-00	-
69 - NO LONGER AVAILABLE 3 LD ELECTRONIC 230V BDE-000000-00.A41598 000000-00	-
70 - CONNECTOR 230V BDE-323534-00.A26 323534-00	£1.50	£1.80
71 - NO LONGER AVAILABLE 230V BDE-000000-00.A41599 000000-00	-
72 - SCREW BDE-324007-10.A54 324007-10	£1.50	£1.80
73 - NO LONGER AVAILABLE BDE-000000-00.A41671 000000-00	-
74 - NO LONGER AVAILABLE BDE-000000-00.A41672 000000-00	-
75 - NO LONGER AVAILABLE BDE-000000-00.A41673 000000-00	-
76 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A41674 000000-00	-
76 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A41675 000000-00	-
800 - GREASE 90 GMS BDE-870889-02.A203 870889-02	£7.85	£9.42
846 - NO LONGER AVAILABLE BDE-000000-00.A41600 000000-00	-

Attribute Name	Value
Brand	Black & Decker
