Black & Decker XTA900EK Type 1 Powerfile Spare Parts

Black & Decker XTA900EK Type 1 Powerfile Spare Parts
Home Details Reviews Delivery

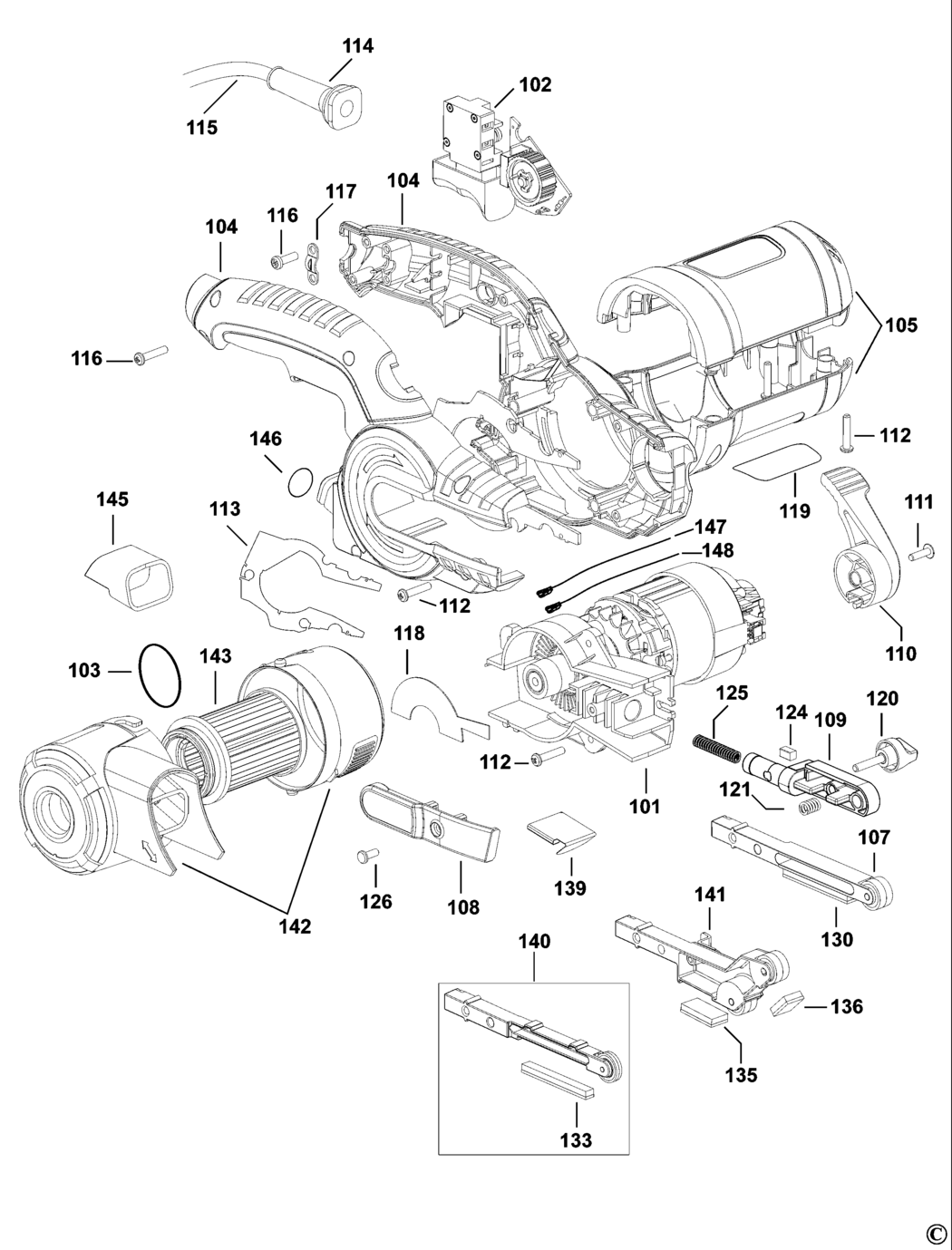

An exploded drawing and spare parts listing for the Black & Decker XTA900EK Type 1 Powerfile
Ex VAT Inc VAT
101 - MOTOR SA BDE-90524071.A1 90524071 £45.14 £54.17
102 - NO LONGER AVAILABLE BDE-000000-00.A95560 000000-00 -
103 - O RING BDE-479525-00.A0 479525-00 £1.50 £1.80
104 - NO LONGER AVAILABLE BDE-000000-00.A95558 000000-00 -
105 - NO LONGER AVAILABLE BDE-000000-00.A95559 000000-00 -
106 - DUST BAG SA BDE-90514728.A1 90514728 -
107 - ARM 13MM STANDARD BDE-90546472.A1 90546472 £9.41 £11.29
108 - GUARD SA BDE-90519750.A0 90519750 -
109 - CASTING BDE-90514542.A0 90514542 £7.18 £8.62
110 - LEVER BDE-90515085 90515085 -
111 - SCREW BDE-821032.A4 821032 £1.50 £1.80
112 - SCREW BDE-747329.A823 747329 £1.50 £1.80
113 - GASKET BDE-90514669.A0 90514669 £1.50 £1.80
114 - PROTECTOR BDE-770235.A13 770235 £1.50 £1.80
115 - NO LONGER AVAILABLE GB BDE-000000-00.A95561 000000-00 -
116 - SCREW BDE-370748.A70 370748 £1.50 £1.80
117 - CORD CLAMP BDE-821070.A454 821070 £1.50 £1.80
118 - PLATE BDE-821055.A9 821055 £1.82 £2.19
119 - NO LONGER AVAILABLE GB BDE-000000-00.A95562 000000-00 -
120 - KNOB BDE-826251.A0 826251 £1.50 £1.80
121 - SPRING BDE-821020.A9 821020 £1.50 £1.80
124 - SEAL BDE-828026.A1 828026 £1.50 £1.80
125 - SPRING BDE-829954.A2 829954 £1.50 £1.80
126 - SCREW BDE-573148-00.A6 573148-00 £1.50 £1.80
130 - PAD-STANDARD ARM BDE-90520643.A0 90520643 £1.50 £1.80
133 - PAD-NARROW ARM BDE-90522370.A0 90522370 £1.50 £1.80
135 - PAD BDE-90522368.A0 90522368 £1.50 £1.80
136 - PAD BDE-90522369.A2 90522369 £1.50 £1.80
139 - DEFLECTOR BDE-581818-00.A0 581818-00 £1.50 £1.80
140 - ARM BDE-90514541.A2 90514541 £9.41 £11.29
141 - ARM CRANKED BDE-90524082.A0 90524082 £16.03 £19.24
142 - NO LONGER AVAILABLE BDE-000000-00.A95563 000000-00 -
143 - FILTER SA BDE-479535-00N.A5 479535-00N £3.80 £4.56
145 - MOUTH PIECE BDE-90519375.A0 90519375 £1.50 £1.80
146 - RING BDE-90517985.A1 90517985 £1.50 £1.80
147 - LEADWIRE BDE-90518142.A1 90518142 £1.50 £1.80
148 - LEADWIRE BDE-90518141.A0 90518141 £1.50 £1.80
