Black & Decker GW250 Type 1-2 Blowvac Spare Parts

Black & Decker GW250 Type 1-2 Blowvac Spare Parts
Home Details Reviews Delivery

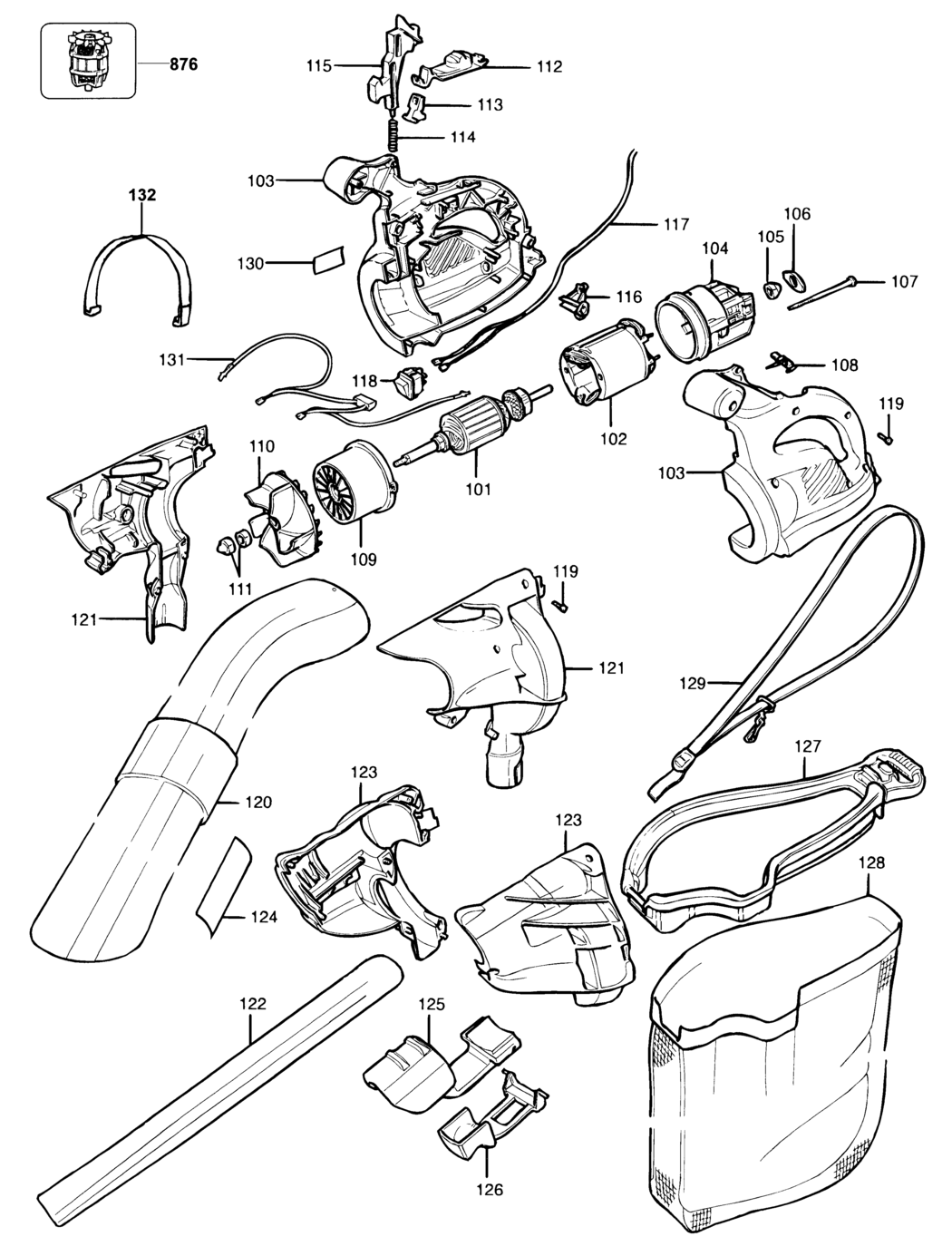

An exploded drawing and spare parts listing for the Black & Decker GW250 Type 1-2 Blowvac
Ex VAT Inc VAT
101 - NO LONGER AVAILABLE BDE-000000-00.A88793 000000-00 -
102 - NO LONGER AVAILABLE GB BDE-000000-00.A88794 000000-00 -
103 - CLAMSHELL BDE-577620-02.A4 577620-02 -
104 - NO LONGER AVAILABLE BDE-000000-00.A88795 000000-00 -
105 - BEARING BDE-890075.A17 890075 -
106 - NO LONGER AVAILABLE BDE-000000-00.A88796 000000-00 -
107 - SCREW.SPECIAL BDE-844217-02.A50 844217-02 £1.42 £1.70
108 - BRUSH & HOLDER 230V BDE-370983-02.A64 370983-02 -
109 - HOUSING BDE-370087.A3 370087 -
110 - IMPELLOR BDE-370009.A13 370009 -
111 - COVER SA NUT A.CAP BDE-372689-49.A4 372689-49 -
112 - SLIDER BDE-370011.A3 370011 -
113 - NO LONGER AVAILABLE BDE-000000-00.A88797 000000-00 -
114 - SPRING BDE-370027.A6 370027 -
115 - CATCH BDE-370012.A11 370012 £3.80 £4.56
116 - NO LONGER AVAILABLE BDE-000000-00.A88814 000000-00 -
117 - NO LONGER AVAILABLE GB BDE-000000-00.A88815 000000-00 -
118 - NO LONGER AVAILABLE BDE-000000-00.A88816 000000-00 -
119 - SCREW BDE-747329.A879 747329 £1.50 £1.80
120 - NO LONGER AVAILABLE BDE-000000-00.A88798 000000-00 -
121 - NO LONGER AVAILABLE BDE-000000-00.A88799 000000-00 -
122 - NO LONGER AVAILABLE GW250 BDE-000000-00.A88800 000000-00 -
123 - NO LONGER AVAILABLE GW250 BDE-000000-00.A88801 000000-00 -
124 - NO LONGER AVAILABLE GW200 BDE-000000-00.A88802 000000-00 -
124 - NO LONGER AVAILABLE GW250 BDE-000000-00.A88803 000000-00 -
125 - NO LONGER AVAILABLE GW250 BDE-000000-00.A88804 000000-00 -
126 - NO LONGER AVAILABLE GW250 BDE-000000-00.A88805 000000-00 -
127 - BAG SA BDE-577371-00.A15 577371-00 -
128 - BAG SA BDE-577371-00.A16 577371-00 -
129 - NO LONGER AVAILABLE BDE-000000-00.A88806 000000-00 -
130 - NO LONGER AVAILABLE BDE-000000-00.A88807 000000-00 -
131 - NO LONGER AVAILABLE BDE-000000-00.A88808 000000-00 -
132 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A88809 000000-00 -
876 - NO LONGER AVAILABLE GB BDE-000000-00.A88810 000000-00 -
