Black & Decker GW3010 Type 1 Blower Vac Spare Parts

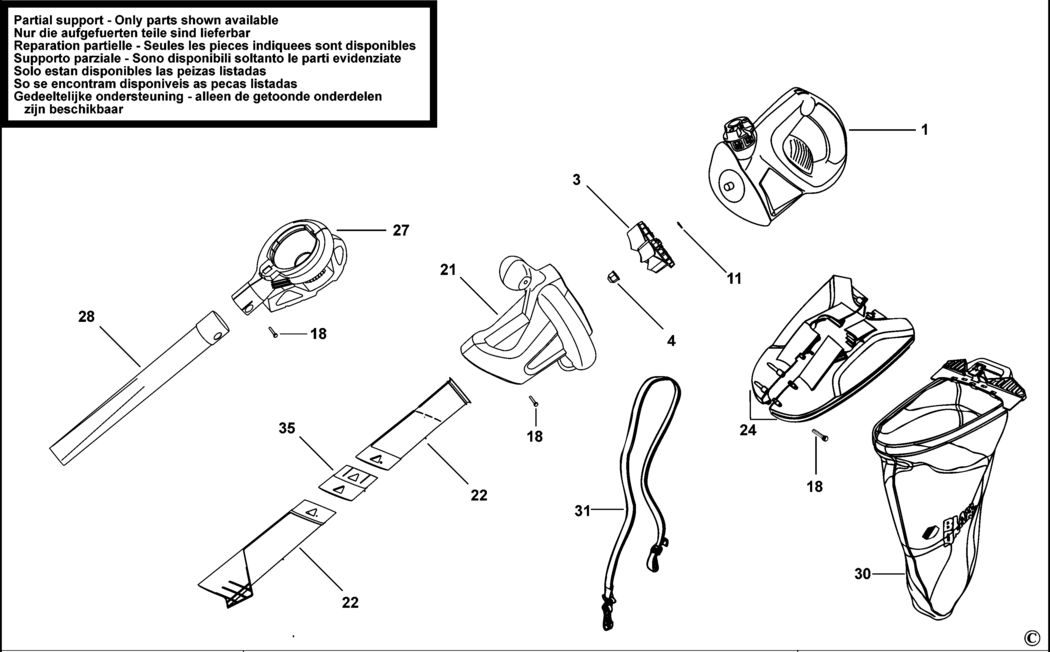

An exploded drawing and spare parts listing for the Black & Decker GW3010 Type 1 Blower Vac

	Ex VAT	Inc VAT
1 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE GB BDE-000000-05.A163 000000-05	-
3 - FAN BDE-587955-00.A2 587955-00	-
4 - NUT BDE-90537120.A2 90537120	-
11 - WASHER BDE-574756-00.A17 574756-00	-
18 - SCREW BDE-747329.A637 747329	£1.50	£1.80
21 - CLAMSHELL SET BDE-90533135.A8 90533135	-
22 - VACUUM TUBE SA BDE-90541879.A7 90541879	-
24 - CLAMSHELL SET BDE-90541880.A13 90541880	-
27 - CLAMSHELL SET BDE-90541881.A7 90541881	£14.57	£17.48
28 - BLOW TUBE SA BDE-90541882.A13 90541882	-
30 - BAG SA BDE-90548688.A8 90548688	-
31 - STRAP BDE-583493-00.A4 583493-00	-
35 - TUBE BDE-493555-00.A2 493555-00	-

Attribute Name	Value
Brand	Black & Decker
