Black & Decker BPGS8100 Type 1 Small Angle Grinder Spare Parts

Home Details Reviews Delivery

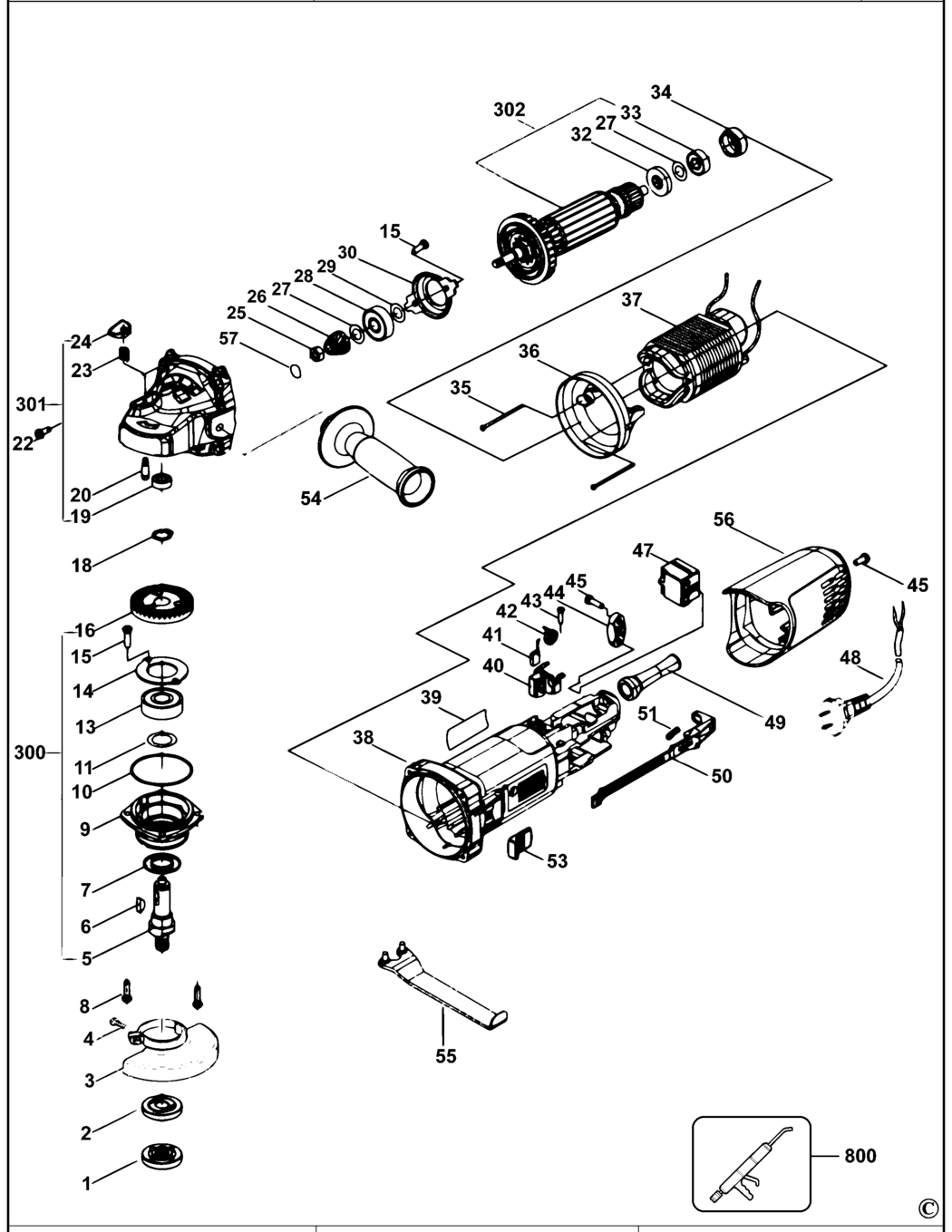

An exploded drawing and spare parts listing for the Black & Decker BPGS8100 Type 1 Small Angle Grinder

	Ex VAT	Inc VAT
1 - OUTER FLANGE BDE-4140304011.A12 4140304011	£1.50	£1.80
2 - INNER FLANGE BDE-4140304006.A4 4140304006	£1.50	£1.80
3 - GUARD SA BDE-4140304008.A3 4140304008	£2.26	£2.71
3 - GUARD SA BDE-4140104004.A2 4140104004	-
4 - SCREW BDE-49203035.A4 49203035	-
4 - SCREW BDE-49203052.A0 49203052	£1.50	£1.80
5 - SPINDLE BDE-4141004007.A0 4141004007	£2.21	£2.65
6 - LOCK PIN BDE-49208003.A5 49208003	£1.50	£1.80
7 - DUST GUARD BDE-4141004012.A3 4141004012	£1.50	£1.80
8 - SCREW BDE-49203015.A4 49203015	£1.50	£1.80
8 - SCREW BDE-49209042.A1 49209042	£1.50	£1.80
9 - GEARCASE COVER BDE-4141402603.A0 4141402603	£1.82	£2.19
9 - GEARCASE COVER BDE-N569767.A9 N569767	£2.78	£3.34
10 - NO LONGER REQUIRED ON THIS UNIT BDE-000000-11.A6 000000-11	-
10 - NO LONGER AVAILABLE BDE-000000-00.A30487 000000-00	-
11 - WASHER BDE-4140704002.A0 4140704002	£1.50	£1.80
13 - BEARING BDE-49111017.A12 49111017	£2.78	£3.34
14 - BASE PLATE BDE-4141404606.A9 4141404606	£1.50	£1.80
15 - SCREW BDE-49203006.A3 49203006	£1.50	£1.80
16 - GEAR BDE-4141010003.A4 4141010003	£5.88	£7.06
18 - CIRCLIP BDE-49207027.A5 49207027	£1.50	£1.80
19 - BEARING BDE-49111032.A9 49111032	£1.50	£1.80
20 - LOCK PIN BDE-4141004008.A7 4141004008	£1.50	£1.80
22 - SCREW BDE-49206022.A1 49206022	£1.50	£1.80
23 - SPRING BDE-4140308003.A28 4140308003	£1.50	£1.80
24 - BUTTON BDE-4141001005.A0 4141001005	£1.50	£1.80
25 - NUT BDE-49205005.A15 49205005	£1.50	£1.80
26 - PINION BDE-4141010004.A1 4141010004	£3.30	£3.96
27 - WASHER BDE-4141004002.A10 4141004002	£1.50	£1.80
28 - BEARING BDE-49106028.A2 49106028	£3.30	£3.96
29 - NO LONGER AVAILABLE BDE-000000-00.A30488 000000-00	-
29 - NO LONGER REQUIRED ON THIS UNIT BDE-000000-11.A5 000000-11	-
30 - FLANGE BDE-4141304001.A4 4141304001	£1.50	£1.80
32 - WASHER INSULATING BDE-4140901007.A10 4140901007	£1.50	£1.80
33 - BEARING BDE-49106002.A3 49106002	£1.50	£1.80
34 - SLEEVE BEARING BDE-4140703004.A5 4140703004	£1.50	£1.80
35 - SCREW BDE-49206031.A8 49206031	£1.50	£1.80
36 - BAFFLE BDE-4141401603.A10 4141401603	£1.50	£1.80
37 - FIELD SA BDE-60314063.A0 60314063	£18.42	£22.10
38 - FIELDCASE BDE-4141401703.A1 4141401703	£7.01	£8.41
40 - BRUSH HOLDER BDE-4141007001.A7 4141007001	£1.50	£1.80
41 - BRUSH PAIR BDE-4141406601.A2 4141406601	£2.26	£2.71
42 - BRUSH SPRING BDE-4141008001.A3 4141008001	£1.50	£1.80
43 - SCREW BDE-49206001.A3 49206001	£1.50	£1.80
44 - CORD CLAMP BDE-4240201013.A0 4240201013	£1.50	£1.80
45 - SCREW BDE-49206018.A15 49206018	£1.50	£1.80
47 - SWITCH SA BDE-4140305602.A3 4140305602	-
49 - CORD PROTECTOR BDE-49303005.A11 49303005	£1.50	£1.80
50 - LINK BDE-4141401002.A1 4141401002	£1.50	£1.80
51 - SPRING BDE-4141408001.A6 4141408001	£1.50	£1.80
53 - BUTTON BDE-4141401003.A8 4141401003	£1.50	£1.80
54 - HANDLE SIDE SA BDE-4140401001.A2 4140401001	£1.50	£1.80
55 - WRENCH SET BDE-4140304007.A13 4140304007	£1.50	£1.80
56 - END CAP BDE-4141401702.A0 4141401702	£2.21	£2.65
57 - O RING BDE-4240103002.A5 4240103002	£1.50	£1.80
300 - SPINDLE & GEAR SA BDE-4141450001.A1 4141450001	£17.03	£20.44
301 - GEARCASE SA BDE-4141450002.A3 4141450002	£14.19	£17.03
302 - ARMATURE SA BDE-4141450003.A2 4141450003	£24.39	£29.27
800 - GREASE BDE-901181.A0 901181	£74.15	£88.98
