Black & Decker BD250 Type 1 Drill Spare Parts

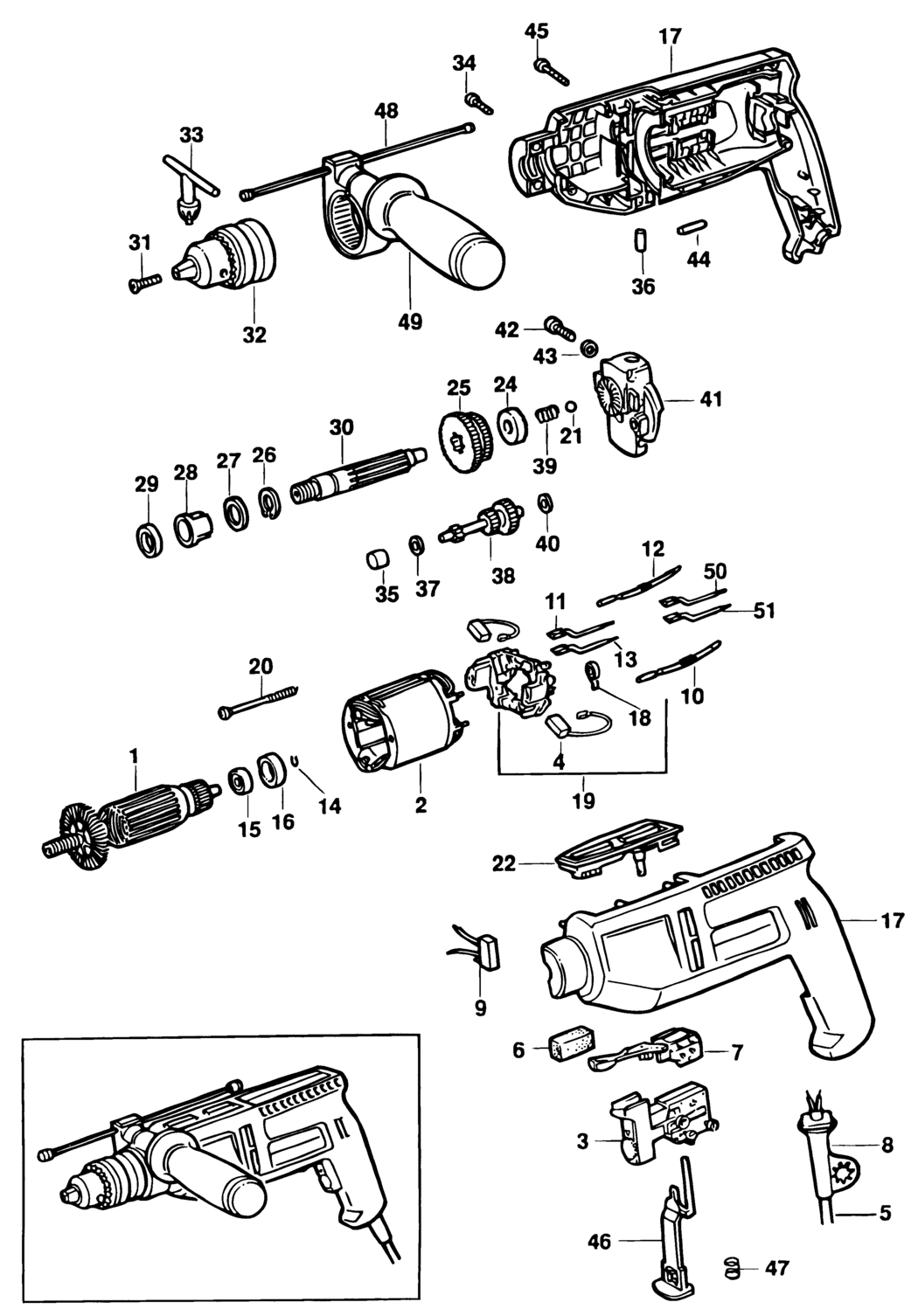

An exploded drawing and spare parts listing for the Black & Decker BD250 Type 1 Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A2270 000000-00	-
2 - NO LONGER AVAILABLE AU-NZ TYPE A3 BDE-000000-00.A2271 000000-00	-
2 - NO LONGER AVAILABLE DE-AT-BE-GR TYPE A3 BDE-000000-00.A2272 000000-00	-
2 - NO LONGER AVAILABLE DK-FI-NO-SE-TYPE A3 BDE-000000-00.A2273 000000-00	-
2 - NO LONGER AVAILABLE AE-AR-NZ-PA A1-A2 BDE-000000-00.A2274 000000-00	-
2 - NO LONGER AVAILABLE CH A1-A2 BDE-000000-00.A2275 000000-00	-
2 - NO LONGER AVAILABLE CL-IL-IT TYPE A3 BDE-000000-00.A2276 000000-00	-
2 - NO LONGER AVAILABLE DK-FI-NO-SE A1-A2 BDE-000000-00.A2277 000000-00	-
2 - NO LONGER AVAILABLE GB A1-A2 BDE-000000-00.A2278 000000-00	-
2 - NO LONGER AVAILABLE LU-NL-ES-FR-TYPE A3 BDE-000000-00.A2279 000000-00	-
2 - NO LONGER AVAILABLE PT-SG-ZA-TYPE A3 BDE-000000-00.A2280 000000-00	-
2 - NO LONGER AVAILABLE AE-AR-PA-TYPE A3 BDE-000000-00.A2281 000000-00	-
2 - NO LONGER AVAILABLE CH TYPE A3 BDE-000000-00.A99643 000000-00	-
2 - NO LONGER AVAILABLE CL-IL-IT A1-A2 BDE-000000-00.A99644 000000-00	-
2 - NO LONGER AVAILABLE ES-FR A1-A2 BDE-000000-00.A99645 000000-00	-
2 - NO LONGER AVAILABLE GR-LU-NL A1-A2 BDE-000000-00.A99646 000000-00	-
2 - NO LONGER AVAILABLE AT-BE-DE A1-A2 BDE-000000-00.A99647 000000-00	-
2 - NO LONGER AVAILABLE GB-TYPE A3 BDE-000000-00.A99648 000000-00	-
2 - NO LONGER AVAILABLE PT-SG-ZA A1-A2 BDE-000000-00.A99649 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A99650 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A99651 000000-00	-
5 - NO LONGER AVAILABLE AE-AR-NZ-PA A1-A2 BDE-000000-00.A99652 000000-00	-
5 - NO LONGER AVAILABLE CL-IL-IT TYPE A3 BDE-000000-00.A99653 000000-00	-
5 - NO LONGER AVAILABLE DK-FI-NO-SE A1-A2 BDE-000000-00.A99654 000000-00	-
5 - NO LONGER AVAILABLE LU-NL-ES-FR-TYPE A3 BDE-000000-00.A99655 000000-00	-
5 - NO LONGER AVAILABLE PT-SG-ZA-TYPE A3 BDE-000000-00.A99656 000000-00	-
5 - NO LONGER AVAILABLE DE-AT-BE-GR TYPE A3 BDE-000000-00.A99657 000000-00	-
5 - NO LONGER AVAILABLE DK-FI-NO-SE-TYPE A3 BDE-000000-00.A99658 000000-00	-
5 - NO LONGER AVAILABLE GB A1-A2 BDE-000000-00.A99659 000000-00	-
5 - NO LONGER AVAILABLE AT-BE-DE A1-A2 BDE-000000-00.A99660 000000-00	-
5 - NO LONGER AVAILABLE GB-TYPE A3 BDE-000000-00.A99661 000000-00	-
5 - NO LONGER AVAILABLE PT-SG-ZA A1-A2 BDE-000000-00.A99662 000000-00	-
5 - NO LONGER AVAILABLE AE-AR-PA-TYPE A3 BDE-000000-00.A99663 000000-00	-
5 - NO LONGER AVAILABLE ES-FR A1-A2 BDE-000000-00.A99664 000000-00	-
5 - NO LONGER AVAILABLE GR-LU-NL A1-A2 BDE-000000-00.A99665 000000-00	-
5 - CABLE AU-NZ TYPE A3 BDE-949600-05 949600-05	-
6 - NO LONGER AVAILABLE BDE-000000-00.A99694 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A99695 000000-00	-
8 - PROTECTOR BDE-770236.A164 770236	£1.50	£1.80
9 - CAPACITOR BDE-949877-01.A168 949877-01	£1.50	£1.80
10 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A99672 000000-00	-
10 - NO LONGER AVAILABLE TYPE A2 BDE-000000-00.A99673 000000-00	-
10 - NO LONGER AVAILABLE TYPE A3 BDE-000000-00.A99674 000000-00	-
11 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A99675 000000-00	-
11 - NO LONGER AVAILABLE TYPE A2 BDE-000000-00.A99676 000000-00	-
11 - NO LONGER AVAILABLE TYPE A3 BDE-000000-00.A99677 000000-00	-
12 - NO LONGER AVAILABLE TYPE A2 BDE-000000-00.A99678 000000-00	-
12 - NO LONGER AVAILABLE TYPE A3 BDE-000000-00.A99679 000000-00	-
12 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A99680 000000-00	-
13 - NO LONGER AVAILABLE TYPE A2 BDE-000000-00.A99681 000000-00	-
13 - NO LONGER AVAILABLE TYPE A3 BDE-000000-00.A99682 000000-00	-
13 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A99683 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A99684 000000-00	-
15 - BEARING BDE-330003-02.A72 330003-02	-
16 - SLEEVE BDE-930275-00.A75 930275-00	£2.26	£2.71
17 - NO LONGER AVAILABLE LU-NL-ES-FR-TYPE A3 BDE-000000-00.A99685 000000-00	-
17 - NO LONGER AVAILABLE PT-SG-ZA-TYPE A3 BDE-000000-00.A99686 000000-00	-
17 - NO LONGER AVAILABLE AE-AR-PA-TYPE A3 BDE-000000-00.A99687 000000-00	-
17 - NO LONGER AVAILABLE AU-NZ TYPE A3 BDE-000000-00.A99688 000000-00	-
17 - NO LONGER AVAILABLE CH TYPE A3 BDE-000000-00.A99689 000000-00	-
17 - NO LONGER AVAILABLE DE-AT-BE-GR TYPE A3 BDE-000000-00.A99690 000000-00	-
17 - NO LONGER AVAILABLE DK-FI-NO-SE-TYPE A3 BDE-000000-00.A99691 000000-00	-
17 - NO LONGER AVAILABLE CL-IL-IT TYPE A3 BDE-000000-00.A99692 000000-00	-
17 - NO LONGER AVAILABLE GB-TYPE A3 BDE-000000-00.A99693 000000-00	-
18 - BRUSH SPRING BDE-930090-00.A60 930090-00	£1.50	£1.80
19 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A99696 000000-00	-
19 - NO LONGER AVAILABLE TYPE A2 BDE-000000-00.A99697 000000-00	-
19 - NO LONGER AVAILABLE TYPE A3 BDE-000000-00.A99698 000000-00	-
20 - SCREW BDE-930752-00.A38 930752-00	£1.78	£2.13
21 - BALL BDE-930012.A73 930012	£1.42	£1.70
22 - NO LONGER AVAILABLE BDE-000000-00.A99699 000000-00	-
24 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A99700 000000-00	-
24 - RATCHET TYPE A2 BDE-945706-00.A73 945706-00	£1.50	£1.80
24 - RATCHET TYPE A3 BDE-945706-00.A74 945706-00	£1.50	£1.80
25 - NO LONGER AVAILABLE BDE-000000-00.A99701 000000-00	-
26 - RETAINER BDE-930098-00.A82 930098-00	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A99702 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A99703 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A99704 000000-00	-
31 - SCREW BDE-945013-00.A12 945013-00	£1.50	£1.80
32 - CHUCK 13MM BDE-5140071-68.A33 5140071-68	£14.57	£17.48
33 - CHUCK KEY BDE-330034-07.A49 330034-07	£1.50	£1.80
34 - SCREW BDE-930284-01.A128 930284-01	£1.50	£1.80
35 - BEARING BDE-330004-19.A12 330004-19	£7.01	£8.41
36 - NO LONGER AVAILABLE BDE-000000-00.A99705 000000-00	-
37 - WASHER BDE-930102-00.A163 930102-00	£1.50	£1.80
38 - NO LONGER AVAILABLE BDE-000000-00.A99706 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A99707 000000-00	-
40 - WASHER BDE-931407-00.A16 931407-00	£5.88	£7.06
41 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A99708 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A99709 000000-00	-
43 - WASHER BDE-932839-00.A55 932839-00	£1.50	£1.80
44 - NO LONGER AVAILABLE BDE-000000-00.A99710 000000-00	-
45 - SCREW BDE-930079-01.A263 930079-01	£1.42	£1.70
46 - NO LONGER AVAILABLE BDE-000000-00.A99724 000000-00	-
47 - SPRING BDE-748158.A9 748158	-
48 - NO LONGER AVAILABLE BDE-000000-00.A99711 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A99712 000000-00	-
50 - NO LONGER AVAILABLE BDE-000000-00.A99713 000000-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A99714 000000-00	-
