Black & Decker FS6000HD Type 1 Drill Spare Parts

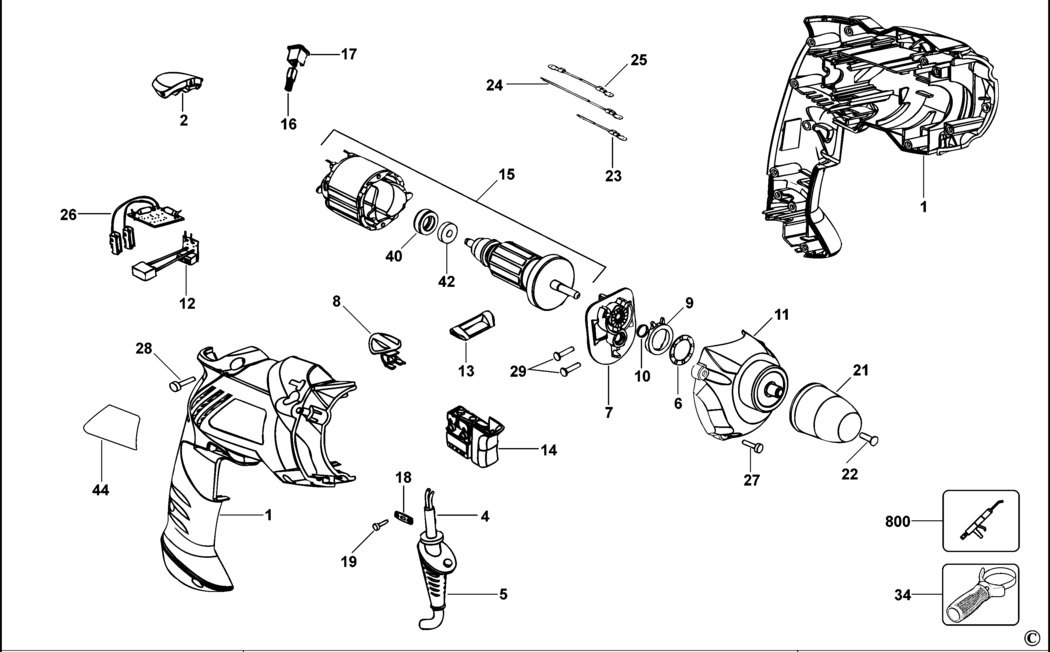

An exploded drawing and spare parts listing for the Black & Decker FS6000HD Type 1 Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A63141 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A63142 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A63143 000000-00	-
6 - BEARING BDE-892261.A80 892261	-
7 - GEARCASE SA BDE-374216-00.A12 374216-00	-
8 - SELECTOR BDE-613494-00.A0 613494-00	£1.42	£1.70
9 - SELECTOR BDE-374189-00.A29 374189-00	-
10 - SPRING BDE-821986.A116 821986	-
11 - GEARCASE COVER SA BDE-615152-00.A0 615152-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A63146 000000-00	-
13 - ACTUATOR FWD/REV BDE-614813-00.A1 614813-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A63147 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A63148 000000-00	-
16 - BRUSH & SPRING BDE-570544-00.A40 570544-00	-
17 - INSERT BDE-875735.A46 875735	£1.50	£1.80
18 - CORD CLAMP BDE-329301-00.A215 329301-00	£1.50	£1.80
19 - SCREW TORQUE =0.63-1.26NM BDE-330019-38.A1 330019-38	£1.50	£1.80
21 - CHUCK KEYLESS TORQUE =2.5 - 2.9NM BDE-586589-00L.A2 586589-00L	£14.57	£17.48
22 - SCREW.SPECIAL TORQUE =2.4 - 2.8NM BDE-805434.A315 805434	£1.50	£1.80
23 - NO LONGER AVAILABLE BDE-000000-00.A63149 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A63150 000000-00	-
25 - LEAD SA BDE-615145-00.A6 615145-00	-
26 - PCB SA BDE-615532-00.A0 615532-00	£4.58	£5.49
27 - SCREW TORQUE =1.0 - 1.5NM BDE-330019-14.A171 330019-14	£1.50	£1.80
28 - SCREW TORQUE =0.63-1.26NM BDE-330019-03.A115 330019-03	£1.50	£1.80
29 - NO LONGER AVAILABLE BDE-000000-00.A63171 000000-00	-
34 - HANDLE SIDE SA BDE-939794-02.A261 939794-02	£14.57	£17.48
40 - NO LONGER AVAILABLE BDE-000000-00.A63172 000000-00	-
42 - BEARING BDE-330003-02.A238 330003-02	-
800 - GREASE 90 GMS BDE-870889-02.A247 870889-02	£7.85	£9.42

Attribute Name	Value
Brand	Black & Decker
