Black & Decker KD651 Type 1 Rotary Hammer Drill Spare Parts

Black & Decker KD651 Type 1 Rotary Hammer Drill Spare Parts
Home Details Reviews Delivery

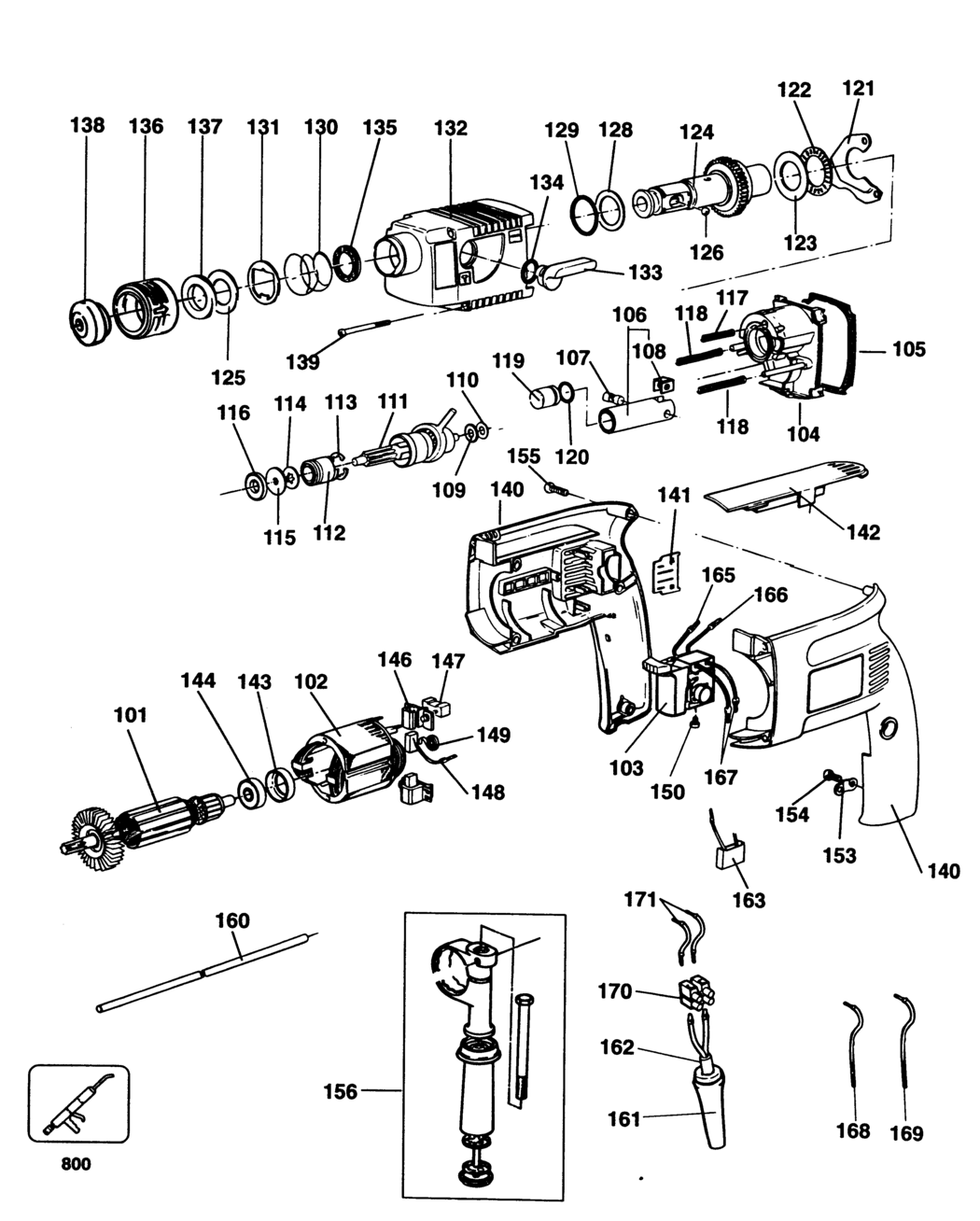

An exploded drawing and spare parts listing for the Black & Decker KD651 Type 1 Rotary Hammer Drill
Ex VAT Inc VAT
101 - NO LONGER AVAILABLE BDE-000000-00.A35362 000000-00 -
102 - NO LONGER AVAILABLE BDE-000000-00.A35363 000000-00 -
103 - NO LONGER AVAILABLE BDE-000000-00.A35364 000000-00 -
104 - NO LONGER AVAILABLE BDE-000000-00.A35365 000000-00 -
105 - NO LONGER AVAILABLE BDE-000000-00.A35366 000000-00 -
106 - NO LONGER AVAILABLE BDE-000000-00.A35367 000000-00 -
107 - NO LONGER AVAILABLE BDE-000000-00.A35368 000000-00 -
108 - NO LONGER AVAILABLE BDE-000000-00.A35369 000000-00 -
109 - BEARING AXIAL BDE-324430-03.A72 324430-03 -
110 - WASHER 7 BDE-324431-03.A50 324431-03 -
111 - NO LONGER AVAILABLE BDE-000000-00.A35370 000000-00 -
112 - NO LONGER AVAILABLE BDE-000000-00.A35371 000000-00 -
113 - NO LONGER AVAILABLE BDE-000000-00.A35372 000000-00 -
114 - NO LONGER AVAILABLE BDE-000000-00.A35373 000000-00 -
115 - NO LONGER AVAILABLE BDE-000000-00.A35374 000000-00 -
116 - NO LONGER AVAILABLE BDE-000000-00.A35375 000000-00 -
117 - NO LONGER AVAILABLE BDE-000000-00.A35376 000000-00 -
118 - NO LONGER AVAILABLE BDE-000000-00.A35377 000000-00 -
119 - NO LONGER AVAILABLE BDE-000000-00.A35378 000000-00 -
120 - NO LONGER AVAILABLE BDE-000000-00.A35379 000000-00 -
121 - NO LONGER AVAILABLE BDE-000000-00.A35380 000000-00 -
122 - NO LONGER AVAILABLE BDE-000000-00.A35381 000000-00 -
123 - NO LONGER AVAILABLE BDE-000000-00.A35382 000000-00 -
124 - NO LONGER AVAILABLE BDE-000000-00.A35383 000000-00 -
125 - WASHER BDE-323492-00.A7 323492-00 -
126 - BALL 7MM BDE-583890-00.A253 583890-00 £1.66 £1.99
128 - NO LONGER AVAILABLE BDE-000000-00.A35385 000000-00 -
129 - NO LONGER AVAILABLE BDE-000000-00.A35386 000000-00 -
130 - SPRING BDE-871690.A65 871690 £1.66 £1.99
131 - WASHER BDE-578387-00.A56 578387-00 £1.66 £1.99
132 - NO LONGER AVAILABLE BDE-000000-00.A35387 000000-00 -
133 - NO LONGER AVAILABLE BDE-000000-00.A35388 000000-00 -
134 - NO LONGER AVAILABLE BDE-000000-00.A35389 000000-00 -
135 - SEAL SA BDE-324432-00.A57 324432-00 £5.88 £7.06
136 - COLLAR BDE-576756-00.A27 576756-00 -
137 - SPACER BDE-323480-00.A6 323480-00 £1.82 £2.19
138 - CAP BDE-323489-00.A25 323489-00 £1.66 £1.99
139 - SCREW BDE-324044-02.A72 324044-02 £1.42 £1.70
140 - NO LONGER AVAILABLE BDE-000000-00.A35390 000000-00 -
141 - NO LONGER AVAILABLE BDE-000000-00.A35391 000000-00 -
142 - NO LONGER AVAILABLE BDE-000000-00.A35392 000000-00 -
143 - CAP BDE-323481-00.A62 323481-00 £1.50 £1.80
144 - BEARING BDE-605040-63.A30 605040-63 £3.30 £3.96
146 - BRUSH HOLDER BDE-323496-01.A52 323496-01 -
147 - NO LONGER AVAILABLE BDE-000000-00.A35393 000000-00 -
148 - BRUSH 230V BDE-323660-01.A12 323660-01 £7.18 £8.62
149 - NO LONGER AVAILABLE BDE-000000-00.A35394 000000-00 -
150 - SCREW BDE-911026.A75 911026 £1.50 £1.80
153 - CORD CLAMP BDE-821070.A780 821070 £1.50 £1.80
154 - SCREW BDE-323924-08.A102 323924-08 £1.50 £1.80
155 - NO LONGER AVAILABLE BDE-000000-00.A35395 000000-00 -
156 - NO LONGER AVAILABLE BDE-000000-00.A35396 000000-00 -
160 - DEPTH STOP BDE-580787-00.A27 580787-00 £1.50 £1.80
161 - CORD PROTECTOR BDE-916968.A5 916968 -
162 - NO LONGER AVAILABLE GB BDE-000000-00.A35397 000000-00 -
163 - CAPACITOR BDE-321384.A148 321384 £1.50 £1.80
165 - NO LONGER AVAILABLE BDE-000000-00.A35398 000000-00 -
166 - NO LONGER AVAILABLE BDE-000000-00.A35399 000000-00 -
167 - NO LONGER AVAILABLE BDE-000000-00.A35400 000000-00 -
168 - LEAD 200MM BLACK BDE-878756.A20 878756 -
169 - NO LONGER AVAILABLE BDE-000000-00.A35424 000000-00 -
170 - CONNECTOR BDE-323534-00.A27 323534-00 £1.50 £1.80
171 - NO LONGER AVAILABLE BDE-000000-00.A35425 000000-00 -
800 - GREASE 90 GMS BDE-870889-02.A195 870889-02 £7.85 £9.42
846 - NO LONGER AVAILABLE BDE-000000-00.A35415 000000-00 -
