Black & Decker KS501 Type 1 Jigsaw Spare Parts

Black & Decker KS501 Type 1 Jigsaw Spare Parts

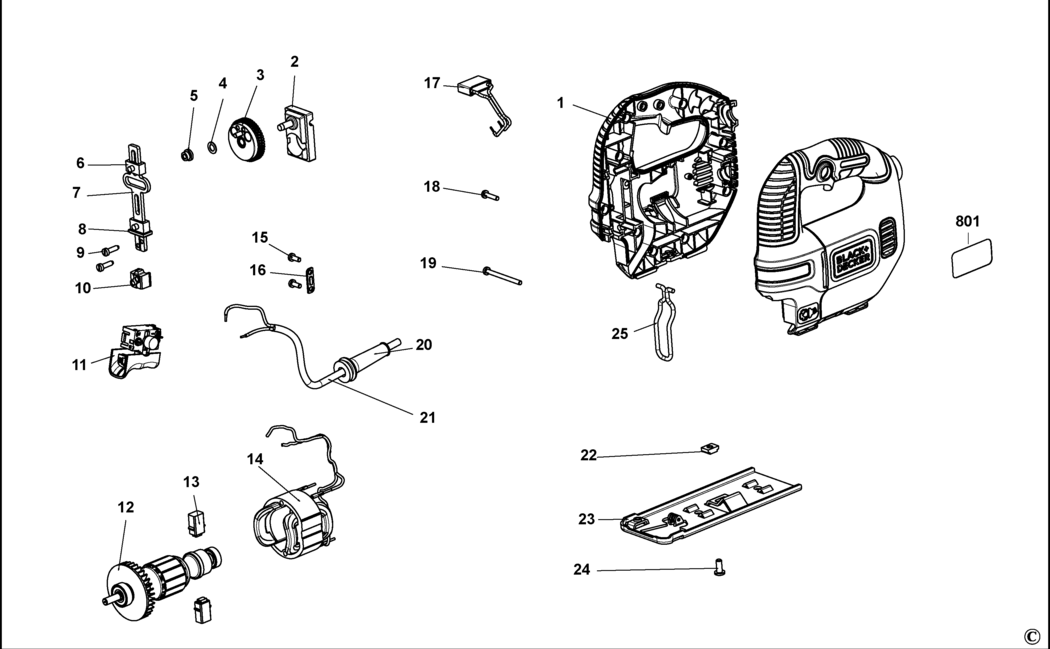

An exploded drawing and spare parts listing for the Black & Decker KS501 Type 1 Jigsaw
Ex VAT Inc VAT
1 - HOUSING SA BDE-90610768 90610768 £14.57 £17.48
2 - GEARCASE SA BDE-90510023.A2 90510023 £2.26 £2.71
3 - GEAR SA BDE-90510024.A2 90510024 £7.85 £9.42
4 - WASHER BDE-90510460.A4 90510460 £1.50 £1.80
5 - DRIVE ROLLER BDE-90510027.A2 90510027 £1.50 £1.80
6 - BEARING BDE-496036-00 496036-00 £4.69 £5.63
7 - SHAFT SA BDE-90510025.A2 90510025 £4.69 £5.63
8 - FELT SEAL BDE-90510510.A2 90510510 £1.50 £1.80
9 - SCREW BDE-797123.A45 797123 £1.50 £1.80
10 - BLADE CLAMP BDE-90515265.A13 90515265 £1.50 £1.80
11 - SWITCH SA BDE-90603224-02.A0 90603224-02 £7.18 £8.62
12 - ARMATURE SA BDE-90610821 90610821 £14.57 £17.48
13 - BRUSHBOX SA BDE-90549938.A4 90549938 £3.30 £3.96
14 - FIELD SA BDE-90610813 90610813 £25.70 £30.84
15 - SCREW.TEMP BDE-330019-01.A40 330019-01 £1.50 £1.80
16 - CORD CLAMP BDE-329301-00.A257 329301-00 £1.50 £1.80
17 - CAPACITOR BDE-90610227-02 90610227-02 £1.50 £1.80
18 - SCREW BDE-330019-03.A158 330019-03 £1.50 £1.80
19 - SCREW BDE-330019-08.A23 330019-08 £1.50 £1.80
20 - CORD PROTECTOR BDE-148481-00.A28 148481-00 £1.50 £1.80
21 - CORDSET GB BDE-90578997-03.A3 90578997-03 £12.17 £14.60
22 - NUT BDE-845591.A37 845591 £1.50 £1.80
23 - SHOE SA BDE-373834-01.A2 373834-01 £7.18 £8.62
24 - SCREW BDE-368673 368673 £1.50 £1.80
24 - SCREW BDE-368673-00.A107 368673-00 £1.50 £1.80
25 - GUARD BDE-90607885 90607885 £1.50 £1.80
26 - BEARING 608 BDE-90624954.A0 90624954 -
27 - BEARING 607 2RS BDE-90624953.A1 90624953 -
801 - RATING LABEL GB BDE-90607627 90607627 £1.50 £1.80
