Black & Decker GL656 Type 1 String Trimmer Spare Parts

Black & Decker GL656 Type 1 String Trimmer Spare Parts
Home Details Reviews Delivery

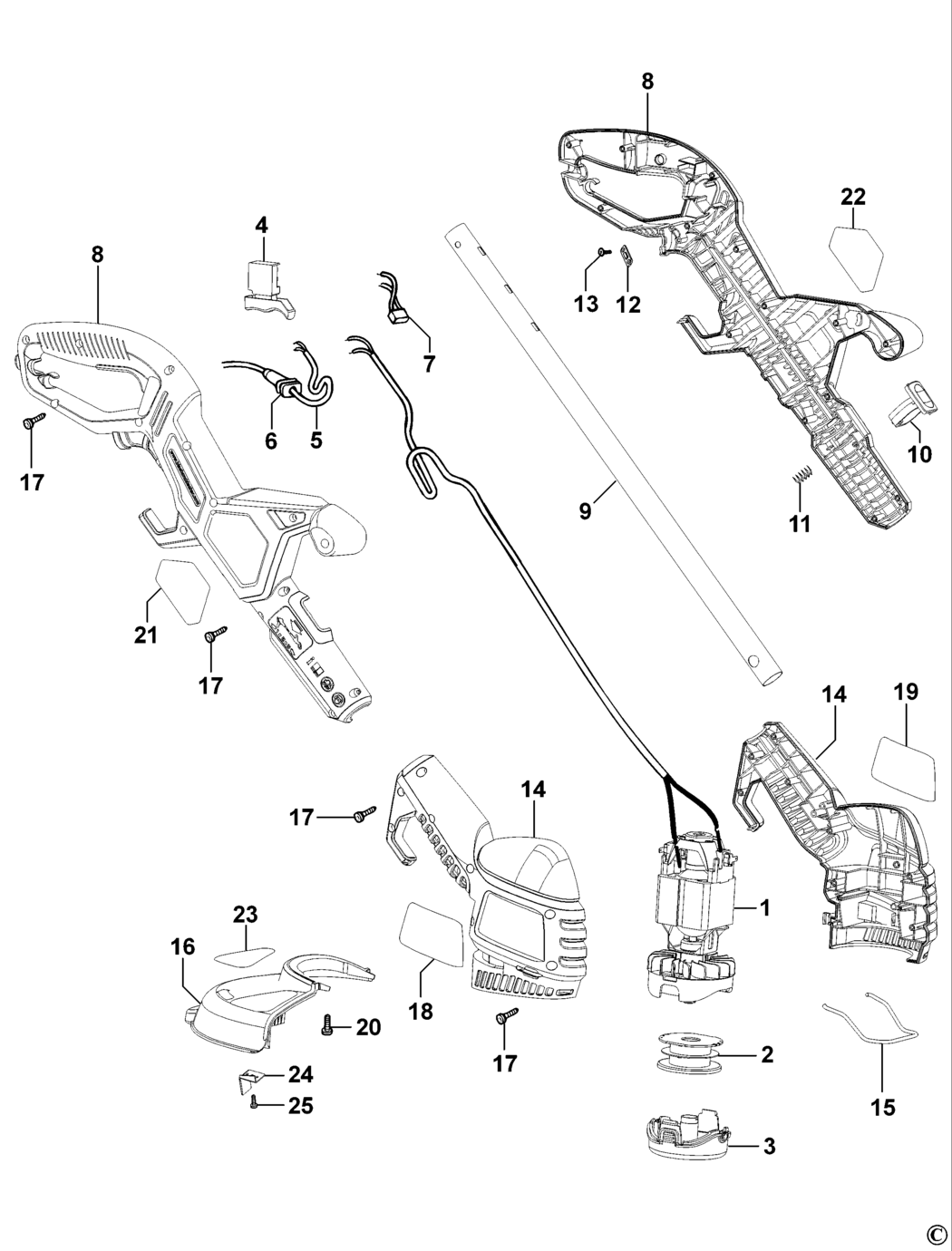

An exploded drawing and spare parts listing for the Black & Decker GL656 Type 1 String Trimmer
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A94971 000000-00 -
2 - SPOOL & LINE BDE-575462-00.A5 575462-00 -
3 - COVER SPOOL BDE-90511610.A2 90511610 £3.80 £4.56
4 - SWITCH GB BDE-479734-00.A10 479734-00 -
5 - NO LONGER AVAILABLE GB BDE-000000-00.A94972 000000-00 -
6 - PROTECTOR BDE-770235.A10 770235 £1.50 £1.80
7 - NO LONGER AVAILABLE BDE-000000-00.A94973 000000-00 -
8 - NO LONGER AVAILABLE GB BDE-000000-00.A94974 000000-00 -
9 - NO LONGER AVAILABLE GB BDE-000000-00.A94975 000000-00 -
10 - ACTUATOR GB BDE-90505515.A3 90505515 -
11 - SPRING BDE-580936-00.A6 580936-00 £1.50 £1.80
12 - CORD CLAMP BDE-329301-00.A129 329301-00 £1.50 £1.80
13 - SCREW BDE-821057.A82 821057 £1.50 £1.80
14 - HOUSING PAIR GB BDE-90505510.A1 90505510 -
15 - GUIDE BDE-90505519.A0 90505519 -
16 - GUARD 280MM BDE-90505516.A1 90505516 -
17 - SCREW BDE-747329.A816 747329 £1.50 £1.80
18 - NO LONGER AVAILABLE GB BDE-000000-00.A94976 000000-00 -
19 - NO LONGER AVAILABLE BDE-000000-00.A94977 000000-00 -
20 - NO LONGER AVAILABLE BDE-000000-00.A94978 000000-00 -
21 - NO LONGER AVAILABLE BDE-000000-00.A94979 000000-00 -
22 - NO LONGER AVAILABLE BDE-000000-00.A94980 000000-00 -
23 - WARNING LABEL BDE-489903-01.A3 489903-01 -
24 - NO LONGER AVAILABLE GB BDE-000000-00.A94993 000000-00 -
25 - SCREW BDE-681914-00.A3 681914-00 £1.50 £1.80
