Black & Decker GR298 Type 1 Rotary Mower Spare Parts

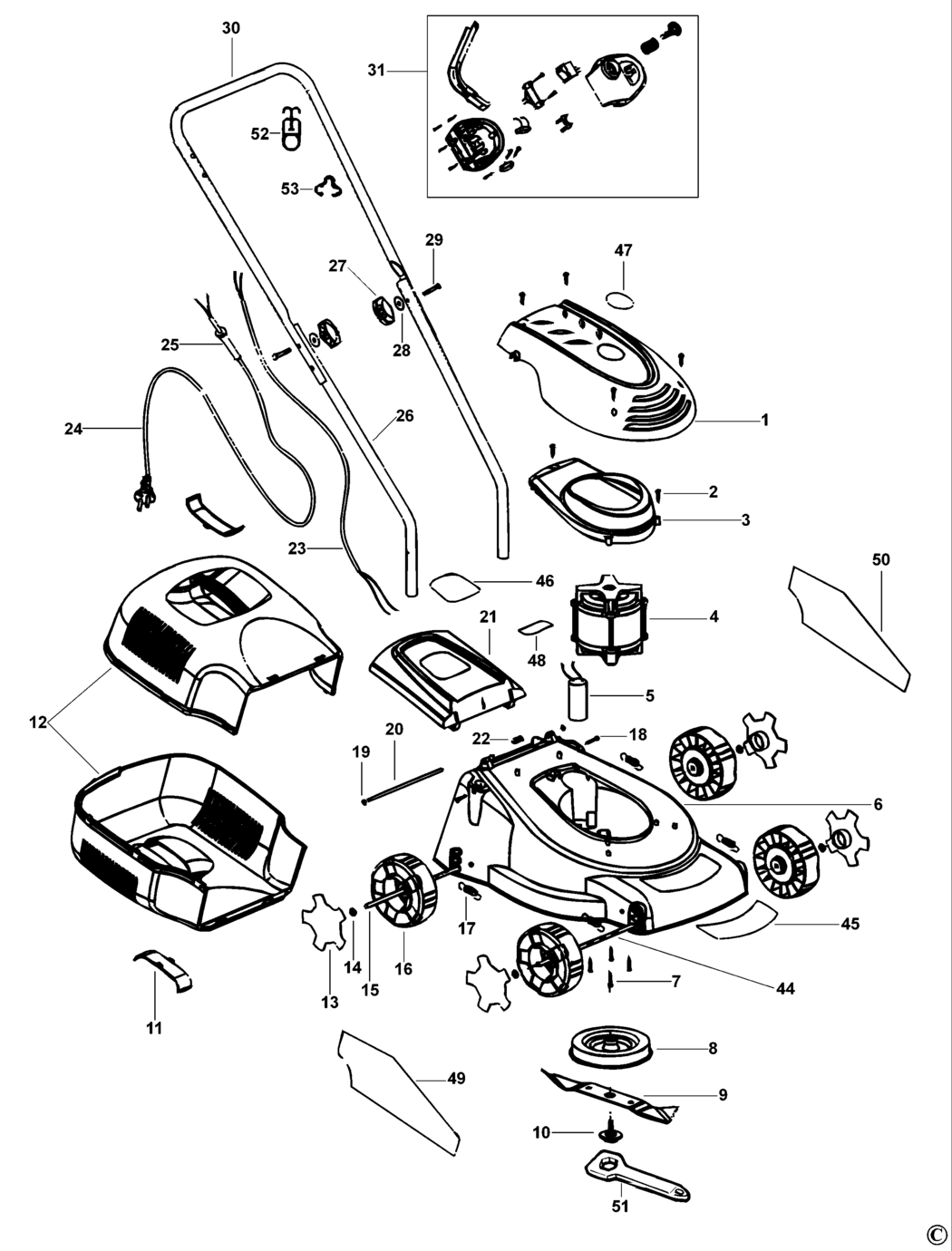

An exploded drawing and spare parts listing for the Black & Decker GR298 Type 1 Rotary Mower

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A25524 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A25525 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A25526 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A25527 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A25528 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A25529 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A25530 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A25531 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A25532 000000-00	-
10 - BLADE BOLT BDE-596036-00.A2 596036-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A25541 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A25542 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A25543 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A25544 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A25545 000000-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A25546 000000-00	-
17 - SPRING BDE-596043-00.A0 596043-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A25533 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A25534 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A25535 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A25536 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A25537 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A25538 000000-00	-
24 - NO LONGER AVAILABLE GB BDE-000000-00.A25539 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A25540 000000-00	-
26 - LOWER HANDLE BDE-596052-00.A2 596052-00	£3.70	£4.44
27 - NO LONGER AVAILABLE BDE-000000-00.A25547 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A25548 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A25549 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A25550 000000-00	-
31 - SWITCH SA GB BDE-596087-00.A0 596087-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A25558 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A25559 000000-00	-
46 - RATING PLATE GB BDE-596091-00.A1 596091-00	£1.42	£1.70
47 - NO LONGER AVAILABLE BDE-000000-00.A25551 000000-00	-
48 - NO LONGER AVAILABLE BDE-000000-00.A25552 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A25553 000000-00	-
50 - NO LONGER AVAILABLE BDE-000000-00.A25554 000000-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A25555 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A25556 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A25557 000000-00	-

Attribute Name	Value
Brand	Black & Decker
