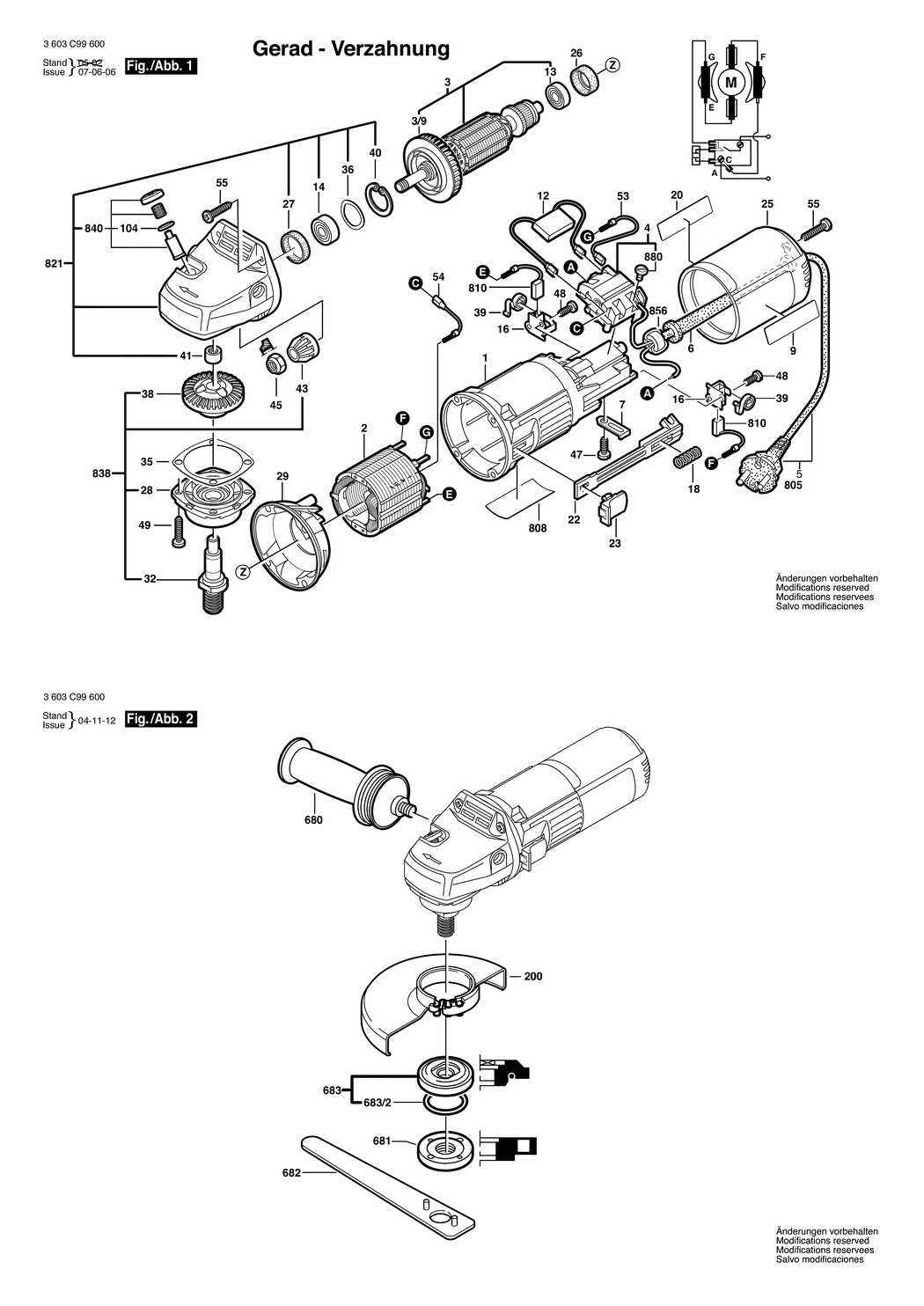

An exploded drawing and listing for the Bosch PWS 7-115 / 3603C99600 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108189.A42 1605108189 £5.87 £7.04
2 - FIELD 230V BSD-2609000762.A13 2609000762 £21.52 £25.83
3 - ARMATURE 230V BSD-2609000761.A2 2609000761 £27.23 £32.68
3/9 - FAN BSD-1606610121.A218 1606610121 £1.75 £2.10
4 - ON-OFF SWITCH BSD-1607200086.A413 1607200086 £11.30 £13.56
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A918 2600703012 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302017.A767 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE PWS 7200 BSD-2609001367.A0 2609001367 -
9 - MANUFACTURER'S NAMEPLATE PWS 7-115 BSD-2609000586.A1 2609000586 £3.72 £4.47
12 - SUPPRESSION FILTER BSD-1607328029.A1 1607328029 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A668 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING BSD-2600905080.A30 2600905080 £4.26 £5.11
16 - BRUSH HOLDER BSD-1601323019.A11 1601323019 £1.75 £2.10
18 - COMPRESSION SPRING BSD-1604611026.A399 1604611026 £1.75 £2.10
20 - MANUFACTURER'S NAMEPLATE PWS 7200 BSD-2609001368.A0 2609001368 -
20 - MANUFACTURER'S NAMEPLATE PWS 7-115 BSD-2609000573.A0 2609000573 -
22 - ADJUSTING SLIDE BSD-1602319002.A186 1602319002 £2.61 £3.13
23 - SWITCH BUTTON BSD-2609002368.A18 2609002368 £1.75 £2.10
25 - HOUSING COVER BSD-2609000331.A11 2609000331 £3.34 £4.01
26 - RUBBER BUSHING BSD-1600502020.A289 1600502020 £2.61 £3.13
27 - RUBBER RING BSD-1600206025.A775 1600206025 £2.16 £2.59
28 - BEARING FLANGE BSD-2609000320.A1 2609000320 -
29 - AIR-DEFLECTOR RING BSD-1601328005.A257 1601328005 £2.61 £3.13
32 - GRINDING SPINDLE BSD-1607000D6A.A170 1607000D6A £7.36 £8.83
35 - SHIM 0.3 MM BSD-1600136011.A253 1600136011 £2.16 £2.59
35 - SHIM 0.1 MM BSD-1600136012.A70 1600136012 £1.75 £2.10
35 - SHIM 0.2 MM BSD-1600136010.A70 1600136010 £2.61 £3.13
36 - SPRING WASHER BSD-1600150011.A131 1600150011 £1.75 £2.10
38 - CROWN GEAR Z=36 BSD-1606333606.A50 1606333606 £11.30 £13.56
39 - SPIRAL SPRING BSD-1604652013.A739 1604652013 £1.75 £2.10
40 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A172 2916660009 £2.16 £2.59
41 - PLAIN BEARING BSD-1600200029.A103 1600200029 £4.26 £5.11
43 - BEVEL GEAR Z=11 BSD-1606333605.A47 1606333605 £3.72 £4.47
45 - HEX NUT M7. SW10 BSD-1603300016.A269 1603300016 £1.75 £2.10
47 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A346 2603490021 £1.75 £2.10
48 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A892 2603490017 £2.16 £2.59
49 - THREAD-FORMING TAP. SCREW M4x16 BSD-2914491410.A257 2914491410 £1.75 £2.10
53 - CONNECTING CABLE BSD-1604448015.A36 1604448015 £1.75 £2.10
54 - CONNECTING CABLE BSD-1604448016.A113 1604448016 £1.75 £2.10
55 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A932 2603490023 £1.75 £2.10
104 - O-RING 4.5x1.0 MM BSD-1600210044.A12 1600210044 £1.75 £2.10
200 - PROTECTIVE GUARD BSD-2609000390.A1 2609000390 £13.12 £15.75
680 - HANDLE BSD-2609002198.A35 2609002198 £10.10 £12.12
681 - ROUND NUT M14 BSD-1603345043.A1084 1603345043 £8.67 £10.41
683 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A1257 2605703014 £7.36 £8.83
683/2 - O-RING 20.35x1.78 MM BSD-1600210039.A457 1600210039 £2.16 £2.59
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A325 1607000386 £21.52 £25.83
808 - NAMEPLATE BSD-2609000511.A0 2609000511 £2.33 £2.80
810 - CARBON-BRUSH SET BSD-1607014162.A4 1607014162 £10.82 £12.99
821 - GEAR HOUSING BSD-2609000768.A12 2609000768 £21.68 £26.01
838 - CROWN GEAR BSD-2609000769.A8 2609000769 -
840 - PUSH-BUTTON BSD-1607000253.A107 1607000253 £2.49 £2.99
856 - RUBBER BUSHING BSD-2609000906.A0 2609000906 £1.95 £2.34
880 - PAN HEAD SCREW DIN 85-AM3x6-CUZN BSD-2910110048.A443 2910110048 £1.75 £2.10
