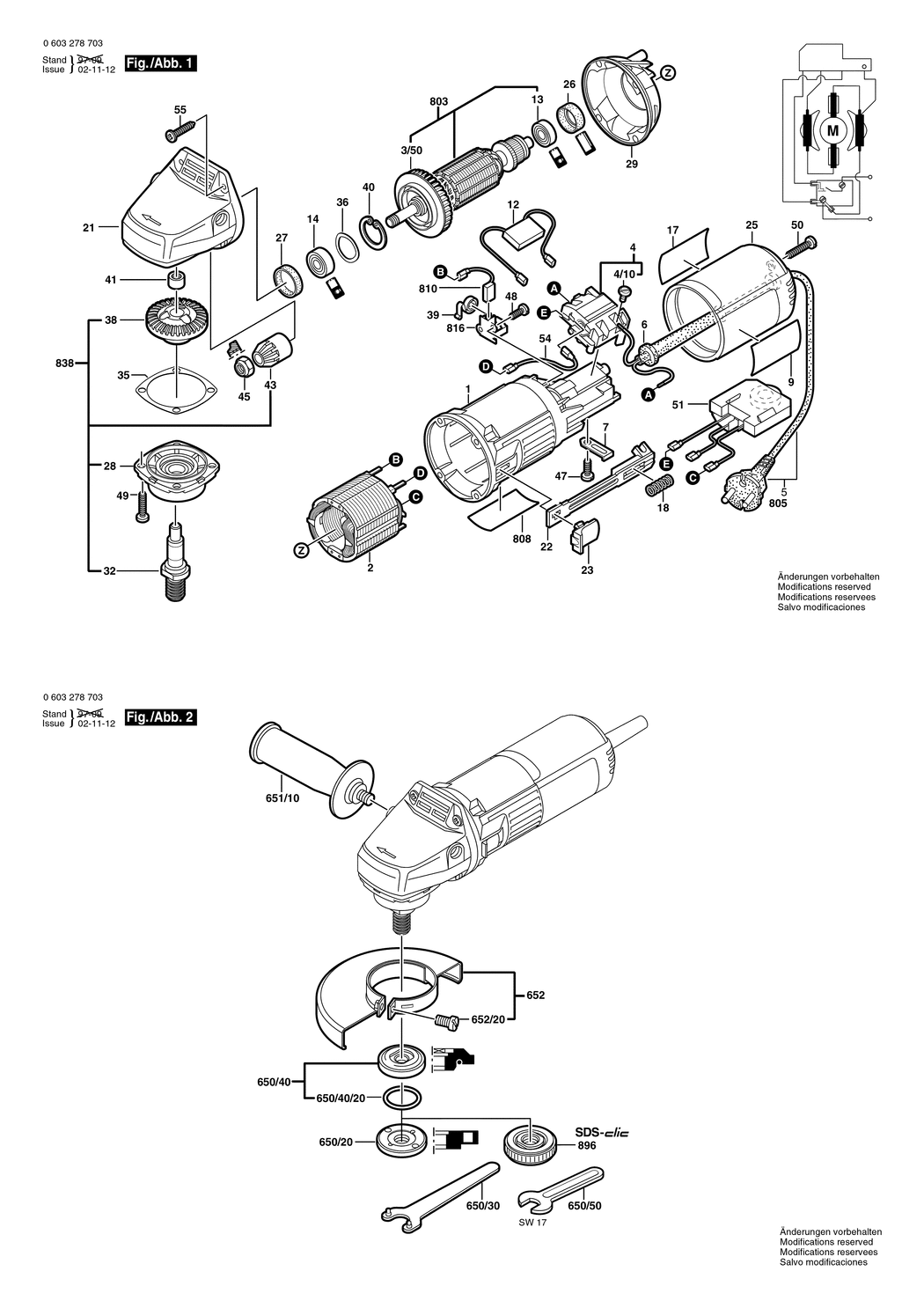

An exploded drawing and listing for the Bosch PWS 7-115 E / 0603278742 / GB 240 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108127.A7 1605108127 -
2 - FIELD 220-230V BSD-1604220272.A25 1604220272 -
3/50 - FAN BSD-1606610121.A29 1606610121 £1.75 £2.10
4 - ON-OFF SWITCH BSD-1607200086.A6 1607200086 £11.30 £13.56
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN BSD-2910110048.A155 2910110048 £1.75 £2.10
5 - POWER SUPPLY CORD GB 240V 2.65m 2 x 1.0mm H05 VV-F BSD-1604460150.A27 1604460150 £16.41 £19.69
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A428 2600703012 £2.80 £3.36
6 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A747 2600703011 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302017.A349 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118179.A0 1601118179 -
12 - SUPPRESSION FILTER BSD-1607328029.A141 1607328029 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A1835 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A159 1600905032 £5.58 £6.70
17 - MANUFACTURER'S NAMEPLATE BSD-1601118154.A9 1601118154 £2.33 £2.80
18 - COMPRESSION SPRING BSD-1604611026.A195 1604611026 £1.75 £2.10
21 - GEAR HOUSING BSD-1605806429.A33 1605806429 £7.36 £8.83
22 - ADJUSTING SLIDE BSD-1602319002.A245 1602319002 £2.61 £3.13
23 - SWITCH HANDLE BSD-1602026057.A30 1602026057 £1.97 £2.36
25 - HOUSING COVER BSD-1600508009.A17 1600508009 -
26 - RUBBER BUSHING BSD-1600502020.A359 1600502020 £2.61 £3.13
27 - RUBBER RING BSD-1600206025.A9 1600206025 £2.16 £2.59
28 - BEARING FLANGE BSD-1605805061.A16 1605805061 £10.10 £12.12
29 - AIR-DEFLECTOR RING BSD-1601328005.A31 1601328005 £2.61 £3.13
32 - GRINDING SPINDLE BSD-1607000D6A.A579 1607000D6A £7.36 £8.83
35 - SHIM 0.1 MM BSD-1600136012.A245 1600136012 £1.75 £2.10
35 - SHIM 0.2 MM BSD-1600136010.A253 1600136010 £2.61 £3.13
35 - SHIM 0.3 MM BSD-1600136011.A76 1600136011 £2.16 £2.59
36 - SPRING WASHER BSD-1600150011.A73 1600150011 £1.75 £2.10
38 - CROWN GEAR Z=36 BSD-1606333606.A19 1606333606 £11.30 £13.56
39 - SPIRAL SPRING BSD-1604652013.A144 1604652013 £1.75 £2.10
40 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A248 2916660009 £2.16 £2.59
41 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A337 1600910018 £5.30 £6.36
43 - BEVEL GEAR Z=11 BSD-1606333605.A80 1606333605 £3.72 £4.47
45 - HEX NUT M7. SW10 BSD-1603300016.A722 1603300016 £1.75 £2.10
47 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A342 2910211018 £1.75 £2.10
48 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A204 2910211005 £1.75 £2.10
49 - TAPPING SCREW DIN7981-ST3.9x19-F-Z BSD-2912401420.A232 2912401420 £1.75 £2.10
50 - TAPPING SCREW DIN7981-ST3.9x19-F-Z BSD-2912401420.A233 2912401420 £1.75 £2.10
51 - SPEED GOVERNOR 230-240V BSD-1607233024.A8 1607233024 -
54 - CONNECTING CABLE BSD-1604448016.A37 1604448016 £1.75 £2.10
55 - TAPPING SCREW DIN7981-ST3.9x19-F-Z BSD-2912401420.A234 2912401420 £1.75 £2.10
650/20 - ROUND NUT M14 BSD-1603345043.A107 1603345043 £8.67 £10.41
650/30 - PIN-TYPE FACE-WRENCH BSD-1607950052.A470 1607950052 £3.72 £4.47
650/40 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A120 2605703014 £7.36 £8.83
650/40/20 - O-RING 20.35x1.78 MM BSD-1600210039.A1446 1600210039 £2.16 £2.59
650/50 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A164 2607950511 £4.26 £5.11
651/10 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A245 160202509T £3.72 £4.47
651/10 - AUXILIARY HANDLE M10 BSD-1602025027.A0 1602025027 £6.52 £7.83
652 - PROTECTIVE COVER dia 115 MM(4 1/2) BSD-2605510125.A0 2605510125 £27.23 £32.68
652/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A72 2910022197 -
803 - ARMATURE WITH FAN 220-230V BSD-1604010429.A17 1604010429 -
808 - NAMEPLATE BSD-160111A3H3.A4412 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014116.A68 1607014116 £11.30 £13.56
816 - BRUSH HOLDER BSD-1600A003G4.A7 1600A003G4 £3.72 £4.47
838 - CROWN GEAR BSD-1607000943.A43 1607000943 £23.86 £28.63
896 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A71 1603340027 £46.82 £56.18
