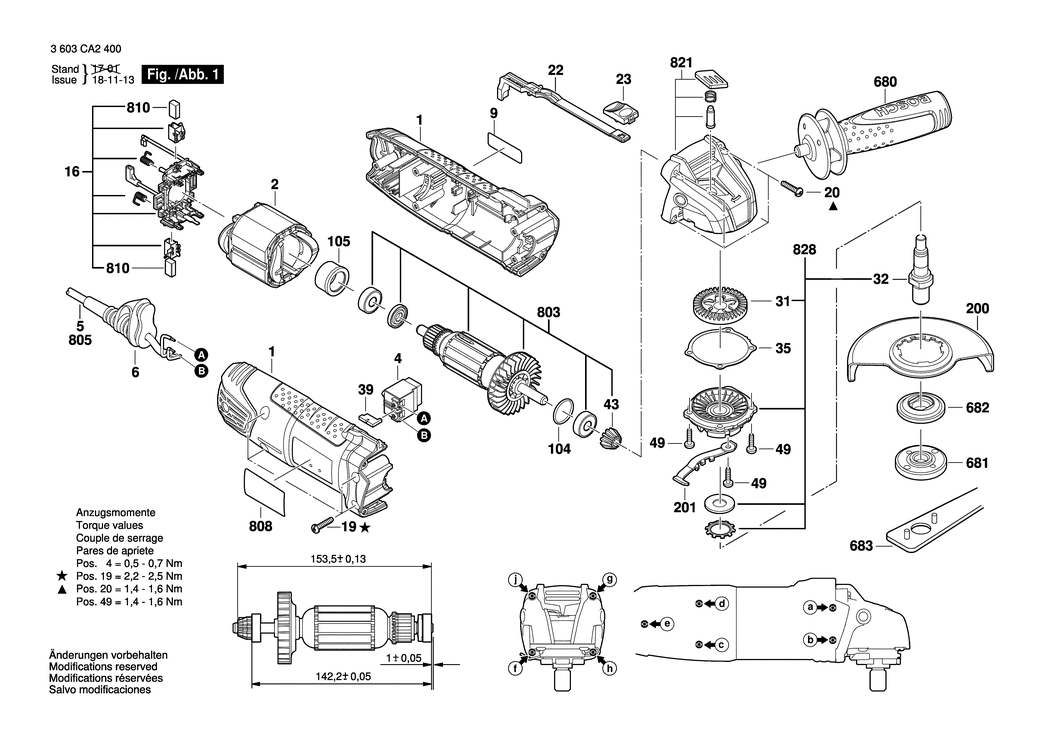

An exploded drawing and listing for the Bosch PWS 850-125 / 3603CA2730 / CH 230 Volt
Ex VAT Inc VAT
1 - HOUSING BSD-2609004775.A4 2609004775 £10.10 £12.12
2 - FIELD 230V BSD-2609005828.A4 2609005828 £16.41 £19.69
4 - SWITCH BSD-2607200673.A15 2607200673 £13.12 £15.75
5 - POWER SUPPLY CORD CH 2.75m 2 x 1.0mm H05 VV-F BSD-1604460423.A89 1604460423 £10.10 £12.12
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2609006376.A15 2609006376 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE PWS 850-125 BSD-2609004788.A1 2609004788 £2.61 £3.13
16 - BRUSH HOLDER BSD-2609004780.A10 2609004780 £12.04 £14.45
19 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A895 2603490023 £1.75 £2.10
20 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A370 2603490024 £1.75 £2.10
22 - LEVER BSD-2609004779.A6 2609004779 £1.75 £2.10
23 - SWITCH BUTTON BSD-1600A007UL.A14 1600A007UL £1.75 £2.10
31 - CROWN GEAR BSD-1600A00J95.A13 1600A00J95 £6.61 £7.93
32 - GRINDING SPINDLE BSD-1607000D6A.A182 1607000D6A £7.36 £8.83
35 - SHIM 0.1 MM BSD-2609002208.A27 2609002208 £1.75 £2.10
35 - SHIM 0.2 MM BSD-2609002209.A21 2609002209 £1.75 £2.10
35 - SHIM 0.3 MM BSD-2609002210.A27 2609002210 £2.16 £2.59
35 - SHIM 1.5 MM BSD-1600A00RE3.A8 1600A00RE3 £1.75 £2.10
39 - GUARD PLATE BSD-2609002762.A14 2609002762 £1.75 £2.10
43 - PINION BSD-16063332CN.A22 16063332CN £3.72 £4.47
49 - TORX OVAL-HEAD SCREW M4x12 BSD-2610386516.A5 2610386516 £1.75 £2.10
104 - O-RING 21.0x1.0 MM BSD-3600210127.A26 3600210127 £1.75 £2.10
105 - RUBBER BUSHING BSD-2609004785.A6 2609004785 £1.75 £2.10
200 - PROTECTIVE COVER dia125 MM BSD-2609002204.A14 2609002204 £16.41 £19.69
201 - LEAF SPRING BSD-2609002205.A19 2609002205 £5.30 £6.36
680 - HANDLE BSD-2609002198.A26 2609002198 £10.10 £12.12
681 - ROUND NUT M14 BSD-1603345043.A1020 1603345043 £8.67 £10.41
682 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A1280 2605703014 £7.36 £8.83
683 - PIN-TYPE FACE-WRENCH BSD-1619P08927.A51 1619P08927 £4.26 £5.11
803 - ARMATURE ASSEMBLY 230V BSD-2609005827.A14 2609005827 £23.86 £28.63
808 - NAMEPLATE BSD-2609004802.A0 2609004802 £2.33 £2.80
810 - CARBON-BRUSH SET BSD-2609005200.A14 2609005200 £6.52 £7.83
821 - GEAR HOUSING BSD-2609006425.A19 2609006425 £16.41 £19.69
828 - BEARING FLANGE BSD-160580809A.A1 160580809A -
