Bosch PDA 240 E / 0603346703 / EU 230 Volt Spare Parts

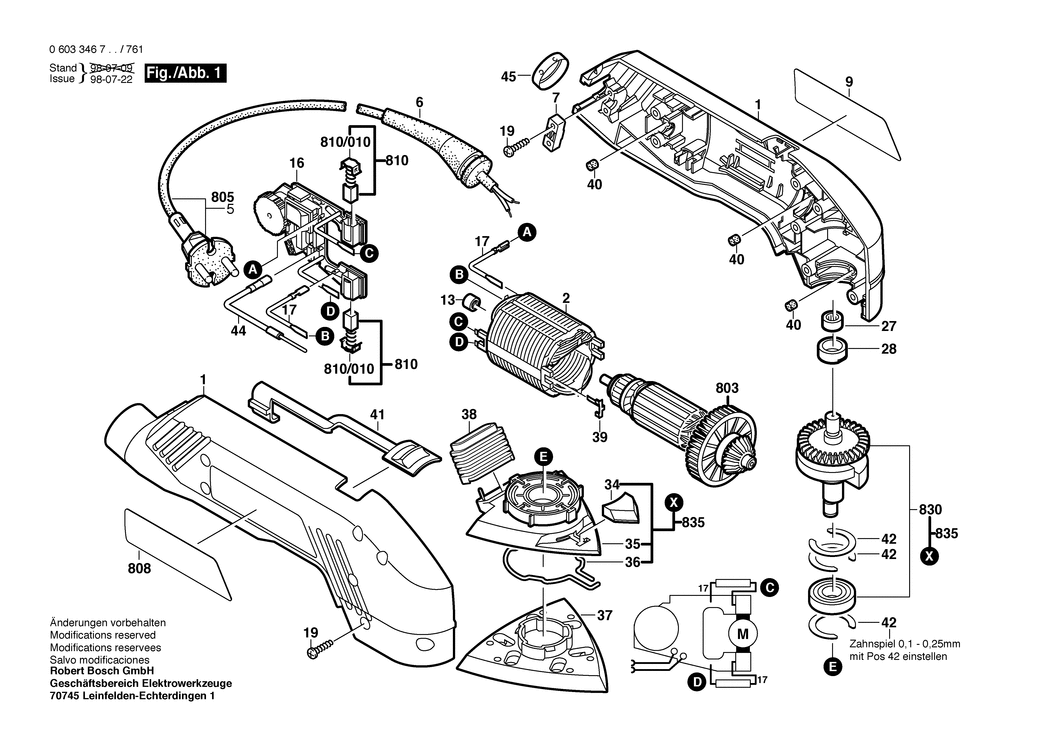

An exploded drawing and listing for the Bosch PDA 240 E / 0603346703 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104544.A3 2605104544	£23.86	£28.63
2 - FIELD 220-230V BSD-2604220578.A7 2604220578	£21.52	£25.83
5 - POWER SUPPLY CORD EU 230V 2.7m 2 x 0.75mm H05 VV-F BSD-2604460259.A53 2604460259	£13.12	£15.75
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A801 2600703017	£2.61	£3.13
7 - CABLE CLIP BSD-2601035001.A1560 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601118942.A3 2601118942	£3.72	£4.47
13 - NEEDLE BEARING BSD-2600917002.A78 2600917002	£3.72	£4.47
16 - SPEED GOVERNOR 230V BSD-2607233025.A9 2607233025	£45.67	£54.80
17 - CONNECTING CABLE L=88 MM BSD-2604448034.A271 2604448034	£1.75	£2.10
19 - SCREW 4x16 BSD-2603490022.A124 2603490022	£1.75	£2.10
27 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A392 2600917003	£2.80	£3.36
28 - BEARING CARRIER BSD-2600390026.A10 2600390026	£2.80	£3.36
34 - CATCH SLIDE BSD-2608000173.A5 2608000173	£2.80	£3.36
35 - TOOL HOLDING FIXTURE BSD-2601098044.A8 2601098044	-
36 - CLAMPING SPRING BSD-2604680000.A6 2604680000	£2.80	£3.36
37 - SANDER PLATE BSD-2608000174.A9 2608000174	£14.91	£17.89
38 - FLEXIBLE CONNECTION BSD-2600712006.A4 2600712006	£3.80	£4.56
39 - CONTACT SPRING BSD-2601329037.A82 2601329037	£1.75	£2.10
40 - DAMPING RUBBER BSD-2603100056.A165 2603100056	£1.75	£2.10
41 - SWITCH SLIDE BSD-2602319010.A1 2602319010	-
42 - SHIM 0.2 MM BSD-2600101088.A40 2600101088	£1.75	£2.10
42 - SHIM 0.3 MM BSD-2600101089.A4 2600101089	-
42 - SHIM 0.4 MM BSD-2600101090.A30 2600101090	-
42 - SHIM 0.5 MM BSD-2600101091.A4 2600101091	£2.16	£2.59
44 - EARTH CONDUCTOR BSD-2604448200.A11 2604448200	£2.61	£3.13
45 - CLAMPING RING BSD-2600290025.A13 2600290025	-
803 - ARMATURE 230V BSD-2604010940.A3 2604010940	£33.45	£40.14
808 - MARKING PLATE BSD-2601119298.A0 2601119298	£3.72	£4.47
810 - CARBON-BRUSH SET BSD-2607014010.A26 2607014010	-
810/010 - RATCHET CAP BSD-2601322018.A10 2601322018	£1.75	£2.10
830 - BEVEL GEAR SHAFT Z= 31 BSD-2606100900.A6 2606100900	-
835 - TOOL HOLDING FIXTURE BSD-2601098900.A3 2601098900	-

Attribute Name	Value
Brand	Bosch
