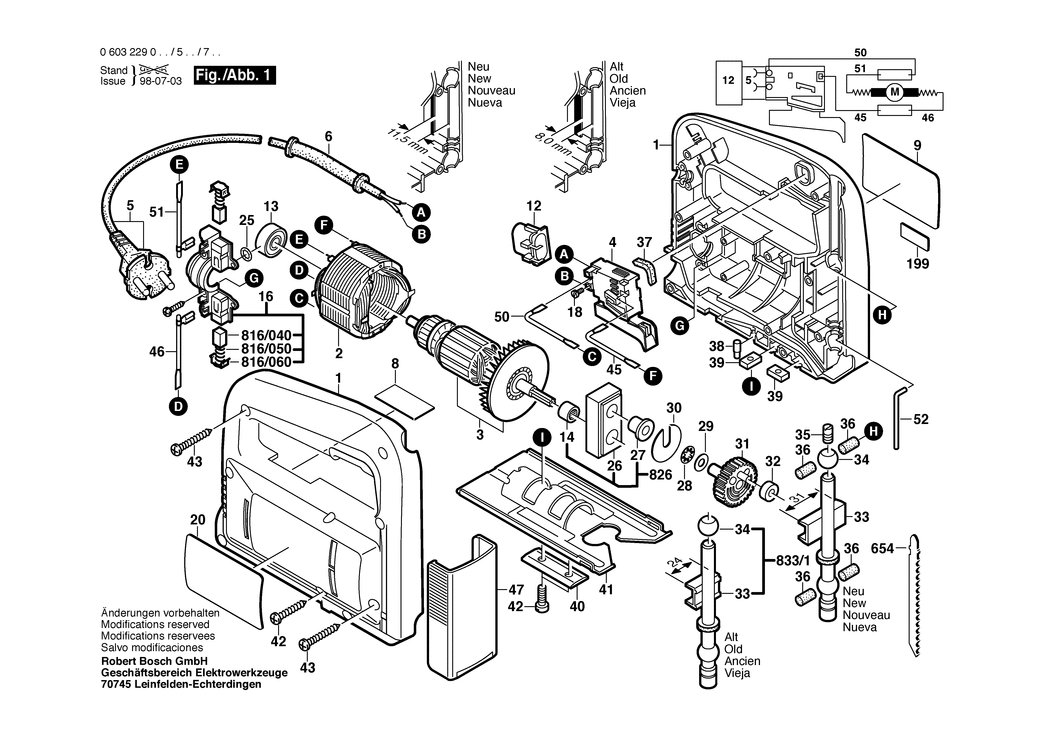

1 - HOUSING SECTION
BSD-2605104270.A4
2605104270
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220466.A8
2604220466
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-2604010736.A2
2604010736
|
-
|
|
|
|
3/50 - FAN
BSD-1606610116.A173
1606610116
|
£2.52
|
£3.02
|
|
|
4 - SWITCH
BSD-2607200260.A319
2607200260
|
£11.30
|
£13.56
|
|
|
5 - POWER SUPPLY CORD I / BR 2.65m 2 x 1.0mm H05VV-F
BSD-2604460280.A13
2604460280
|
£14.91
|
£17.89
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A373
2600703007
|
-
|
|
|
|
8 - NAMEPLATE
BSD-160111A3H3.A4635
160111A3H3
|
£2.61
|
£3.13
|
|
|
9 - STICKER
BSD-2601110586.A3
2601110586
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329138.A17
2607329138
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1934
2600905032
|
£5.30
|
£6.36
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A172
2600917003
|
£2.80
|
£3.36
|
|
|
16 - BRUSH PLATE
BSD-2604337118.A27
2604337118
|
£23.86
|
£28.63
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1469
2603410001
|
£1.75
|
£2.10
|
|
|
20 - STICKER
BSD-2601110587.A5
2601110587
|
-
|
|
|
|
25 - O-RING 5.0x1.5 MM
BSD-1900210000.A246
1900210000
|
£1.75
|
£2.10
|
|
|
26 - BEARING BRACKET
BSD-2605807918.A9
2605807918
|
-
|
|
|
|
27 - BUSHING
BSD-2600322003.A9
2600322003
|
-
|
|
|
|
28 - SPRING WASHER
BSD-2600190040.A16
2600190040
|
£1.32
|
£1.58
|
|
|
29 - SHIM 0.5 MM
BSD-2600100505.A9
2600100505
|
£1.32
|
£1.58
|
|
|
30 - SHIM 0.6 MM
BSD-2600040002.A29
2600040002
|
-
|
|
|
|
30 - SHIM 0.2 MM
BSD-2600040001.A9
2600040001
|
-
|
|
|
|
31 - ECCENTRIC COG WHEEL Z=49
BSD-2606316900.A30
2606316900
|
-
|
|
|
|
32 - GUIDE ROLLER
BSD-2600301014.A3
2600301014
|
-
|
|
|
|
33 - LIFTING ROD 8.0 MM
BSD-2600780033.A7
2600780033
|
-
|
|
|
|
34 - SINTERED-METAL BUSHING
BSD-2600302008.A29
2600302008
|
-
|
|
|
|
35 - CLAMP SCREW
BSD-2603400000.A182
2603400000
|
£4.26
|
£5.11
|
|
|
36 - LUBRICATING FELT
BSD-2603239006.A28
2603239006
|
-
|
|
|
|
37 - DAMPING PLATE
BSD-2601022000.A353
2601022000
|
£1.75
|
£2.10
|
|
|
38 - DETENT PIN
BSD-2603120037.A24
2603120037
|
-
|
|
|
|
39 - FIXING PLATE
BSD-2601030006.A31
2601030006
|
-
|
|
|
|
40 - PROFILE BEADING
BSD-2602317025.A38
2602317025
|
-
|
|
|
|
41 - BASE PLATE
BSD-2601016012.A24
2601016012
|
£8.67
|
£10.41
|
|
|
42 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A340
2910021122
|
£2.16
|
£2.59
|
|
|
43 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A144
2603490021
|
£1.75
|
£2.10
|
|
|
44 - SCREW 4x16
BSD-2603490022.A1857
2603490022
|
£1.75
|
£2.10
|
|
|
45 - CONNECTING CABLE L=213 MM
BSD-2604448118.A62
2604448118
|
£1.75
|
£2.10
|
|
|
46 - CONNECTING CABLE L=88 MM
BSD-2604448130.A47
2604448130
|
£1.75
|
£2.10
|
|
|
47 - COVERING HOOD
BSD-2605510052.A10
2605510052
|
-
|
|
|
|
50 - CONNECTING CABLE L=263MM
BSD-2604448119.A66
2604448119
|
£1.32
|
£1.58
|
|
|
51 - CONNECTING CABLE L=73 MM
BSD-2604448123.A22
2604448123
|
-
|
|
|
|
52 - PIN
BSD-2603105051.A13
2603105051
|
£1.95
|
£2.34
|
|
|
207 - CABLE CLIP
BSD-2601035001.A1951
2601035001
|
£1.75
|
£2.10
|
|
|
219 - SCREW 4x16
BSD-2603490022.A1858
2603490022
|
£1.75
|
£2.10
|
|
|
816/040 - CARBON-BRUSH SET
BSD-2604321917.A1
2604321917
|
-
|
|
|
|
816/050 - COMPRESSION SPRING
BSD-2604610026.A56
2604610026
|
£2.61
|
£3.13
|
|
|
816/060 - RATCHET CAP
BSD-2601322013.A529
2601322013
|
£1.75
|
£2.10
|
|
|
826 - BEARING BRACKET
BSD-2605807918.A10
2605807918
|
-
|
|
|
|
833/1 - LIFTING ROD dia 8.2 MM
BSD-2600780902.A8
2600780902
|
-
|
|
|
