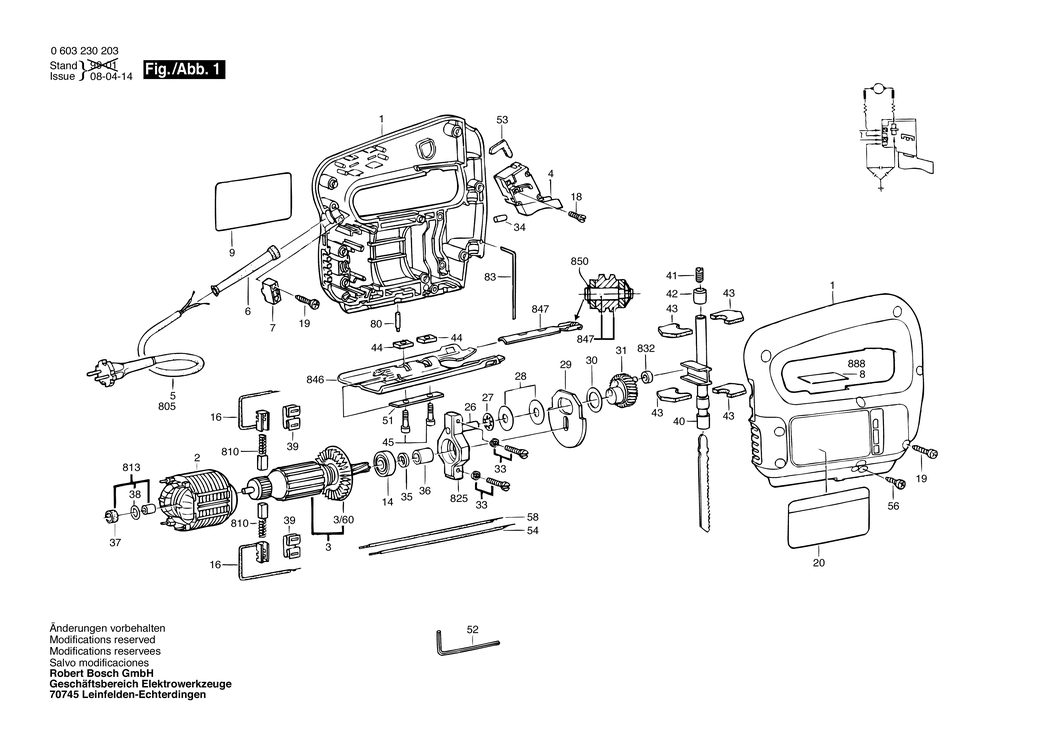

1 - HOUSING SECTION
BSD-2605104142.A6
2605104142
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220423.A210
2604220423
|
£24.45
|
£29.34
|
|
|
3 - ARMATURE 220-240V
BSD-2604010558.A25
2604010558
|
-
|
|
|
|
3/60 - FAN
BSD-2606610022.A62
2606610022
|
£4.26
|
£5.11
|
|
|
4 - ON-OFF SWITCH
BSD-2607200365.A11
2607200365
|
-
|
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A336
2600703007
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1984
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110633.A0
2601110633
|
-
|
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A215
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH HOLDER
BSD-1604449002.A31
1604449002
|
£1.75
|
£2.10
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1523
2603410001
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1847
2603490022
|
£1.75
|
£2.10
|
|
|
20 - REFERENCE PLATE
BSD-2601110902.A3
2601110902
|
-
|
|
|
|
26 - SPARE PART
BSD-2603100034.A4
2603100034
|
-
|
|
|
|
27 - SPRING WASHER
BSD-2600150050.A53
2600150050
|
£1.75
|
£2.10
|
|
|
28 - SHIM 0.5 MM
BSD-2600102658.A49
2600102658
|
£1.32
|
£1.58
|
|
|
28 - SHIM 0.2 MM
BSD-2600102656.A21
2600102656
|
£1.32
|
£1.58
|
|
|
29 - COUNTER WEIGHT
BSD-1619P02421.A60
1619P02421
|
£8.67
|
£10.41
|
|
|
30 - SHIM dia 18.3 MM
BSD-2600101673.A71
2600101673
|
£1.75
|
£2.10
|
|
|
31 - ECCENTRIC COG WHEEL Z=39
BSD-2606319073.A16
2606319073
|
-
|
|
|
|
33 - OVAL-HEAD SCREW DIN 7985-M4x18-8.8-H
BSD-2910950128.A10
2910950128
|
-
|
|
|
|
34 - BEARING BOLT
BSD-2603201020.A37
2603201020
|
£1.75
|
£2.10
|
|
|
35 - SUPPORTING DISC
BSD-2600103013.A41
2600103013
|
£1.32
|
£1.58
|
|
|
36 - GUIDE SLEEVE
BSD-2600400024.A59
2600400024
|
£2.80
|
£3.36
|
|
|
37 - FELT WASHER
BSD-1600205023.A197
1600205023
|
£1.32
|
£1.58
|
|
|
38 - O-RING 8.0x2.5 MM
BSD-1610210014.A238
1610210014
|
-
|
|
|
|
39 - HOLDING SPRING
BSD-1619P09928.A59
1619P09928
|
£1.75
|
£2.10
|
|
|
40 - LIFTING ROD
BSD-1619P12589.A19
1619P12589
|
£21.68
|
£26.01
|
|
|
41 - CLAMP SCREW
BSD-2603400000.A135
2603400000
|
£4.26
|
£5.11
|
|
|
42 - SINTERED-METAL BUSHING
BSD-2600301049.A45
2600301049
|
£1.75
|
£2.10
|
|
|
43 - LUBRICATING FELT
BSD-2601020007.A31
2601020007
|
£1.75
|
£2.10
|
|
|
44 - FIXING PLATE
BSD-2601030006.A68
2601030006
|
-
|
|
|
|
45 - HEX SOCKET HEAD CAP SCREW DIN 912-M4x16-8.8
BSD-2910141126.A7
2910141126
|
-
|
|
|
|
51 - PROFILE BEADING
BSD-2601032017.A42
2601032017
|
£1.75
|
£2.10
|
|
|
52 - OFFSET SCREWDRIVER DIN 911. SW3
BSD-1907950004.A16
1907950004
|
£5.58
|
£6.70
|
|
|
53 - DAMPING PLATE
BSD-2601022000.A333
2601022000
|
£1.75
|
£2.10
|
|
|
54 - CONNECTING CABLE L=263MM
BSD-2604448119.A48
2604448119
|
£1.32
|
£1.58
|
|
|
56 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A152
2603490021
|
£1.75
|
£2.10
|
|
|
57 - COMPRESSION SPRING
BSD-2604610009.A3
2604610009
|
-
|
|
|
|
58 - CONNECTING CABLE L=213 MM
BSD-2604448118.A82
2604448118
|
£1.75
|
£2.10
|
|
|
80 - DETENT PIN
BSD-2603120019.A29
2603120019
|
£1.75
|
£2.10
|
|
|
83 - LOCKING PIN
BSD-2603105052.A6
2603105052
|
£2.61
|
£3.13
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A389
1607000386
|
£21.52
|
£25.83
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321919.A2
2604321919
|
£6.52
|
£7.83
|
|
|
813 - SINTERED-METAL BUSHING
BSD-1600301900.A206
1600301900
|
-
|
|
|
|
825 - BEARING BRACKET
BSD-1619P02422.A5
1619P02422
|
£13.12
|
£15.75
|
|
|
832 - NEEDLE BEARING
BSD-2600917904.A52
2600917904
|
£7.36
|
£8.83
|
|
|
846 - BASE PLATE
BSD-2601016012.A35
2601016012
|
£8.67
|
£10.41
|
|
|
847 - RETAINING BRACKET
BSD-2608135901.A28
2608135901
|
£11.30
|
£13.56
|
|
|
850 - LOCKING WASHER DIN 6799-2.3
BSD-2916080005.A59
2916080005
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4630
160111A3H3
|
£2.61
|
£3.13
|
|
