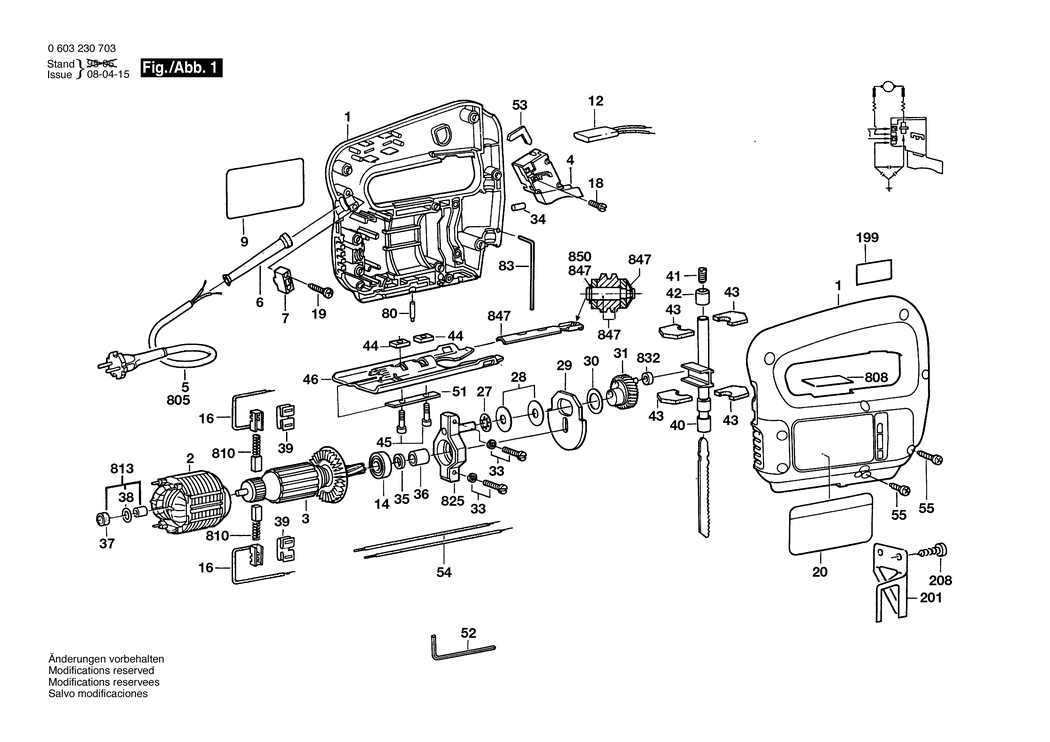

An exploded drawing and listing for the Bosch PST 54 E / 0603230703 / EU 220 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605104142.A26 2605104142 -
2 - FIELD 220-240V BSD-2604220423.A147 2604220423 £24.45 £29.34
3 - ARMATURE 220-240V BSD-2604010558.A31 2604010558 -
3/60 - FAN BSD-2606610022.A32 2606610022 £4.26 £5.11
4 - SWITCH BSD-2607200184.A12 2607200184 -
6 - GROMMET dia7 MM BSD-2600703007.A151 2600703007 -
7 - CABLE CLIP BSD-2601035001.A2854 2601035001 £1.75 £2.10
9 - STICKER BSD-2601110636.A3 2601110636 -
12 - SUPPRESSION CAPACITOR BSD-2607329004.A0 2607329004 £2.33 £2.80
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A124 2600905021 £8.67 £10.41
16 - BRUSH HOLDER BSD-2604465077.A30 2604465077 -
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2198 2603410001 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A2667 2603490022 £1.75 £2.10
20 - STICKER BSD-2601110664.A0 2601110664 -
26 - SPARE PART BSD-2603100034.A0 2603100034 -
27 - SPRING WASHER BSD-2600150050.A8 2600150050 £1.75 £2.10
28 - SHIM 0.5 MM BSD-2600102658.A12 2600102658 £1.32 £1.58
28 - SHIM 0.2 MM BSD-2600102656.A58 2600102656 £1.32 £1.58
29 - COUNTER WEIGHT BSD-1619P02421.A19 1619P02421 £8.67 £10.41
30 - SHIM dia 18.3 MM BSD-2600101673.A22 2600101673 £1.75 £2.10
31 - ECCENTRIC COG WHEEL Z=39 BSD-2606319073.A44 2606319073 -
32 - NEEDLE BEARING BSD-2600917904.A8 2600917904 £7.36 £8.83
33 - SCREW AND WASHER ASSEMBLY DIN7985-M4x18Z1-4.8 BSD-2914500009.A36 2914500009 -
34 - BEARING BOLT BSD-2603201020.A11 2603201020 £1.75 £2.10
35 - SUPPORTING DISC BSD-2600103013.A62 2600103013 £1.32 £1.58
36 - GUIDE SLEEVE BSD-2600400024.A8 2600400024 £2.80 £3.36
37 - FELT WASHER BSD-1600205023.A100 1600205023 £1.32 £1.58
38 - O-RING 8.0x2.5 MM BSD-1610210014.A12 1610210014 -
39 - HOLDING SPRING BSD-1619P09928.A18 1619P09928 £1.75 £2.10
40 - LIFTING ROD BSD-1619P12589.A6 1619P12589 £21.68 £26.01
41 - CLAMP SCREW BSD-2603400000.A60 2603400000 £4.26 £5.11
42 - SINTERED-METAL BUSHING BSD-2600301049.A21 2600301049 £1.75 £2.10
43 - LUBRICATING FELT BSD-2601020007.A7 2601020007 £1.75 £2.10
44 - FIXING PLATE BSD-2601030006.A128 2601030006 -
45 - HEX SOCKET HEAD CAP SCREW DIN 912-M4x16-8.8 BSD-2910141126.A30 2910141126 -
46 - BASE PLATE BSD-2601016012.A87 2601016012 £8.67 £10.41
51 - PROFILE BEADING BSD-2601032017.A12 2601032017 £1.75 £2.10
52 - OFFSET SCREWDRIVER DIN 911. SW3 BSD-1907950004.A100 1907950004 £5.58 £6.70
53 - DAMPING PLATE BSD-2601022000.A8 2601022000 £1.75 £2.10
54 - CABLE L=249 MM BSD-2604448057.A18 2604448057 £1.32 £1.58
55 - TAPPING SCREW DIN 7981-ST3.9x19-C-H BSD-2910611020.A64 2910611020 £1.75 £2.10
56 - TAPPING SCREW DIN 7981-ST3.9x13-C-H BSD-2910611018.A64 2910611018 -
57 - COMPRESSION SPRING BSD-2604610009.A59 2604610009 -
58 - CONNECTING CABLE L=213 MM BSD-2604448118.A154 2604448118 £1.75 £2.10
80 - DETENT PIN BSD-2603120019.A16 2603120019 £1.75 £2.10
82 - NEEDLE-ROLLER ASSEMBLY BSD-2600913004.A0 2600913004 -
83 - LOCKING PIN BSD-2603105052.A2 2603105052 £2.61 £3.13
199 - STICKER BSD-1601110265.A296 1601110265 -
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F BSD-1607000388.A262 1607000388 £12.04 £14.45
808 - NAMEPLATE BSD-160111A3H3.A3543 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-2604321904.A130 2604321904 £10.10 £12.12
813 - SINTERED-METAL BUSHING BSD-1600301900.A67 1600301900 -
814 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A301 2600905039 £12.04 £14.45
825 - BEARING BRACKET BSD-1619P02422.A28 1619P02422 £13.12 £15.75
832 - NEEDLE BEARING BSD-2600917904.A6 2600917904 £7.36 £8.83
833 - SCREW AND WASHER ASSEMBLY DIN7985-M4x18Z1-4.8 BSD-2914500009.A32 2914500009 -
847 - RETAINING BRACKET BSD-2608135901.A2 2608135901 £11.30 £13.56
850 - LOCKING WASHER DIN 6799-3.2 BSD-2916080906.A18 2916080906 £1.75 £2.10
