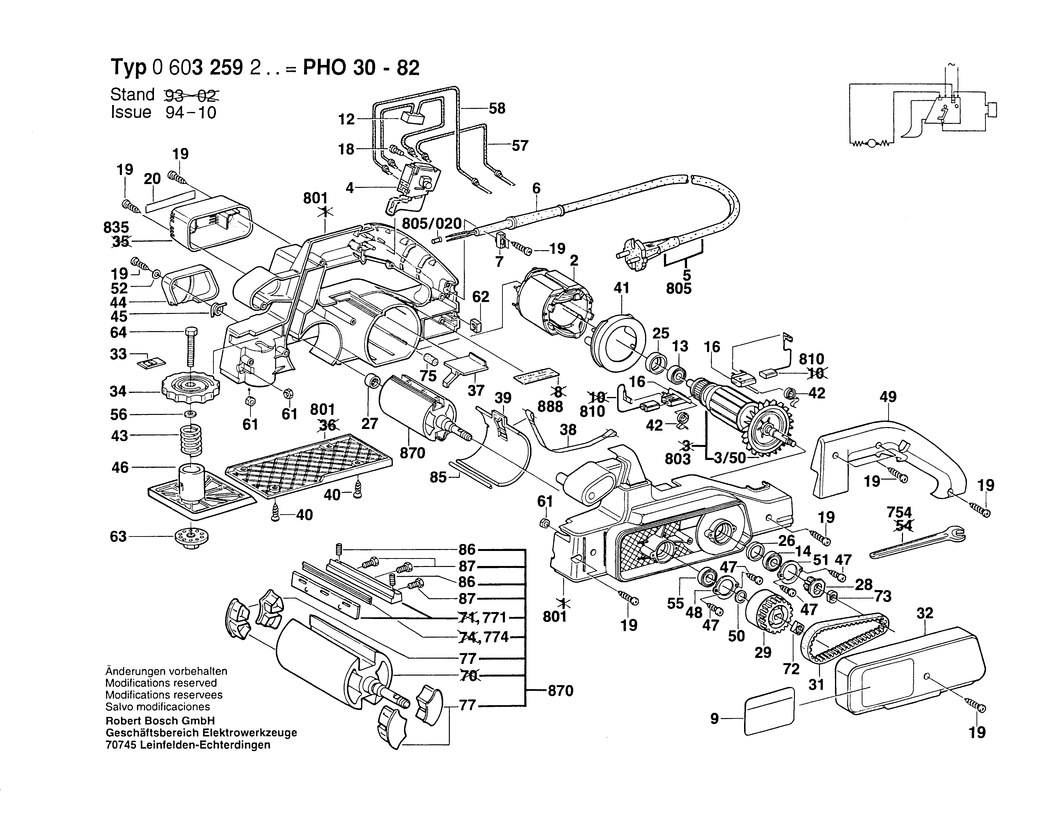

An exploded drawing and listing for the Bosch PHO 30-82 / 0603259203 / EU 230 Volt
Ex VAT Inc VAT
2 - FIELD 220V BSD-1604220231.A13 1604220231 -
3/50 - FAN BSD-1606610122.A122 1606610122 £2.80 £3.36
4 - ON-OFF SWITCH BSD-2607200261.A5 2607200261 -
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A799 2600703012 £2.80 £3.36
6 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A472 2600703011 £2.80 £3.36
7 - CABLE CLIP BSD-2601035001.A2822 2601035001 £1.75 £2.10
9 - STICKER BSD-2601110791.A0 2601110791 -
12 - SUPPRESSION FILTER BSD-1607328028.A102 1607328028 £5.30 £6.36
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A610 1610905025 £6.52 £7.83
14 - GROOVE BALL BEARING 8x22x7 BSD-2600905052.A262 2600905052 £7.36 £8.83
16 - BRUSH HOLDER BSD-2604337002.A9 2604337002 -
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2116 2603410001 £1.75 £2.10
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A572 2910611019 £2.80 £3.36
20 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A470 1601110481 £2.16 £2.59
25 - INTERMEDIATE RING BSD-1600502011.A433 1600502011 £2.61 £3.13
26 - INTERMEDIATE RING BSD-1600206026.A91 1600206026 £1.75 £2.10
27 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A96 2600910001 £4.26 £5.11
28 - TOOTHED BELT WHEEL Z=19 BSD-2600324009.A18 2600324009 £2.52 £3.02
29 - TOOTHED BELT WHEEL Z=43 BSD-2606625009.A37 2606625009 £3.34 £4.01
31 - TOOTHED BELT 14 MM. Z=85 BSD-2604736002.A4 2604736002 £10.10 £12.12
32 - GEAR COVER BSD-3605500024.A11 3605500024 -
33 - SCALE WINDOW BSD-1601099010.A17 1601099010 -
34 - GRADUATED DIAL BSD-2606621001.A5 2606621001 -
37 - ADJUSTING SLIDE BSD-3601320001.A6 3601320001 -
38 - RUBBER BAND BSD-1601006006.A26 1601006006 -
39 - PROTECTIVE COVER BSD-1605510142.A41 1605510142 -
40 - REC CT-SUNK TAPPING SCREW DIN7982-ST3.9x19-C-H BSD-2910601320.A14 2910601320 £1.32 £1.58
41 - AIR-DEFLECTOR RING BSD-3600290011.A11 3600290011 -
42 - SPIRAL SPRING BSD-2604652008.A136 2604652008 -
43 - COMPRESSION SPRING BSD-1604619017.A101 1604619017 £2.16 £2.59
44 - PROTECTIVE COVER BSD-1605510139.A27 1605510139 -
45 - COMPRESSION SPRING BSD-1604651007.A30 1604651007 -
46 - ADJUSTING DISC BSD-2608000059.A12 2608000059 -
47 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A239 2603490017 £2.16 £2.59
48 - TAB WASHER BSD-1600190016.A42 1600190016 -
49 - HANDLE COVER BSD-2605500096.A10 2605500096 -
50 - SHIM BSD-2600100033.A11 2600100033 -
51 - TAB WASHER BSD-2600190008.A9 2600190008 -
52 - SHIM 0.5 MM BSD-2600100588.A112 2600100588 £1.75 £2.10
53 - SHIM 0.2 MM BSD-1600100632.A372 1600100632 £1.75 £2.10
55 - GROOVE BALL BEARING 8x22x7 BSD-2600905052.A263 2600905052 £7.36 £8.83
56 - SHIM 0.5 MM BSD-3600100005.A6 3600100005 -
57 - CONNECTING CABLE L=238 MM BSD-3604431005.A11 3604431005 -
58 - CONNECTING CABLE L=383 MM BSD-3604431006.A13 3604431006 -
61 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A150 2915011007 -
62 - SQUARE NUT M6 BSD-2603320004.A99 2603320004 £1.75 £2.10
63 - ADJUSTING NUT BSD-3603342003.A11 3603342003 £1.75 £2.10
64 - HEX SCREW BSD-3603450005.A27 3603450005 -
72 - SQUARE NUT M8 BSD-2603320003.A21 2603320003 £1.75 £2.10
73 - ROUND NUT M6 BSD-2603342006.A5 2603342006 £1.75 £2.10
75 - RUBBER BUFFER BSD-1603100036.A5 1603100036 £1.75 £2.10
77 - COVER BSD-2605510036.A8 2605510036 -
85 - SLOTTED SPRING PIN BSD-1600410003.A14 1600410003 -
86 - SET SCREW BSD-2603400014.A18 2603400014 -
87 - HEX SCREW BSD-2603450005.A5 2603450005 -
704 - CHIPS BAG BSD-1605411022.A33 1605411022 £17.49 £20.99
704/10 - FITTING BSD-1605190030.A8 1605190030 -
704/20 - CLAMPING PIECE BSD-1605703073.A8 1605703073 -
704/30 - RETAINING BRACKET BSD-2608045003.A22 2608045003 -
704/40 - CHIPS BAG BSD-1605411022.A32 1605411022 £17.49 £20.99
704/50 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A238 2603490017 £2.16 £2.59
705 - CONNECTING PIPE dia 35 MM BSD-1607000154.A12 1607000154 -
706 - DEPTH-GAUGE BSD-1608132006.A2 1608132006 £3.49 £4.19
706/10 - STOP BRACKET BSD-1601331039.A33 1601331039 -
706/20 - WING SCREW M 6x16 MM BSD-2603480003.A70 2603480003 £2.61 £3.13
706/30 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A394 2916011014 £1.75 £2.10
706/40 - O-RING 4.0x1.5 MM BSD-1610210043.A32 1610210043 £1.75 £2.10
707 - WIDTH STOP 45° BSD-2607001078.A7 2607001078 -
712 - BASE BSD-0603095002.A12 0603095002 -
714 - PARALLEL-GUIDE BSD-2607000102.A56 2607000102 £20.99 £25.19
754 - SINGLE-HEAD ENG. WRENCH BSD-2607950504.A57 2607950504 £2.52 £3.02
771 - GRIP-SPRING TENSIONING E BSD-2608040039.A46 2608040039 £21.68 £26.01
774 - PLANING KNIFE BSD-2607000096.A26 2607000096 £7.57 £9.08
801 - HOUSING SECTION BSD-2605104991.A6 2605104991 -
801 - HOUSING SECTION BSD-2605104981.A10 2605104981 -
803 - ARMATURE 220V BSD-2604010924.A2 2604010924 -
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A403 1607000227 £23.86 £28.63
805/020 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A106 1900452012 £1.75 £2.10
810 - CARBON-BRUSH SET BSD-2607014003.A0 2607014003 -
813 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A289 1610905025 £6.52 £7.83
835 - COVERING HOOD BSD-3605510012.A12 3605510012 £3.80 £4.56
870 - PLANER HEAD BSD-2603204903.A7 2603204903 -
888 - NAMEPLATE BSD-160111A3H3.A3485 160111A3H3 £2.61 £3.13
