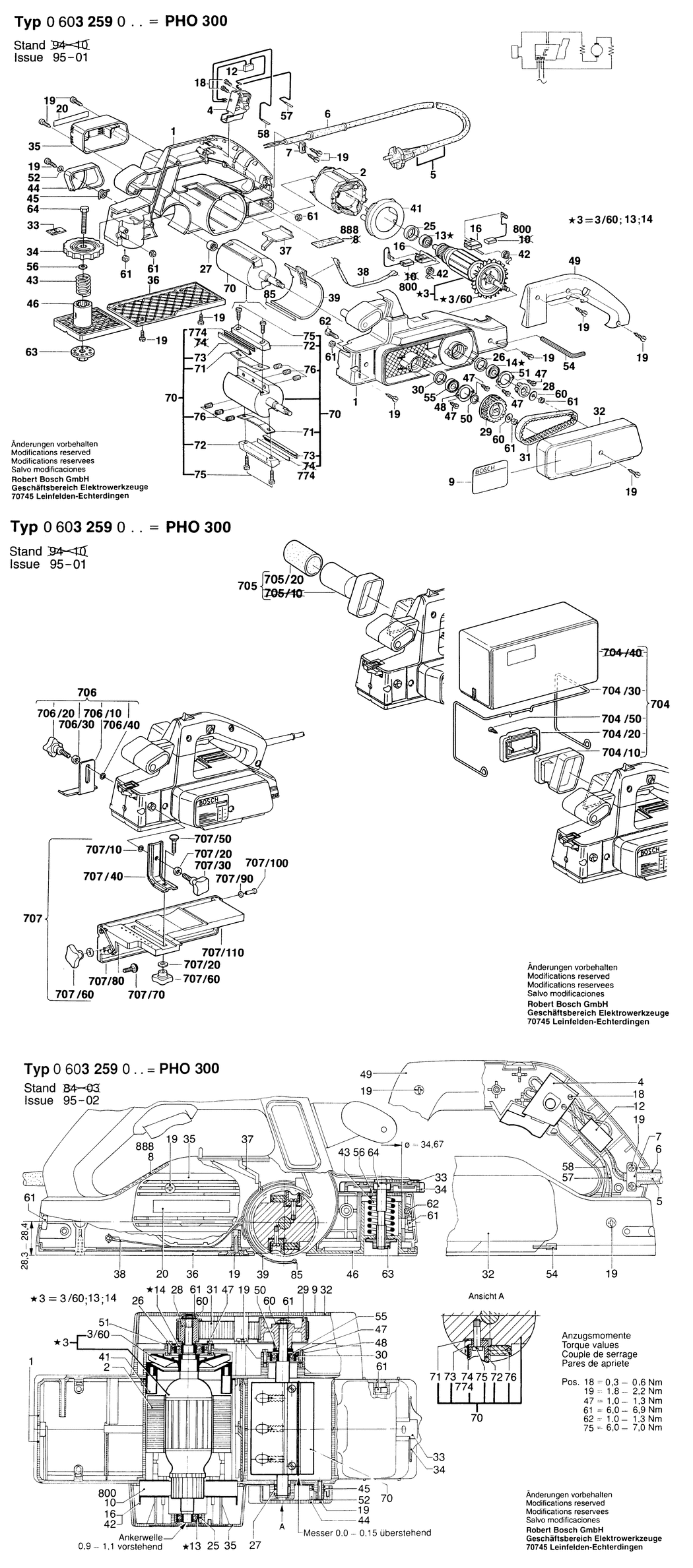

An exploded drawing and listing for the Bosch PHO 300 / 0603259032 / CH 230 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605104978.A1 2605104978 -
2 - FIELD 220V BSD-1604220231.A5 1604220231 -
3 - ARMATURE 220V BSD-1604010286.A0 1604010286 -
3/60 - FAN BSD-1606610122.A115 1606610122 £2.80 £3.36
4 - SWITCH BSD-2607200084.A121 2607200084 £10.10 £12.12
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460403.A123 1604460403 £16.41 £19.69
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A790 2600703012 £2.80 £3.36
6 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A481 2600703011 £2.80 £3.36
6 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A415 2600703013 £2.61 £3.13
7 - CABLE CLIP BSD-2601035001.A2831 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601110403.A2 2601110403 -
12 - SUPPRESSION FILTER BSD-1607328028.A95 1607328028 £5.30 £6.36
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A601 1610905025 £6.52 £7.83
14 - GROOVE BALL BEARING 8x22x7 BSD-2600905052.A278 2600905052 £7.36 £8.83
16 - BRUSH HOLDER BSD-2604337002.A16 2604337002 -
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2123 2603410001 £1.75 £2.10
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A564 2910611019 £2.80 £3.36
20 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A475 1601110481 £2.16 £2.59
25 - INTERMEDIATE RING BSD-1600502011.A422 1600502011 £2.61 £3.13
26 - INTERMEDIATE RING BSD-1600206026.A80 1600206026 £1.75 £2.10
27 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A88 2600910001 £4.26 £5.11
28 - TOOTHED BELT WHEEL Z=19 BSD-1606625026.A3 1606625026 -
29 - TOOTHED BELT WHEEL Z=43 BSD-1606625025.A33 1606625025 -
30 - RUBBER RING BSD-1600206025.A255 1600206025 £2.16 £2.59
31 - TOOTHED BELT 14 MM. Z=85 BSD-2604736002.A10 2604736002 £10.10 £12.12
32 - GEAR COVER BSD-3605500024.A4 3605500024 -
33 - SCALE WINDOW BSD-1601099010.A6 1601099010 -
34 - GRADUATED DIAL BSD-2606621001.A16 2606621001 -
35 - COVERING HOOD BSD-3605510012.A20 3605510012 £3.80 £4.56
36 - BASE PLATE BSD-3608000001.A3 3608000001 -
37 - ADJUSTING SLIDE BSD-3601320001.A15 3601320001 -
38 - RUBBER BAND BSD-1601006006.A37 1601006006 -
39 - PROTECTIVE COVER BSD-1605510142.A31 1605510142 -
41 - AIR-DEFLECTOR RING BSD-3600290011.A2 3600290011 -
42 - SPIRAL SPRING BSD-2604652008.A130 2604652008 -
43 - COMPRESSION SPRING BSD-1604619017.A110 1604619017 £2.16 £2.59
44 - PROTECTIVE COVER BSD-1605510139.A37 1605510139 -
45 - COMPRESSION SPRING BSD-1604651007.A21 1604651007 -
46 - ADJUSTING SLIDE BSD-3608000002.A2 3608000002 -
47 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A216 2603490017 £2.16 £2.59
48 - TAB WASHER BSD-1600190016.A49 1600190016 -
49 - HANDLE COVER BSD-3605500023.A2 3605500023 -
50 - SHIM BSD-2600100033.A17 2600100033 -
51 - TAB WASHER BSD-2600190008.A15 2600190008 -
52 - SHIM 0.5 MM BSD-2600100588.A107 2600100588 £1.75 £2.10
54 - OFFSET SCREWDRIVER DIN 911. SW3 BSD-1907950004.A76 1907950004 £5.58 £6.70
55 - GROOVE BALL BEARING 8x22x7 BSD-2600905052.A279 2600905052 £7.36 £8.83
56 - SHIM 0.5 MM BSD-3600100005.A15 3600100005 -
57 - CONNECTING CABLE L=238 MM BSD-3604431005.A2 3604431005 -
58 - CONNECTING CABLE L=383 MM BSD-3604431006.A22 3604431006 -
60 - DISC SPRING DIN 2093-A12.5-GR-1 BSD-2916160003.A10 2916160003 -
61 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A140 2915011007 -
62 - TAPPING SCREW DIN 7981-B 3.9x9.5 BSD-2910611017.A22 2910611017 -
63 - ADJUSTING NUT BSD-3603342003.A2 3603342003 £1.75 £2.10
64 - HEX SCREW BSD-3603450005.A36 3603450005 -
70 - PLANER HEAD BSD-2603204900.A10 2603204900 -
71 - LEAF SPRING BSD-1601234002.A19 1601234002 -
72 - PRESSURE BAR BSD-2608040025.A10 2608040025 £37.32 £44.79
73 - SUPPORT CLAMP BSD-1601330010.A4 1601330010 -
75 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A704 2910021125 £1.75 £2.10
76 - SET SCREW M 6x12 DIN 915-45H BSD-2912081193.A19 2912081193 -
85 - SLOTTED SPRING PIN BSD-1600410003.A25 1600410003 -
704 - CHIPS BAG BSD-1605411022.A23 1605411022 £17.49 £20.99
704/10 - FITTING BSD-1605190030.A17 1605190030 -
704/20 - CLAMPING PIECE BSD-1605703073.A17 1605703073 -
704/30 - RETAINING BRACKET BSD-2608045003.A25 2608045003 -
704/50 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A217 2603490017 £2.16 £2.59
705 - CONNECTING PIPE dia 35 MM BSD-1607000154.A1 1607000154 -
706 - DEPTH-GAUGE BSD-1608132006.A17 1608132006 £3.49 £4.19
706/10 - STOP BRACKET BSD-1601331039.A22 1601331039 -
706/20 - WING SCREW M 6x16 MM BSD-2603480003.A64 2603480003 £2.61 £3.13
706/30 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A356 2916011014 £1.75 £2.10
706/40 - O-RING 4.0x1.5 MM BSD-1610210043.A63 1610210043 £1.75 £2.10
707 - WIDTH STOP BSD-1608132007.A6 1608132007 -
707/10 - O-RING 4.0x1.5 MM BSD-1610210043.A62 1610210043 £1.75 £2.10
707/20 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A357 2916011014 £1.75 £2.10
707/30 - WING SCREW M 6x16 MM BSD-2603480003.A63 2603480003 £2.61 £3.13
707/40 - STOP BRACKET BSD-1601332018.A14 1601332018 £3.72 £4.47
707/50 - ROUND-HEAD BOLT DIN 603-M6x25 BSD-2910281203.A202 2910281203 £2.61 £3.13
707/60 - WING NUT M6 BSD-1603339006.A326 1603339006 £2.52 £3.02
707/70 - ROUND-HEAD BOLT M6x15 DIN 603 BSD-2910281196.A7 2910281196 -
707/80 - STOP PLATE BSD-1608000092.A37 1608000092 -
707/90 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A190 2916011010 £1.75 £2.10
707/100 - TUBULAR RIVET B 4x0.5x15 DIN 734 BSD-2917190492.A38 2917190492 -
707/110 - STOP BRACKET BSD-1608000093.A12 1608000093 -
774 - PLANING KNIFE BSD-2607000096.A18 2607000096 £7.57 £9.08
774 - CORRUGATED BLADE BSD-1607000152.A4 1607000152 -
774 - CORRUGATED BLADE BSD-1607000179.A4 1607000179 -
800 - CARBON-BRUSH SET BSD-1607014129.A108 1607014129 -
888 - NAMEPLATE BSD-160111A3H3.A3472 160111A3H3 £2.61 £3.13
