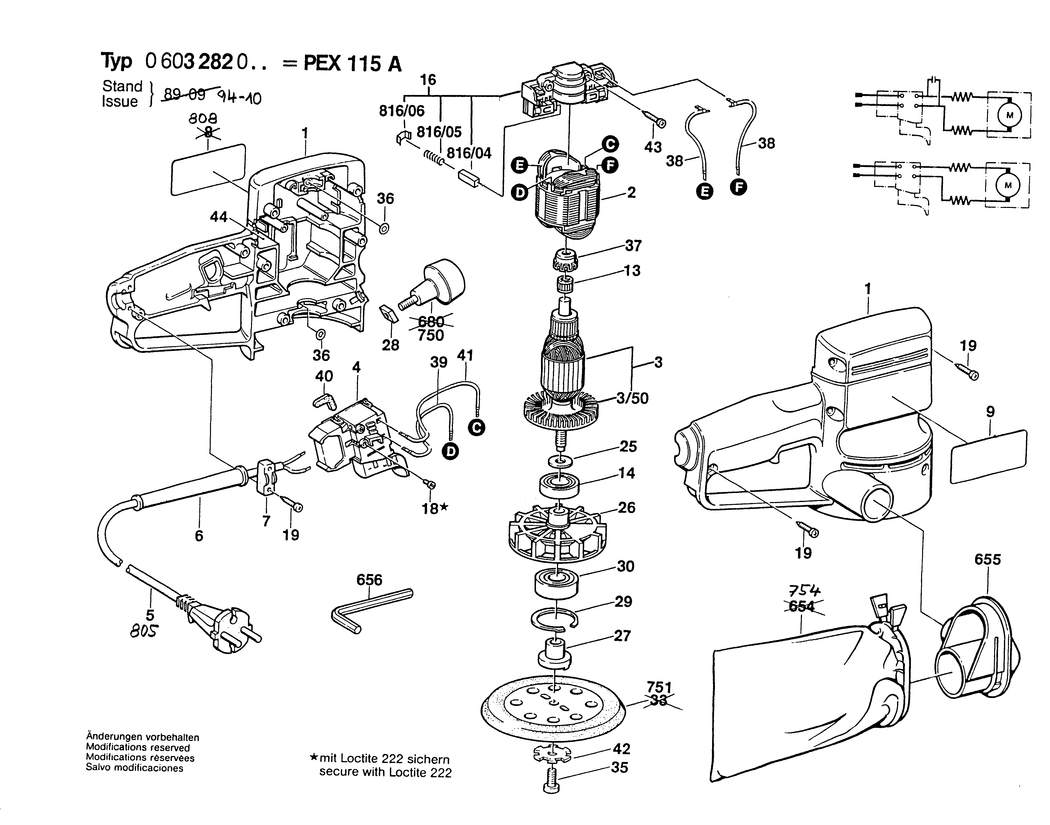

1 - HOUSING SECTION
BSD-2605104317.A0
2605104317
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-2604220507.A9
2604220507
|
£14.75
|
£17.70
|
|
|
3 - ARMATURE 220V
BSD-2604010750.A1
2604010750
|
-
|
|
|
|
3/50 - FAN
BSD-2606610055.A58
2606610055
|
£4.26
|
£5.11
|
|
|
4 - ON-OFF SWITCH
BSD-2607200376.A16
2607200376
|
-
|
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703031.A2
2600703031
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2236
2601035001
|
£1.75
|
£2.10
|
|
|
9 - NAMEPLATE
BSD-2601110749.A4
2601110749
|
-
|
|
|
|
13 - NEEDLE BEARING
BSD-2600917002.A95
2600917002
|
£3.72
|
£4.47
|
|
|
14 - GROOVE BALL BEARING
BSD-2600905034.A29
2600905034
|
£13.12
|
£15.75
|
|
|
16 - BRUSH PLATE
BSD-2604337118.A70
2604337118
|
£23.86
|
£28.63
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1734
2603410001
|
£1.75
|
£2.10
|
|
|
19 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A176
2603490021
|
£1.75
|
£2.10
|
|
|
25 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A121
2600100041
|
£1.75
|
£2.10
|
|
|
26 - FAN
BSD-2606610057.A11
2606610057
|
-
|
|
|
|
27 - CARRIER
BSD-2600328016.A1
2600328016
|
-
|
|
|
|
28 - SQUARE NUT DIN 562-M6-04
BSD-2915121006.A14
2915121006
|
£2.61
|
£3.13
|
|
|
29 - WASHER
BSD-2600190059.A7
2600190059
|
£3.34
|
£4.01
|
|
|
29 - SPRING RETAINING RING
BSD-2600116014.A8
2600116014
|
£1.75
|
£2.10
|
|
|
30 - GROOVE BALL BEARING 15x35x11
BSD-2600905111.A10
2600905111
|
£12.04
|
£14.45
|
|
|
35 - HEX SOCKET HEAD CAP SCREW DIN 7984-M6x16-10.9
BSD-2910975197.A6
2910975197
|
-
|
|
|
|
36 - O-RING 5.0x1.5 MM
BSD-1900210000.A300
1900210000
|
£1.75
|
£2.10
|
|
|
37 - BEARING SLEEVE
BSD-2600222002.A48
2600222002
|
-
|
|
|
|
38 - CONNECTING CABLE L=115 MM
BSD-2604448109.A73
2604448109
|
£1.75
|
£2.10
|
|
|
39 - CABLE L=103MM
BSD-2604448140.A7
2604448140
|
£1.32
|
£1.58
|
|
|
40 - DAMPING PLATE
BSD-2601022000.A225
2601022000
|
£1.75
|
£2.10
|
|
|
41 - CABLE L=233 MM
BSD-1614431010.A32
1614431010
|
£3.72
|
£4.47
|
|
|
42 - PLAIN WASHER
BSD-2600190150.A10
2600190150
|
-
|
|
|
|
43 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A668
2603490023
|
£1.75
|
£2.10
|
|
|
44 - SEAL STRIP
BSD-2602380002.A2
2602380002
|
-
|
|
|
|
655 - FITTING
BSD-2605702012.A2
2605702012
|
-
|
|
|
|
656 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A263
2607950004
|
£1.75
|
£2.10
|
|
|
682 - POLISHING CAP dia 125 MM
BSD-2608610001.A4
2608610001
|
£6.43
|
£7.72
|
|
|
750 - HANDLE M6x15 MM
BSD-2602026046.A21
2602026046
|
-
|
|
|
|
751 - BACKING PAD dia 115 MM
BSD-2608601065.A18
2608601065
|
£9.62
|
£11.54
|
|
|
754 - DUST BAG
BSD-2605411009.A25
2605411009
|
£8.74
|
£10.49
|
|
|
754 - DUST BAG
BSD-2605411027.A7
2605411027
|
-
|
|
|
|
754 - DUST BAG
BSD-2605411025.A22
2605411025
|
-
|
|
|
|
757 - SUCTION PIPE dia 49/35 MM
BSD-1609200976.A34
1609200976
|
£3.61
|
£4.33
|
|
|
783 - SUCTION HOOD dia 115 MM
BSD-2600282002.A2
2600282002
|
-
|
|
|
|
784 - CARRYING CASE
BSD-2605438108.A0
2605438108
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A403
1607000386
|
£21.52
|
£25.83
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4434
160111A3H3
|
£2.61
|
£3.13
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321917.A53
2604321917
|
-
|
|
|
|
816/05 - COMPRESSION SPRING
BSD-2604610026.A22
2604610026
|
£2.61
|
£3.13
|
|
|
816/06 - RATCHET CAP
BSD-2601329051.A33
2601329051
|
£2.33
|
£2.80
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A454
2601322013
|
£1.75
|
£2.10
|
|
