Bosch PSM 160 A / 3603C77071 / GB 230 Volt Spare Parts

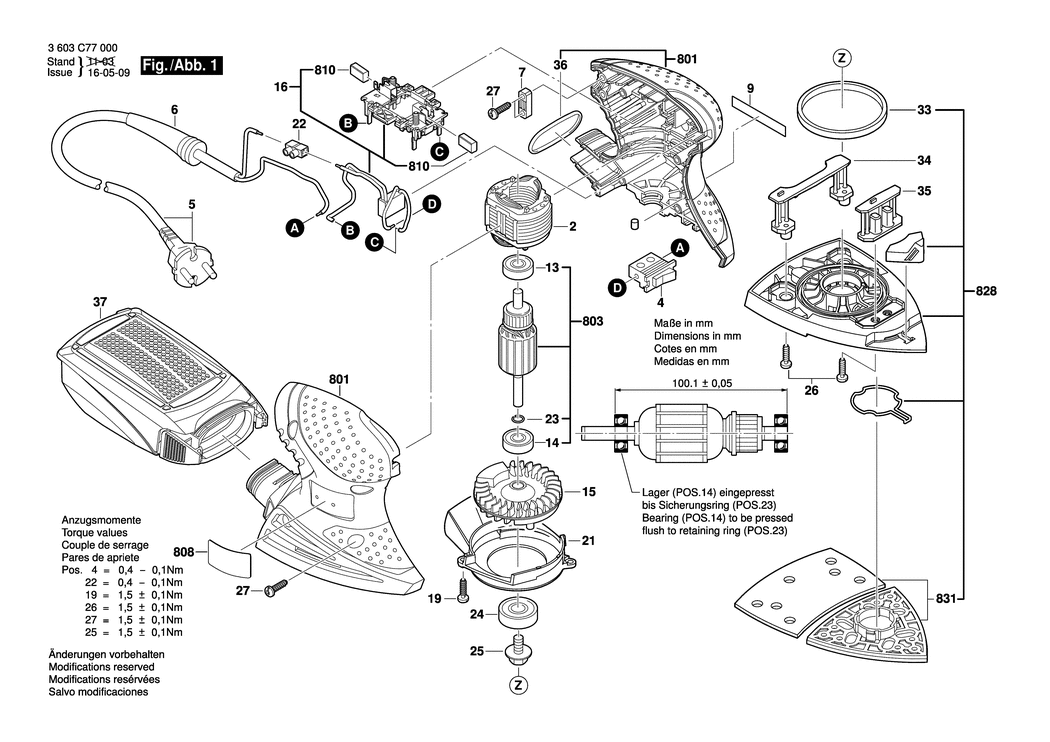

An exploded drawing and listing for the Bosch PSM 160 A / 3603C77071 / GB 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230-240V BSD-2609001806.A1 2609001806	£18.96	£22.75
4 - SWITCH BSD-1607200202.A4 1607200202	£6.52	£7.83
5 - POWER SUPPLY CORD GB 220V 2.65m 2 x 0.75mm H05 W-F BSD-1604460296.A1 1604460296	-
6 - GROMMET BSD-2609002019.A71 2609002019	£2.61	£3.13
7 - CABLE CLIP BSD-2601035001.A865 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE PSM 160 A BSD-2609000110.A0 2609000110	£3.72	£4.47
13 - GROOVE BALL BEARING BSD-2600905078.A18 2600905078	£6.52	£7.83
14 - GROOVE BALL BEARING BSD-2600905078.A19 2600905078	£6.52	£7.83
15 - FAN BSD-2609000013.A3 2609000013	£7.36	£8.83
16 - BRUSH HOLDER BSD-2609000032.A4 2609000032	£12.04	£14.45
19 - SCREW 4x16 BSD-2603490022.A951 2603490022	£1.75	£2.10
21 - HOUSING BSD-2609001815.A1 2609001815	£4.26	£5.11
22 - SOCKET-TERMINAL STRIP BSD-2609000082.A3 2609000082	£1.75	£2.10
23 - RETAINING RING DIN 7993-A8 BSD-2916540005.A7 2916540005	£1.75	£2.10
24 - GROOVE BALL BEARING 12x28x8 BSD-2600905045.A58 2600905045	£16.41	£19.69
25 - TORX OVAL-HEAD SCREW BSD-2610918116.A5 2610918116	£3.72	£4.47
26 - SCREW 4x16 BSD-2603490022.A952 2603490022	£1.75	£2.10
27 - SCREW 4x16 BSD-2603490022.A953 2603490022	£1.75	£2.10
33 - FELT STRIP BSD-2609000015.A0 2609000015	£1.75	£2.10
34 - OSCILLATION INSERT BSD-2609000017.A3 2609000017	£2.80	£3.36
35 - OSCILLATION INSERT BSD-2609000018.A2 2609000018	£2.80	£3.36
36 - O-RING 37.0x2.0 MM BSD-2609001761.A5 2609001761	£1.75	£2.10
37 - DUST CONTAINER BSD-2609001542.A3 2609001542	£16.41	£19.69
801 - HOUSING SECTION BSD-2609000128.A1 2609000128	£23.86	£28.63
803 - ARMATURE 230-240V BSD-2609001826.A0 2609001826	£37.27	£44.72
808 - NAMEPLATE BSD-2609001830.A0 2609001830	-
810 - CARBON-BRUSH SET BSD-2610391290.A70 2610391290	£8.67	£10.41
828 - SANDER PLATE BSD-2609001000.A2 2609001000	£24.45	£29.34
831 - SWIVEL PLATE BSD-2609000120.A2 2609000120	£13.99	£16.79
