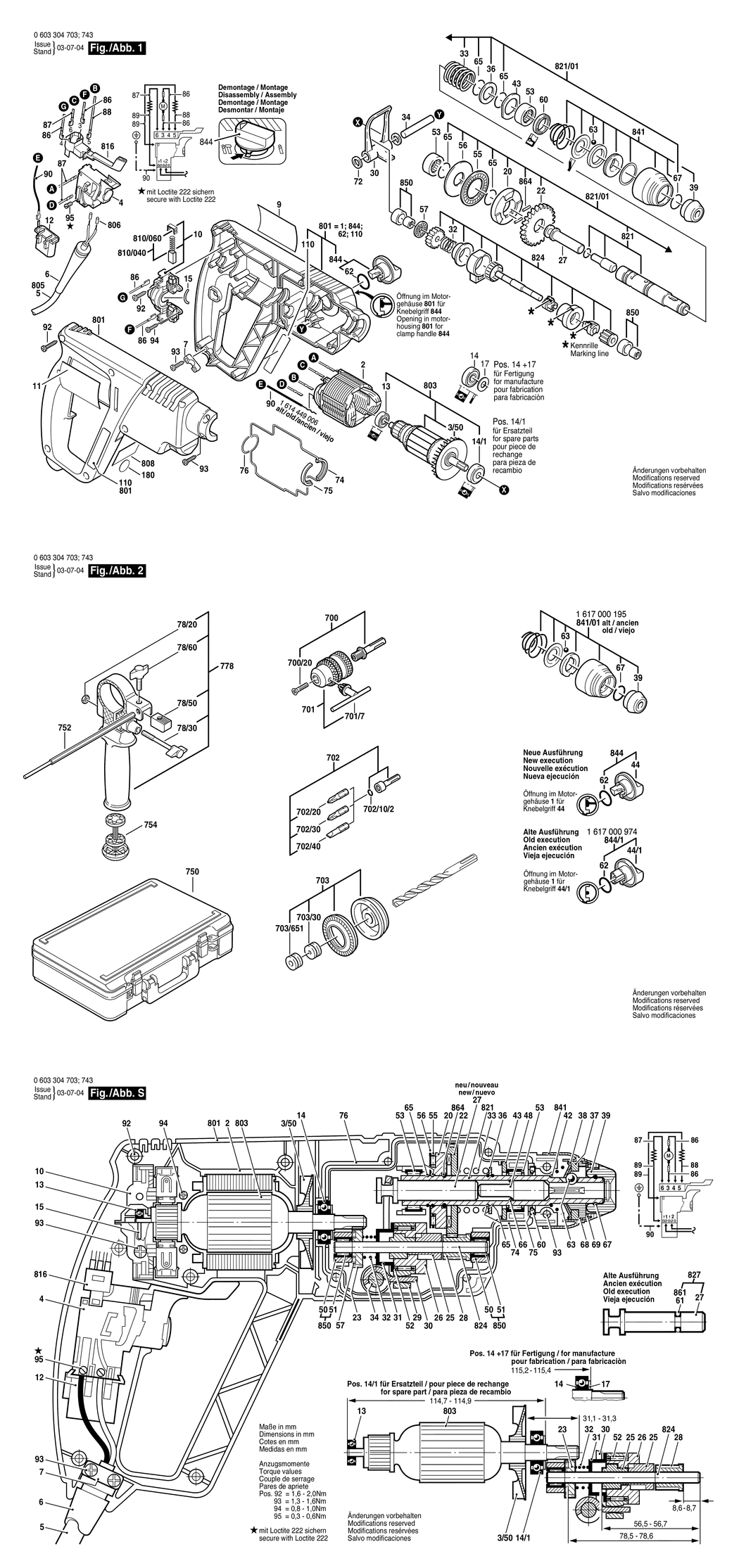

An exploded drawing and listing for the Bosch PBH 160 R / 0603304768 / EU 230 Volt
Ex VAT Inc VAT
2 - FIELD 220-240V BSD-2604220515.A18 2604220515 £21.68 £26.01
3/50 - FAN BSD-2606610022.A48 2606610022 £4.26 £5.11
4 - SWITCH BSD-2607200357.A26 2607200357 -
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A325 2600703018 £2.61 £3.13
7 - CABLE CLIP BSD-1611035005.A266 1611035005 £2.16 £2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1601118139.A1 1601118139 £3.80 £4.56
10 - BRUSH PLATE BSD-2605807060.A75 2605807060 -
11 - REFERENCE PLATE BSD-1601118140.A5 1601118140 £4.26 £5.11
12 - SUPPRESSION FILTER BSD-1607328040.A69 1607328040 £6.52 £7.83
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A305 1610905025 £6.52 £7.83
14/1 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A470 1610905048 £8.67 £10.41
15 - DAMPING RUBBER BSD-1610026001.A23 1610026001 £1.75 £2.10
20 - CATCH DISK BSD-1616409012.A74 1616409012 £5.87 £7.04
22 - CYLINDRICAL GEAR Z=51 BSD-1616317608.A33 1616317608 £6.52 £7.83
27 - STRIKER BSD-1618710068.A55 1618710068 £7.78 £9.33
30 - DRIVE LEVER BSD-1611911000.A86 1611911000 -
32 - COMPRESSION SPRING BSD-1614632001.A7 1614632001 -
33 - COMPRESSION SPRING BSD-1614634008.A74 1614634008 £1.95 £2.34
34 - BEARING PIN BSD-1613100021.A60 1613100021 £2.33 £2.80
36 - SUPPORTING DISC BSD-1610190021.A25 1610190021 £2.16 £2.59
39 - PROTECTIVE CAP BSD-1610508021.A70 1610508021 £1.95 £2.34
43 - SUPPORTING DISC BSD-1610190020.A52 1610190020 £1.95 £2.34
44 - CLAMP HANDLE BSD-1612026075.A9 1612026075 £3.34 £4.01
53 - NEEDLE BEARING BSD-1610910077.A100 1610910077 £4.26 £5.11
55 - ROLLER THRUST BEARING BSD-1610920012.A33 1610920012 £3.34 £4.01
56 - SUPPORT DISC 1.0 MM BSD-1610102030.A58 1610102030 £2.61 £3.13
57 - ROLLER THRUST BEARING BSD-1610920009.A65 1610920009 £3.34 £4.01
60 - SEAL RING BSD-1610280006.A58 1610280006 £3.34 £4.01
62 - O-RING 18.0x2.5 MM BSD-1610210125.A86 1610210125 £1.95 £2.34
63 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A338 1903230013 £2.16 £2.59
65 - RETAINING RING BSD-1614601018.A63 1614601018 £1.66 £1.99
67 - SPRING RETAINING RING BSD-1614601077.A59 1614601077 £1.75 £2.10
72 - SHIM WASHER 1.0 MM BSD-1610100007.A95 1610100007 £1.75 £2.10
74 - SEALING FRAME BSD-1611015040.A3 1611015040 -
75 - SEALING FRAME BSD-1611015041.A35 1611015041 £1.95 £2.34
76 - SEALING FRAME BSD-1611015042.A11 1611015042 -
78/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A430 2915011007 -
78/30 - WING SCREW M6x(15)55 BSD-1613480007.A155 1613480007 £1.75 £2.10
78/50 - CLAMPING PLATE M6 BSD-2608040014.A107 2608040014 -
78/60 - WING SCREW M6x20 MM BSD-1613480008.A277 1613480008 £1.75 £2.10
86 - CONNECTING CABLE L=85 MM BSD-2604448147.A63 2604448147 £1.75 £2.10
87 - CONNECTING CABLE L=115MM BSD-2604448096.A81 2604448096 -
88 - CONNECTING CABLE L=88 MM BSD-2604448034.A67 2604448034 £1.75 £2.10
89 - CABLE L=173 MM BSD-2604448060.A267 2604448060 -
90 - EARTH CONDUCTOR BSD-2604448170.A121 2604448170 -
92 - TAPPING SCREW DIN7981-ST3.9x22-C-Z BSD-2912401021.A176 2912401021 £1.75 £2.10
93 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A171 2912401019 £1.75 £2.10
94 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A836 2603490017 £2.16 £2.59
95 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1762 2603410001 £1.75 £2.10
110 - REFERENCE PLATE BSD-1601118B75.A22 1601118B75 £1.95 £2.34
700 - DRILL CHUCK SHANK 1/2 BSD-1617000154.A2 1617000154 £31.64 £37.97
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A412 2603421226 £1.75 £2.10
701 - CHUCK BSD-1608571088.A281 1608571088 £27.23 £32.68
701/7 - CHUCK WRENCH SG2 BSD-2607950007.A277 2607950007 £6.52 £7.83
702 - PARTS SET BSD-1617000133.A43 1617000133 -
702/10/2 - RETAINING RING BSD-2604601004.A320 2604601004 £1.75 £2.10
702/20 - SCREWDRIVER BLADE NR.2.1/4 BSD-1608521004.A128 1608521004 -
702/30 - SCREWDRIVER BIT BSD-2607000248.A17 2607000248 -
702/40 - SCREWDRIVER BLADE GR.1.0x6. 1/4 BSD-1608511020.A1 1608511020 -
703 - DUST TRAY BSD-1615439003.A131 1615439003 -
703/30 - RUBBER BUSHING dia5-7 MM BSD-1610312001.A88 1610312001 -
703/651 - RUBBER BUSHING dia8-10 MM BSD-1610312002.A51 1610312002 -
750 - CARRYING CASE BSD-2605438387.A4 2605438387 -
752 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A163 1613001005 -
754 - DRILL HOLDER BSD-2607000122.A4 2607000122 -
754 - DRILL HOLDER BSD-2607018117.A31 2607018117 -
778 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A186 1619P10682 £12.49 £14.99
778 - AUXILIARY HANDLE dia 43 MM BSD-1612025034.A4 1612025034 -
801 - HOUSING SECTION BSD-1617000362.A8 1617000362 -
803 - ARMATURE 220-230V BSD-1614010144.A8 1614010144 -
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A80 1614460026 £18.96 £22.75
806 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A312 1900452012 £1.75 £2.10
808 - NAMEPLATE BSD-160111A3H5.A247 160111A3H5 £2.61 £3.13
810/040 - CARBON-BRUSH SET BSD-1617014136.A13 1617014136 £12.04 £14.45
810/060 - RATCHET CAP BSD-2601322017.A13 2601322017 £1.75 £2.10
810/060 - RATCHET CAP BSD-2601322013.A480 2601322013 £1.75 £2.10
816 - CHANGE-OVER SWITCH BSD-2607200231.A40 2607200231 £16.41 £19.69
821 - HAMMER PIPE BSD-1617000320.A45 1617000320 -
821/01 - HAMMER PIPE BSD-1617000349.A23 1617000349 -
824 - JACK SHAFT BSD-1617000972.A6 1617000972 -
841 - PROTECTION SLEEVE BSD-1617000303.A31 1617000303 £14.91 £17.89
844 - CLAMP HANDLE BSD-1617000322.A18 1617000322 £3.72 £4.47
844/1 - CLAMP HANDLE BSD-1617000974.A11 1617000974 -
850 - BUSHING BSD-1617000975.A59 1617000975 £6.61 £7.93
864 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A98 1613100019 £1.75 £2.10
